RAM-B-149Z-BC1U

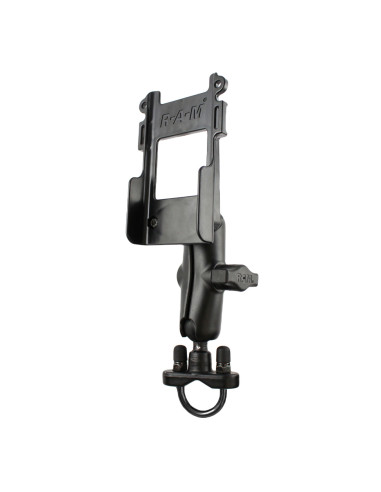

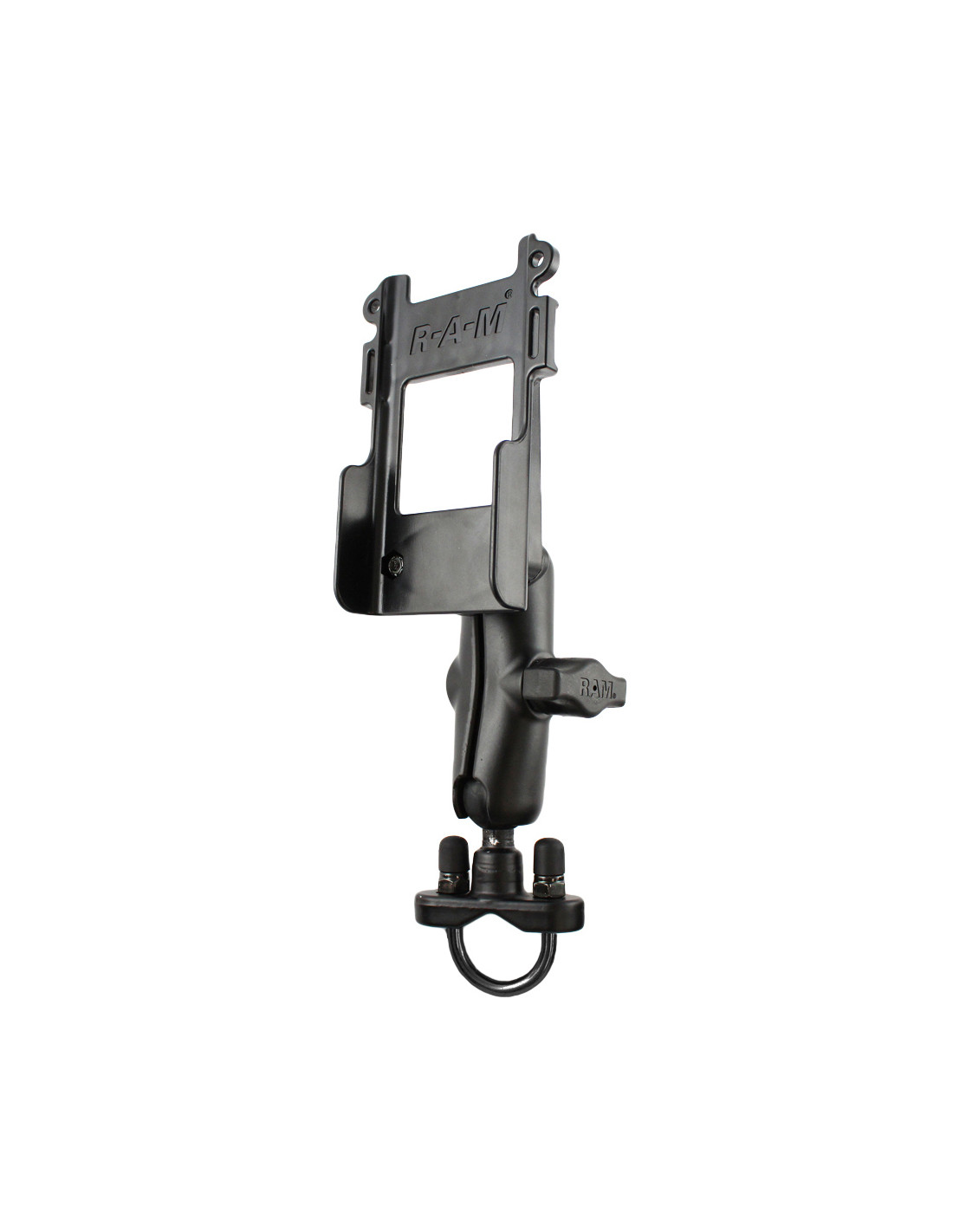

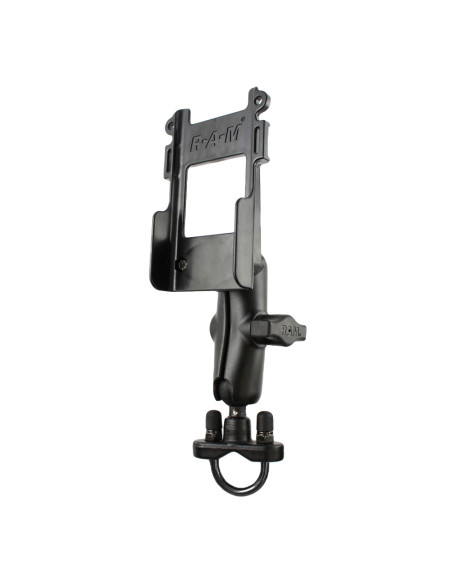

The RAM-B-149Z-BC1U consists of our medium length B-size double socket arm with our Handlebar U-Bolt Base for Rails 0.5" to 1.25" in Diameter and our Universal Belt Clip Holder for hand held devices .

Components
RAM-B-201U
RAM-B-231ZU
RAM-B-238U
RAM-HOL-BC1U
Device Type
Radio
Product Type
Radio Mounts
Vehicle Type
Motorcycle
Ball Size
B Size (1")
Clamp Range
.5" - 1.25" diameter
Hardware Included
(1) 1/4"-20 U-Bolt for .5" - 1" Rails
(1) 1/4"-20 U-Bolt for 1" - 1.25" Rails
(1) U-Bolt Spacer
(2) 1/4"-20 Nyloc Nuts
(2) Rubber Caps
Assembly Hardware
Holder Dimensions
Width Range: 2.45" max
Materials
Marine-grade aluminum
High strength composite
Packaging Type
Poly Bag
Product Weight
0.61 lb
Socket To Socket Length
3"
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
793442003509
