RAM® Twist-LockT Triple Suction Mount with 100x100mm VESA Plate - Short
  • Nuevo
RAM® Twist-LockT Triple Suction Mount with 100x100mm VESA Plate - Short

RAM® Twist-LockT Triple Suction Mount with 100x100mm VESA Plate - Short

RAM-101U-B-SPX1

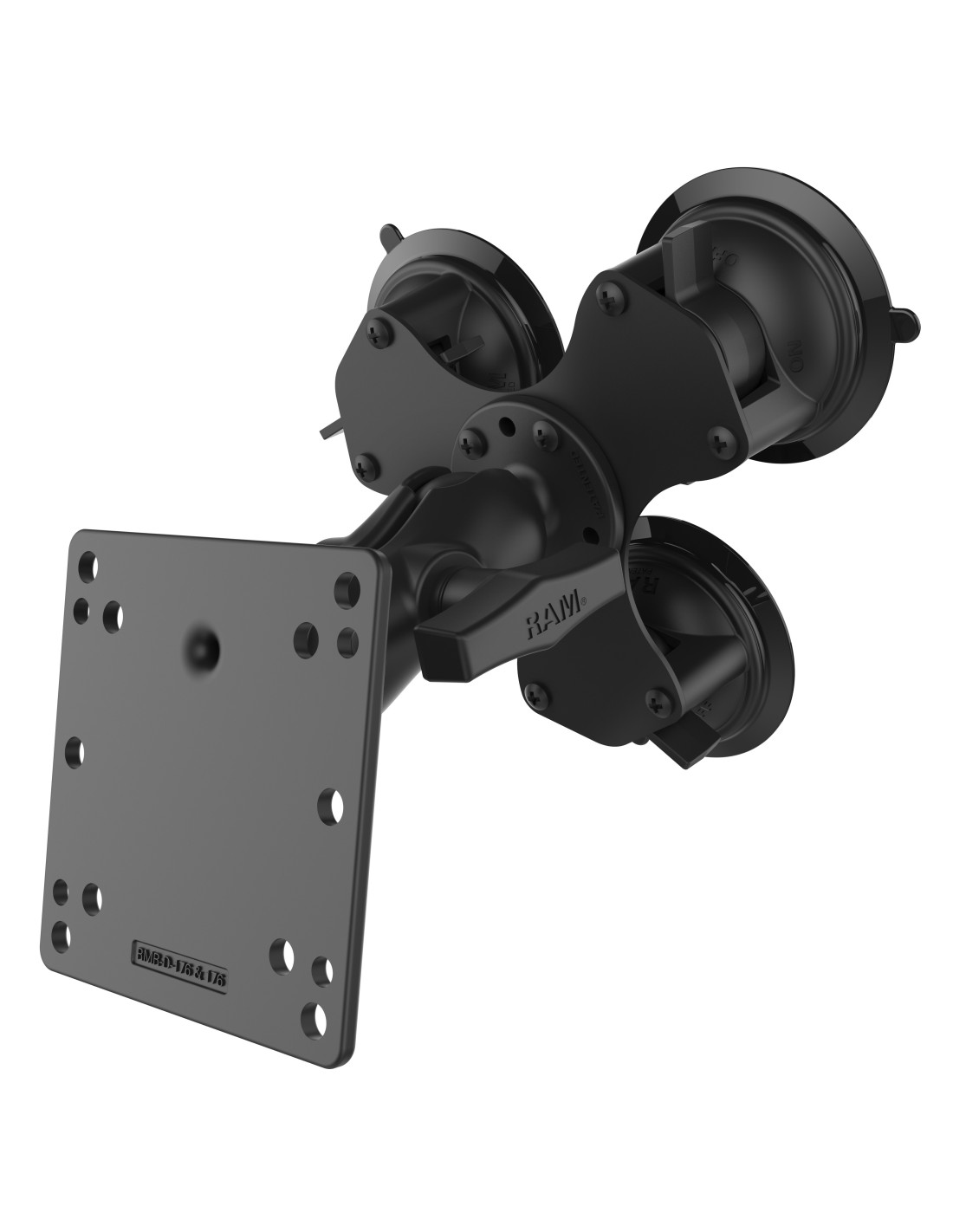

The RAM-101U-B-SPX1 consists of a triple 3.3" suction cup locking base, SHORT length double socket arm and 4.75" square plate with the VESA hole pattern. The triple suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces. The VESA plate contains a 75mm X 75mm and 100mm X 100mm hole pattern. The mount is designed with a RAM 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm.

Components
RAM-201U-B
RAM-224-3U
RAM-246U
Device Type
Monitor
Product Line
Twist-LockT
Product Type
Monitor Mounts
Ball Size
C Size (1.5")
Hardware Included
(4) .312" x .187" Shoulder Washers
Assembly Hardware
Hole Pattern
See Drawing
Materials
Marine-grade aluminum
Powder coated steel
High strength composite
Packaging Type
Poly Bag
Product Weight
2.24 lb
Socket To Socket Length
2.5"
Suction Size
(3) 3.3" Diameter Bases, Total Width 7.95"
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442916137
