RAM-B-111U

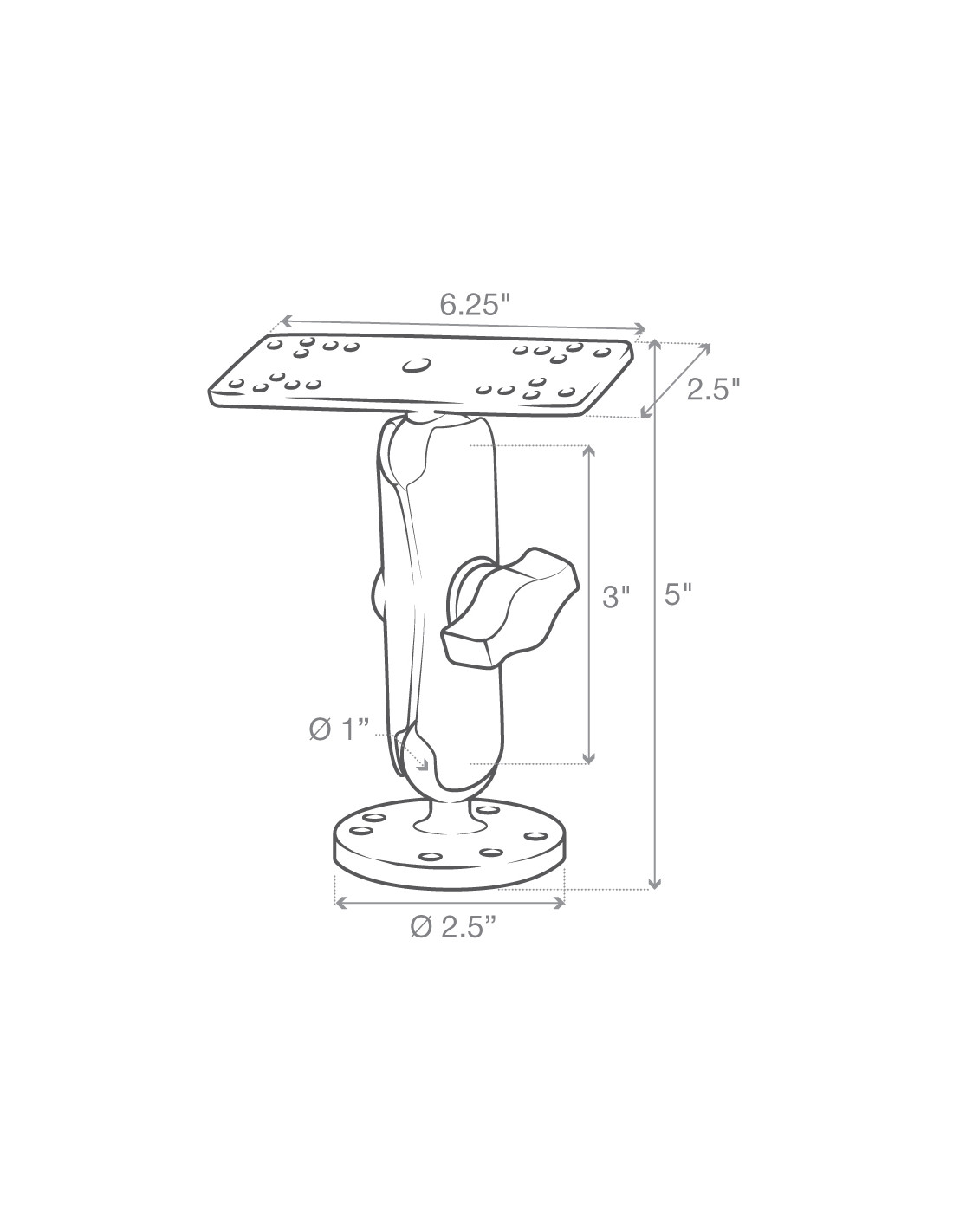

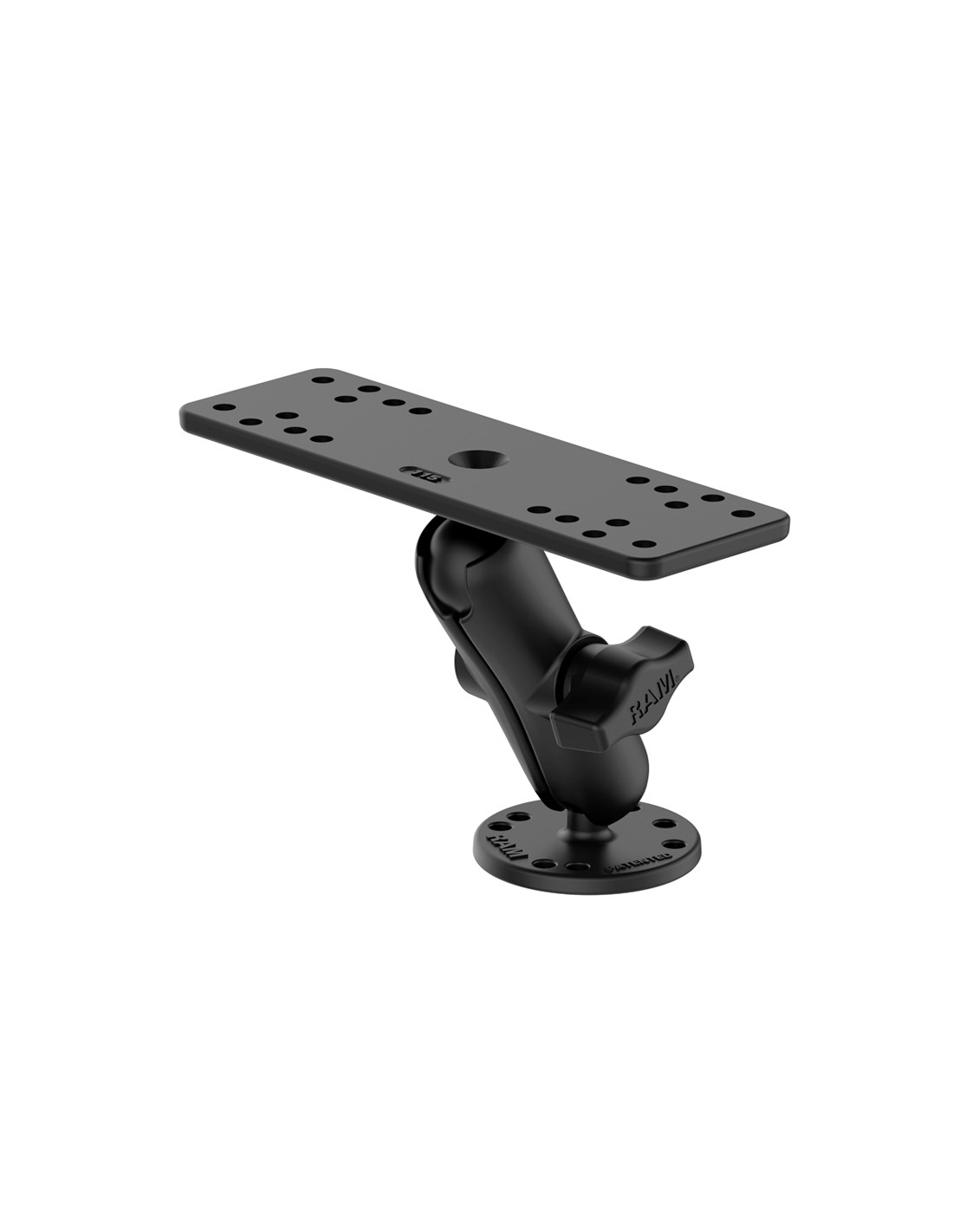

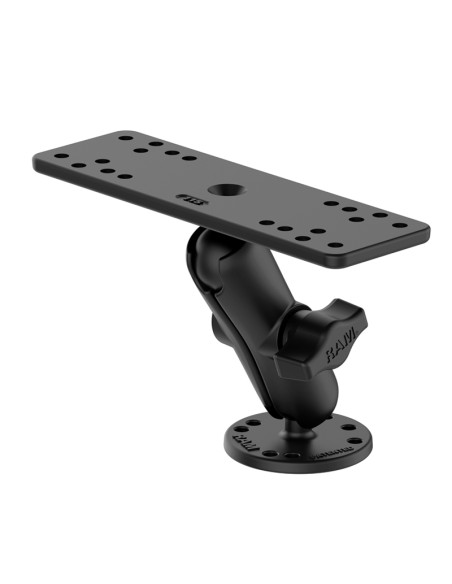

The RAM Universal Marine Electronic Mount (RAM-B-111U) is a kit intended for lightweight mounting for marine GPSes, CB radios, ham radios, gimbal brackets, and more. It comes with a 2.5" diameter, drill-down base, double socket arm, and 6.25" x 2" adapter plate. The drill-down base features 2-hole and 4-hole universal AMPS hole patterns. The adapter plate is pre-drilled with multiple hole combinations, including the universal AMPS hole pattern, that will match up with electronic devices or manufacturer-provided brackets. The kit is made entirely of black, powder-coated aluminum long-term durability in fresh and salt water.

  • Complete flat surface, drill-down mounting solution with an overall height of 5"

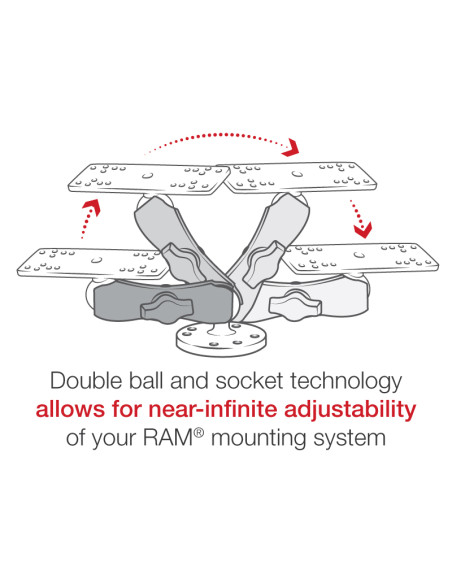

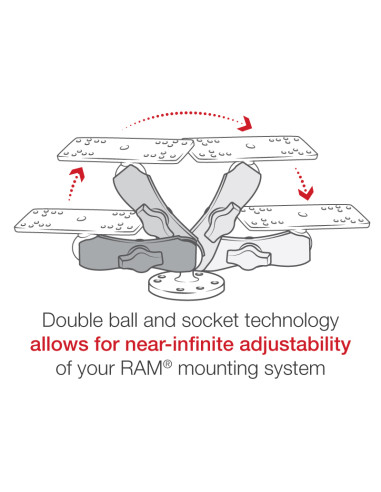

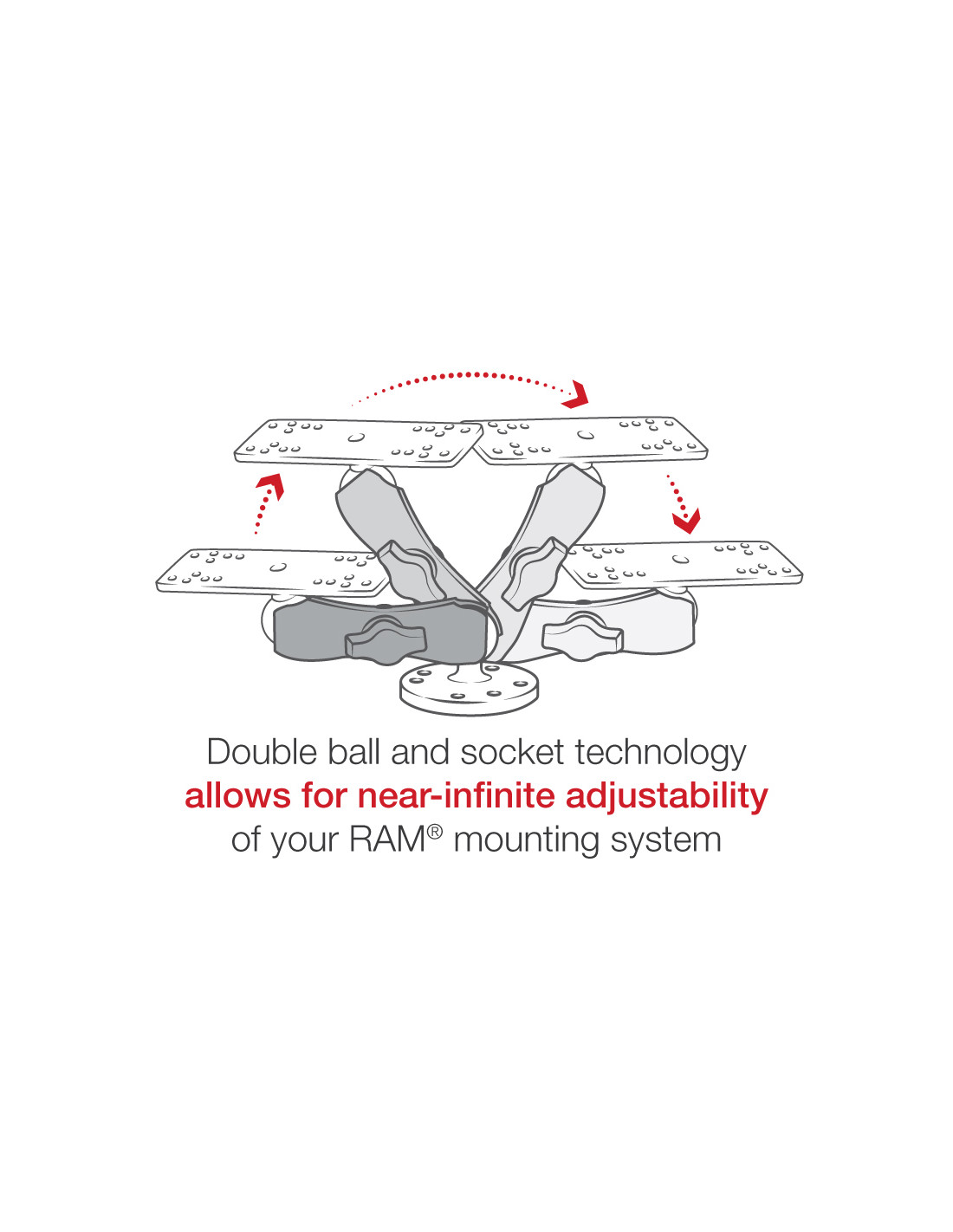

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

Components
RAM-B-111BU
RAM-B-201U
RAM-B-202U
Device Type
Chartplotter
Fishfinder
Product Type
Fish Finder Mounts
Vehicle Type
Kayak
Power Boat
Ball Size
B Size (1")
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"

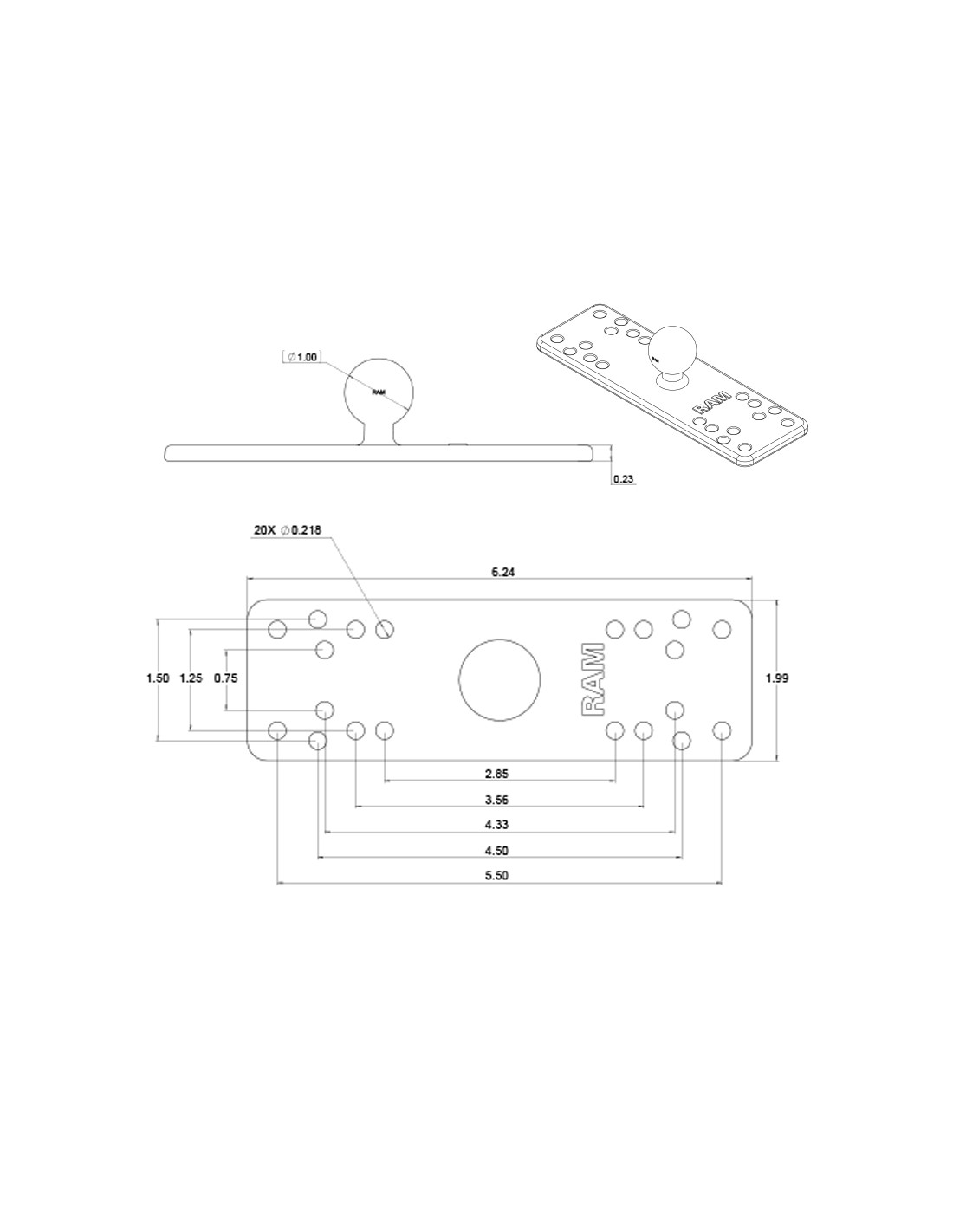

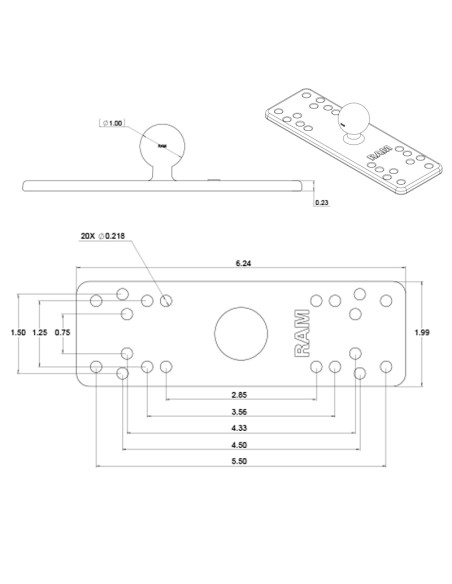

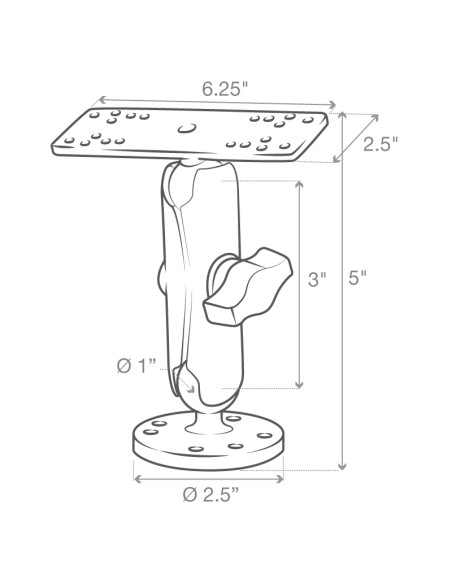

See Drawing
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Plate Size
Bottom Plate: 2.5" Diameter
Top Plate: 6.25" x 2.5"
Product Dimensions
Overall Height: 5"
Product Weight
0.71 lb
Socket To Socket Length
3"
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs

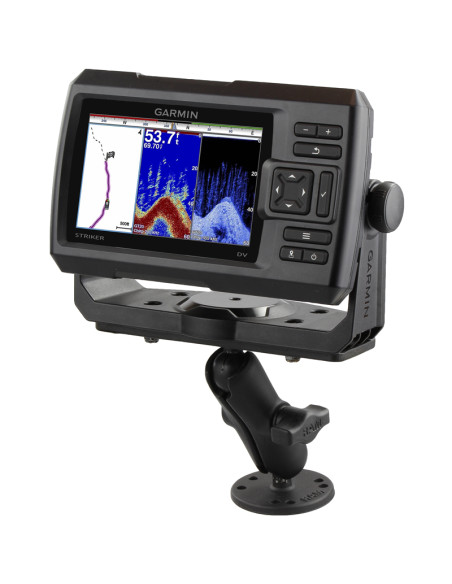

Device Compatibility
Garmin GPSMAP 162
Garmin GPSMAP 168
Garmin GPSMAP 175
Garmin GPSMAP 180
Garmin GPSMAP 180C
Garmin GPSMAP 182
Garmin GPSMAP 185
Garmin GPSMAP 188
Garmin GPSMAP 232
Garmin GPSMAP 238
Garmin Striker 5 Series
Garmin Striker Plus 5cv
Garmin Striker Vivid 5cv
