RAM-B-107U

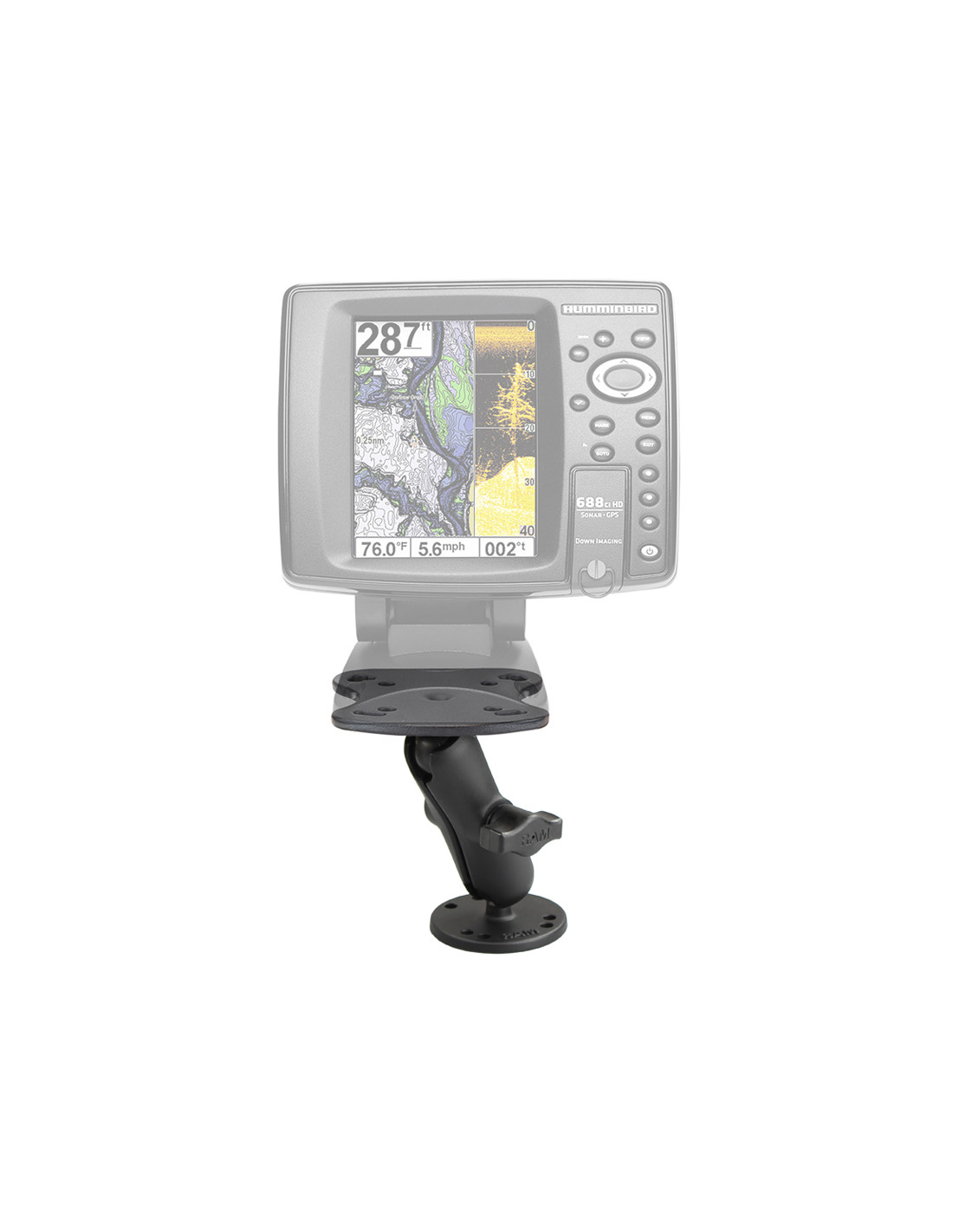

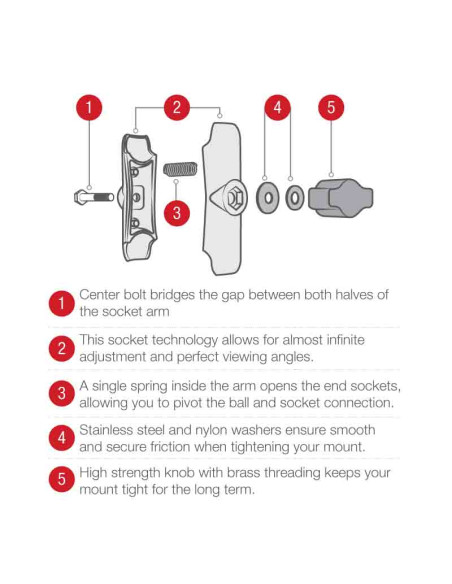

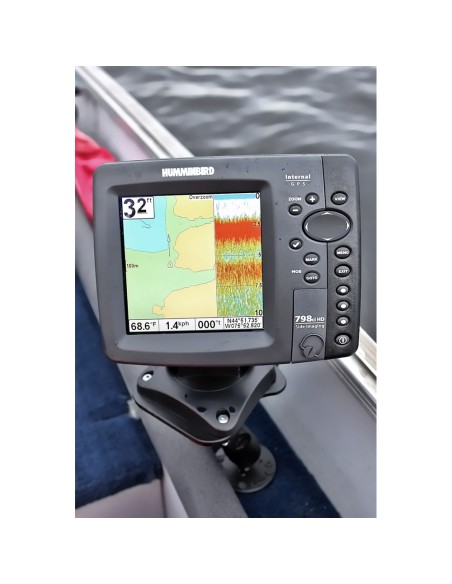

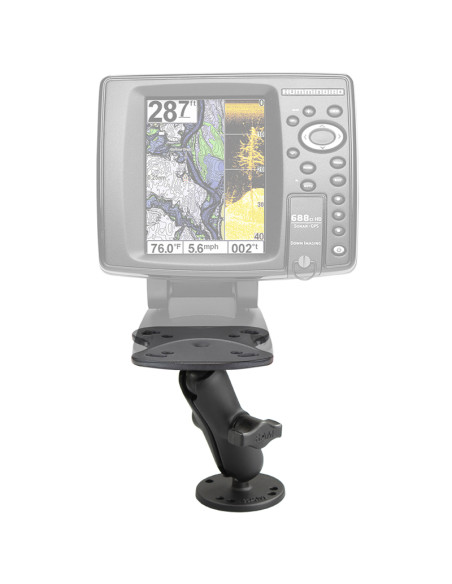

The RAM Fish Finder Mount for Humminbird Devices - B Size Medium (RAM-B-107U) is a light-duty solution for securing smaller marine electronics to your vessel. It includes a device-specific ball base, a medium-length double socket arm, and a 2.5" diameter round drill-down ball base with the universal AMPS hole pattern. The mount is fully adjustable, allowing users to quickly dial in their ideal viewing angle. Compatible devices include Humminbird 100, 300, 500, 600, and 700 series; Humminbird Matrix Series (excluding Matrix 97); Lowrance Elite-5, -5M, and -5X; and Raymarine Apelco fish finder units with a matching hole pattern.

  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Components
RAM-B-107BU
RAM-B-201U
RAM-B-202U
Device Type
Chartplotter
Fishfinder
Product Type
Fish Finder Mounts
Vehicle Type
Kayak
Power Boat
Ball Size
B Size (1")
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
See Drawing
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Plate Size
Fish finder Plate: 4.25" x 3.81"
Round Plate: 2.5" Diameter
Product Dimensions
Overall Height: 5"
Product Weight
0.77 lb
Socket To Socket Length
3"
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
Device Compatibility
Humminbird 100 Series
Humminbird 300 Series
Humminbird 500 Series
Humminbird 600 Series
Humminbird 700 Series
Humminbird Matrix Series (excluding Matrix 97)
Lowrance Elite-5
Lowrance Elite-5M
Lowrance Elite-5X
Raymarine Apelco Fishfinder with matching hole pattern
