RAM® Drill-Down Double Ball Mount for Lowrance MB-7 Sonar
RAM-B-101-L1

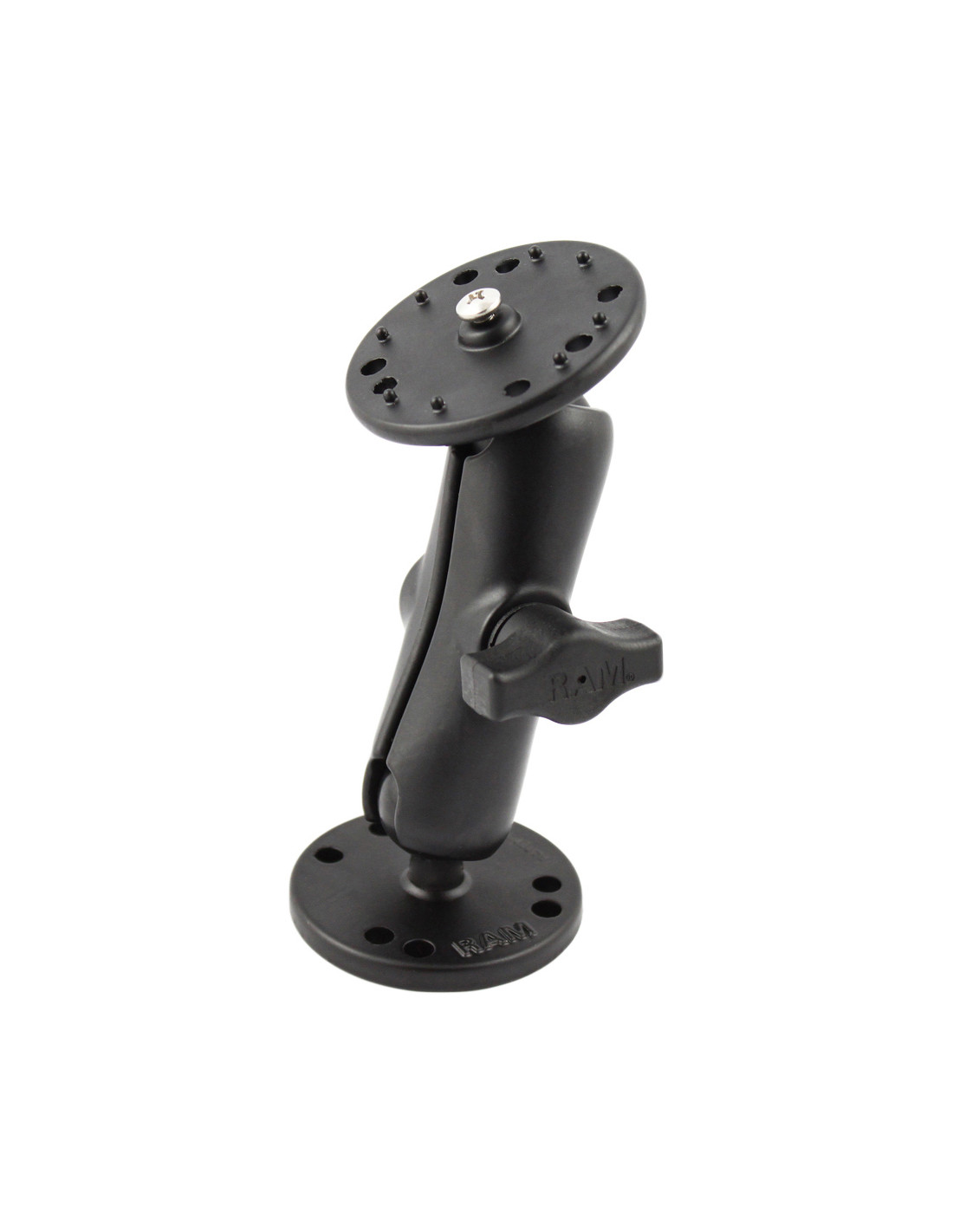

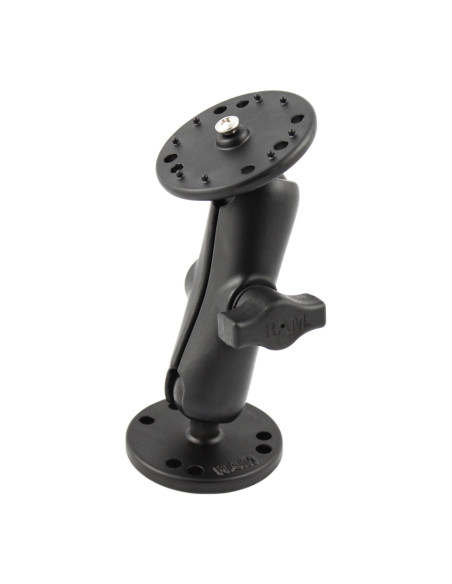

The RAM-B-101-L1 consists of a medium length B-size arm with a 2.5" diameter round plate with universal AMPS hole pattern and a round plate that attaches to the gimbal bracket for a Lowrance MB-7 Sonar unit.
- Components
- RAM-B-201U
RAM-B-202U - Product Type
- Fish Finder Mounts
- Ball Size
- B Size (1")
- Hardware Included
- (1) #10-24 x 3/8" Machine Screw
- Hole Pattern
- 3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496" - Materials
- Marine-grade aluminum
- Packaging Type
- Retail Bag
- Product Dimensions
- Overall Height: 5"
- Product Weight
- 0.58 lb
- Socket To Socket Length
- 3"
- Weight Capacity
- Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
793442110139
