RAM® Round Post Clamp Mount with Round Plate
  • Nuevo
RAM® Round Post Clamp Mount with Round Plate

RAM® Round Post Clamp Mount with Round Plate

RAM-101U-271-12

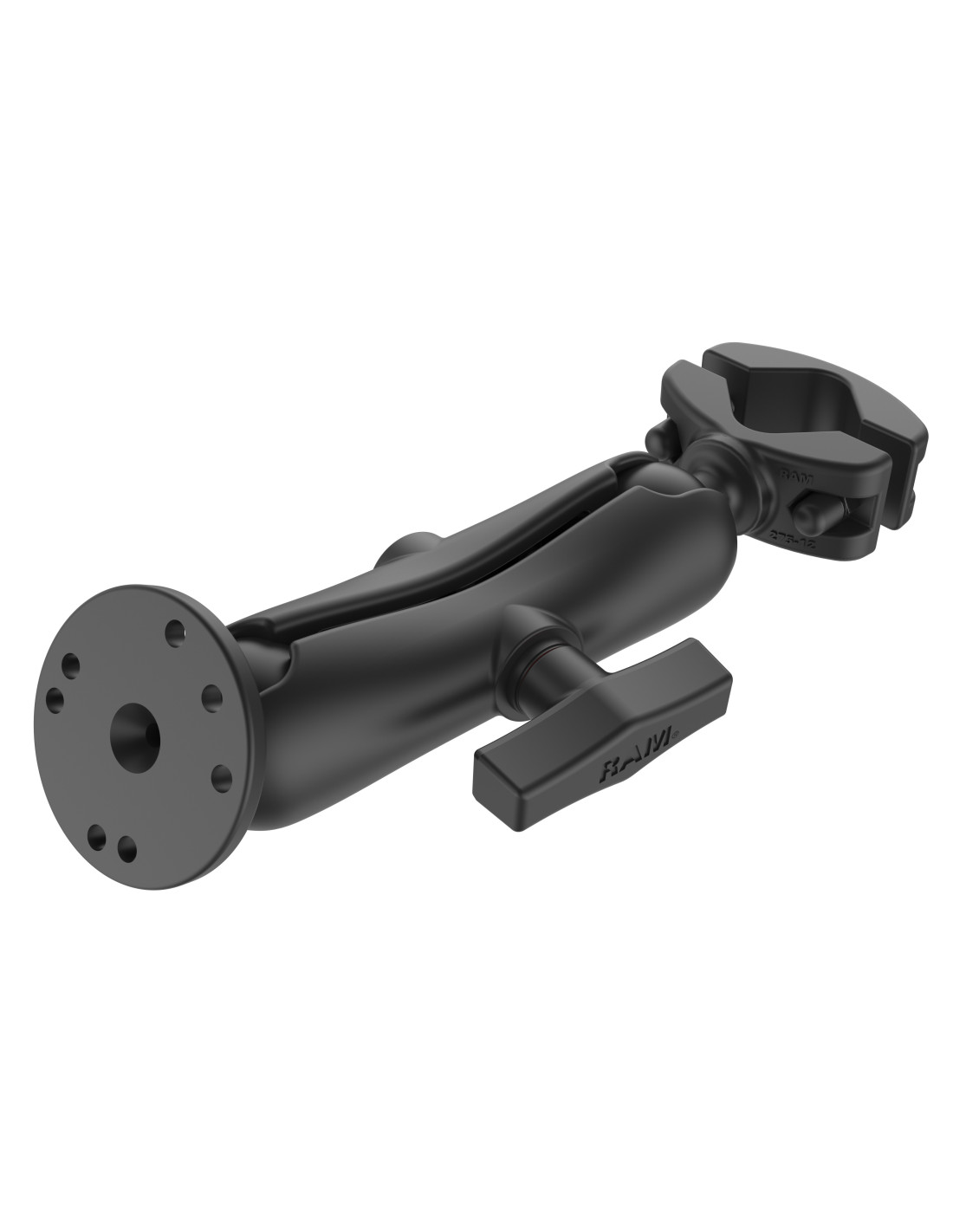

The RAM-101U-271-12 consists of a double socket arm, a 2.5" diameter round base, and a clamping base compatible with rails from 1.25" and 1.875" in diameter

Components
RAM-201U
RAM-202U
RAM-271U-12
Product Type
Universal Mounts
Vehicle Type
ATV
UTV
Ball Size
C Size (1.5")
Clamp Range
1.25" - 1.875" diameter
Hardware Included
(2) 1/4"-20 Nylock Nuts
(2) 1/4"-20 x 1.5" Machine Screws
(2) Rubber Caps
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Product Weight
1.55 lb
Socket To Socket Length
4.66"
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442929885
