RAM-HOL-SAM58CPT-2AU


The RAM Thin-Dock Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPT-2AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contactssimply dock the device for a seamless charging experience. Add up to two peripherals with the built-in dual USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: RAM Vent-Temp, RAM NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is an USB-C to USB Type-A extension cord, cable clamp, and zip ties for cable management.

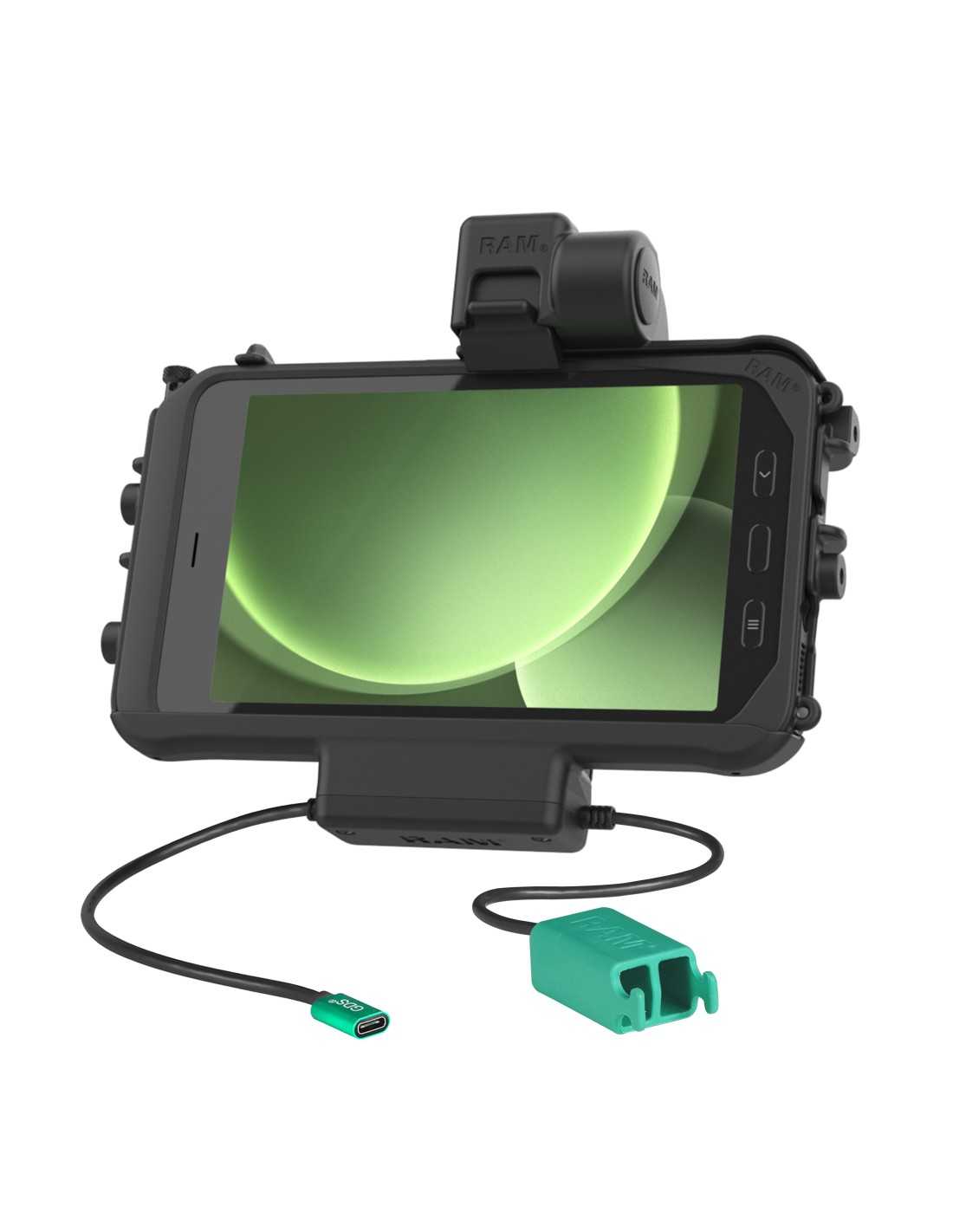

  • Form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® SkinT

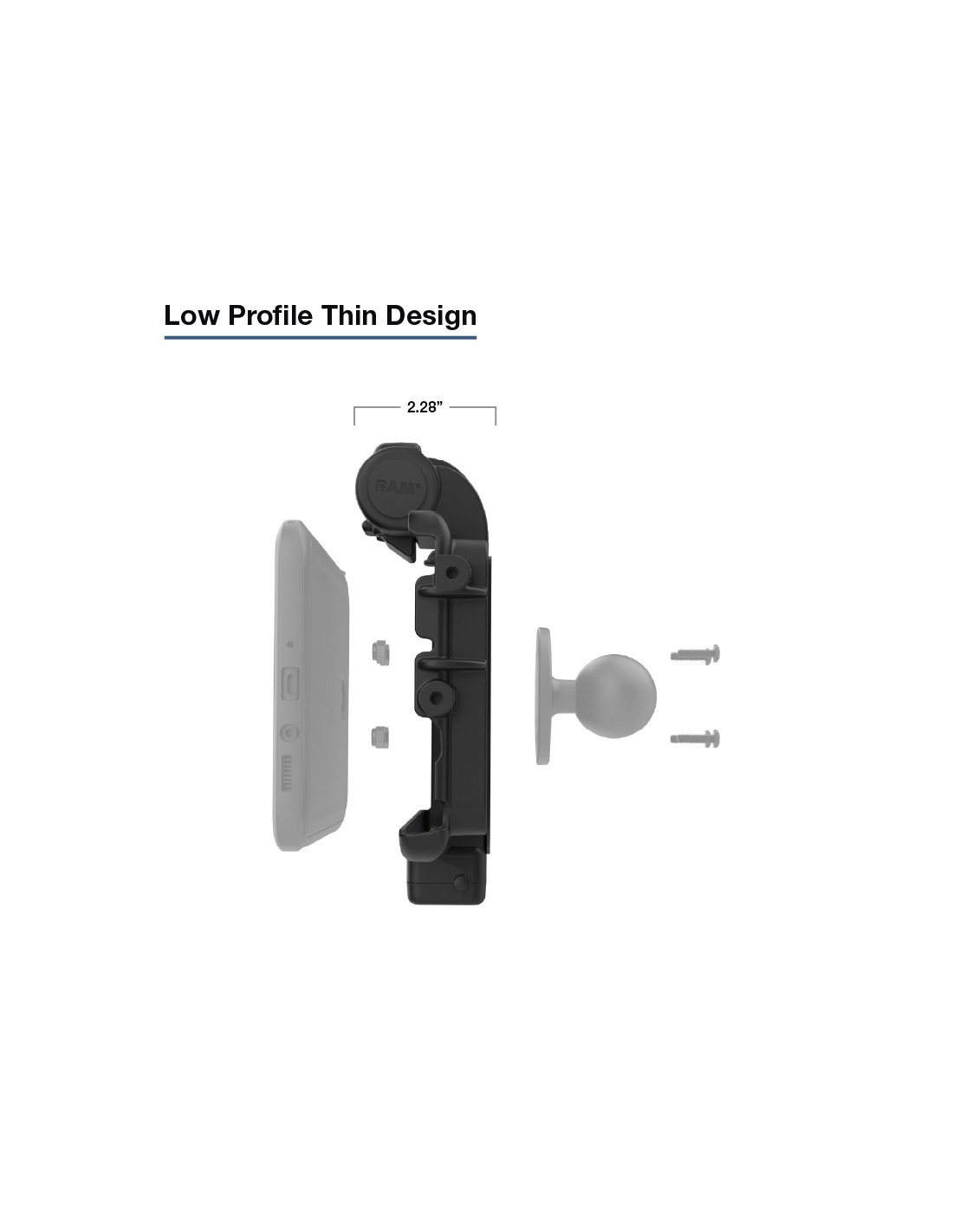

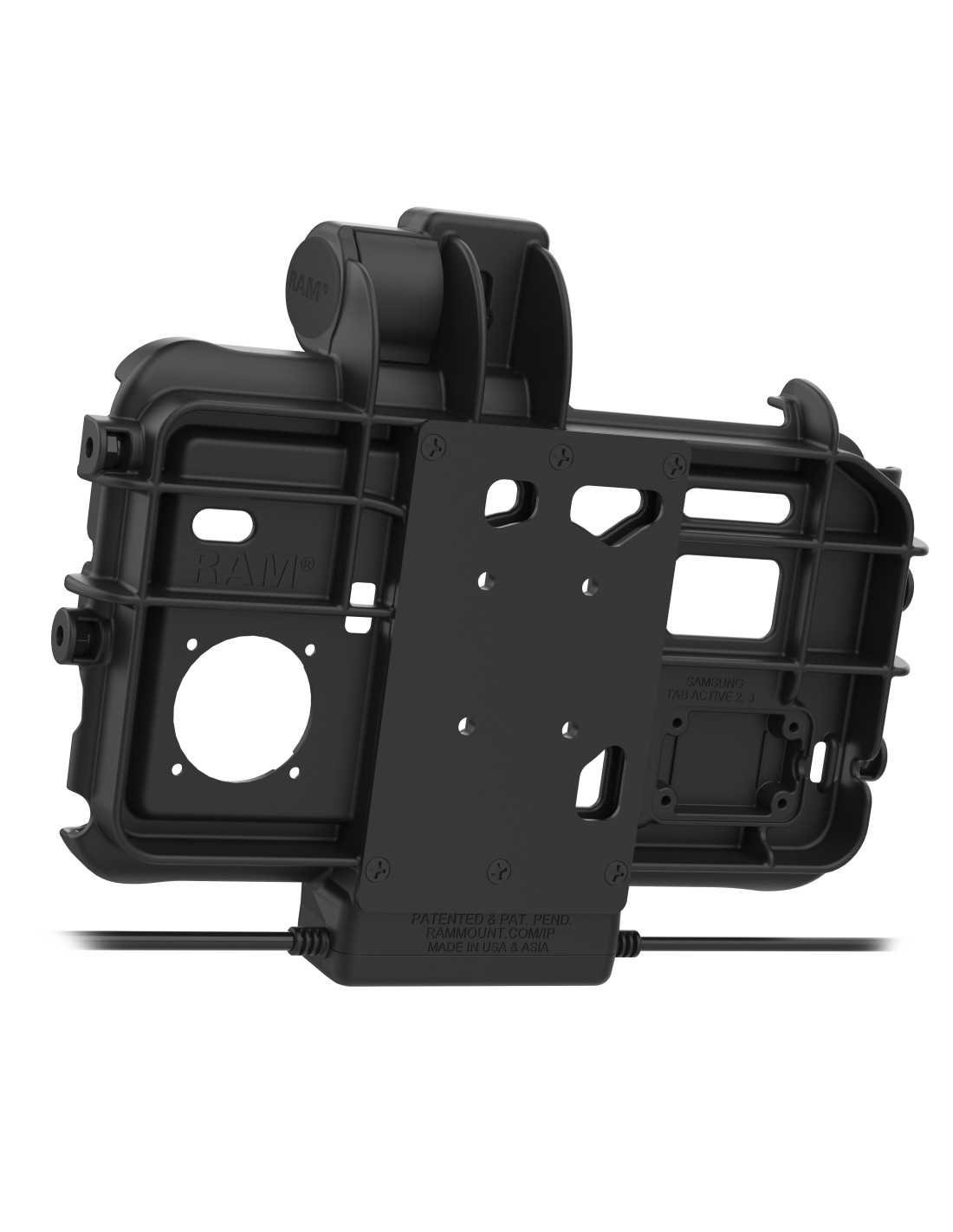

  • Slim-profile design at 2.28" depth with metal reinforcement plate

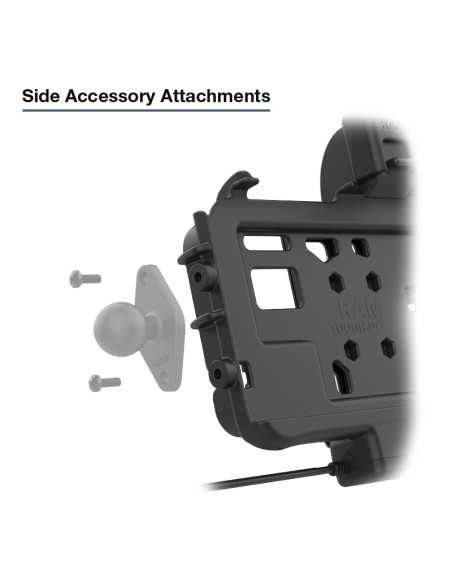

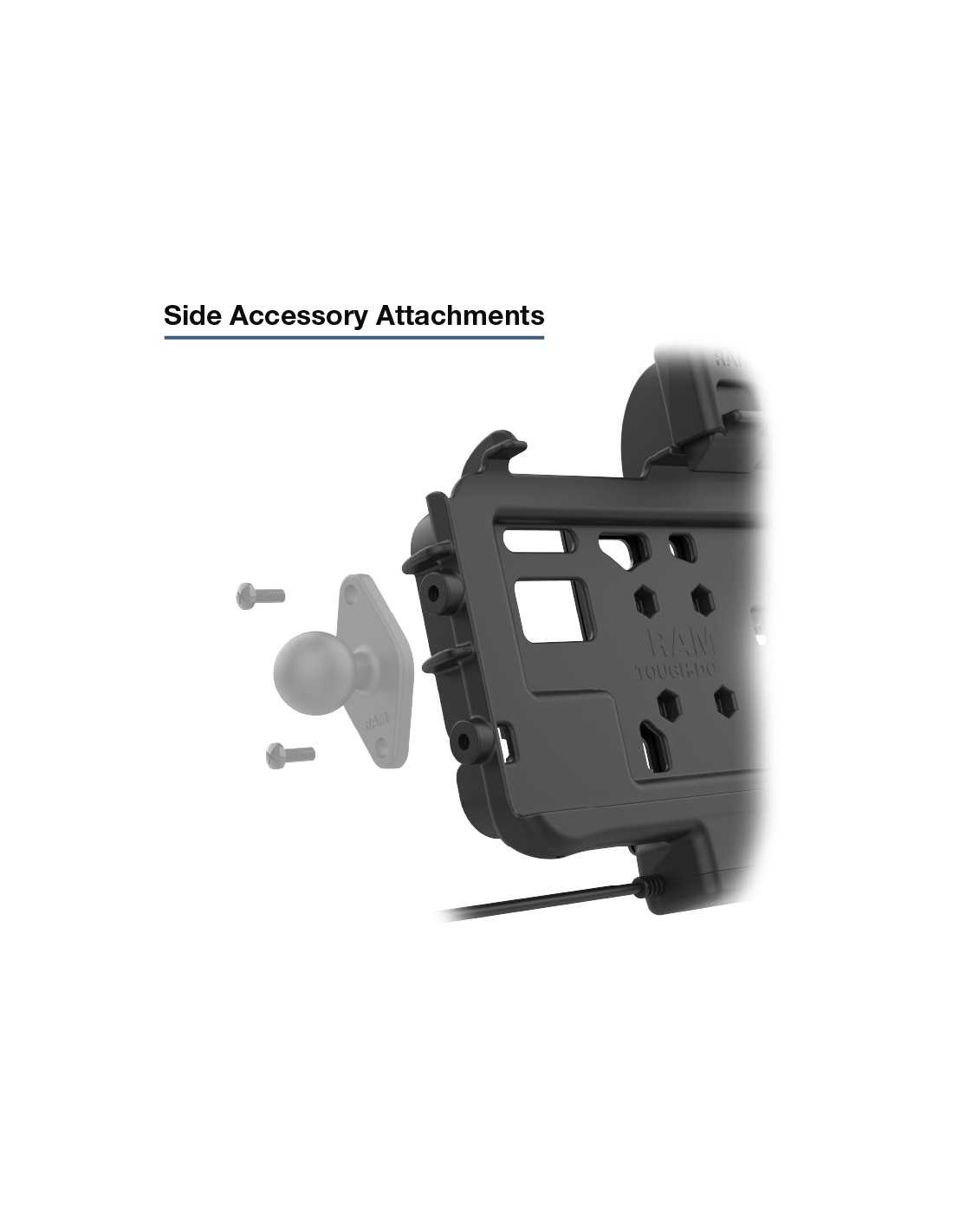

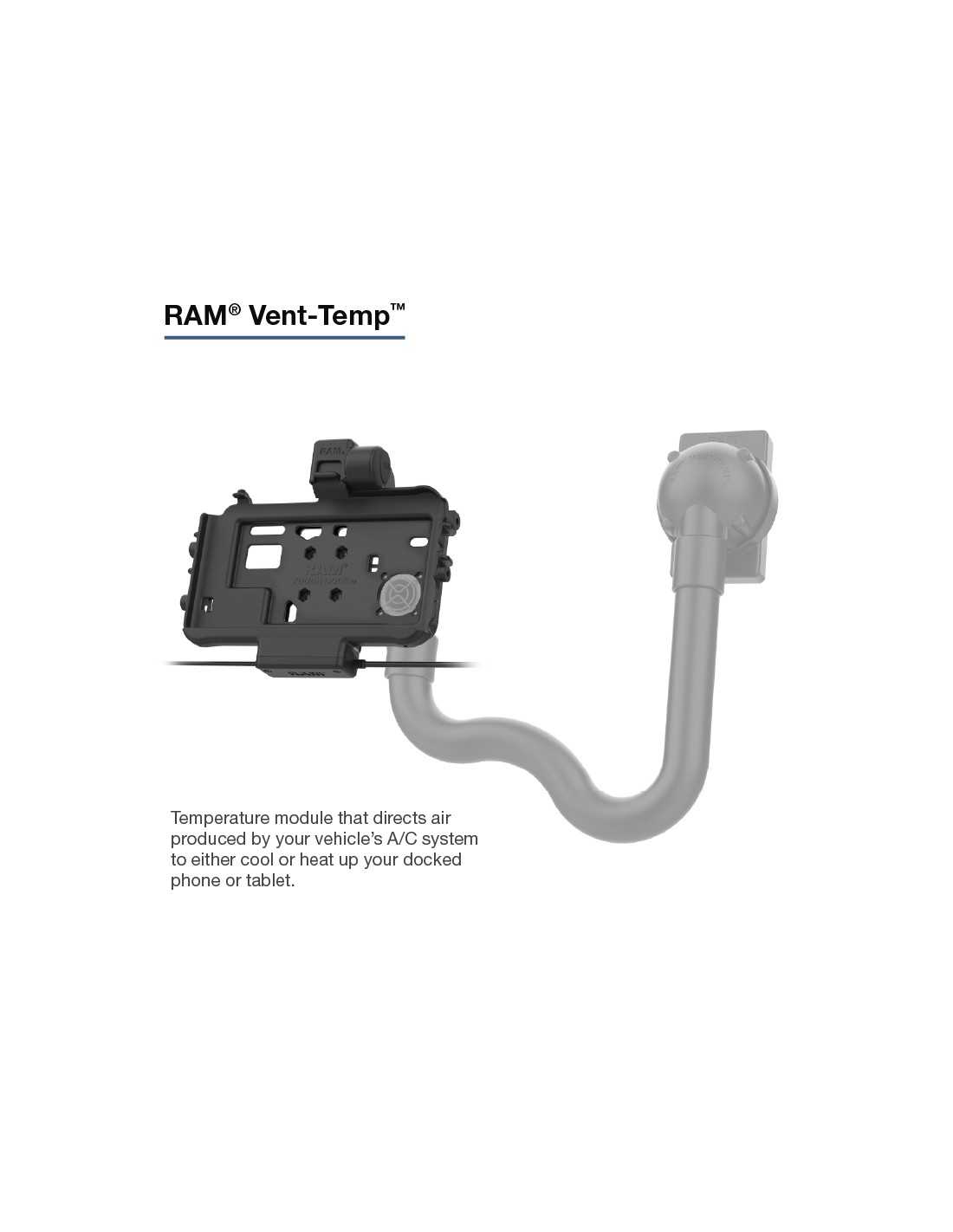

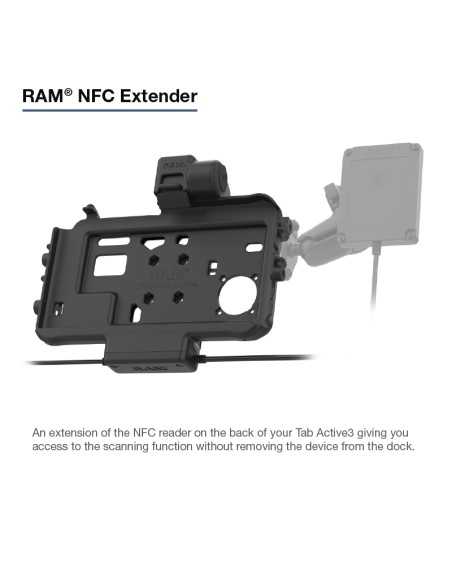

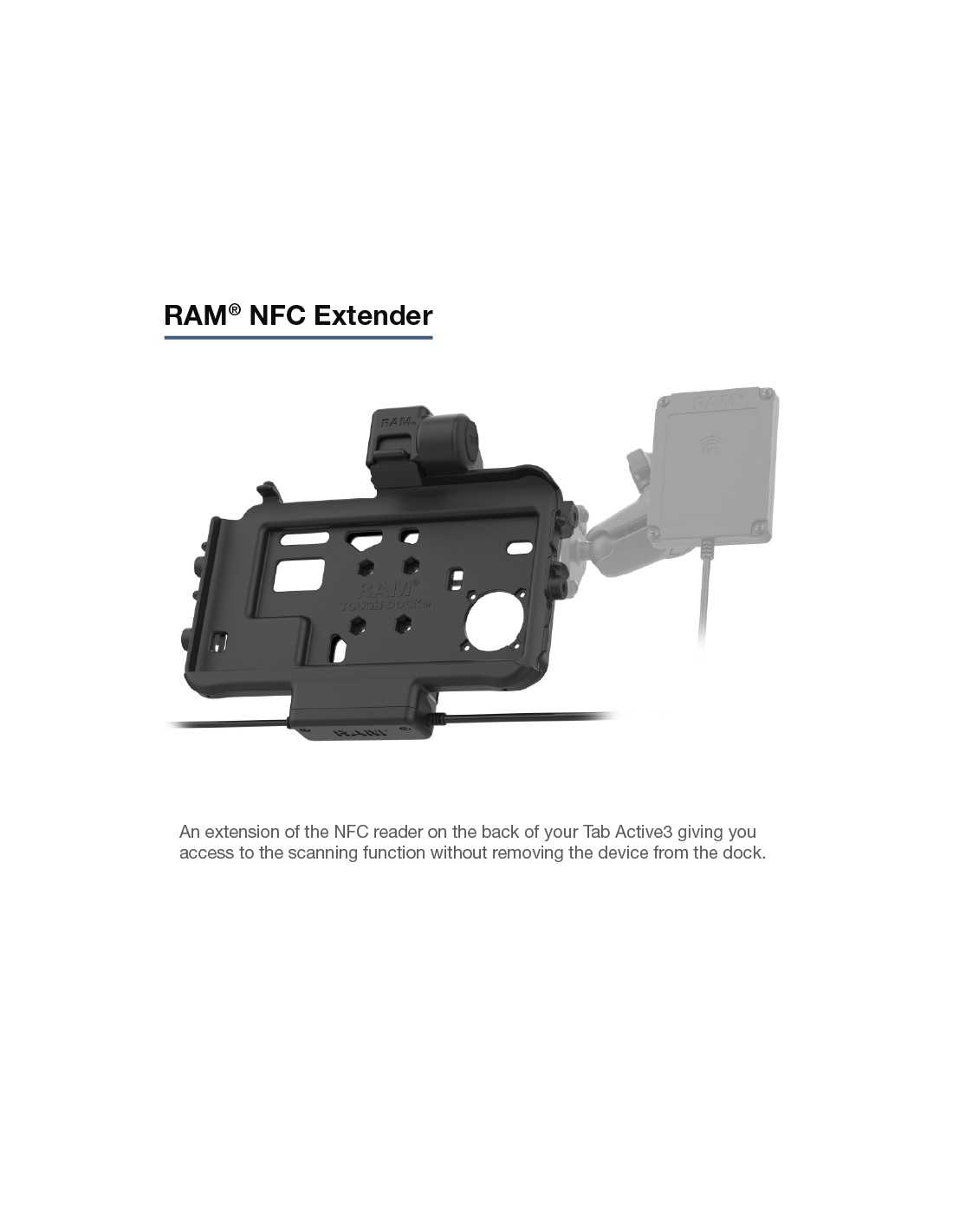

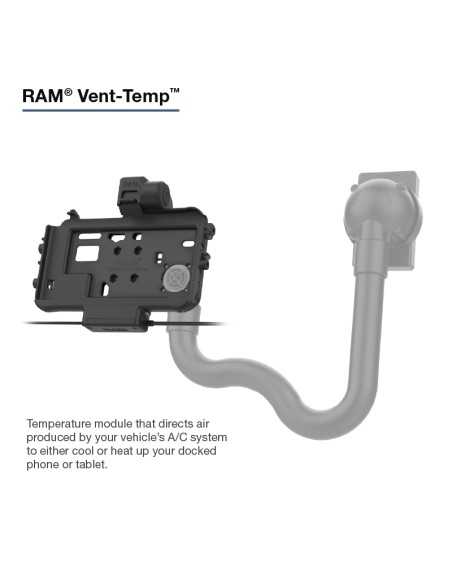

  • Compatible with most RAM® dock accessories including RAM® Vent-TempT, RAM® NFC Extender, and side accessory attachments

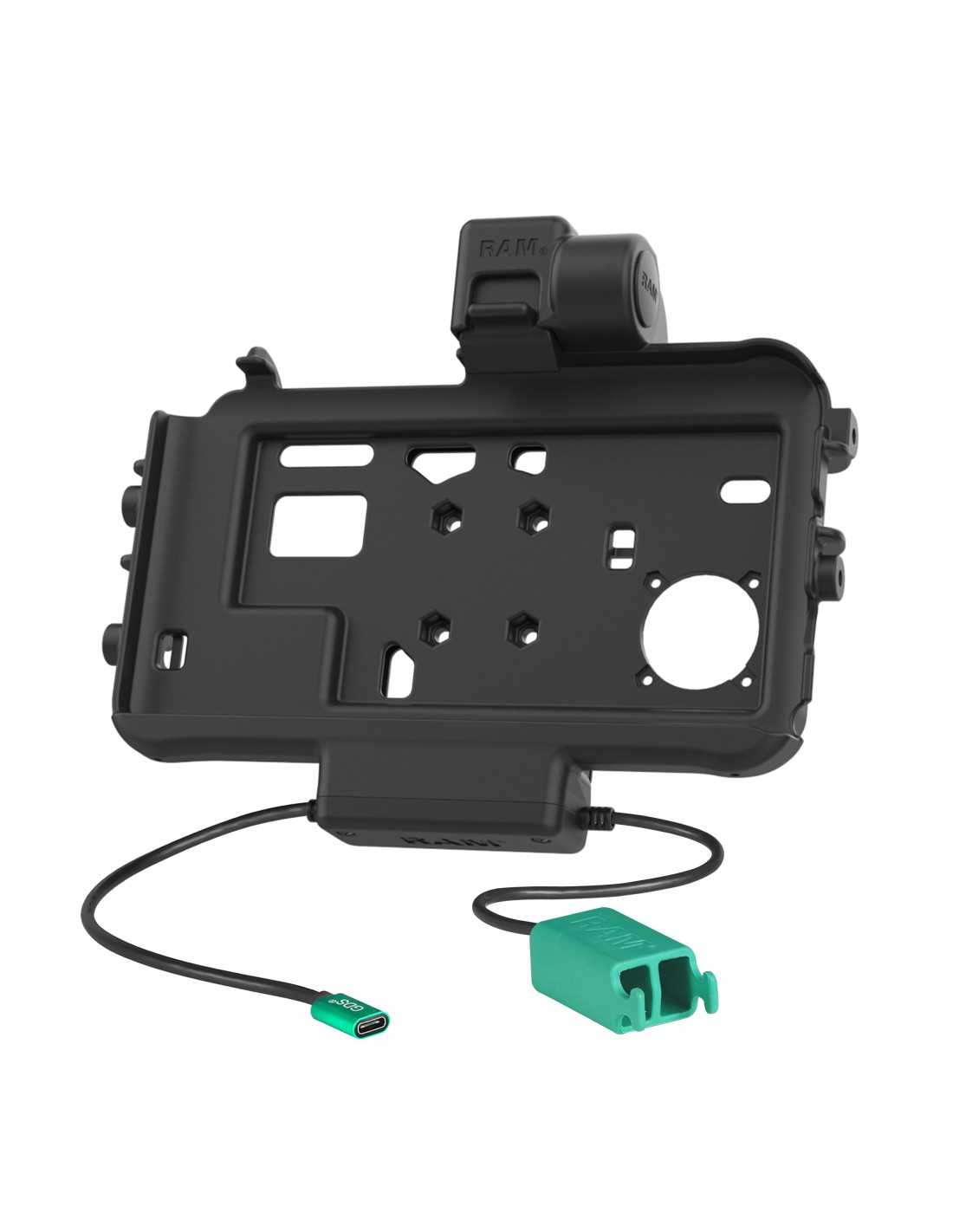

  • Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
  • Backed by a 3-year warranty

Components
RAM-GDS-CAB-CLAMP1U
Product Line
Thin-DockT
Product Type
Components
Hardware Included
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(4) #8-32 Nyloc Nuts
(4) #8-32 x 5/8" Machine Screws
(8) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
220mm
Input Connector
USB Type-C Female
Input Voltage
5.3-5.4VDC
Materials
High strength composite
Output Cable Length
190mm
Output Connector
(2) USB 1.1 Type A
Output Voltage
5VDC
Packaging Type
Poly Bag
Peripheral Output
500mA
Power Output
500mA
Product Weight
1.27 lb
Transfer Speed
12Mbps
Device Compatibility
Samsung Tab Active3
Samsung Tab Active5
