RAM-HOL-SAM58CPCL-2AU

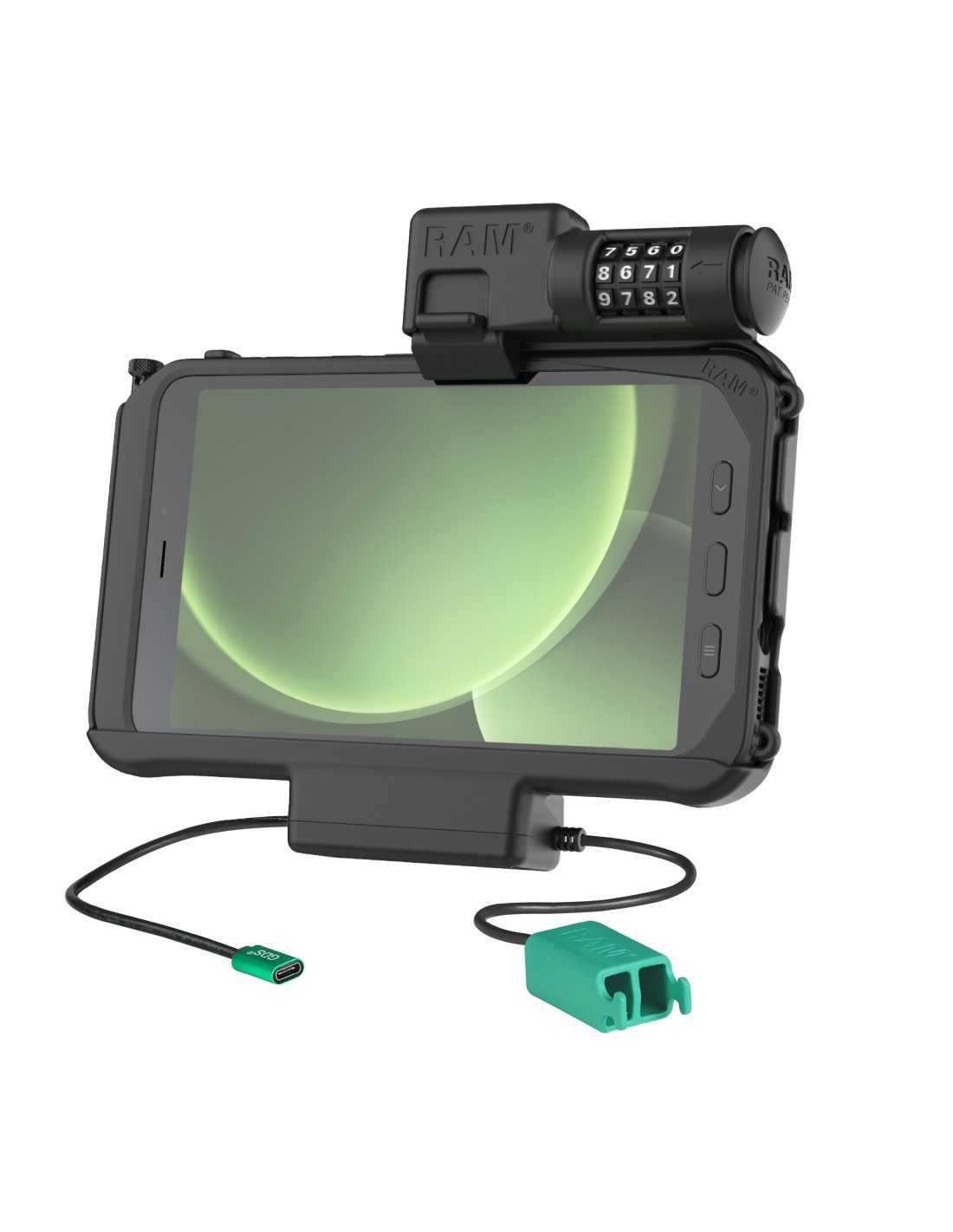

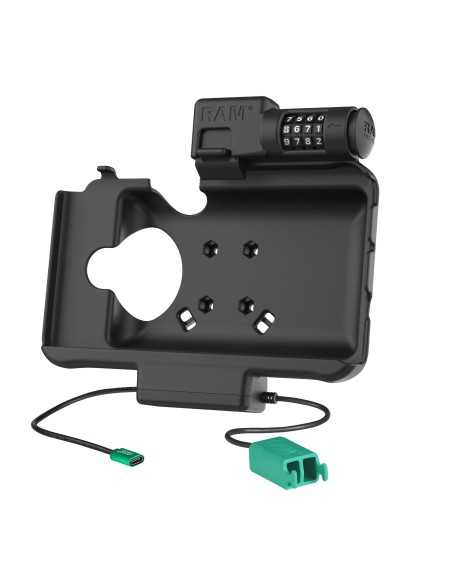

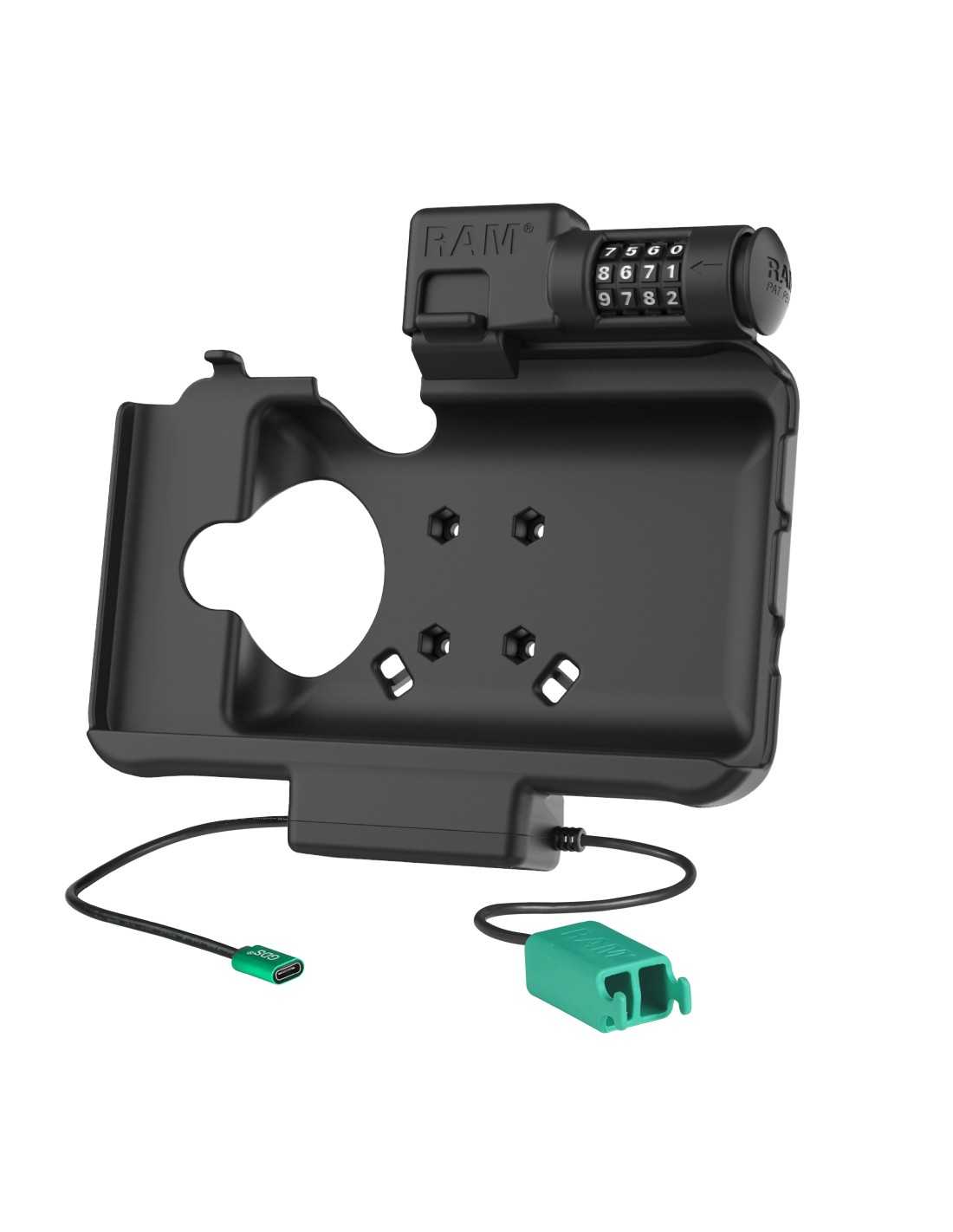

The RAM Combo Locking Power + Dual USB Dock for Tab Active5 & 3 (RAM-HOL-SAM58CPCL-2AU) is a combination-locking, powered cradle that has been designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided through GDS pogo pins, while the cradle's dual USB-A ports support up to two peripherals, making it the ideal compact mounting solution for your mobile workstation. For security and theft deterrence, this powered cradle features a combination lock. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B- or C-size RAM components containing the universal 4-hole AMPS pattern.

  • Combination locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector

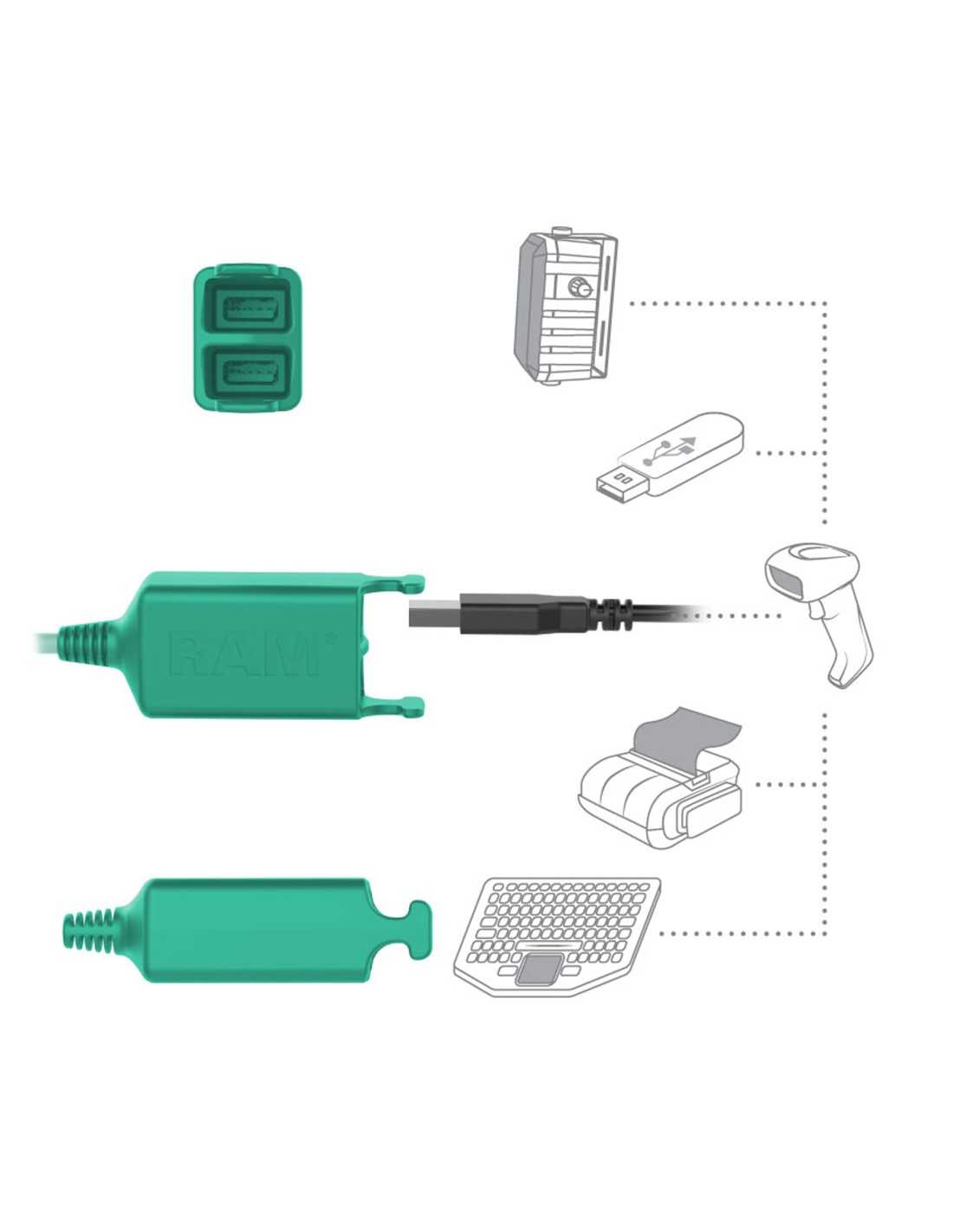

  • Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
  • Contains 4-hole AMPS hole pattern for RAM® ball components
  • Access to speakers, mics, headphone jack, and NFC reader remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® SkinT
  • Backed by a 3-year warranty

Components
RAM-GDS-CAB-CLAMP1U
Product Type
Components

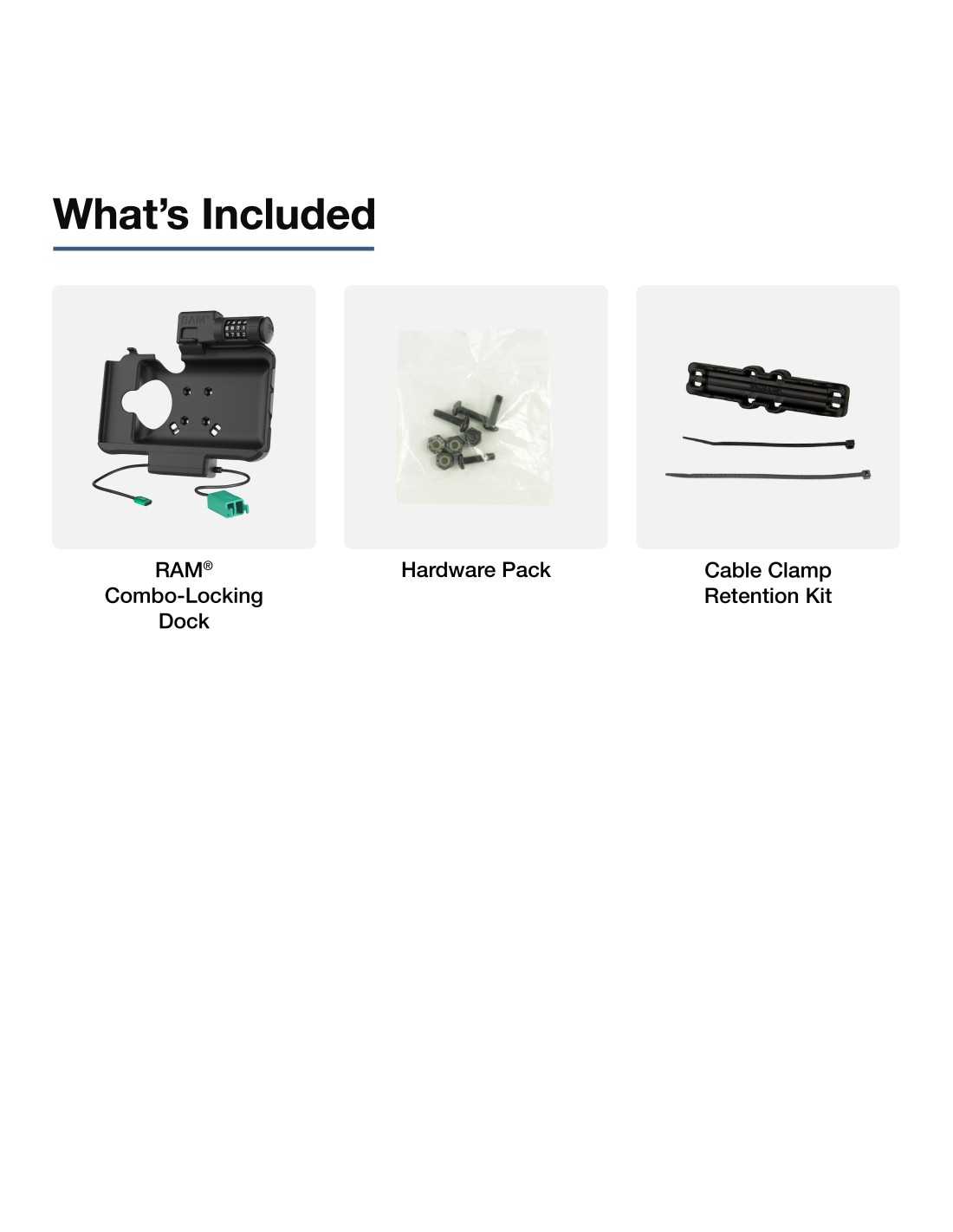

Hardware Included
(1) Optional Cable Clamp Housing
(4) #8-32 Nyloc Nuts
(4) #8-32 x 5/8" Machine Screws
(4) Large Cable Ties
(6) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
220mm
Input Connector
USB Type-C Female
Input Voltage
5.3-5.4VDC
Materials
High strength composite
Output Cable Length
190mm
Output Connector
(2) USB 1.1 Type A
Output Voltage
5VDC
Packaging Type
Poly Bag
Peripheral Output
500mA
Power Output
500mA
Product Dimensions
Depth: 3"
Height: 7.75"
Width: 9.25"
Product Weight
1.06 lb
Transfer Speed
12Mbps
Device Compatibility
Samsung Tab Active2
Samsung Tab Active3
Samsung Tab Active5
793442022043
