RAM-HOL-SAM52CP-2AU

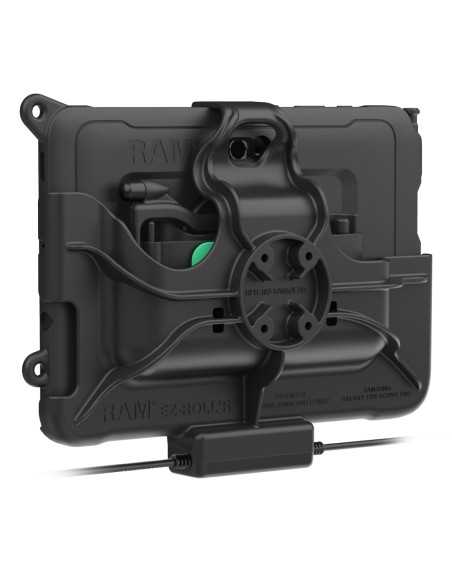

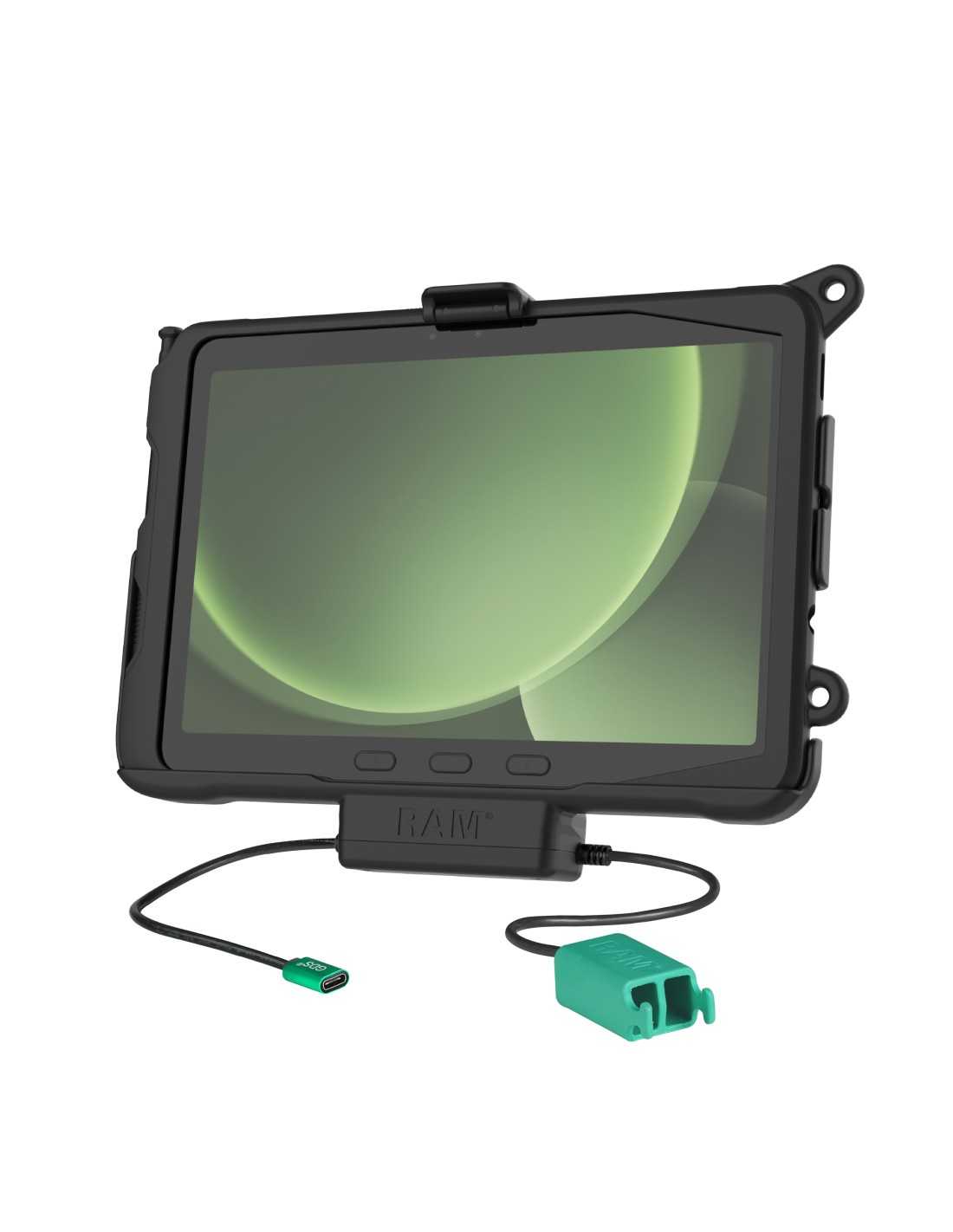

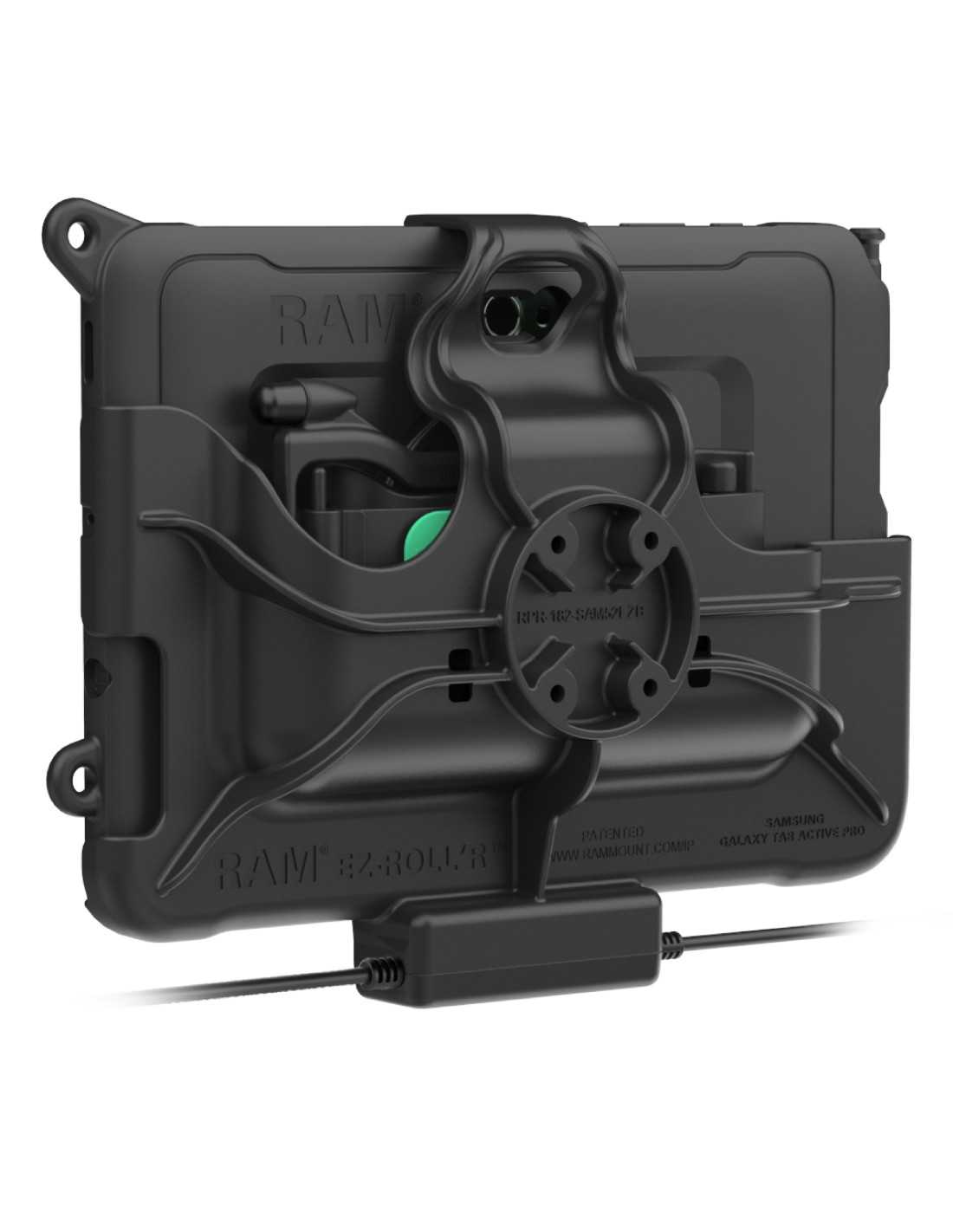

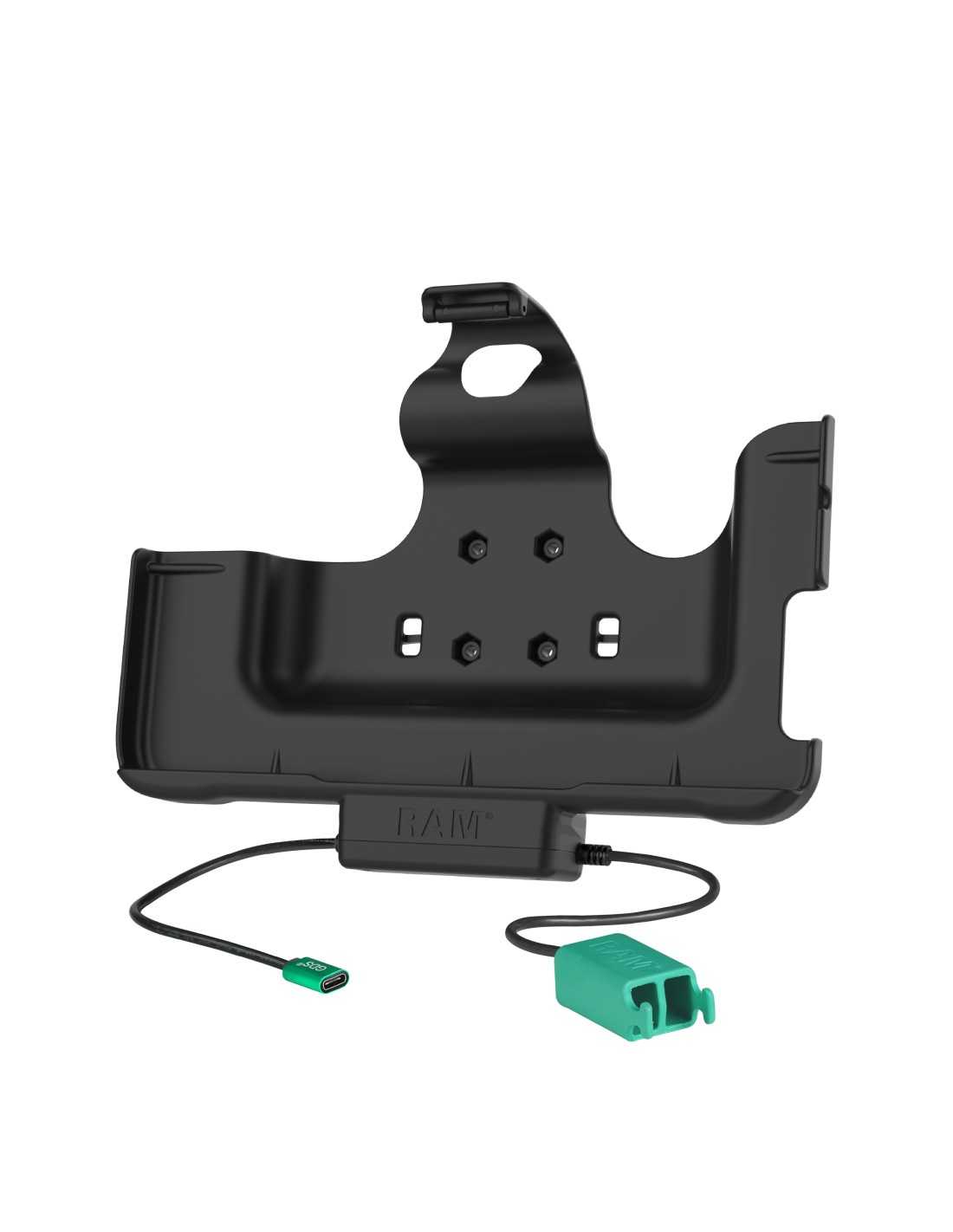

This RAM Power & Dual USB Data Dock for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM52CP-2AU) is a form-fit, powered cradle that has been designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided through GDS pogo pins, while the cradle's dual USB-A ports support up to two peripherals, making it the ideal compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS Hand-Stand attachment so you can easily take your Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro from your vehicle, to your person, to your desk with zero hassle.

  • Powered dock provides charging and data transfer capabilities for Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector; for light-duty use and landscape mode only
  • Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector

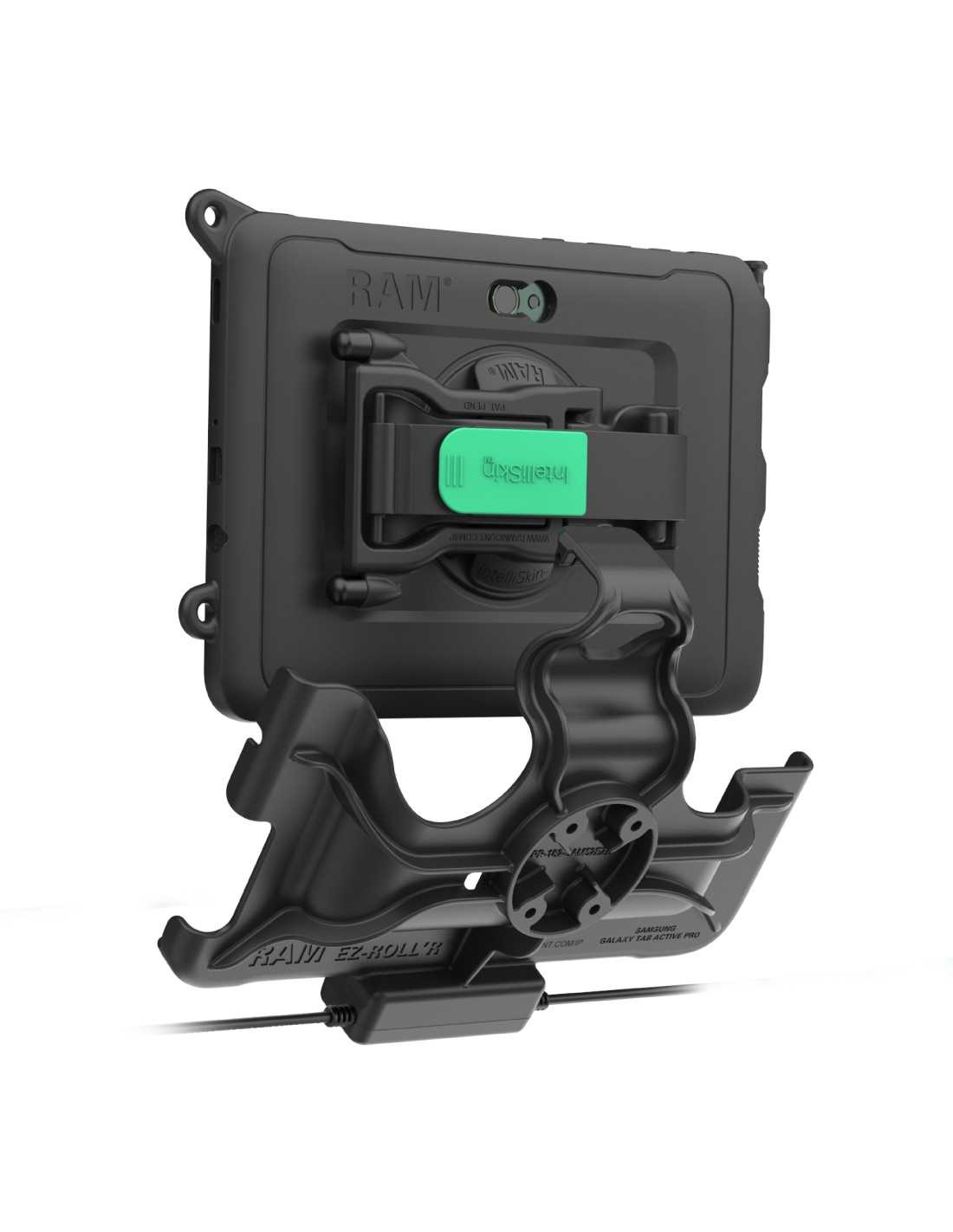

  • Extra space in the back of the cradle allows for GDS® Hand-StandT compatibility; contains 4-hole AMPS hole pattern for RAM® ball components
  • Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® SkinT
  • Backed by a 3-year warranty

Components
RAM-GDS-CAB-CLAMP1U
Product Line
EZ-Roll'rT
Product Type
Components

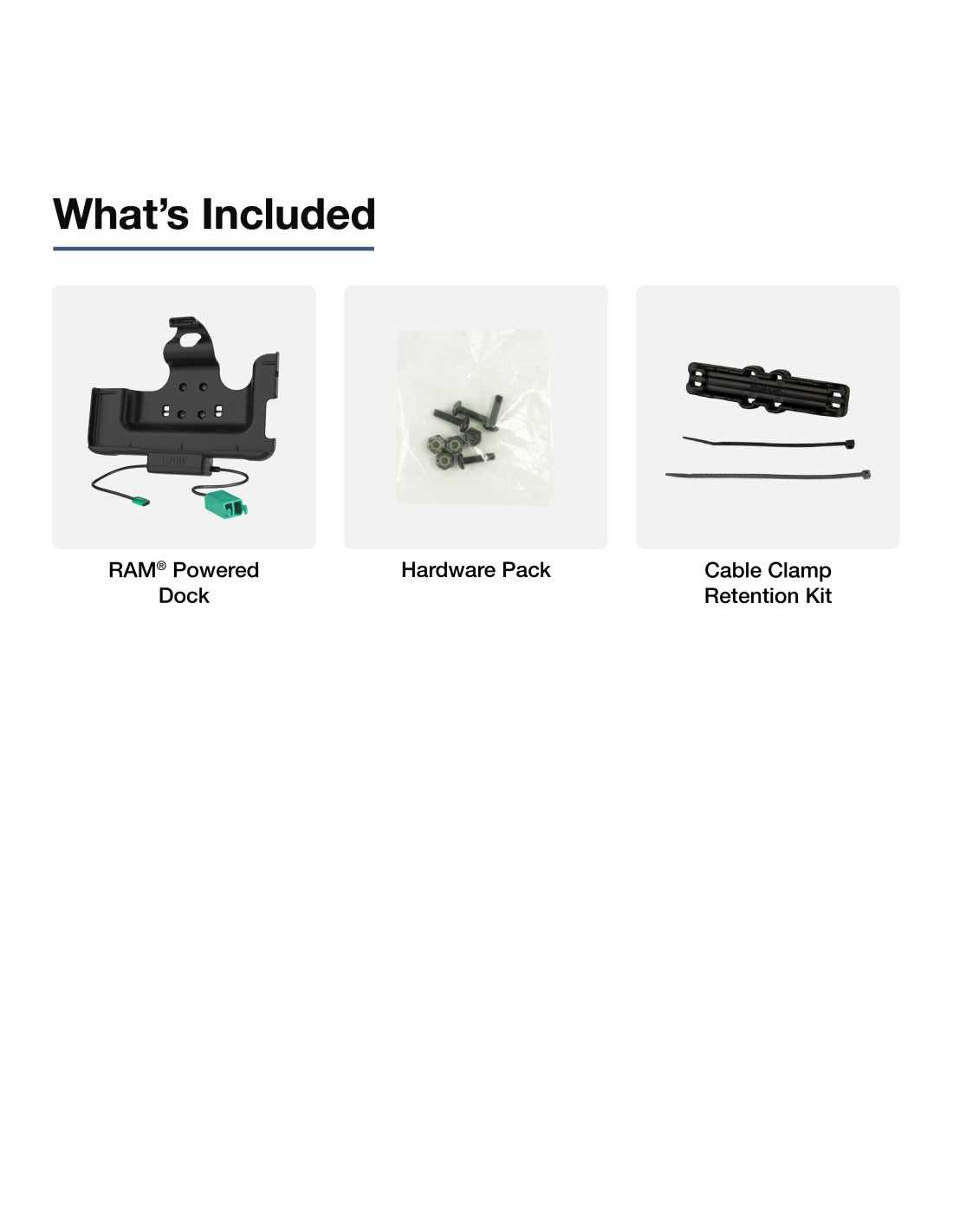

Hardware Included
(1) Optional Cable Clamp Housing
(4) #8-32 Nyloc Nuts
(4) #8-32 x 5/8" Machine Screws
(4) Large Cable Ties
(6) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
220mm
Input Connector
USB Type-C Female
Input Voltage
5.3-5.4VDC
Materials
High strength composite
Output Cable Length
190mm
Output Connector
(2) USB 1.1 Type A
Output Voltage
5VDC
Packaging Type
Poly Bag
Peripheral Output
500mA
Power Output
500mA
Product Weight
0.81 lb
Transfer Speed
12Mbps
Device Compatibility
Samsung Galaxy Tab Active4 Pro
Samsung Galaxy Tab Active5 Pro
Samsung Galaxy Tab Active Pro
793442022135
