RAM-HOL-SAM105-PA-3DU

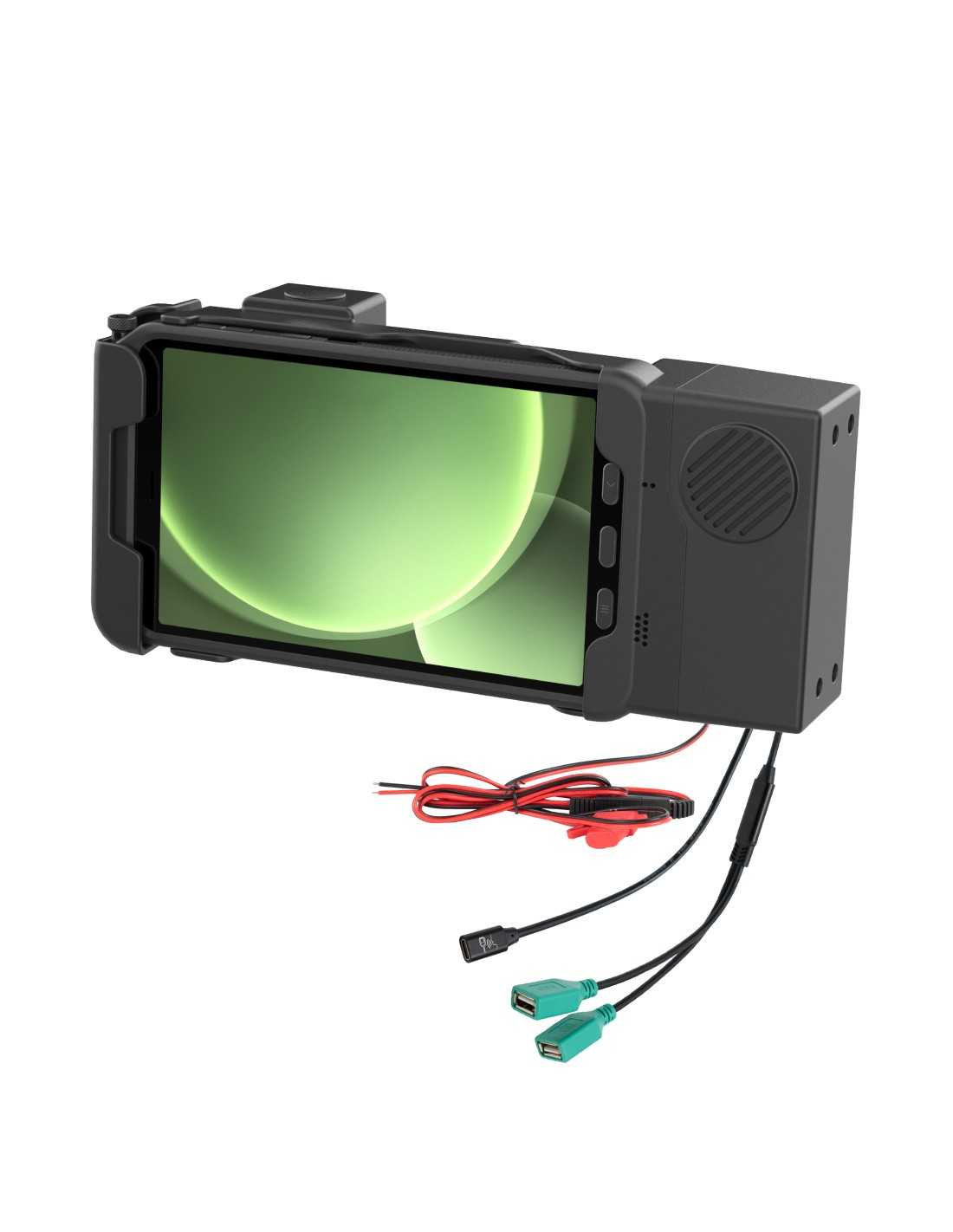

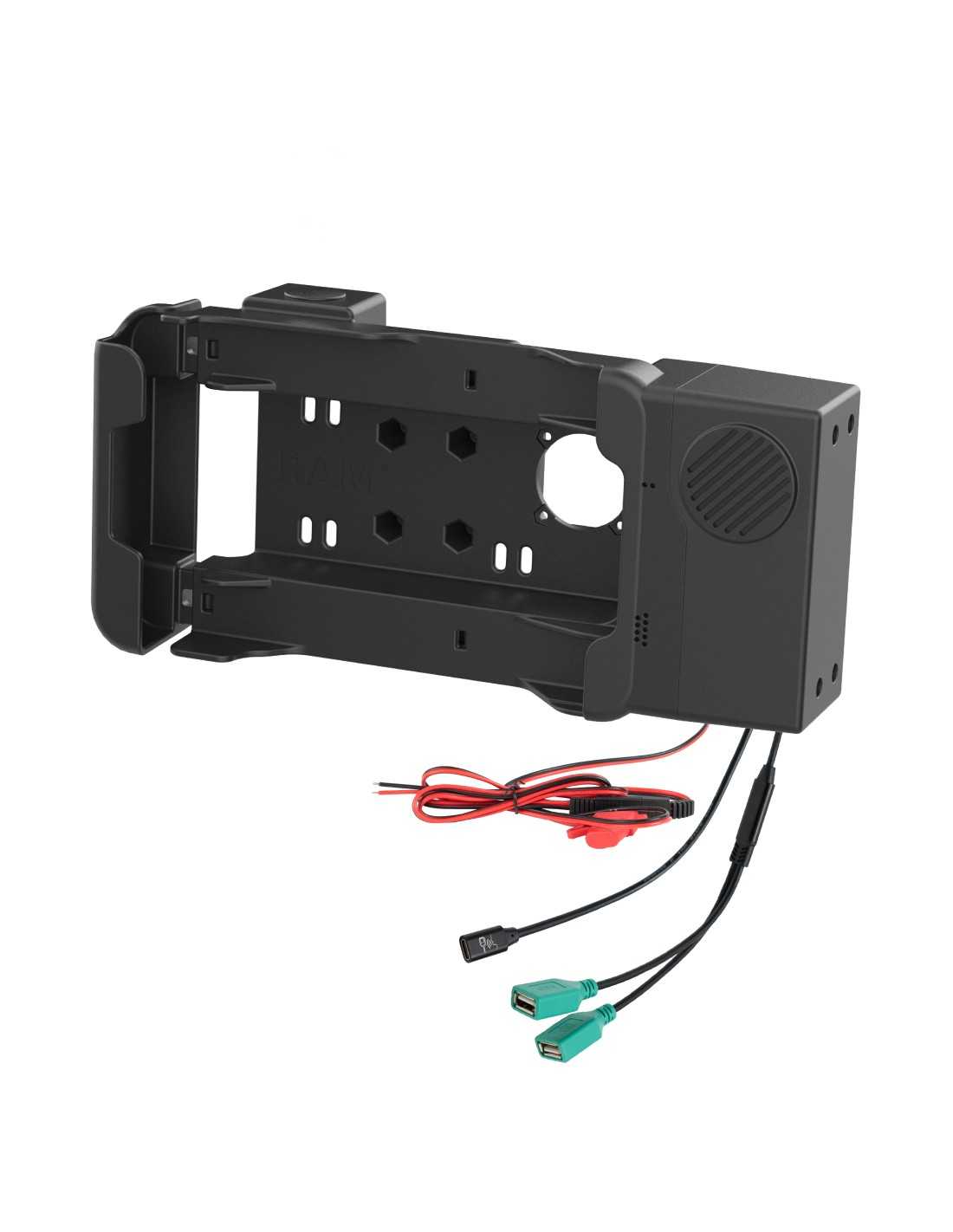

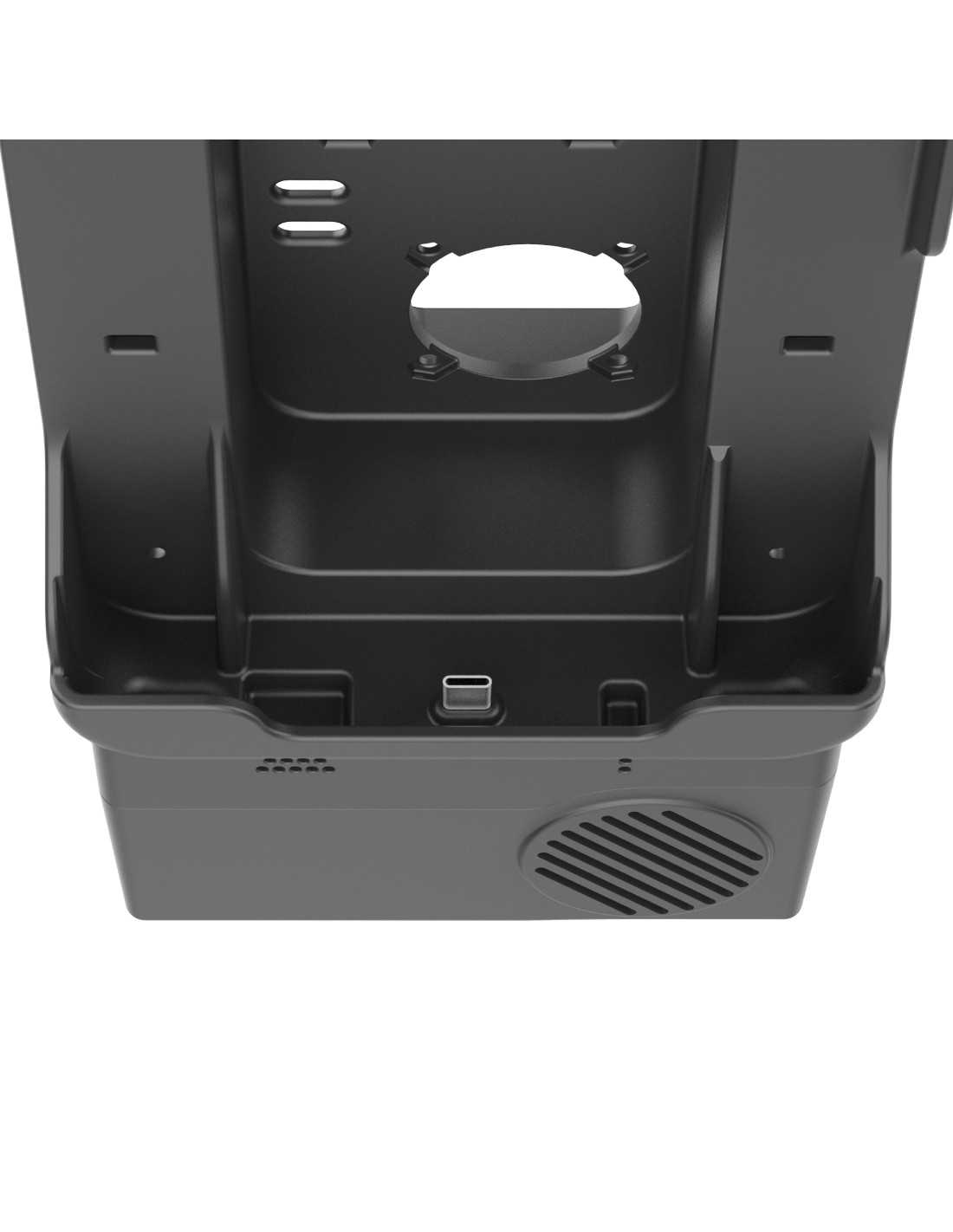

The RAM Speaker Dock for Tab Active5 & 3 - SAE Power + (2) USB-A (RAM-HOL-SAM105-PA-3DU) is a rugged tablet dock with a direct-to-USB-C connection and an integrated speaker, designed specifically for the Samsung Tab Active5 & 3. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device, while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. An added speaker integrated into the bottom of the dock adds amplified audio while on the road. Access to the stylus remains while the device is docked. This dock features an integrated SAE cable for easy power connection, and a dual USB-A connector for peripheral support. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. This dock is compatible with the Tab Active5 in the RAM Skin or factory device skin, and the Tab Active3 in the factory device skin. Please note: this dock is not compatible with the bare device.

  • Spring-loaded powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; Provides charging through an integrated USB-C male connection and SAE cable, plus a dual USB-A for peripheral support

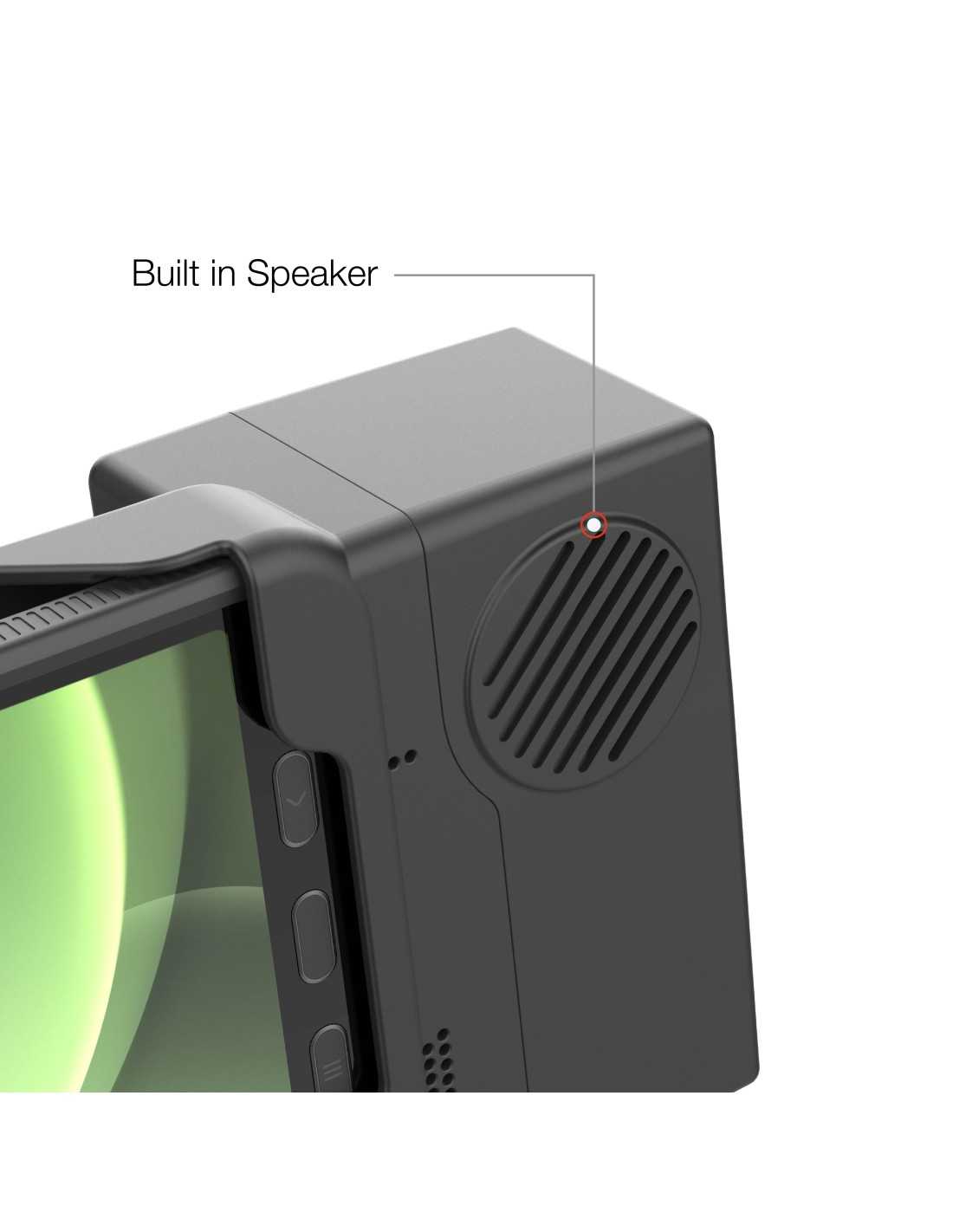

  • Integrated speaker on the bottom of the dock for amplified audio
  • Compatible with the Samsung OEM skin as well as the RAM® SkinT; Access to the stylus remains while device is docked
  • Spring-loaded design allows for easy insertion & removal
  • Backed by a 3-year warranty

Product Type
Components
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Voltage
10V-28VDC
Materials
High strength composite
Output Voltage
5V @ 1.5A
5V @ 3A
9V @ 3A
12V @ 3A
15V @ 3A
3.3V - 11V @ 3A
Packaging Type
Poly Bag
Speaker Specifications
8O Impedance
2W Power
90.0+/- 3dB SPL
Device Compatibility
Samsung Tab Active3 (OEM Case Only)
Samsung Tab Active5 (OEM Case or RAM® SkinT)
793442036323
