RAM-HOL-SAM105L-AU

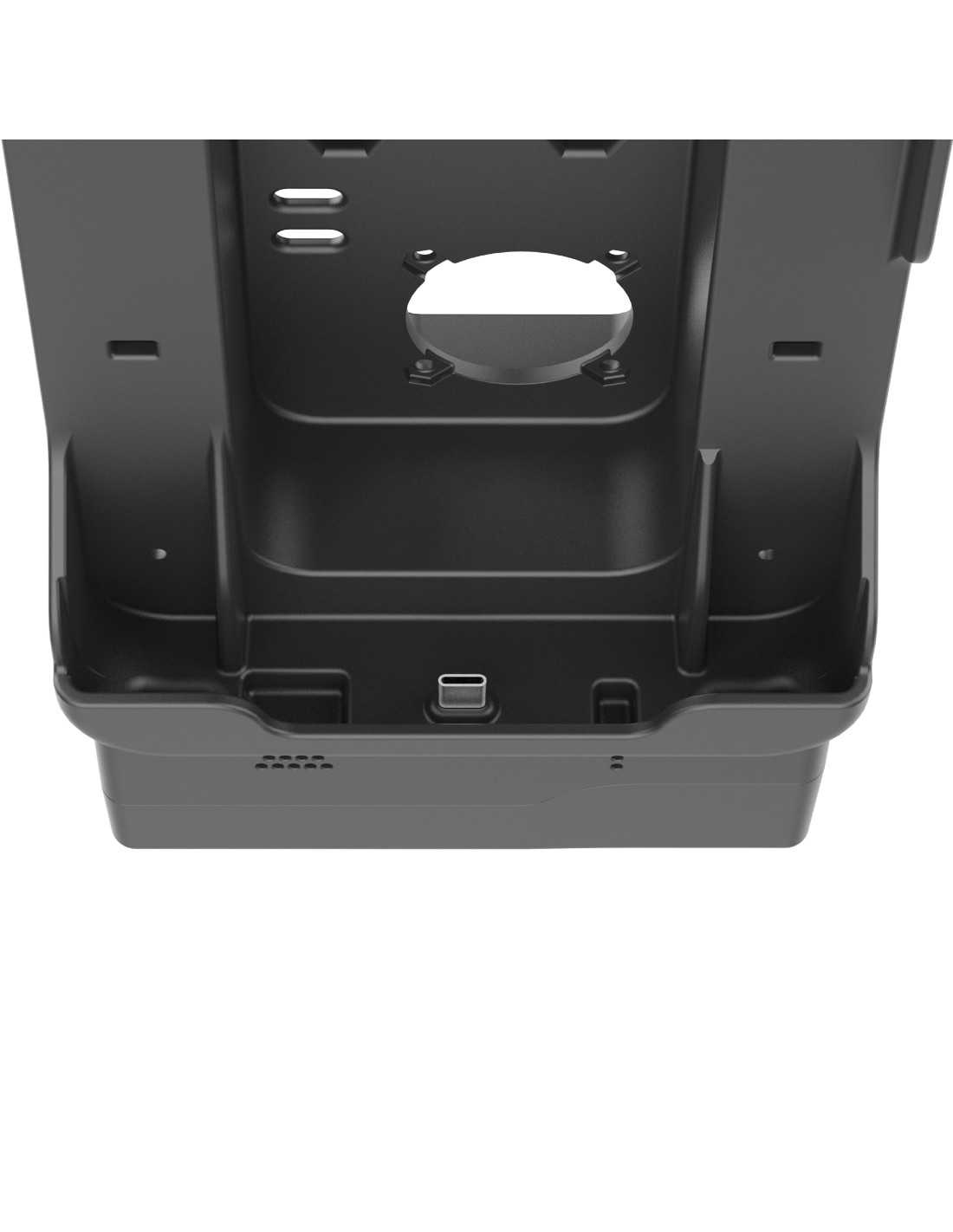

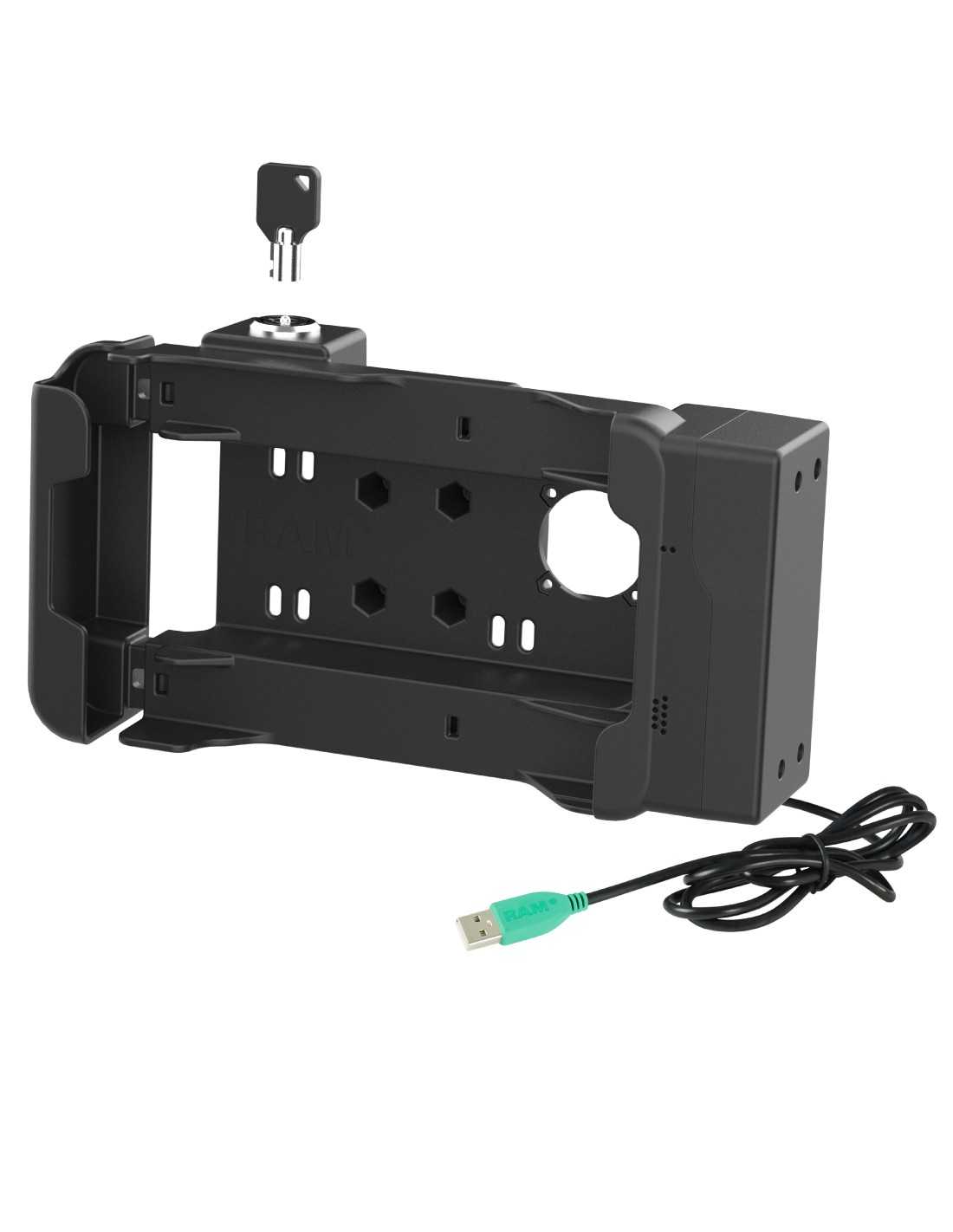

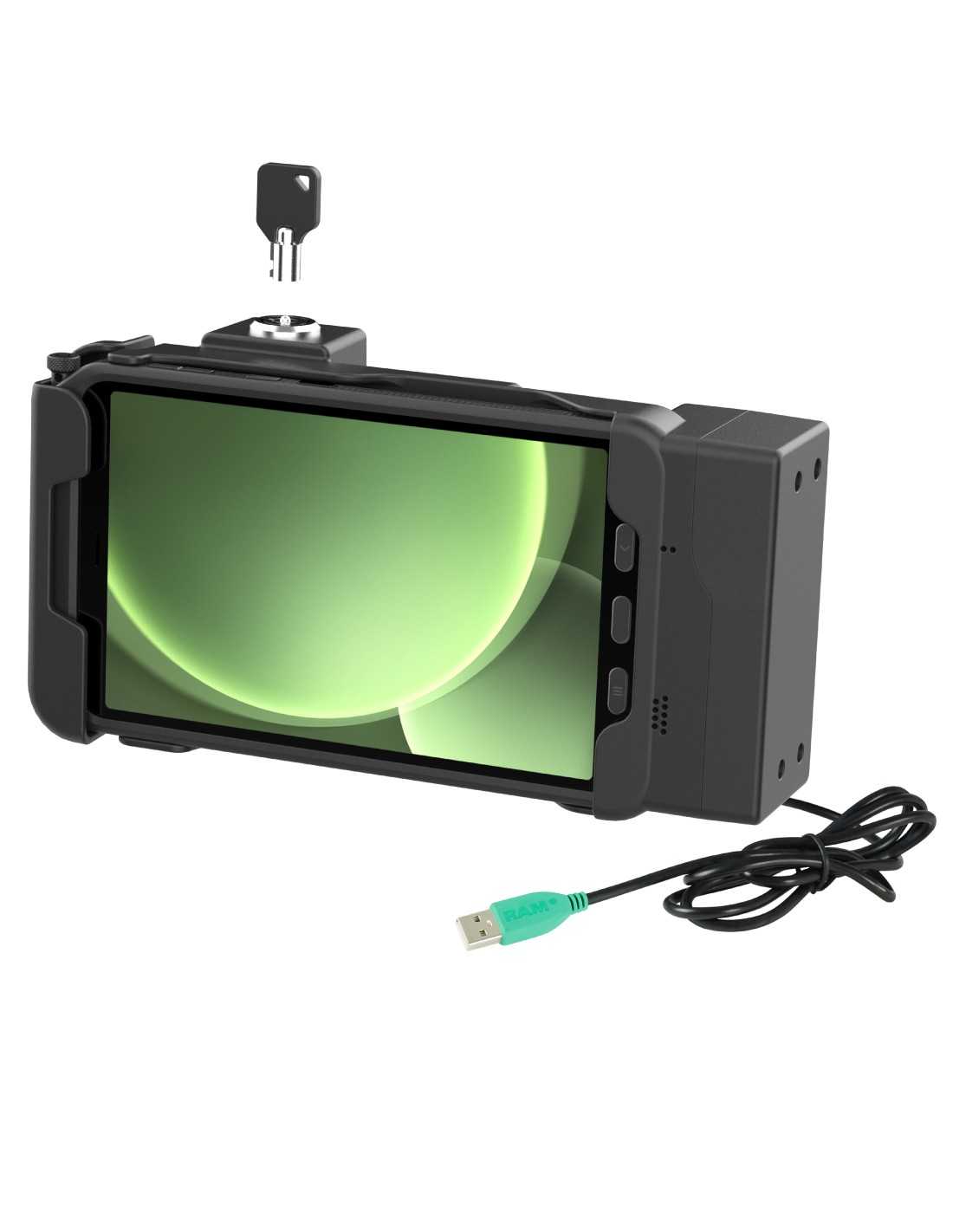

The RAM Locking Spring-Loaded Dock for Tab Active5 & 3 - USB-A Male (RAM-HOL-SAM105L-AU) is a rugged, locking tablet dock with a direct-to-USB-C connection, designed specifically for the Samsung Tab Active5 & 3. The spring-loaded design of this dock allows for a quick, one-handed insertion or removal of your device, while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. Access to the stylus remains while the device is docked. This dock features an integrated USB-A male cable for easy power connection. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. This dock is compatible with the Tab Active5 in the RAM Skin or factory device skin, and the Tab Active3 in the factory device skin. Please note: this dock is not compatible with the bare device.

  • Spring-loaded, locking powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; Provides charging through an integrated USB-C male connection and USB-A male cable
  • Compatible with the Samsung OEM skin as well as the RAM® SkinT; Access to the stylus remains while device is docked
  • Spring-loaded design allows for easy insertion & removal
  • Built-in lock provides theft deterrence
  • Backed by a 3-year warranty

Product Type
Components
Hardware Included
(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Cable Clamp
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
1.5 Meters
Input Connector
USB Type A Male
Input Voltage
10V-28VDC
Materials
High strength composite
Output Voltage
5V @ 1.5A
5V @ 3A
9V @ 3A
12V @ 3A
15V @ 3A
3.3V - 11V @ 3A
Packaging Type
Poly Bag
Device Compatibility
Samsung Tab Active3 (OEM Case Only)
Samsung Tab Active5 (OEM Case or RAM® SkinT)
793442036361
