RAM® Spring-Loaded Dock For Tab Active5 & 3 - USB-A Male

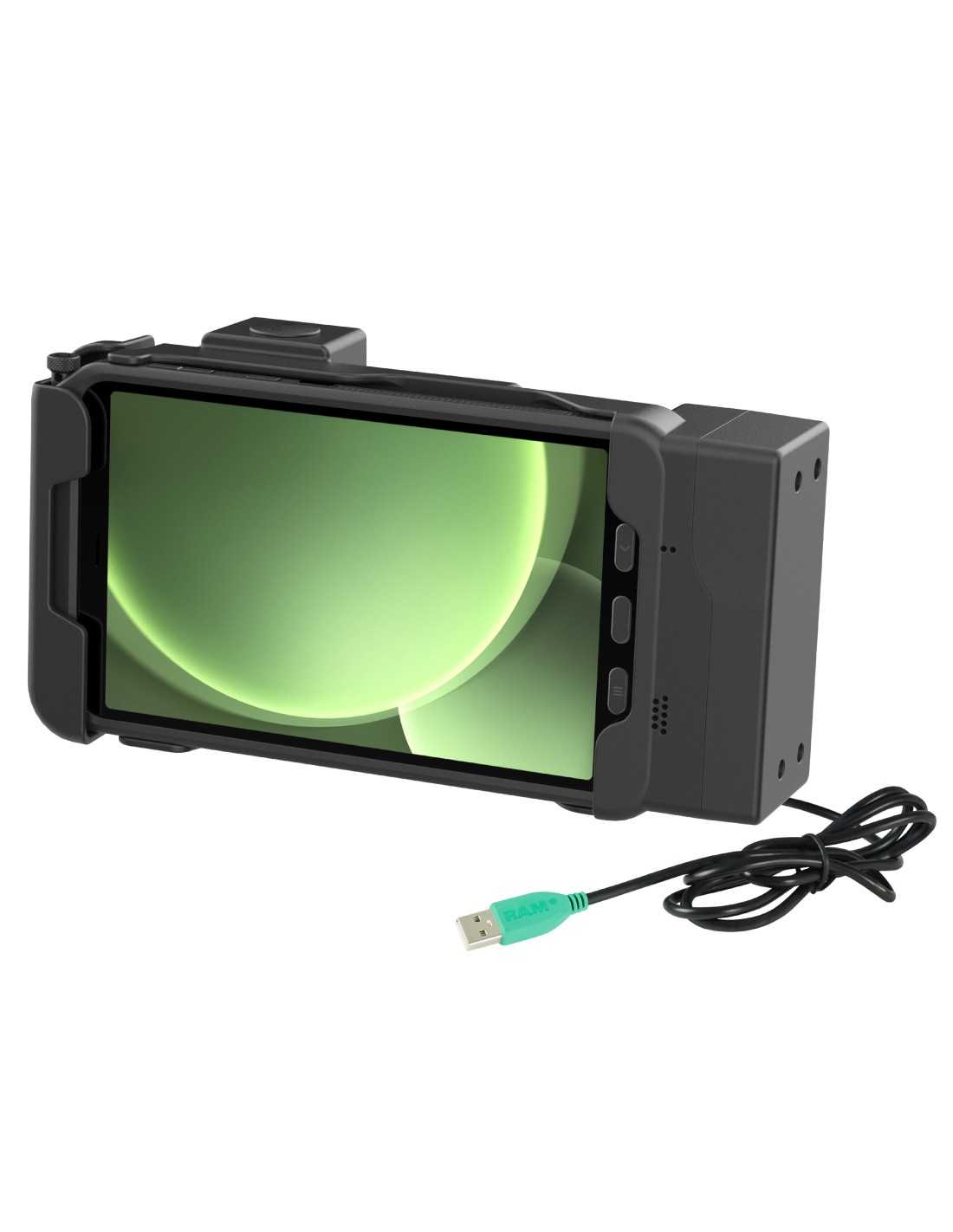

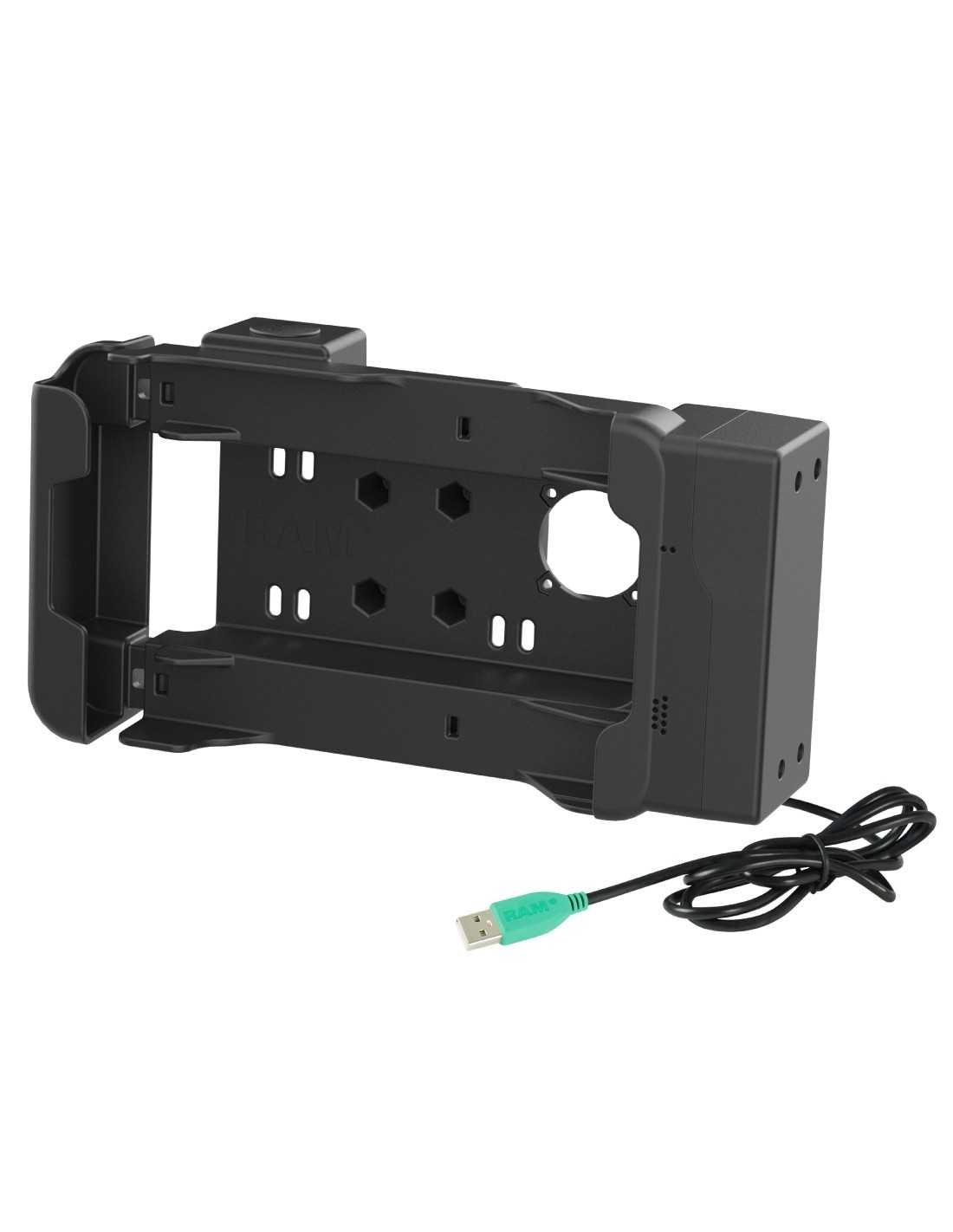

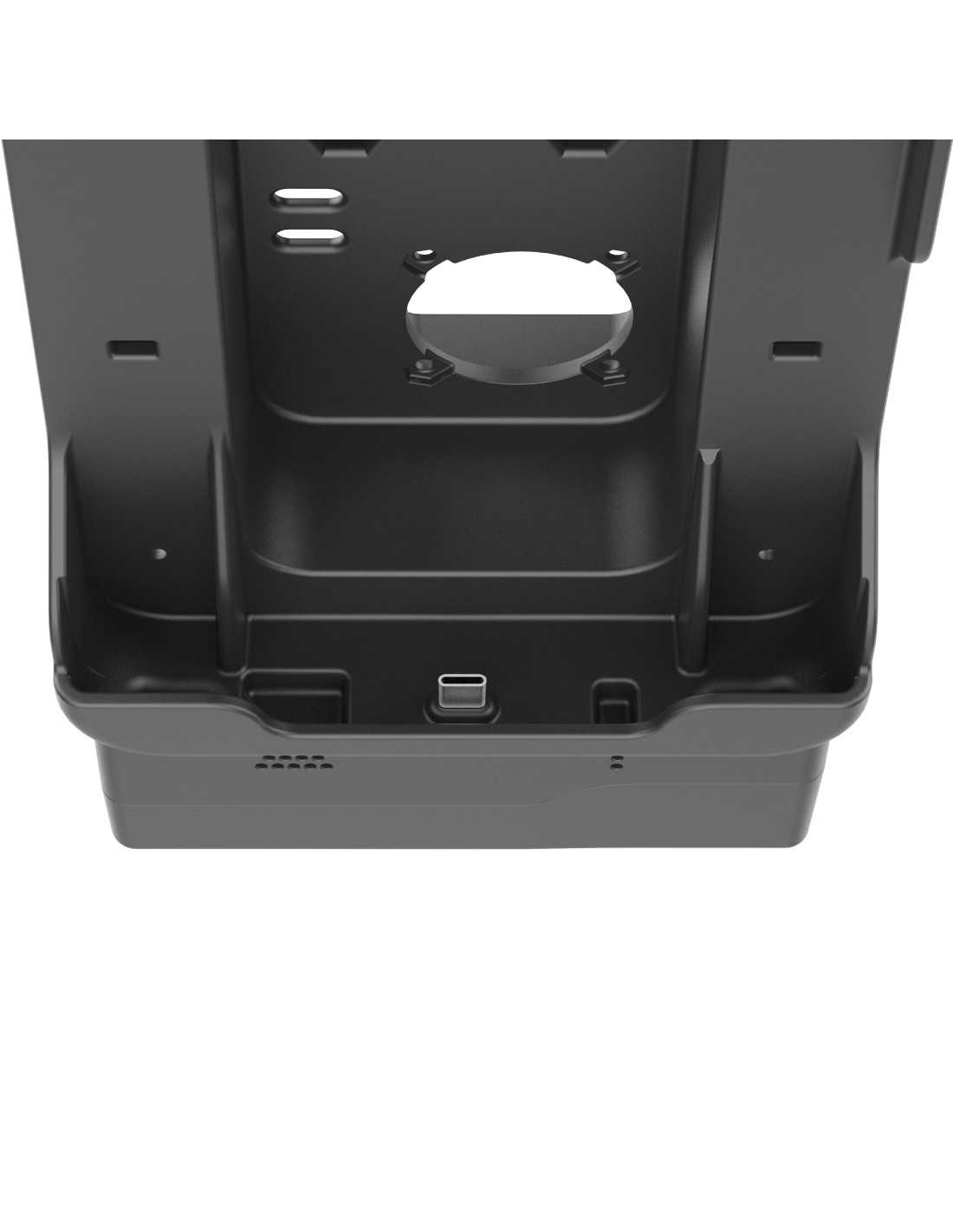

The RAM Spring-Loaded Dock For Tab Active5 & 3 - USB-A Male (RAM-HOL-SAM105-AU) is a rugged tablet dock with a direct-to-USB-C connection, designed specifically for the Samsung Tab Active5 & 3. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device, while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. Access to the stylus remains while the device is docked. This dock features an integrated USB-A male cable for easy power connection. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. This dock is compatible with the Tab Active5 in the RAM Skin or factory device skin, and the Tab Active3 in the factory device skin. Please note: this dock is not compatible with the bare device.
- Spring-loaded powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3; Provides charging through an integrated USB-C male connection and USB-A male cable
- Compatible with the Samsung OEM skin as well as the RAM® SkinT; Access to the stylus remains while device is docked
- Spring-loaded design allows for easy insertion & removal
- Backed by a 3-year warranty
- Product Type
- Components
- Hardware Included
- (4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Cable Clamp - Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496"
- Input Cable Length
- 1.5 Meters
- Input Connector
- USB Type A Male
- Input Voltage
- 10V-28VDC
- Materials
- High strength composite
- Output Voltage
- 5V @ 1.5A
5V @ 3A
9V @ 3A
12V @ 3A
15V @ 3A
3.3V - 11V @ 3A - Packaging Type
- Poly Bag
- Device Compatibility
- Samsung Tab Active3 (OEM Case Only)
Samsung Tab Active5 (OEM Case or RAM® SkinT)
