RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
  • Nuevo
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro
RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro

RAM® Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro

RAM-HOL-SAM57CPKL-225-V7CU

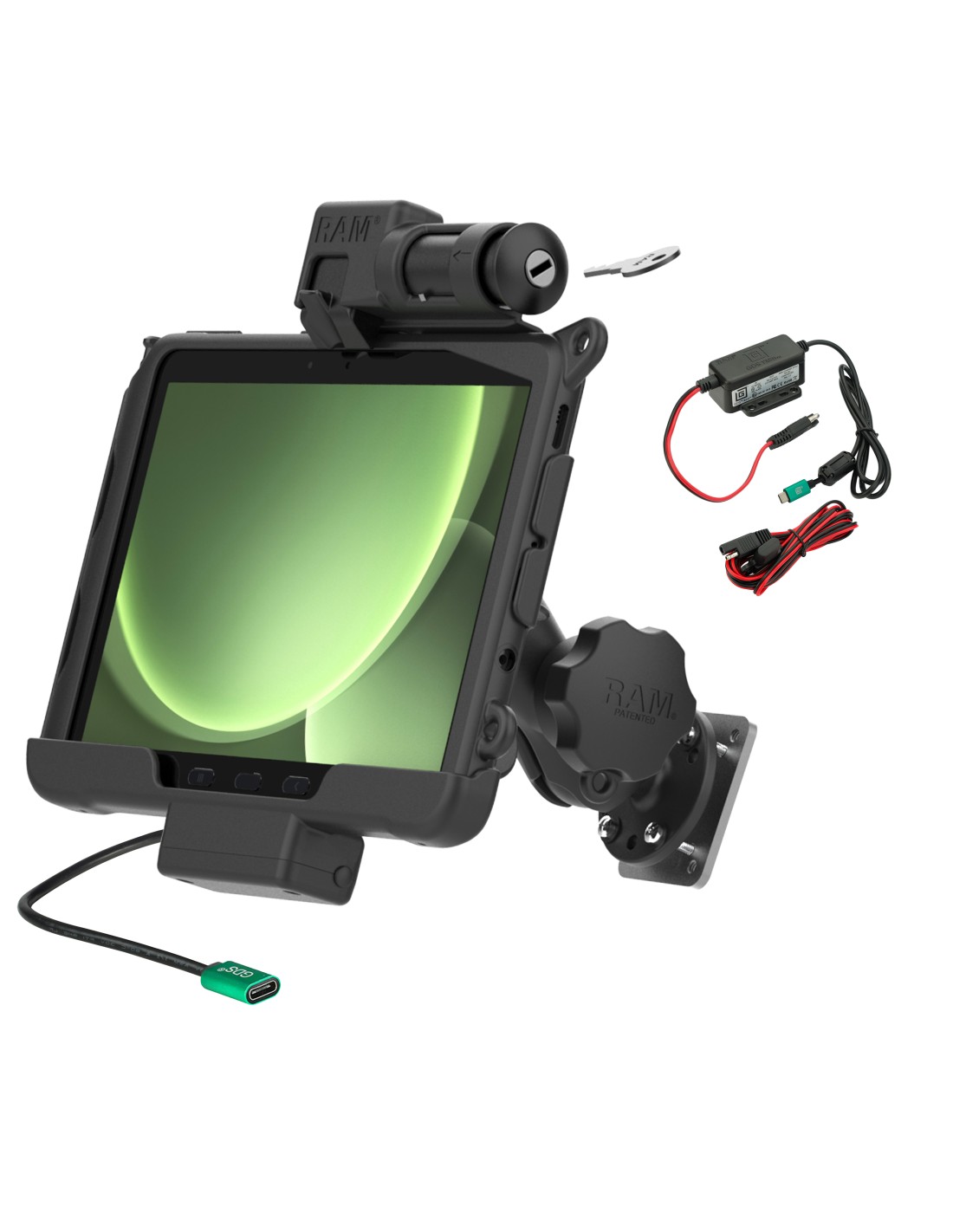

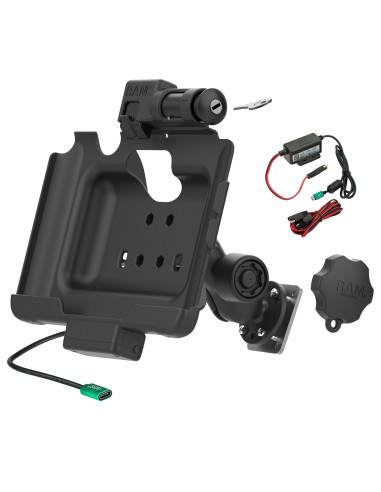

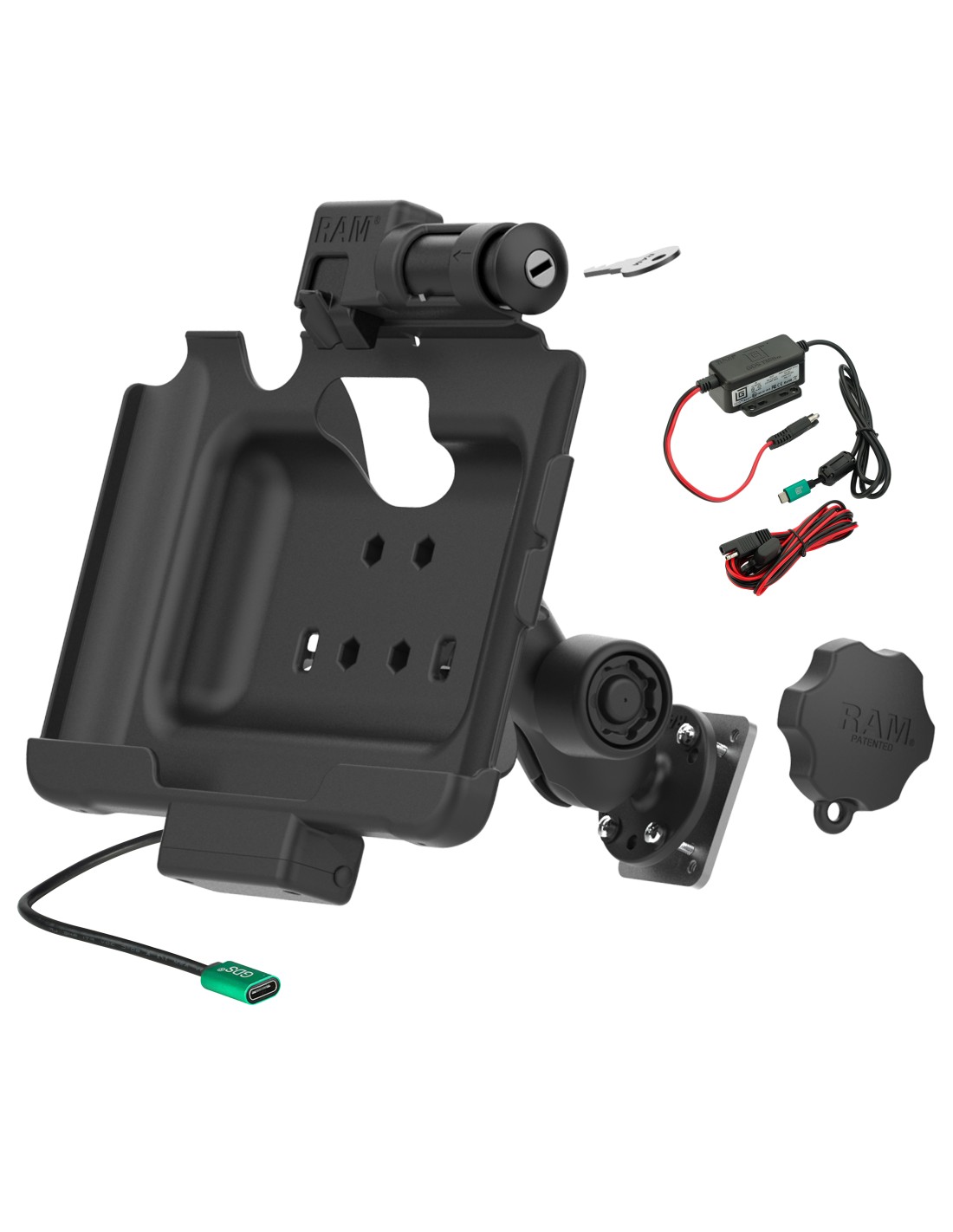

The RAM Locking Powered Dock & Mount for Samsung Tab Active5 Pro & 4 Pro (RAM-HOL-SAM57CPKL-225-V7CU) is a comprehensive kit of everything needed to deploy the Samsung Tab Active Pro series in your fleet. It contains one locking RAM USB-C Powered Dock for Tab Active5 Pro/4 Pro, a short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. It also features an easy docking and undocking process, simply place the device into the base of the dock and push it to snap into place. The RAM Powered Dock is backed by a 3-year warranty.

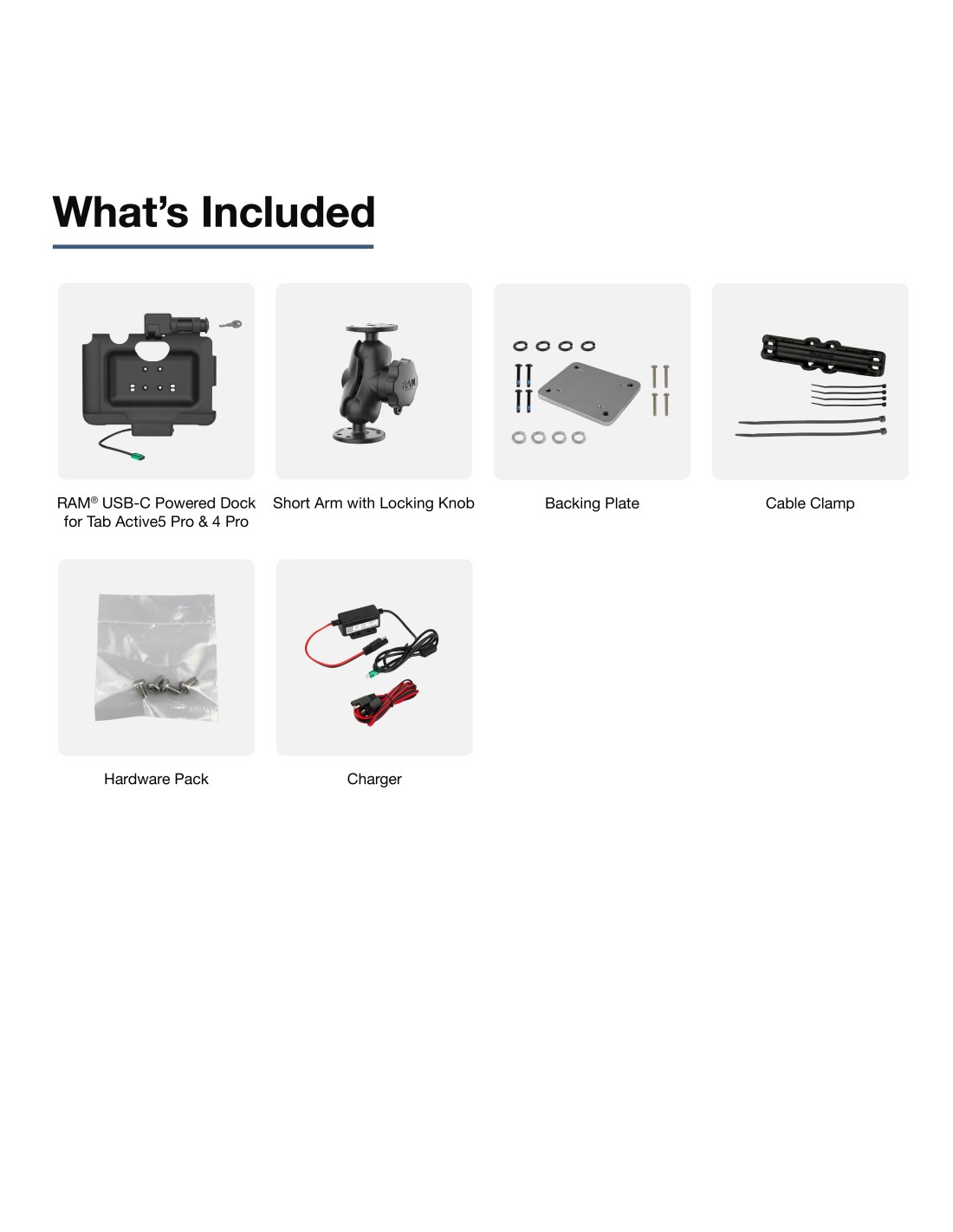

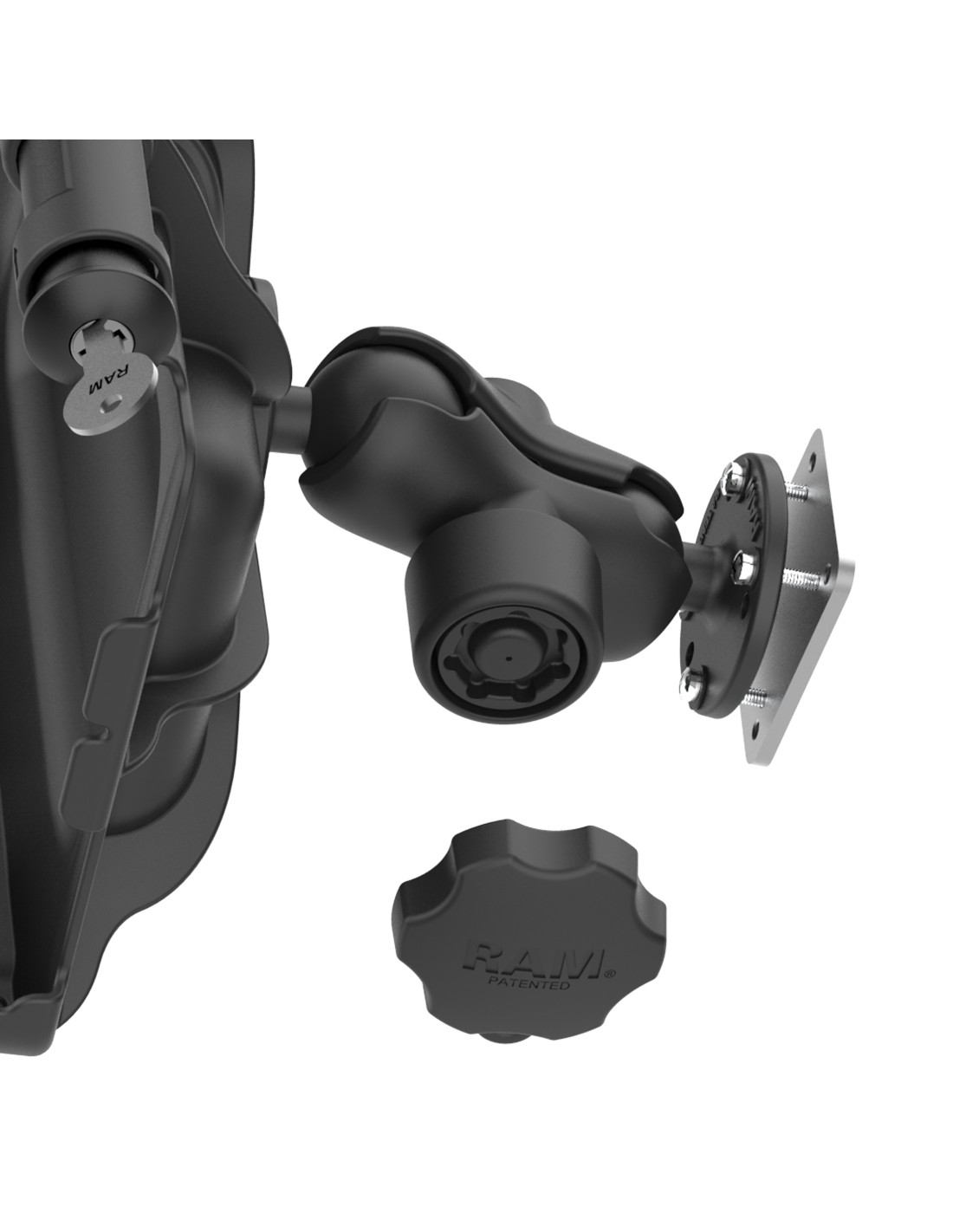

  • Bundle includes the RAM® USB-C Powered Dock for Tab Active5 Pro & 4 Pro, short C size double ball mount with backing plate and locking arm, cable clamp, and a hardwire charger
  • Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® SkinT; powered through integrated pogo pin connector
  • Next gen charging with integrated pogo pin docking contacts that match the Tab Active5 Pro's pogo pads for a fumble-free charging experience and port-protection
  • Backed by a 3-year warranty

Components
RAM-101L-B-225B2U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CHARGE-V7CU
RAM-HOL-SAM57CPKLU
Product Type
Tablet Mounts
Certifications
CE Certification
E-Mark Certification
FCC Certification
RCM Certification
UL 62368-1 Certificaton
Hardware Included
2 Keys
Assembly Hardware
Hardwire Charger with USB-C Connector
Cable Clamp Kit
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
2.5 Meters
Input Connector
Bare Wire
Input Voltage
10-30VDC
Materials
Marine-grade aluminum
High strength composite
Operating Temperature
-10°C to +70°C
Output Cable Length
1 Meter
Output Connector
USB Type-C Male
Output Current
2.5A max
Output Voltage
5.42-9VDC
Packaging Type
Poly Bag
Product Weight
3.00 lb
Regulatory
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance
Socket To Socket Length
2.5"
Storage Temperature
-40°C to +70°C
Device Compatibility
Samsung Galaxy Tab Active4 Pro
Samsung Galaxy Tab Active5 Pro
Samsung Galaxy Tab Active Pro
793442035968
