GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro
GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro
GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro
  • Nuevo
GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro
GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro
GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro

GDS® Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro

RAM-GDS-V11-SAM84-225B2-V7C

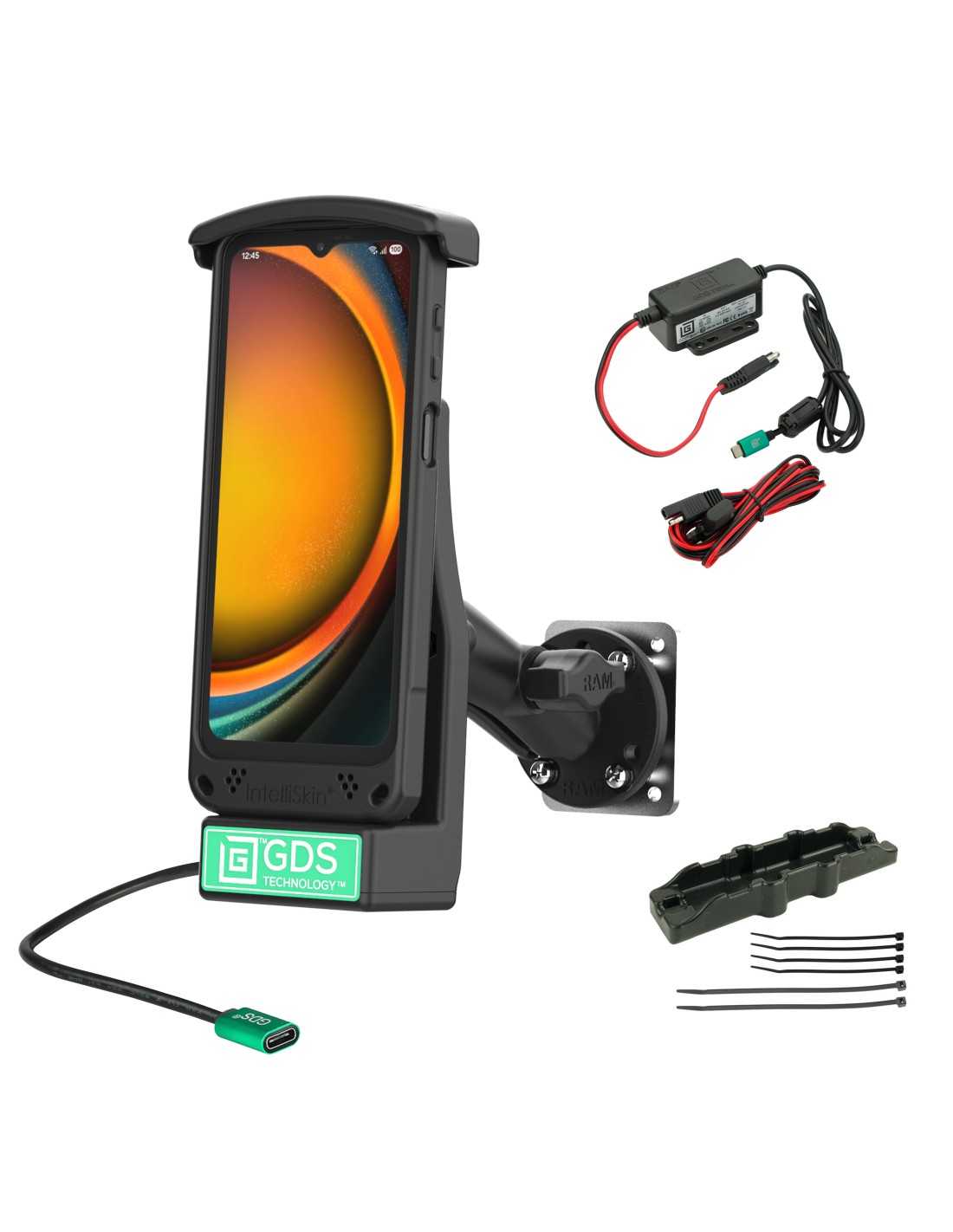

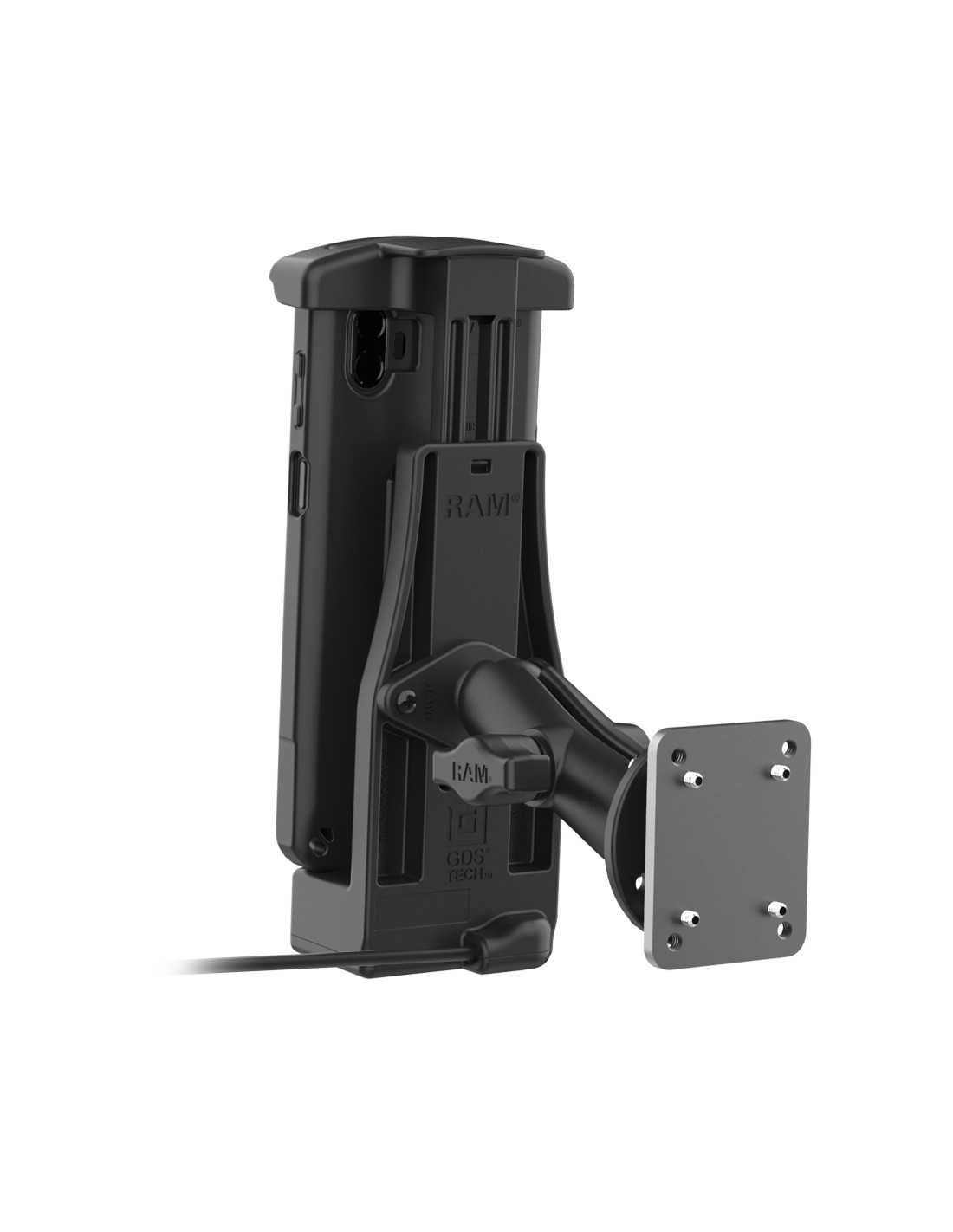

The GDS Handheld Dock & Dashboard Mount Kit for Samsung XCover7 Pro & 6 Pro (RAM-GDS-V11-SAM84-225B2-V7C) is an all-in-one mounting kit that includes everything you need to mount your XCover7 Pro in a vehicle. This kit contains one IntelliSkin for Samsung Galaxy XCover7 Pro & 6 Pro, a GDS Handheld Dock with USB Type-C 2.0, a medium double ball mount with backing plate, cable clamp, and hardwire charger. Featuring GDS Technology with military-grade drop protection, IntelliSkin sleeves contain an integrated GDS connector molded directly into the skin, preventing damage to your devices charging port from repetitive docking. The GDS connector enables the XCover6 Pro's charging capabilities, as well as access to data sync across the GDS Ecosystem. Always Protected. Always Connected.

  • All-in-one vehicle mounting kit designed specifically for the Samsung XCover7 Pro & 6 Pro

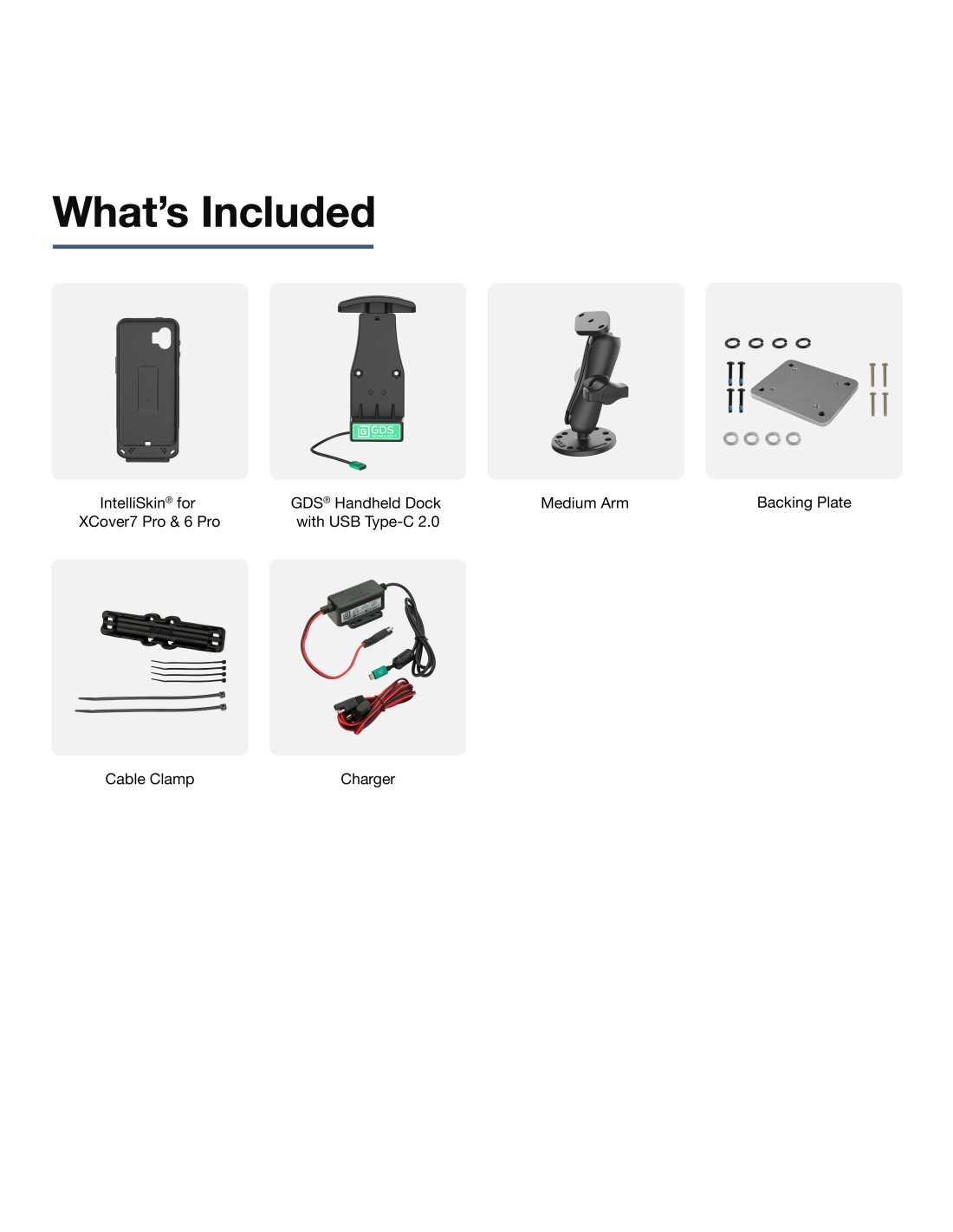

  • Bundle includes an IntelliSkin® for Samsung Galaxy XCover7 Pro & 6 Pro, a GDS® Handheld Dock with USB Type-C 2.0, a medium double ball mount with backing plate, cable clamp, and hardwire charger
  • Integrated GDS® connector and docking contacts provide charging and data sync capabilities across the GDS® EcosystemT platform
  • Dock is spring-loaded and specifically designed to accommodate IntelliSkin®-wrapped handheld devices

Components
RAM-B-138U-225B2
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CHARGE-V7CU
RAM-GDS-DOCK-V11CU
RAM-GDS-SKIN-SAM84-C
Product Line
GDS® TechT IntelliSkin®
Product Type
Phone Mounts
Ball Size
B Size (1")
Certifications
CE Certification
E-Mark Certification
FCC Certification
RCM Certification
UL 62368-1 Certificaton
Hardware Included
Assembly Hardware
Hardwire Charger with USB-C Connector
Cable Clamp Kit
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
2.5 Meters
Input Connector
Bare Wire
Input Voltage
10-30VDC
Materials
High strength composite
Marine-grade aluminum
Steel
Operating Temperature
-10°C to +70°C
Output Cable Length
1 Meter
Output Connector
USB Type-C Male
Output Current
2.5A max
Output Voltage
5.42-9VDC
Packaging Type
Poly Bag
Product Weight
1.83 lb
Regulatory
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance
Socket To Socket Length
3"
Storage Temperature
-40°C to +70°C
Device Compatibility
Samsung Galaxy XCover6 Pro
Samsung Galaxy XCover7 Pro
793442035975
