RAM-HOL-SAM58CPKLN-2AU

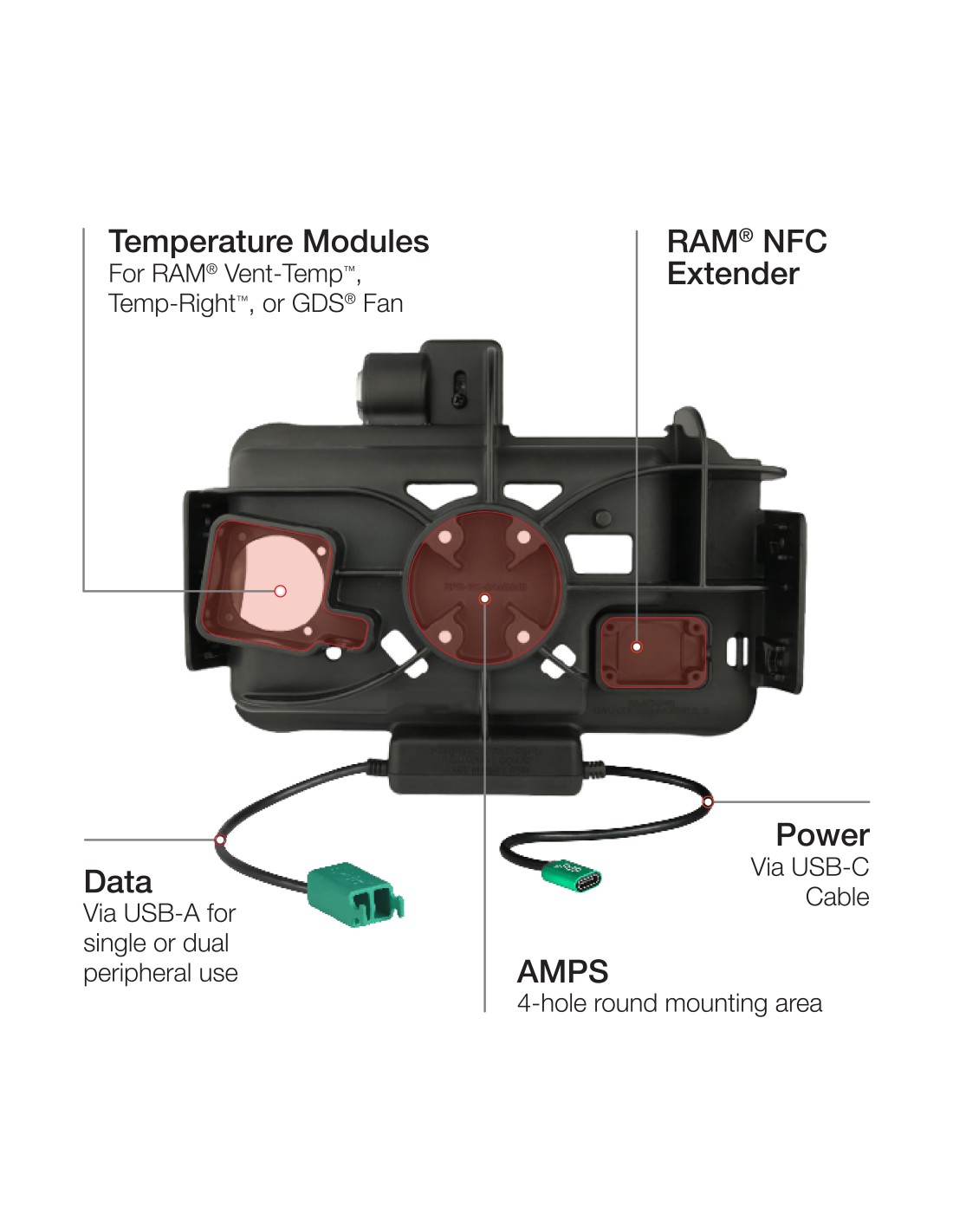

The RAM Locking Modular Power + Dual USB Dock for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-2AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM Skin or factory device skin along with most RAM accessories including: Temperature Control Accessories, RAM NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS Hand-Stand but are compatible with the GDS Roto-Mag. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM components containing the universal AMPS hole pattern. Also included is the USB-C female pigtail, GDS USB 2.0 cable, cable clamp, and zip ties.

  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 and Tab Active 3; provides charging through an integrated pogo pin connection and USB-C cable
  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-MagT, and side accessory attachments
  • Power delivered via USB-C connector; connect up to 2 input devices via dual USB-A connector
  • Compatible with the Samsung OEM skin as well as the RAM® SkinT
  • Backed by a 3-year warranty

Product Type

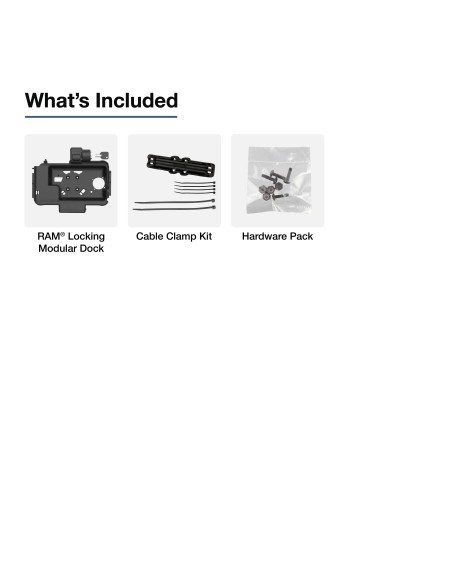

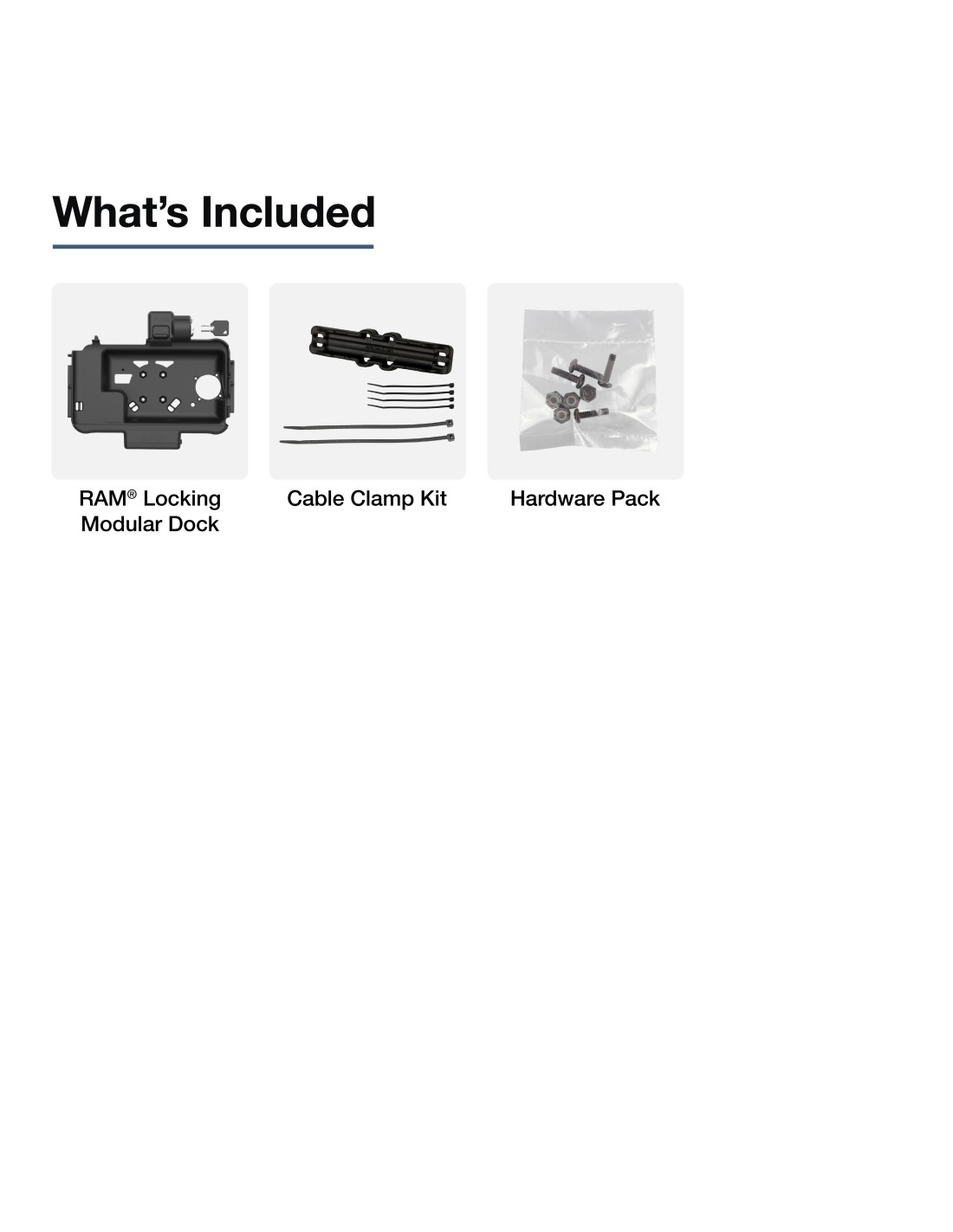

Components
Hardware Included
(2) Keys
(2) Large Cable Ties
(2) Optional Cable Clamp Housings
(4) #8-32 Nylock Nuts
(4) #8-32 x 5/8" Machine Screws
(8) Small Cable Ties
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
250mm
Input Connector
USB Type-C Female
Input Voltage
5.3-5.4VDC
Materials
High strength composite
Output Cable Length
250mm
Output Connector
(2) USB 1.1 Type A
Output Voltage
5VDC
Packaging Type
Poly Bag
Peripheral Output
500mA
Power Output
500mA
Product Weight
1.31 lb
Transfer Speed
12Mbps
Device Compatibility
Samsung Tab Active3
Samsung Tab Active5
793442022005
