RAM GDS THIN-CASE FOR TA5 E WITH UNI-CONN DOCK AND V21C CHARGER KIT FOR SWIFTLY

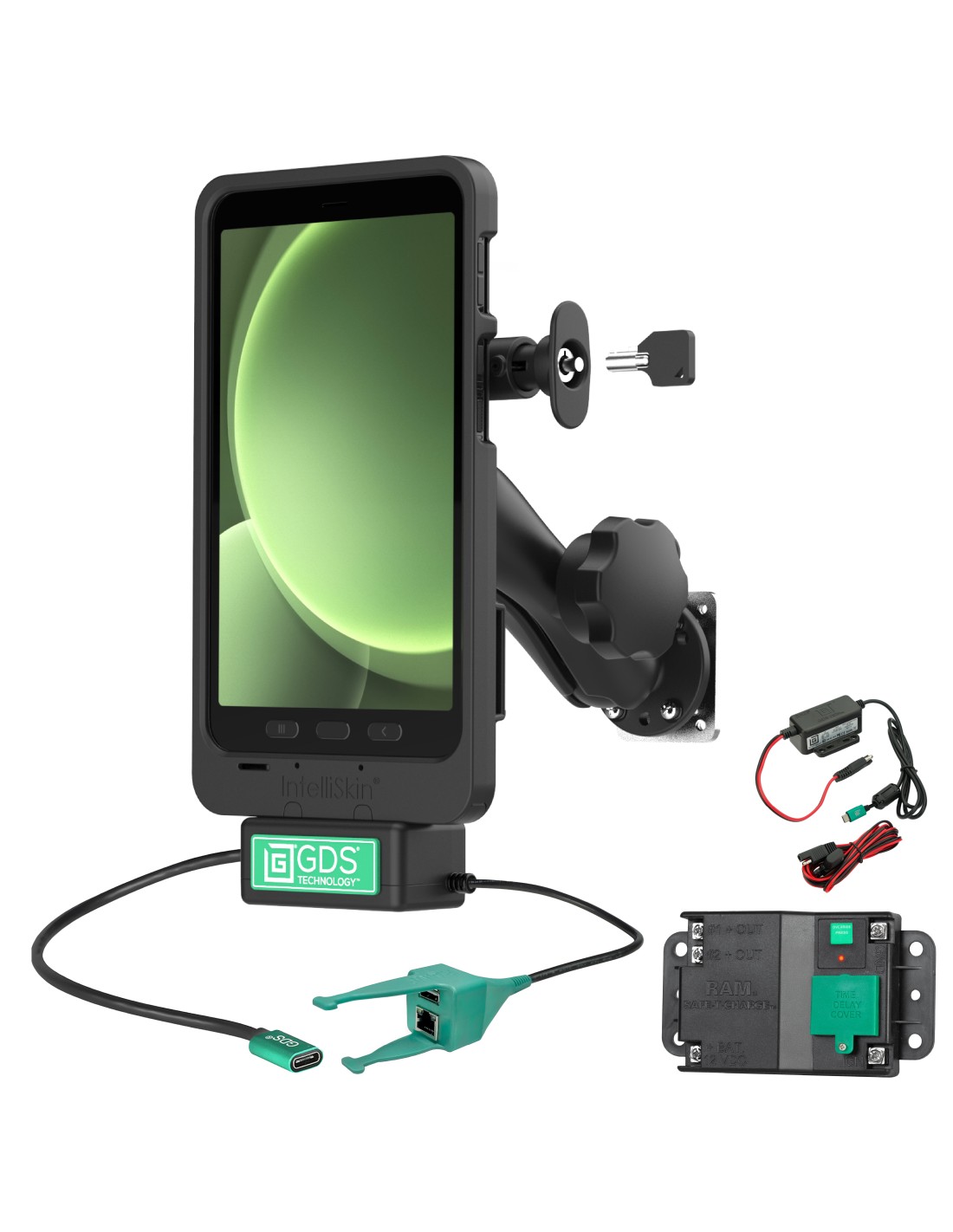

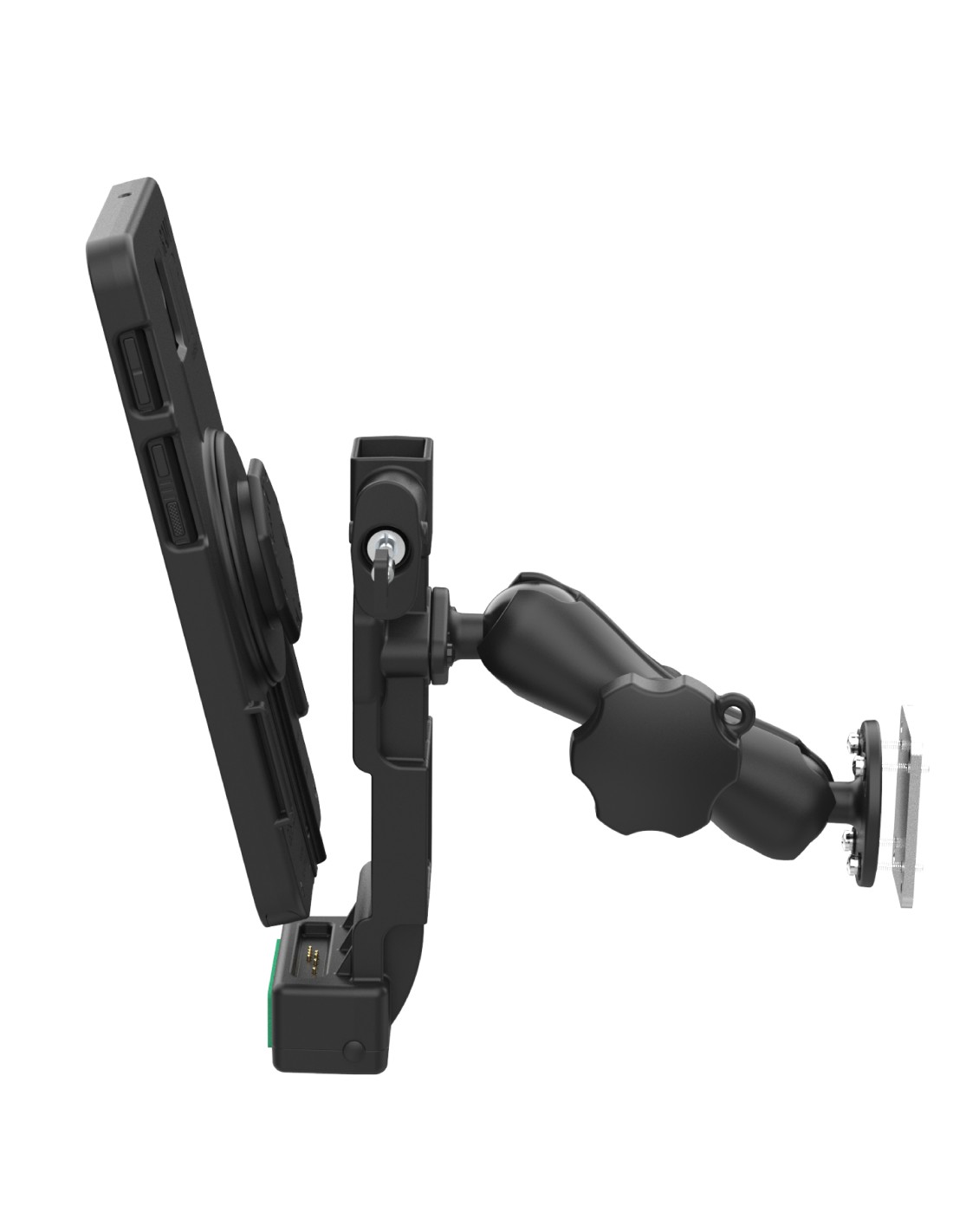

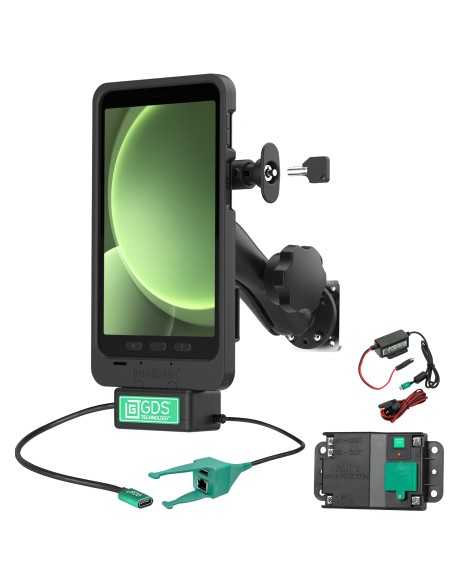

The GDS Uni-Conn Locking Thin-Case Vehicle Kit for Samsung Tab Active5 (RAM-GDS-SAM93TCD-U4-V21C-SWT1) is a comprehensive kit of everything needed to deploy the Tab A11+ in your fleet. It contains one GDS Uni-Conn locking dock with release button, Uni-Conn adapter, IntelliSkin Thin-Case for the Tab Active5, hardwire charger, RAM Safe-T-Charge Battery Protection System, and double ball mount with backing plate and locking knob. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked, and also includes an RJ45 port for peripheral support. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a quick-release button frees the tablet. The GDS Uni-Conn is backed by a 3-year warranty. Always Protected. Always Connected. One Dock to Connect Them All

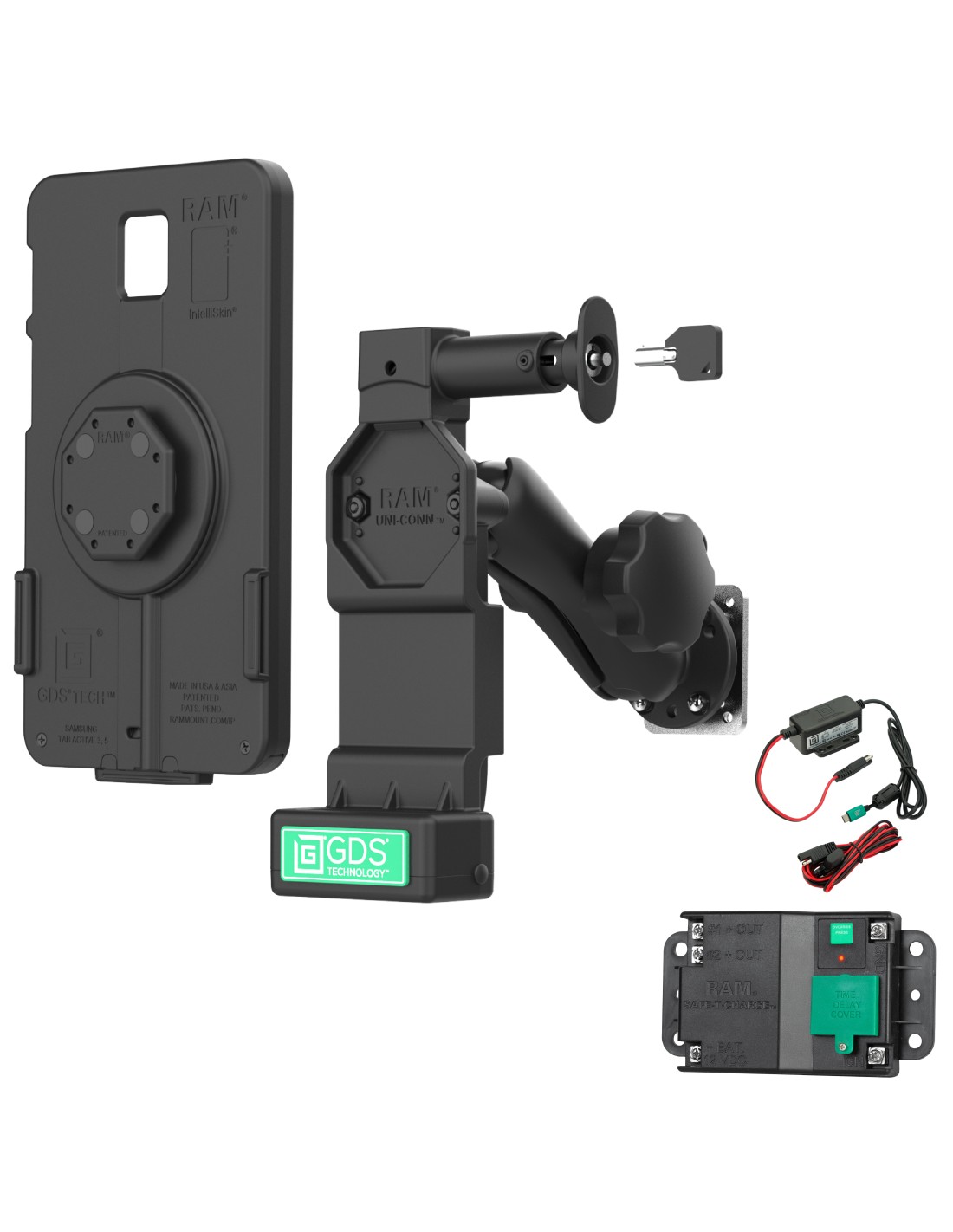

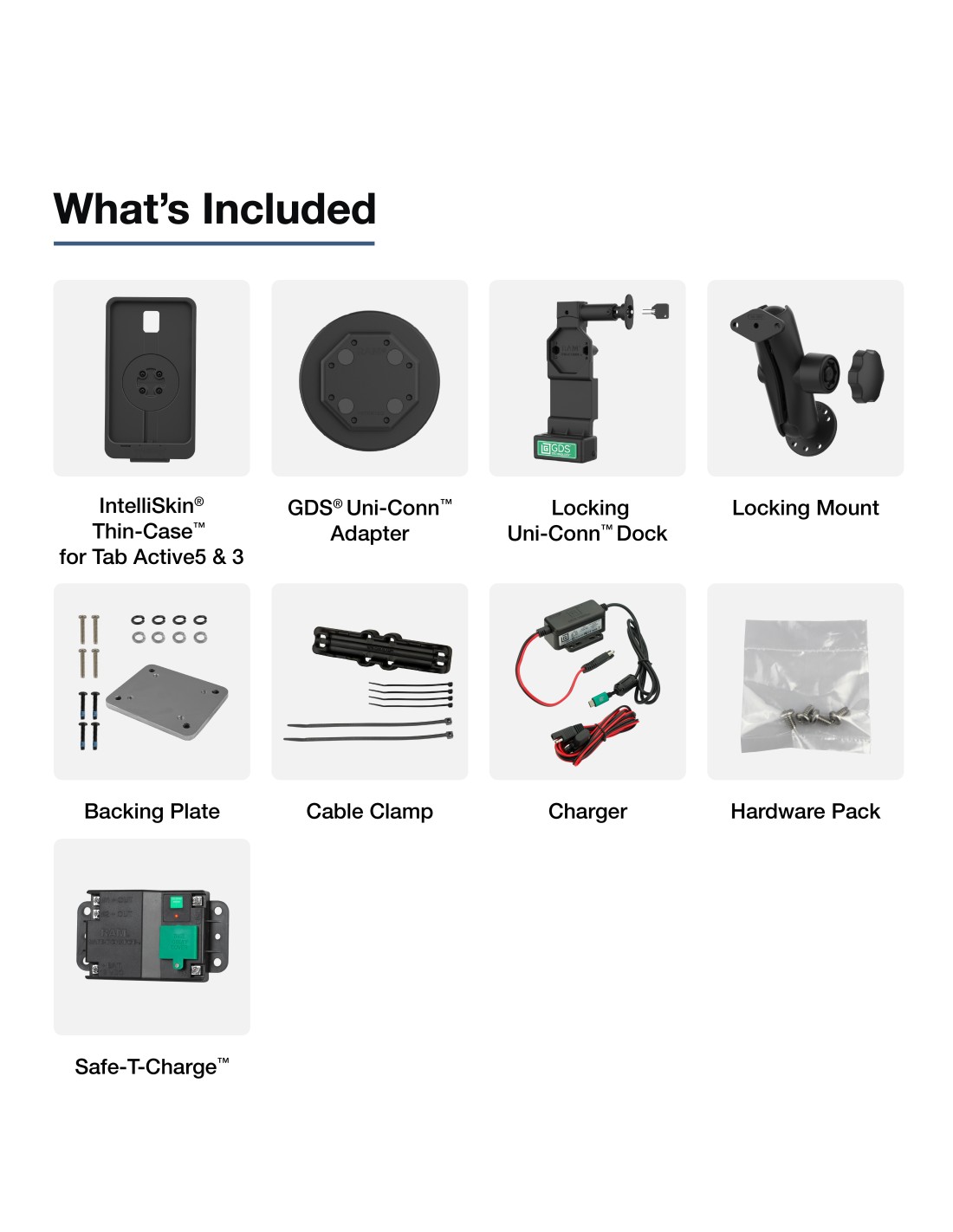

- Bundle includes the GDS® Uni-ConnT locking dock with release button, Uni-ConnT adapter, IntelliSkin® Thin-CaseT for the Tab Active5, 10-30V hardwire charger with USB-C male connector, RAM® Safe-T-ChargeT Battery Protection System, and double ball mount with backing plate and locking knob
- Dock features GDS® TechnologyT for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power and includes RJ45 connection for peripheral support

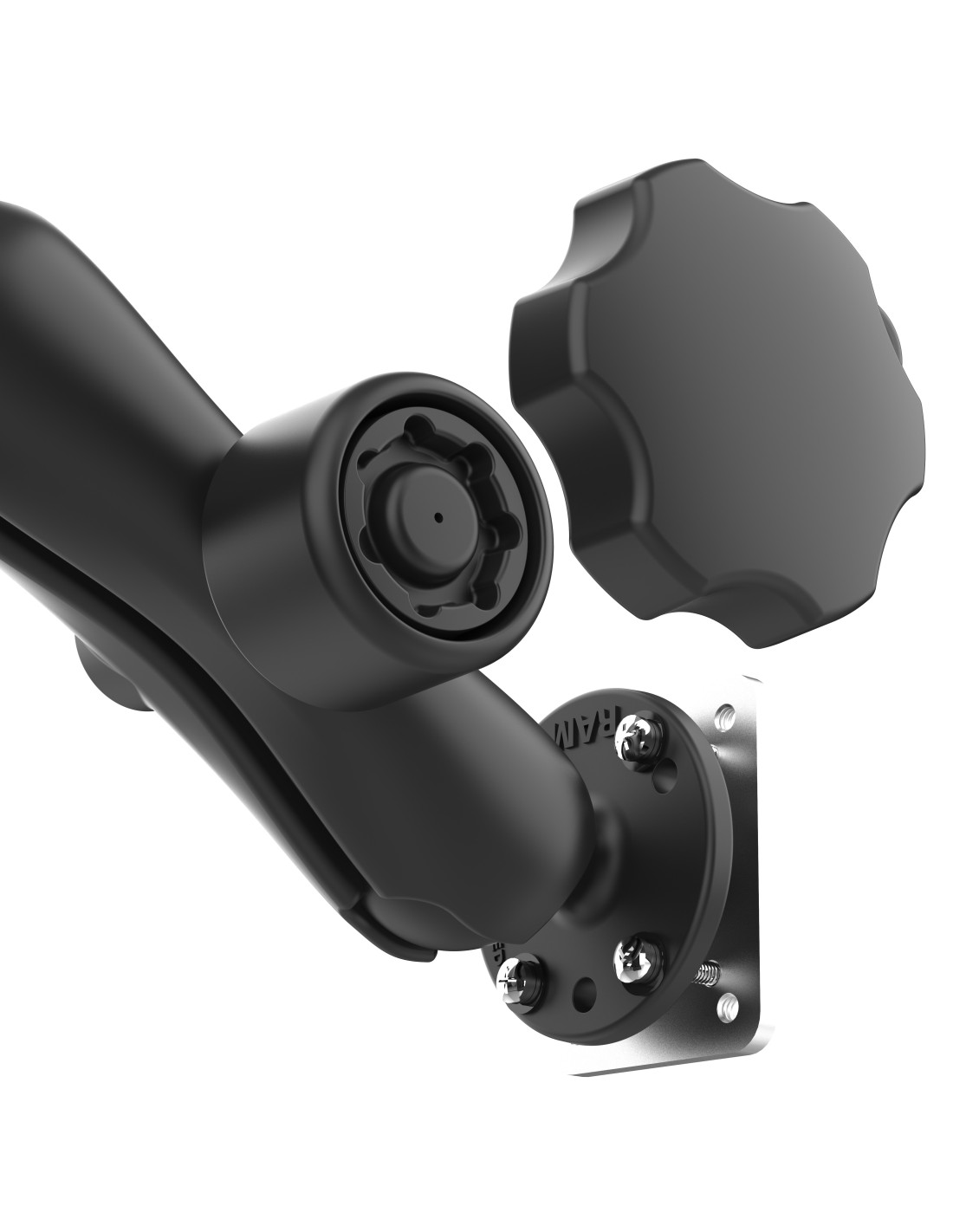

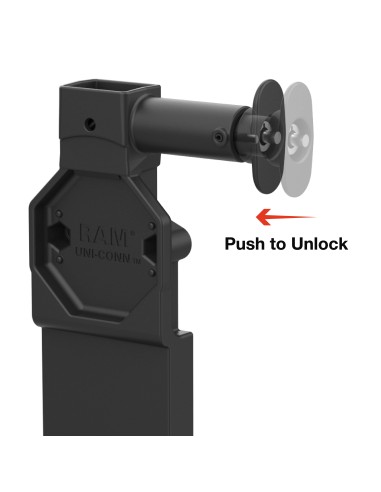

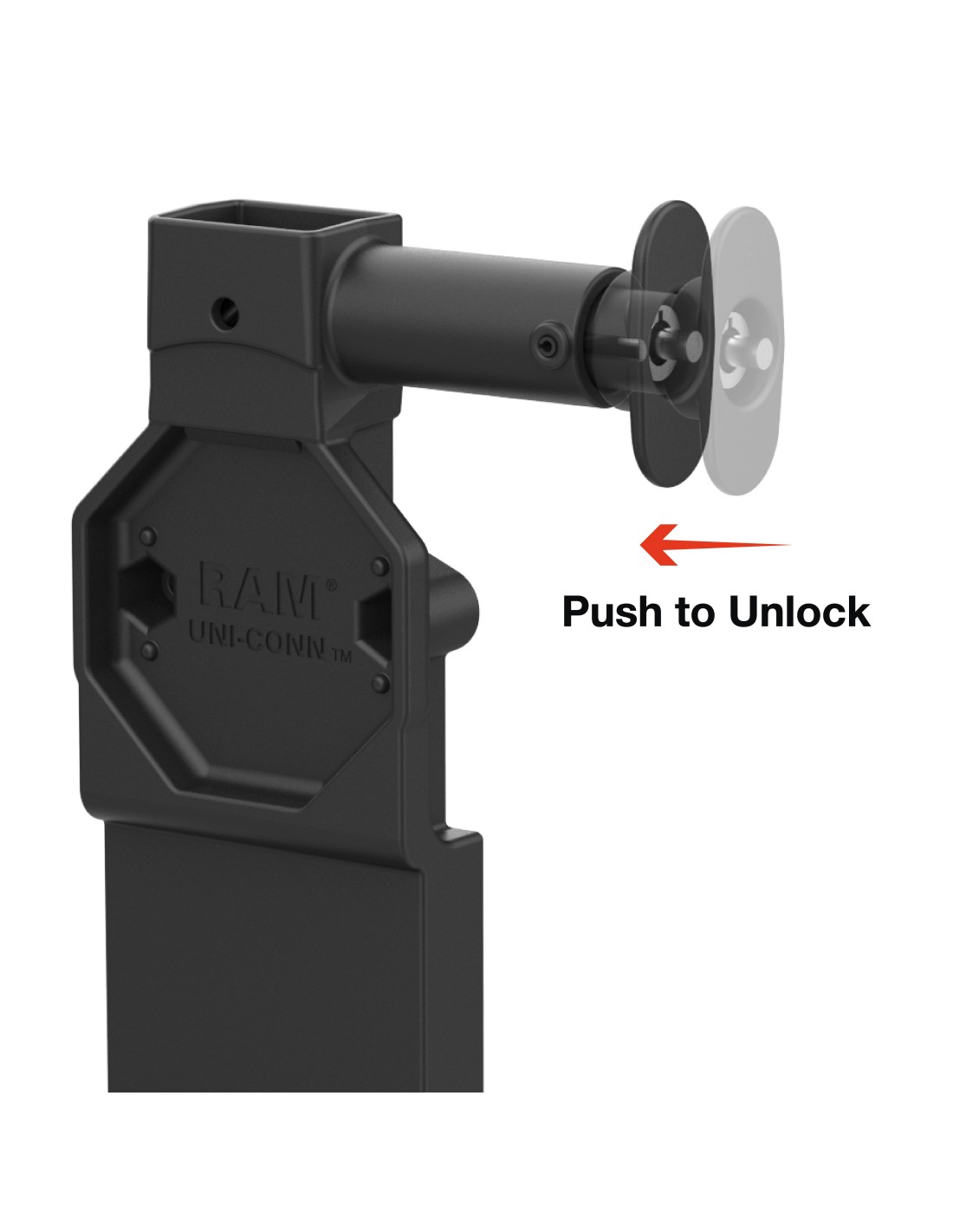

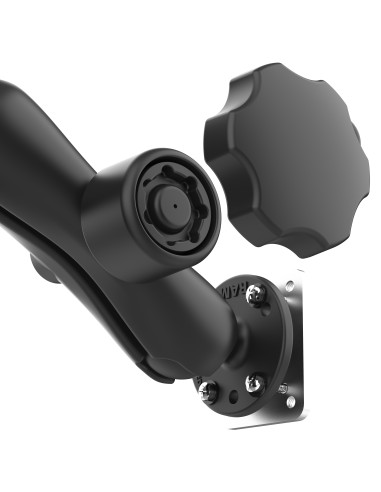

- Uni-ConnT dock's key-lock and locking knob on arm provide additional theft deterrence

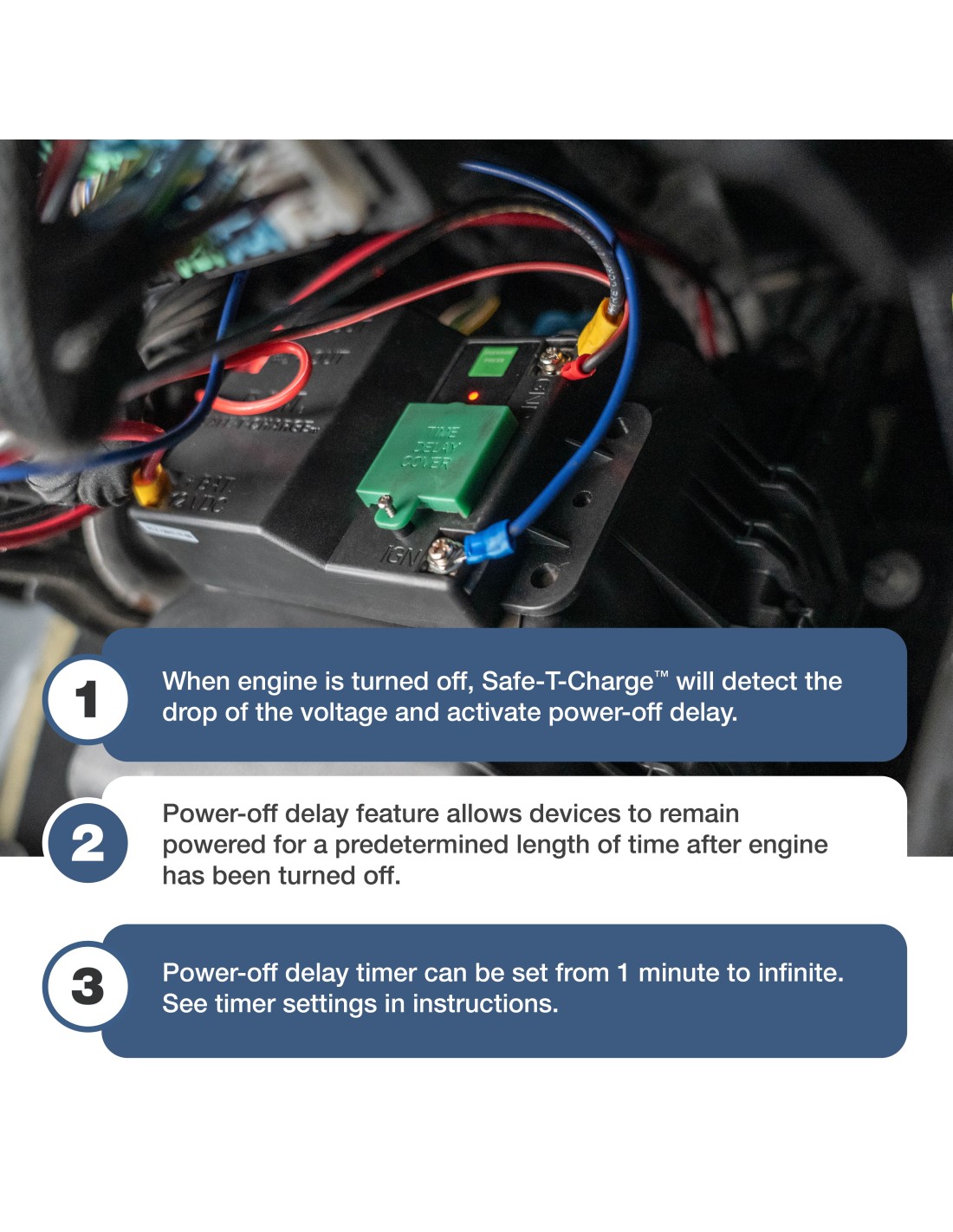

- Included RAM® Safe-T-ChargeT features automatic battery protection, cutting accessory power based on ignition state or battery voltage to prevent battery depletion
- Backed by a 3-year warranty
- Components
- RAM-138-225B2U
RAM-234-VCP1U
RAM-GDS-CHARGE-V21CU
RAM-GDS-DOCKL-U4CP-RJ45AU
RAM-GDS-SKIN-SAM93-TCD
RAM-GDS-U1U
RAP-S-KNOB5U - Product Line
- GDS® TechT IntelliSkin®
- Product Type
- Tablet Mounts
- Ball Size
- C Size (1.5")
- Certifications
- E-Mark Certification
IEC/UL 62368-1
RCM Certification - Hardware Included
- Assembly Hardware
- Input Voltage
- 10-30VDC
- Materials
- Marine-grade aluminum
High strength composite - Operating Temperature
- -10°C to +70°C
- Output Current
- 2.5A max
- Output Voltage
- 5-9VDC*
- Packaging Type
- Poly Bag
- Product Weight
- 3.55 lb
- Regulatory
- FCC, CE, UKCA, IC
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance - Socket To Socket Length
- 4.66"
- Storage Temperature
- -40°C to +70°C
- Weight Capacity
- Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs - Device Compatibility
- Samsung Galaxy Tab Active3
Samsung Galaxy Tab Active5
