RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
  • Nuevo
RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size
RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size

RAM® Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size

RAM-CC1-411D-114-PA-BGU

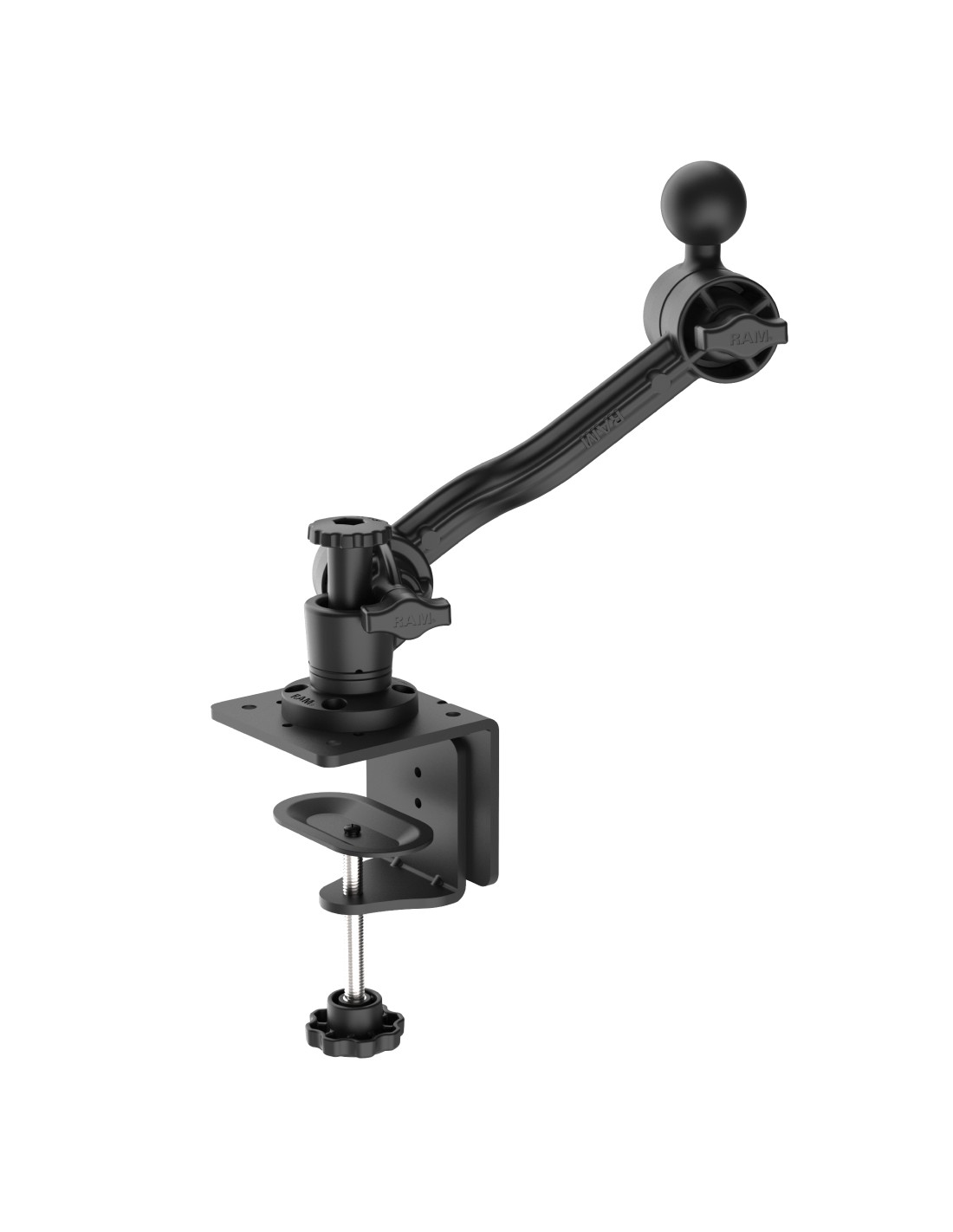

The RAM Heavy Duty C-Clamp Base with Swivel Ratchet Arm & Ball - C Size (RAM-CC1-411D-114-PA-BGU) is a rugged, highly adjustable mounting solution designed for flexible, non-permanent device installation across a wide variety of workspaces. Ideal for desks, tables, carts, and mobile workstations, the heavy-duty clamp securely attaches to surfaces ranging from 0" to 4" thick with no minimum edge depth required. The included Swivel Ratchet Arm provides both height adjustment and rotational positioning, with knobs on either end to secure the arm at the desired height. Loosening the lower knob enables smooth swivel movement for additional positioning flexibility. Topped with a C size RAM ball, this mount integrates seamlessly with existing RAM components and leverages the RAM ball and socket system for secure, customizable device placement.

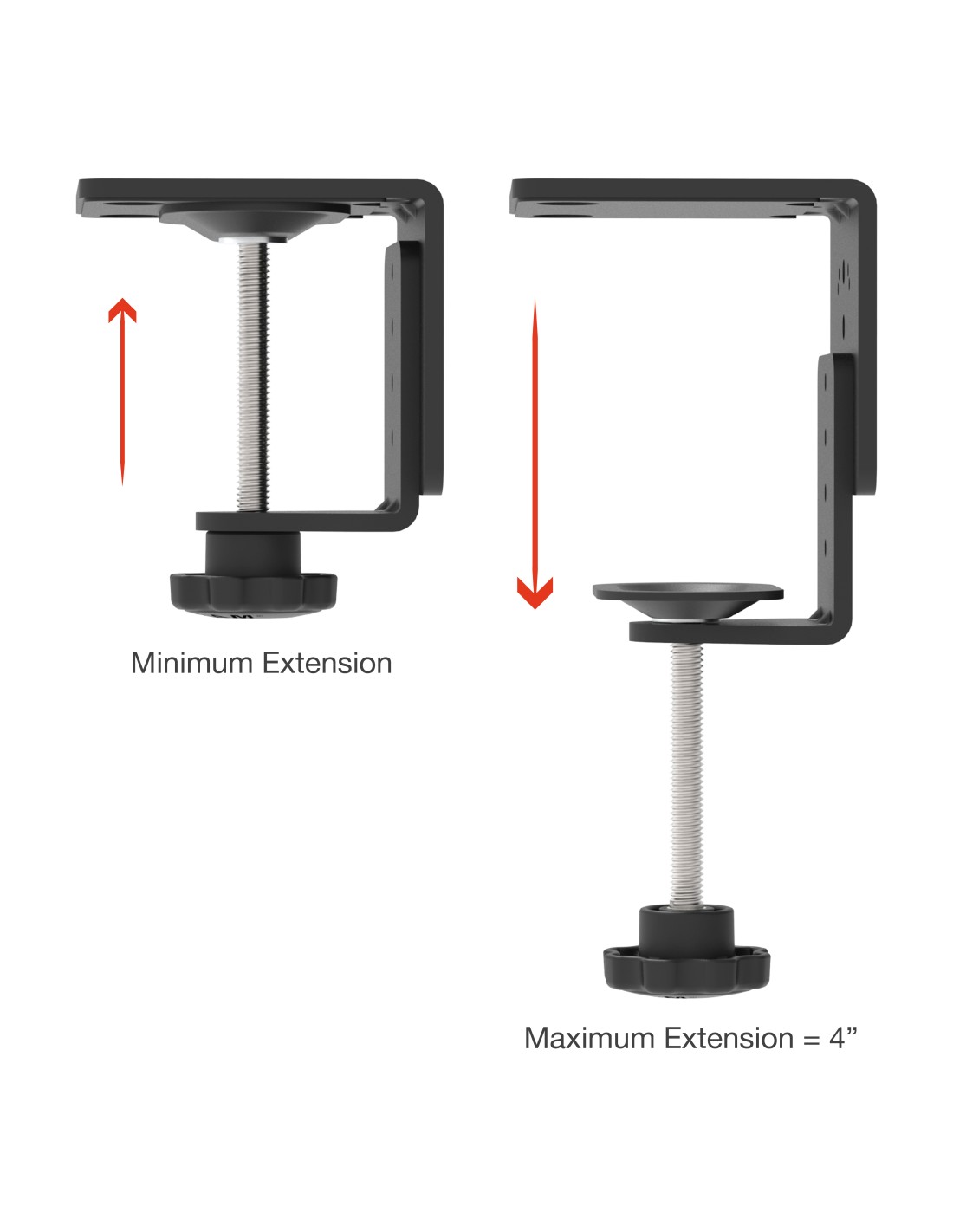

  • Clamp secures to surfaces 0-4" thick

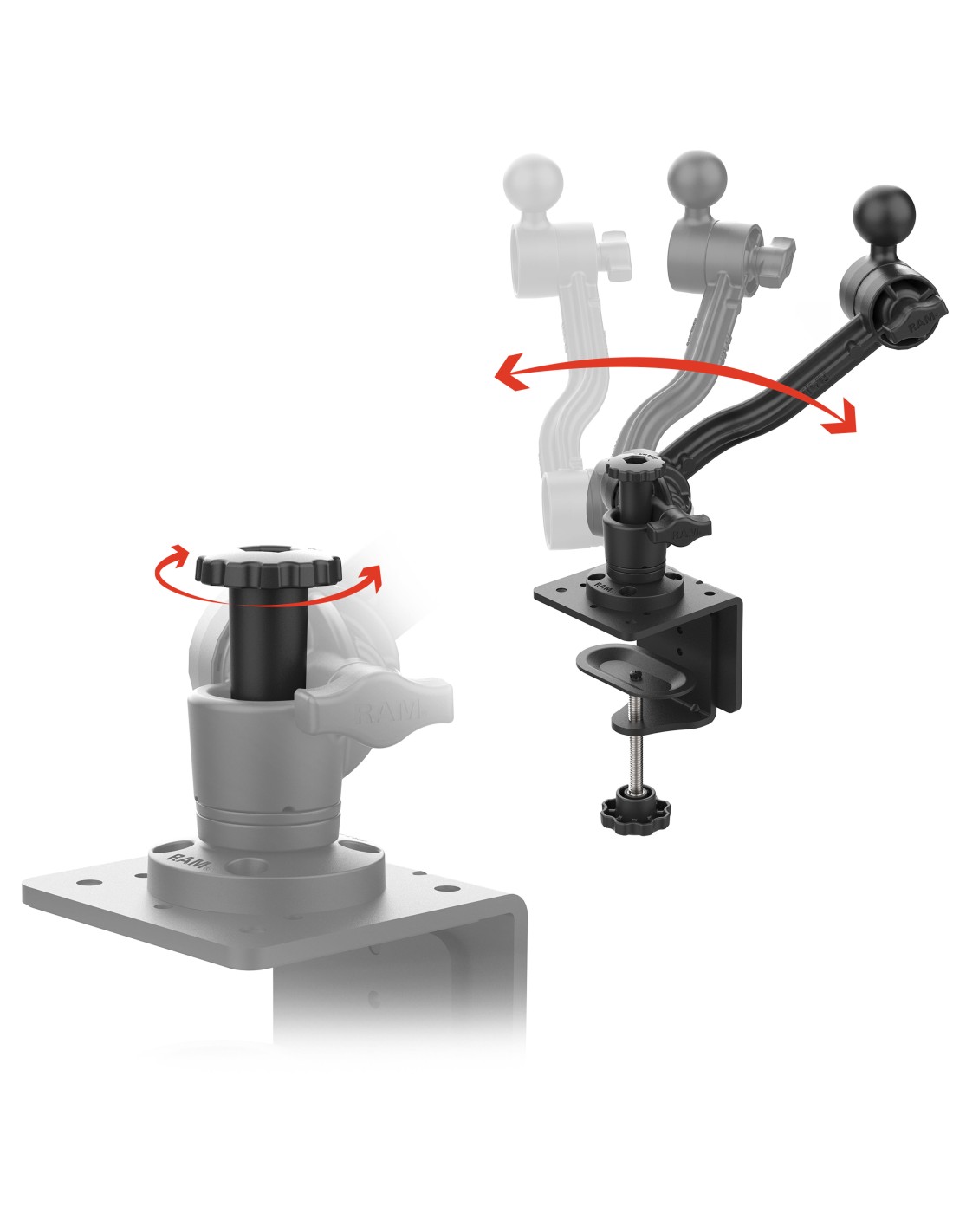

  • Swivel Ratchet Arm provides adjustable height positioning, as well as an integrated swivel functionality
  • Features a C size RAM® ball for compatibility with a wide range of RAM® socket arms, device holders, and mounting accessories
  • Non-permanent mounting solution delivers a stable, professional-grade installation without drilling
  • Backed by a lifetime warranty

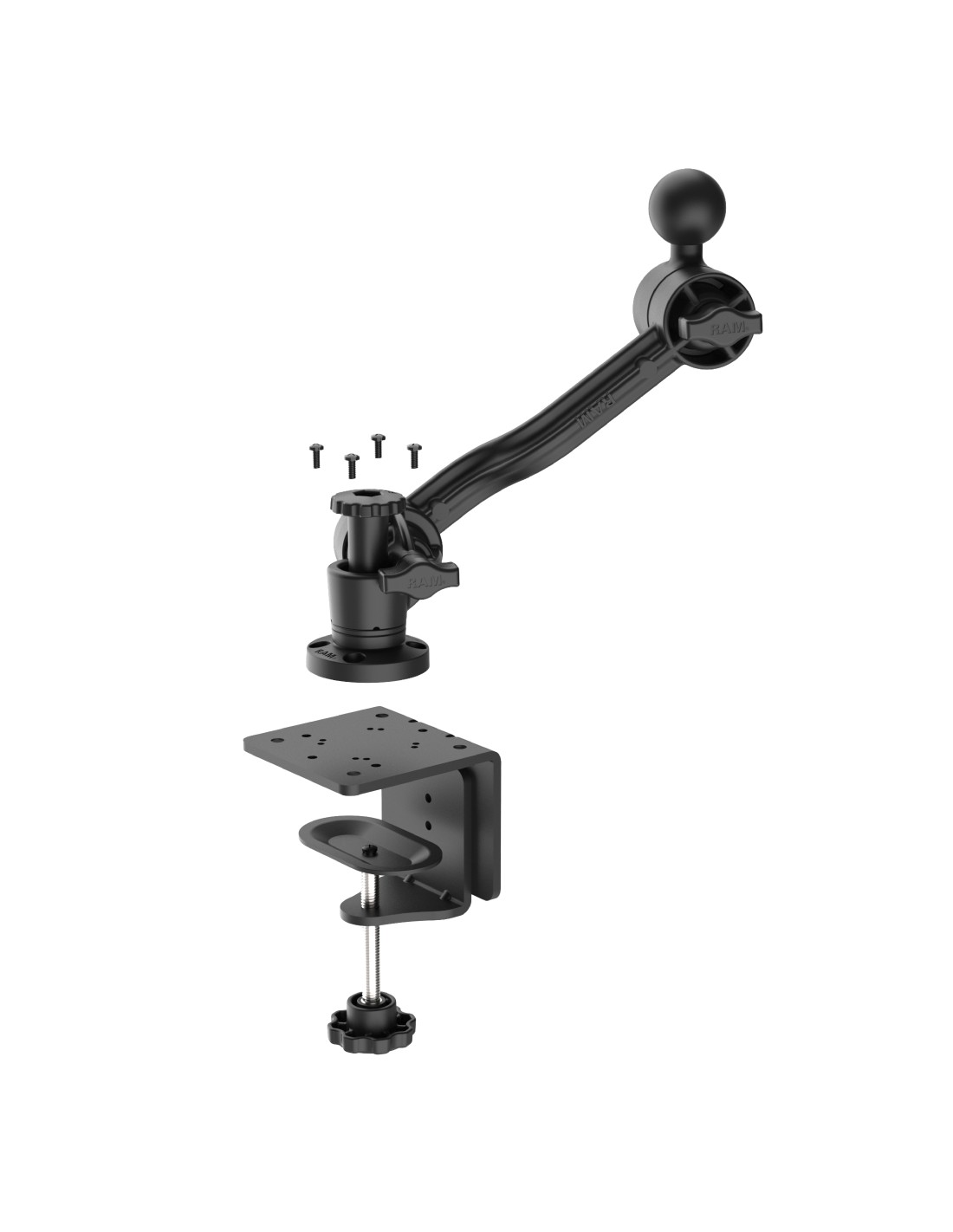

Components
RAM-CC1U
RAP-411D-114-PA-BGU
Product Type
Components
Ball Size
C Size (1.5")
Clamp Range
0" - 4"
Hardware Included
Assembly Hardware
Materials
Powder coated steel
High strength composite
Packaging Type
Poly Bag
Product Dimensions
Arm + Ball Length: 12.25"
Product Weight
3.08 lb
793442036132
