RAP-B-149-AP-MAG-1-W2MU

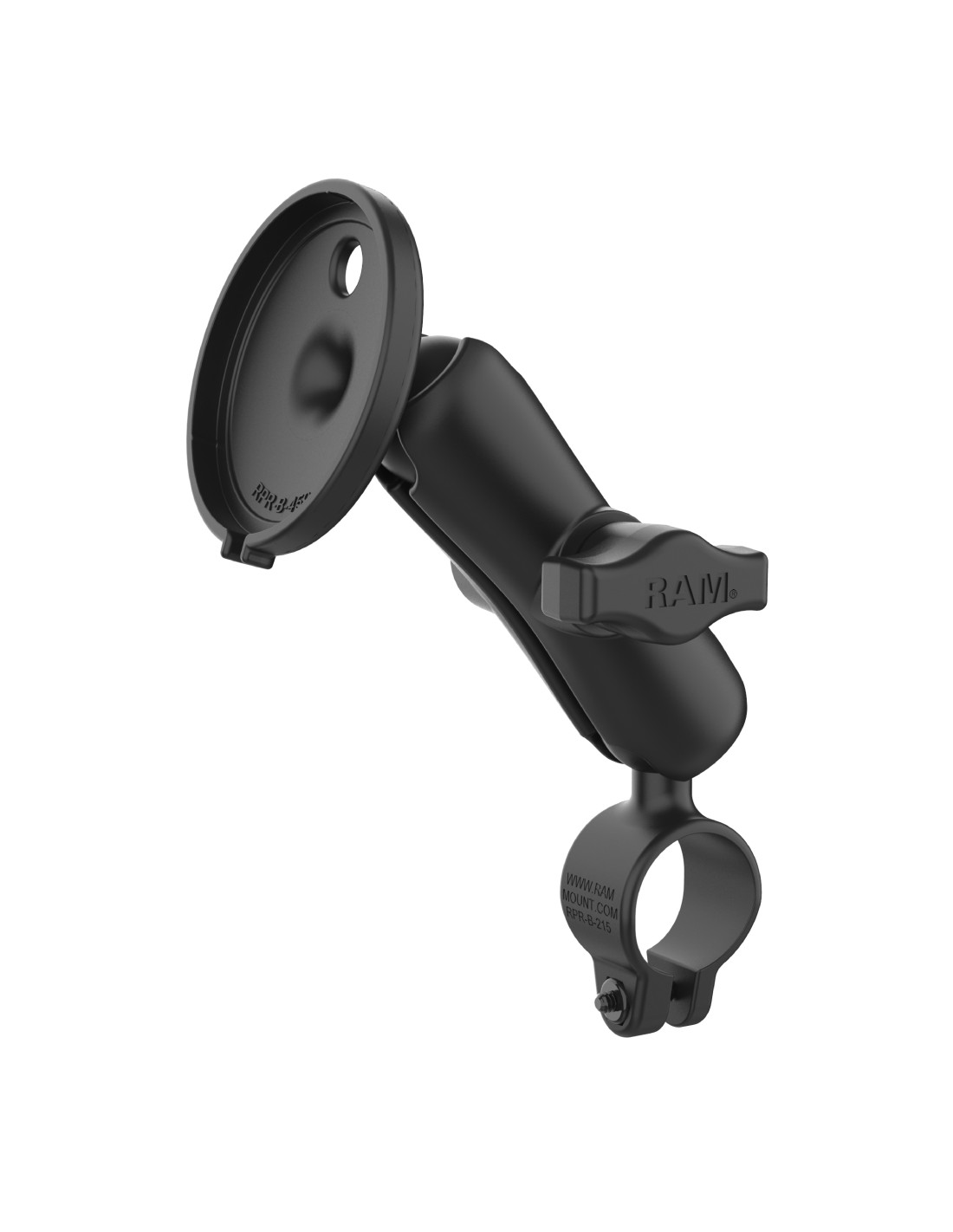

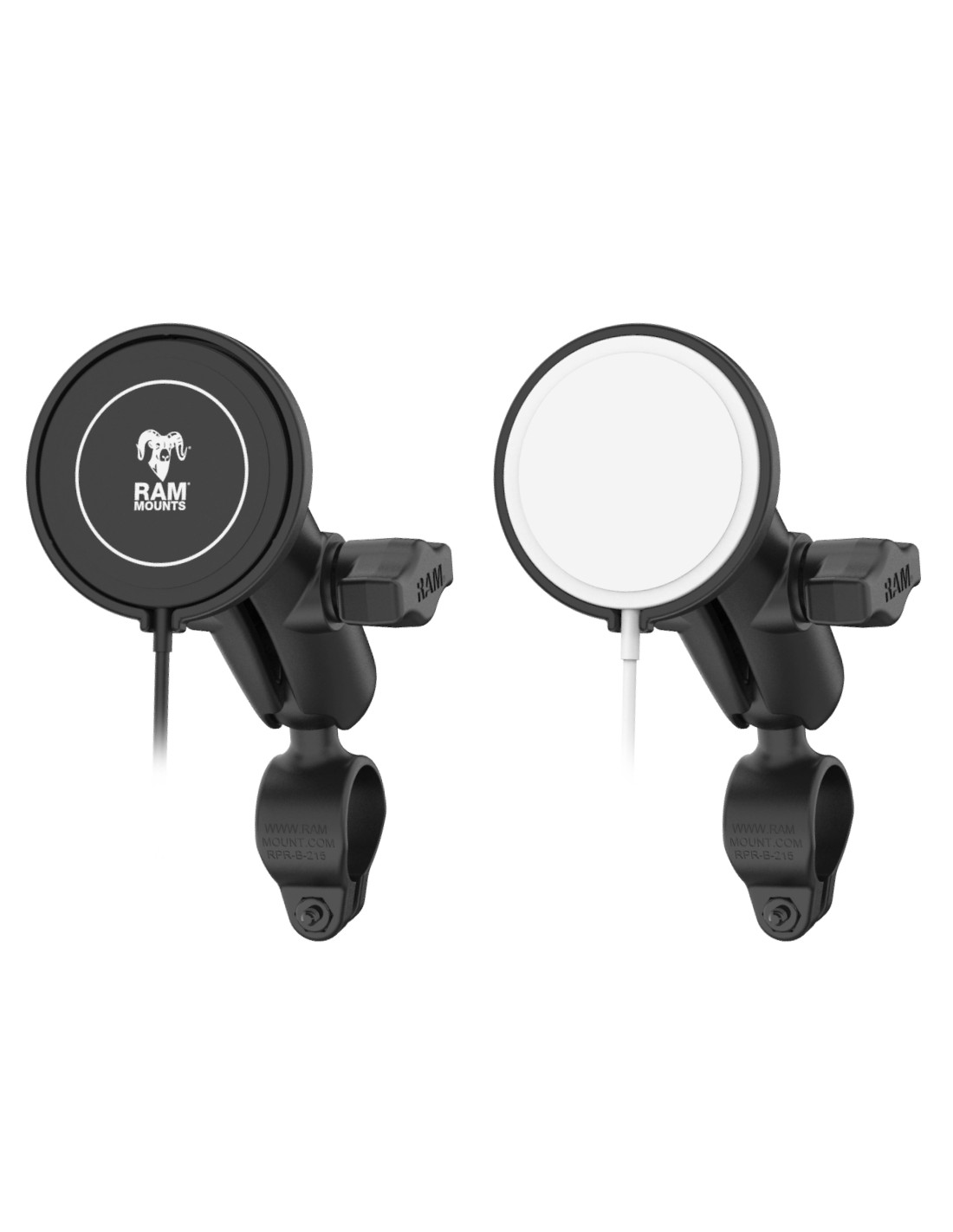

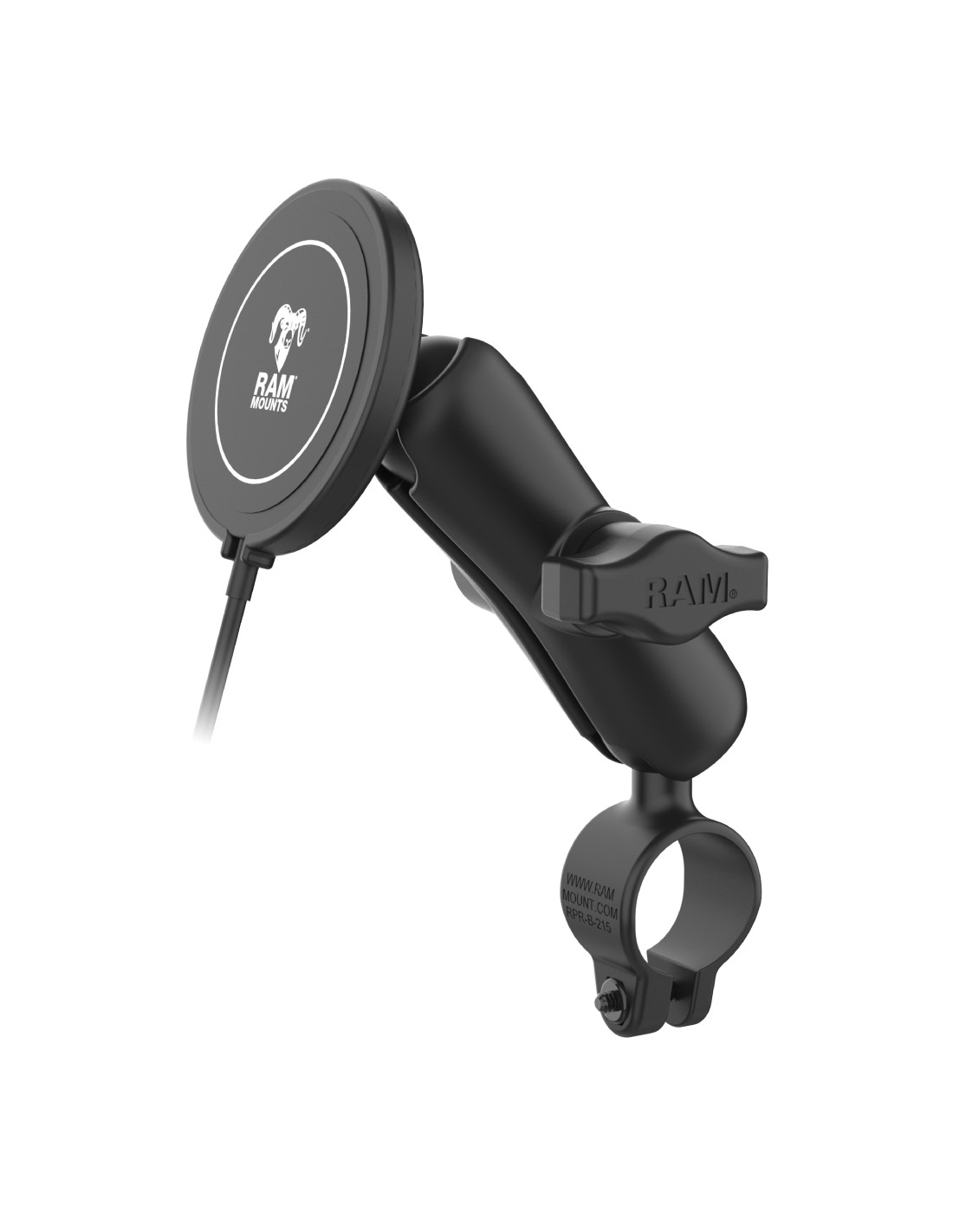

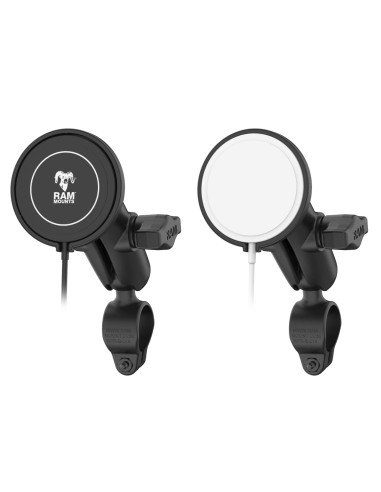

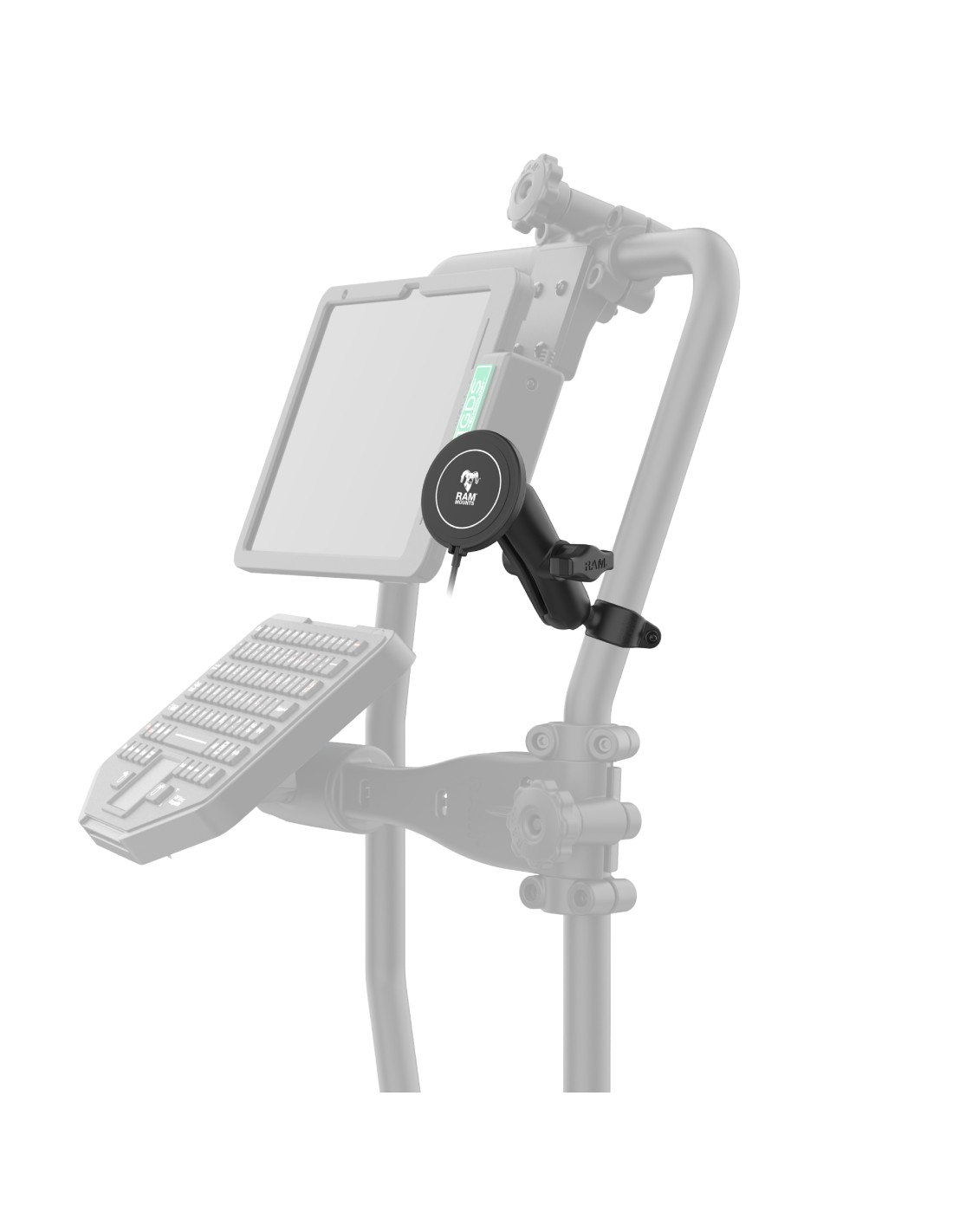

The RAM Double Ball Rail Mount with RAM Qi2 15W Wireless Charger (RAP-B-149-AP-MAG-1-W2MU) seamlessly integrates the RAM Qi2 15W Wireless Charger into the RAM ball and socket ecosystem, delivering a secure and dependable in-vehicle mounting solution. This complete kit includes the RAM Qi2 15W Wireless Charger along with a precision-fit adapter that keeps the charger securely in place, while compatible smartphones magnetically align and snap into position for effortless mounting and fast wireless charging. Also included is a RAM Composite Ball Base for 1" rails and a B size medium-length socket arm, perfect for the RAM Tough-Bar.

  • Adapter compatible with included RAM® Qi2 15W Wireless Charger

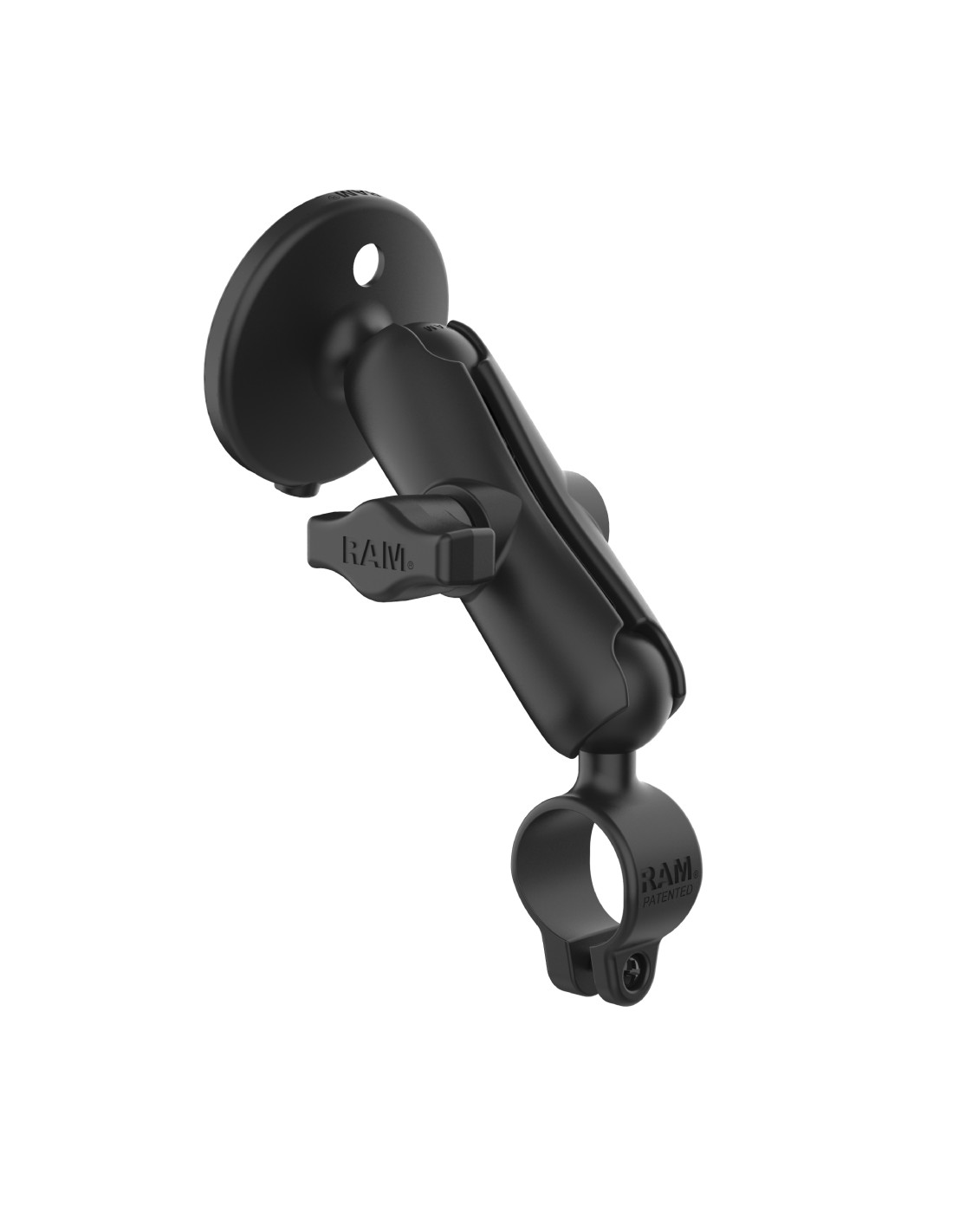

  • Includes RAM® composite base for 1-inch rails and medium length, B size RAM® double socket arm
  • Single-screw installation, tightens easily using the included #6-32 screw and nylock nut
  • Ball and socket technology allows for near-infinite adjustability
  • Backed by a lifetime warranty; 3-year warranty on electronic components

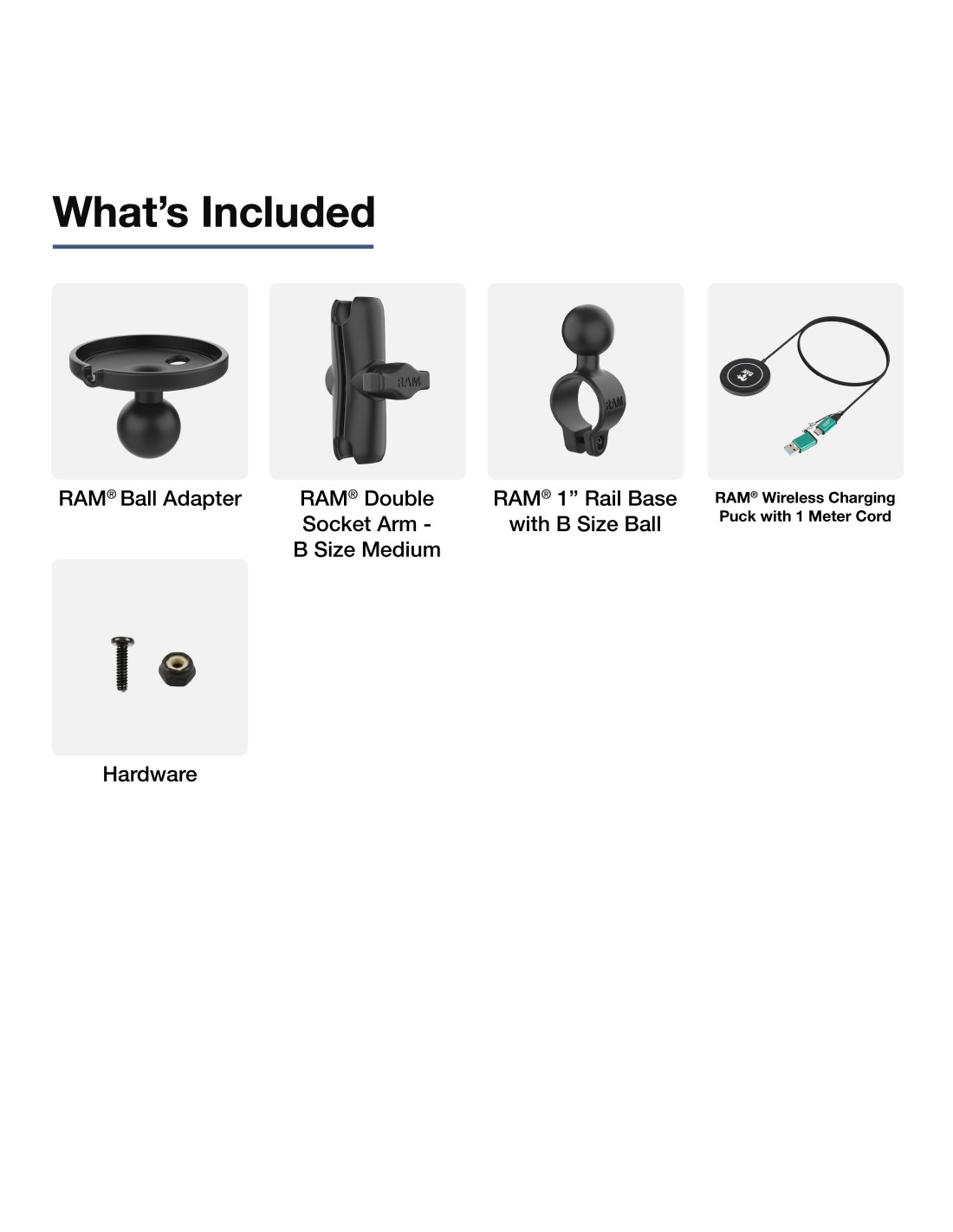

Components
RAM-GDS-CHARGE-W2M
RAP-B-201U
RAP-B-202-AP-MAG-1U
RAP-B-231U
Product Type
Phone Mounts
Ball Size
B Size (1")
Certifications
CE Certification
E-Mark Certification
FCC Certification
IP67
RCM Certification
SAE J1455
Clamp Range
1" diameter
Hardware Included
(1) #6-32 Nylock Nut
(1) #6-32 x 5/8" Machine Screw
Input Voltage
QC2.0 9V @ 2.22A
USB 5V @ 3A
USB PD 2.0 5-15V @ 2A
Materials
High strength composite
Operating Temperature
0°C to +40°C
Output Cable Length
1 Meter
Output Connector
USB Type-C Male with USB-A Adapter
Packaging Type
Poly Bag
Power Output
BPP - 5W
EPP - 7.5W
MPP - 15W
Power Specifications
80% Wireless Power Transfer Efficiency or Greater
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Supports USB 2.0 BC1.2 Power Supply (5V)
Product Weight
0.44 lb
Regulatory
Over Current Protection
Over Temperature Protection
RoHS Compliance
Short circuit Protection
WEEE Compliance
Socket To Socket Length
3"
Storage Temperature
-20°C to +80°C
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
