RAM-B-347-379-252025-KEY5-MTVU

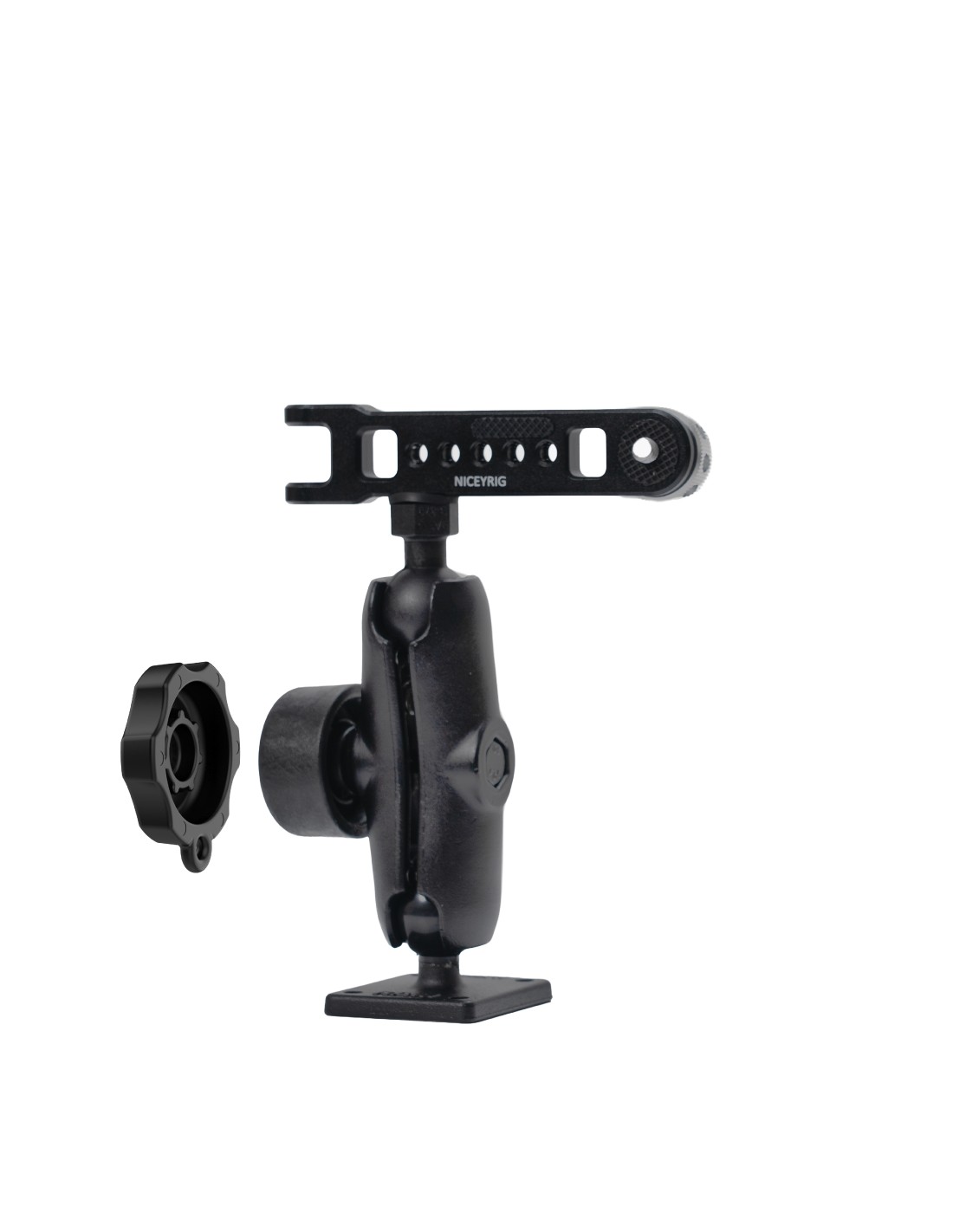

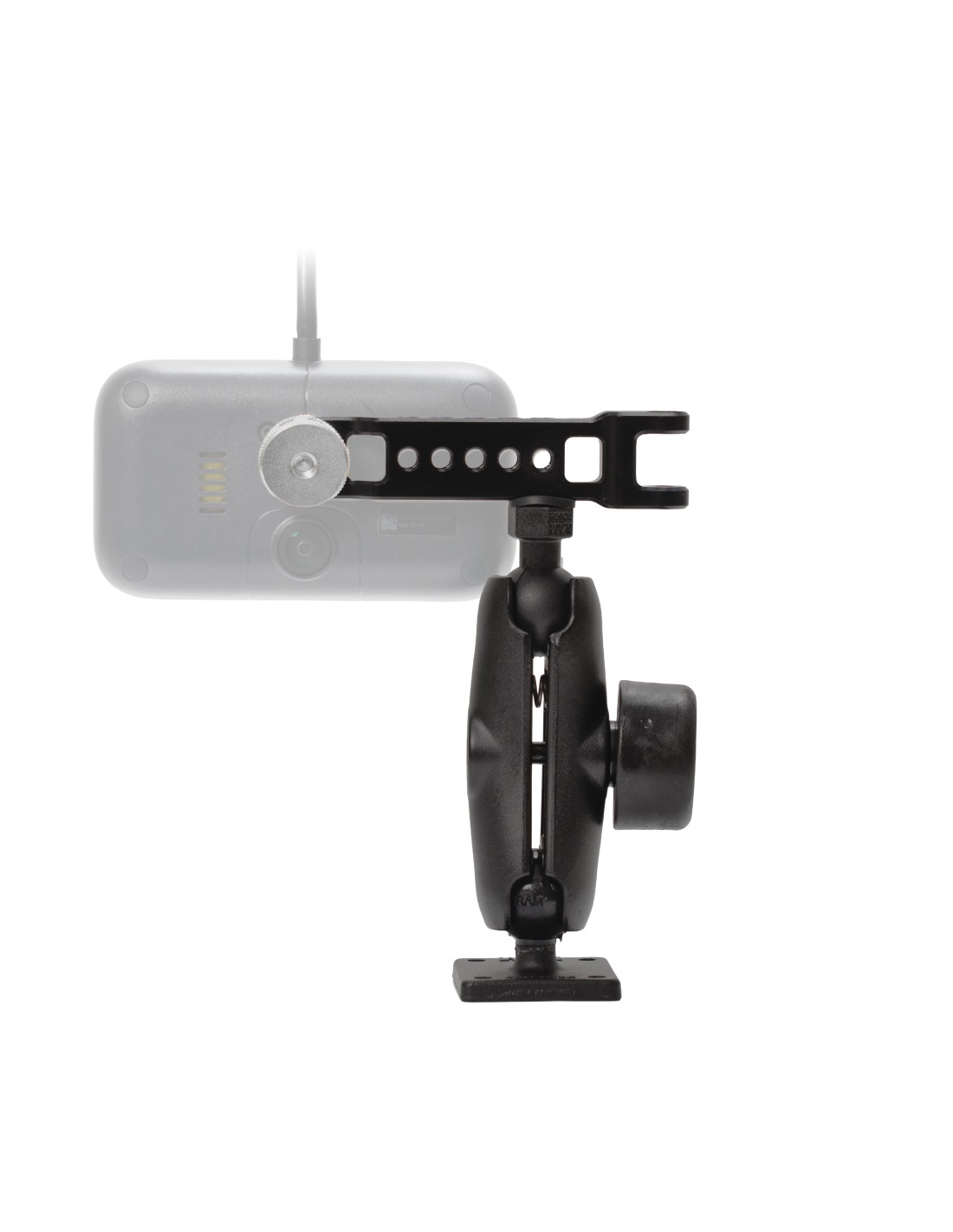

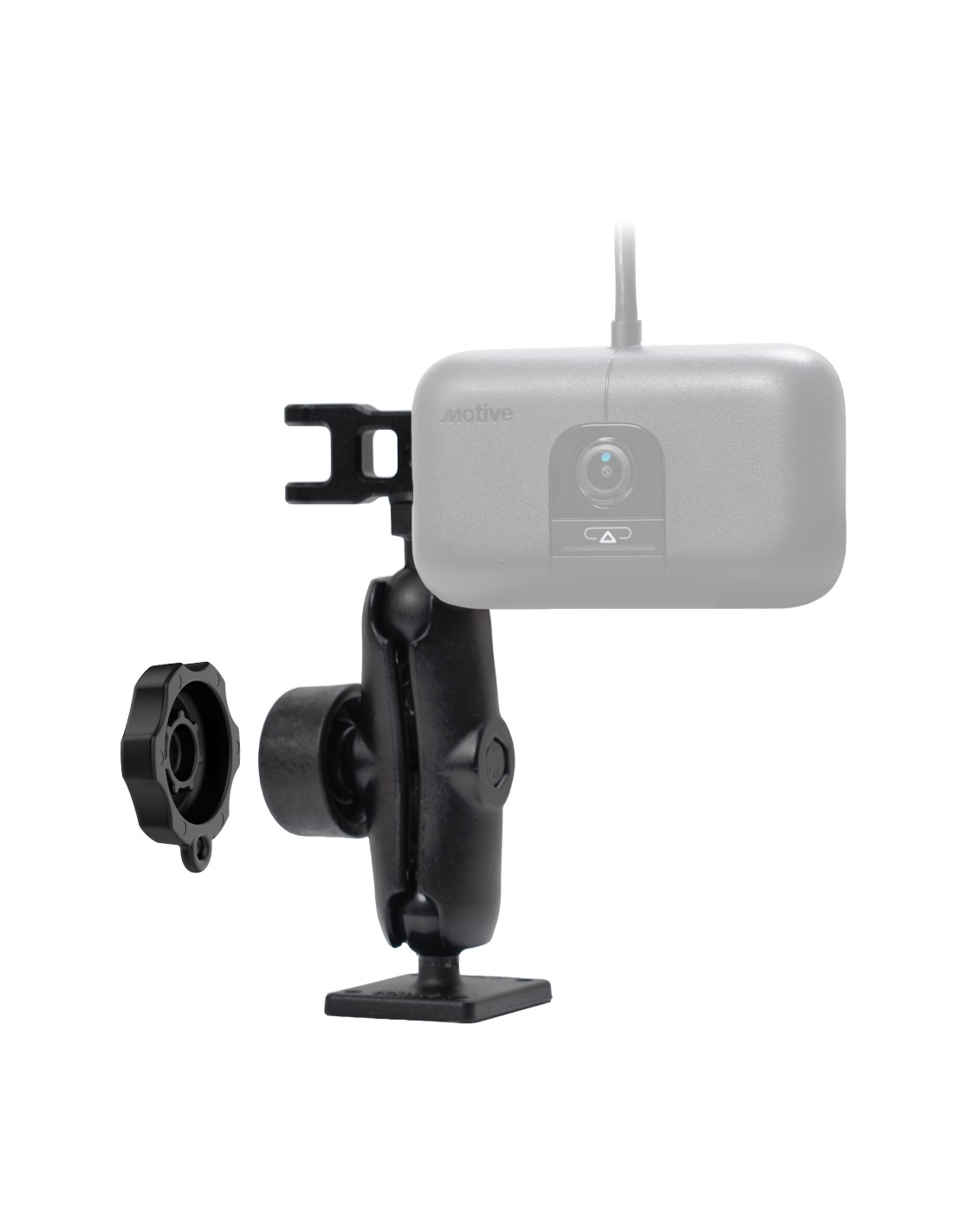

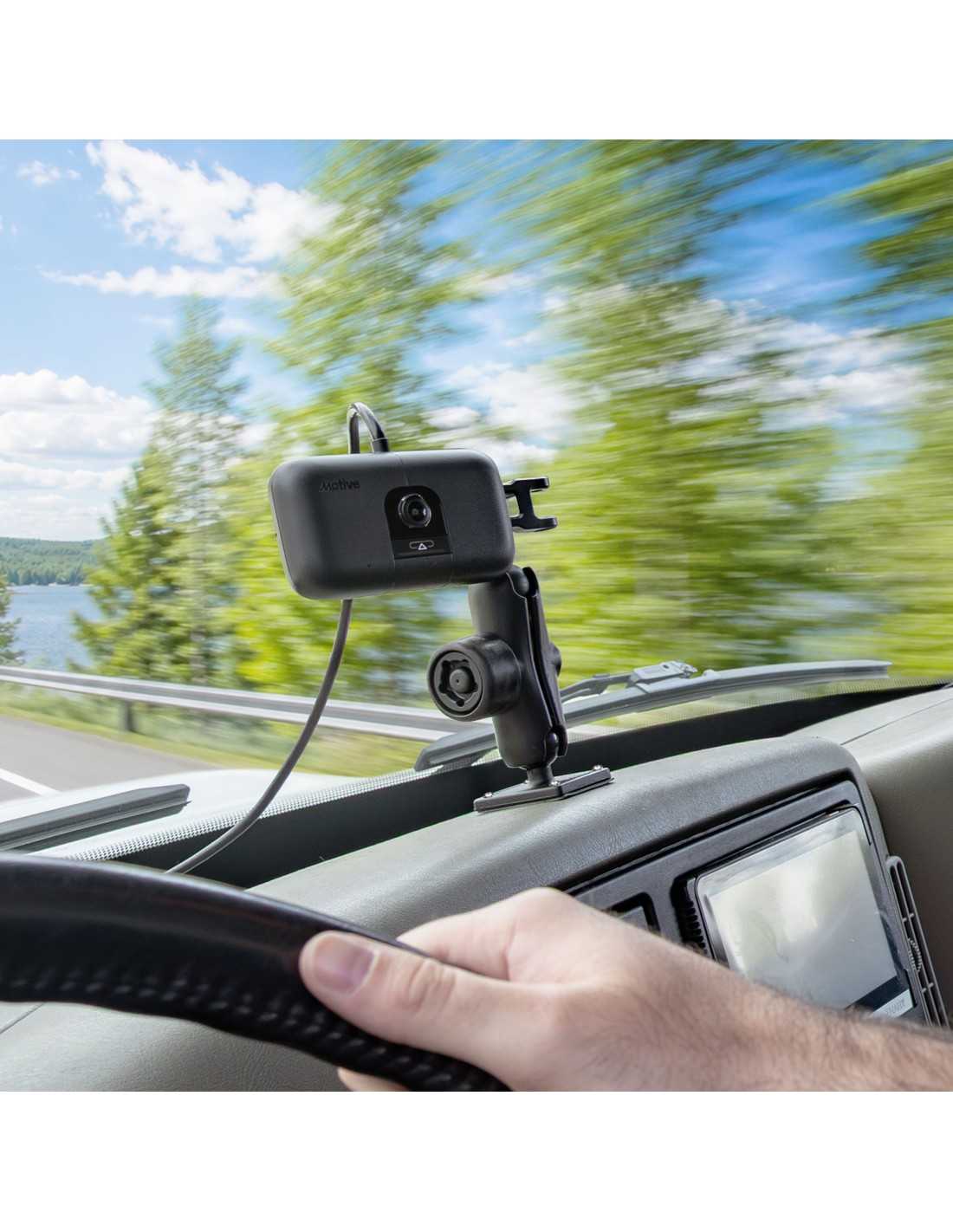

The RAM Dashboard Mount for Motive Dashcam with Extension Bracket (RAM-B-347-379-252025-KEY5-MTVU) is a complete mounting solution for securing the Motive AI Dashcam to a dashboard. This kit includes a Threaded Camera Extension Bracket, B-size RAM Tough-Ball with 1/4" threaded stud, RAM Pin-Lock B-size medium double socket arm, backing plate adapter, and adhesive mounting pad. Choose between the backing plate adapter for a permanent drill-down installation or the included adhesive pad for a no-drill mounting option. The extension bracket provides additional camera adjustability while maintaining full visibility of both the front and rear cameras. For added security, the RAM Pin-Lock Security Knob helps deter theft and tampering while keeping the camera secure. Built on the RAM Mounts ball-and-socket system, this mount provides near-infinite adjustability for optimal camera positioning.

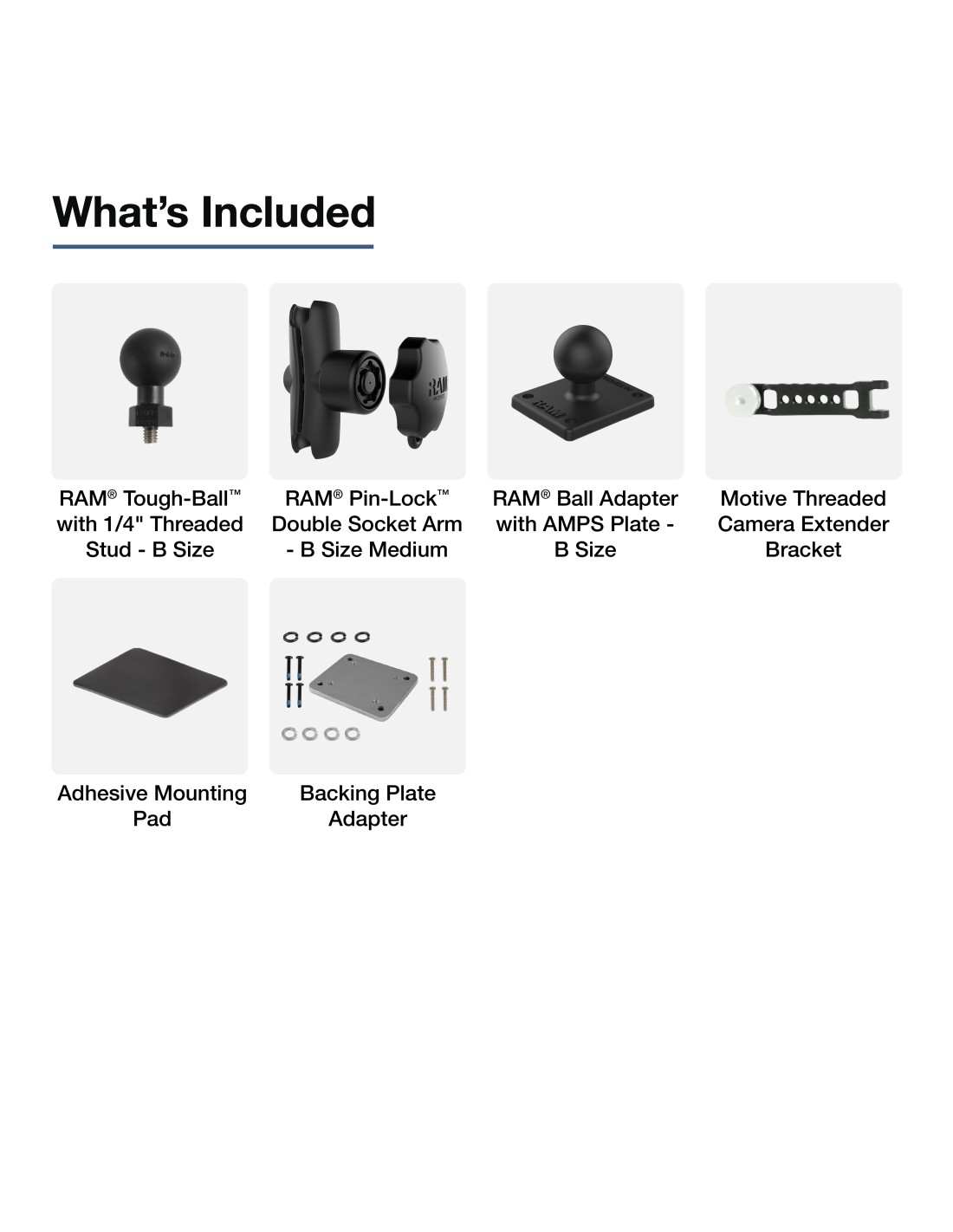

  • Bundle includes Motive Threaded Camera Extension Bracket, B Size RAM® Tough-BallT with 1/4" Threaded Stud, RAM® Pin-LockT B Size Medium Double Socket Arm, Backing Plate Adapter, and Adhesive Mounting Pad
  • Included Adhesive Mounting Pad provides no-drill installation option
  • Extension bracket allows for use of both front and rear cameras on Motive AI Dashcam
  • Locking knob on arm provides additional theft deterrence
  • Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments

Components
RAM-202-225B-2U
RAM-347PSAU
RAM-B-201U
RAP-B-379U-252025
RAP-S-KNOB3-5U
Product Line
Tough-BallT
Product Type
Camera Mounts
Ball Size
B Size (1")
Hardware Included
(1) Extension Bracket
(1) Knob Key
(1) Dash Adhesive Pad
(1) Dash Backing Plate
(4) #10-24 x 1" Machine Screws
(4) #10 Lock Washers
(4) #8-32 x 1" Machine Screws
(4) #8 Lock Washers
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Materials
Marine-grade aluminum
High strength composite
Packaging Type
Poly Bag
Product Weight
0.95 lb
Socket To Socket Length
3"
Thread Pitch
1/4"-20
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
793442034404
