RAM-138-S-SNM3PL-V7B1-1U

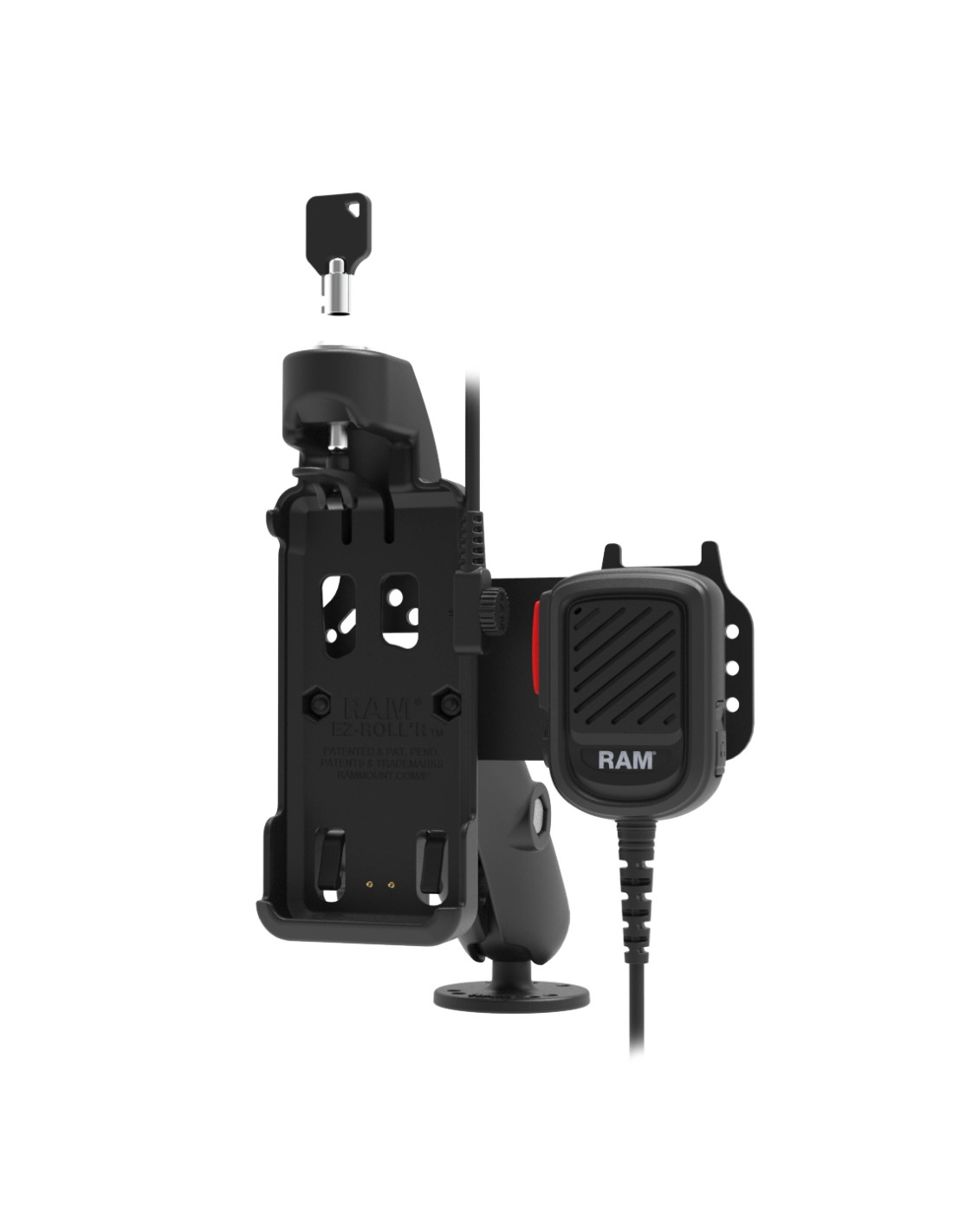

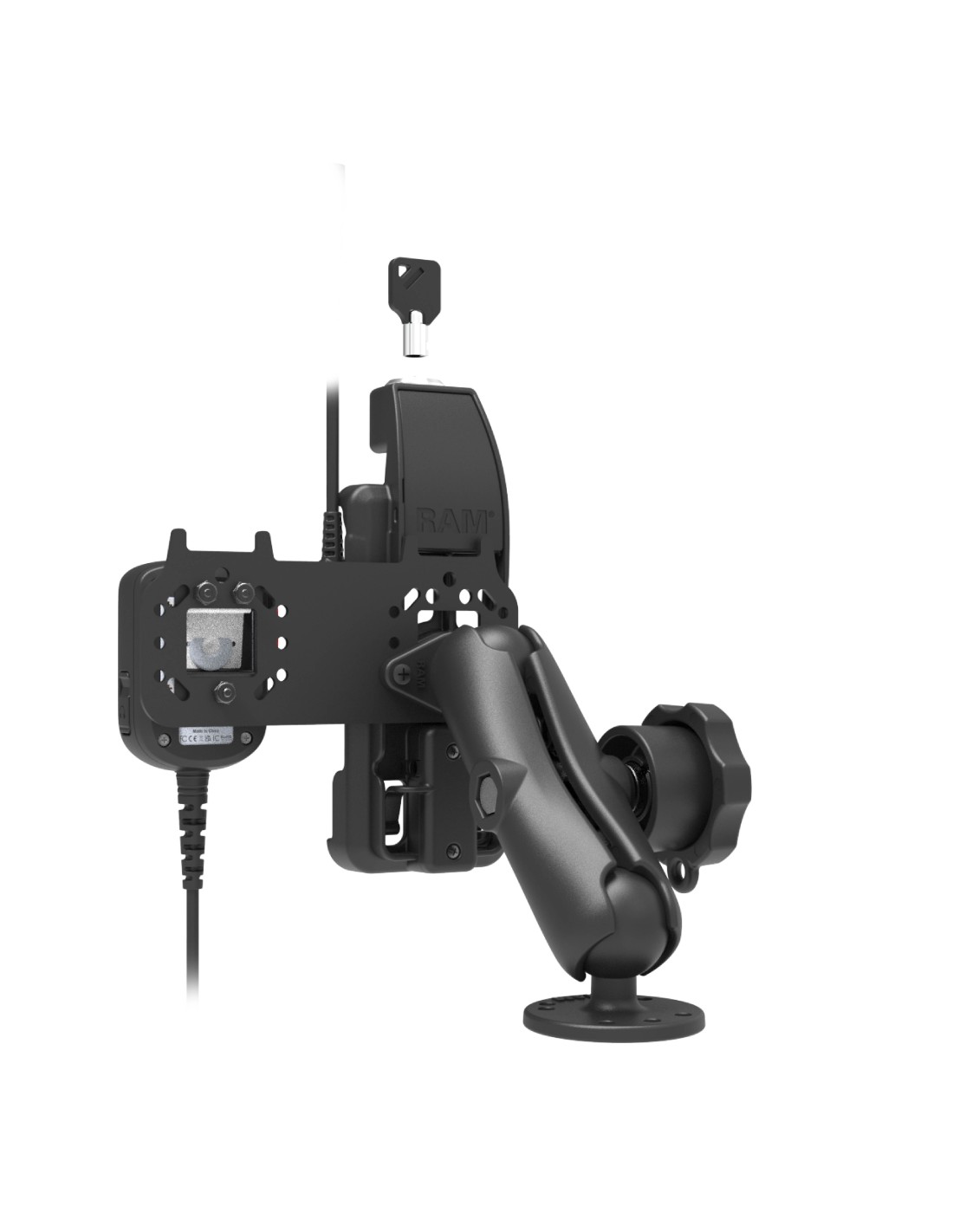

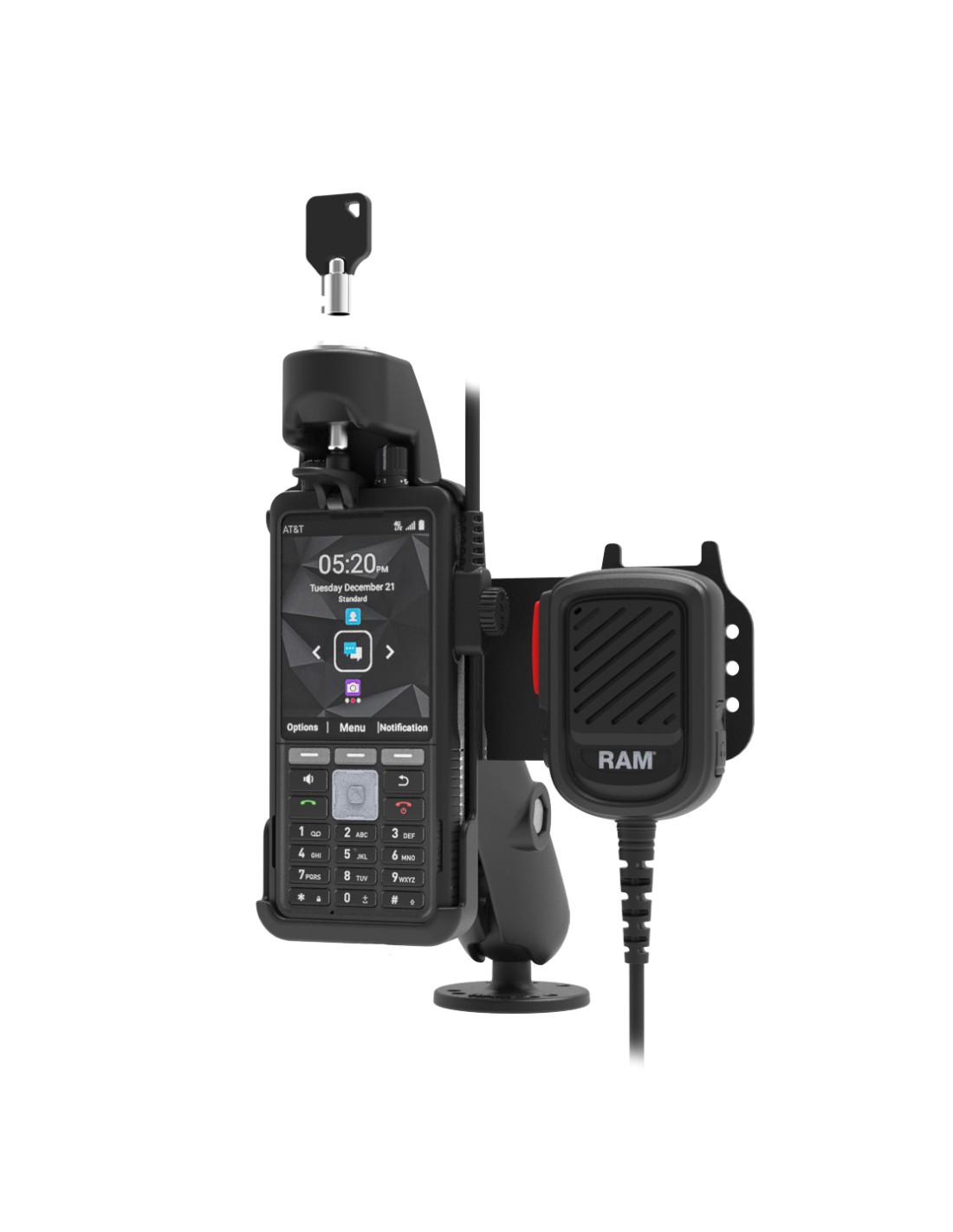

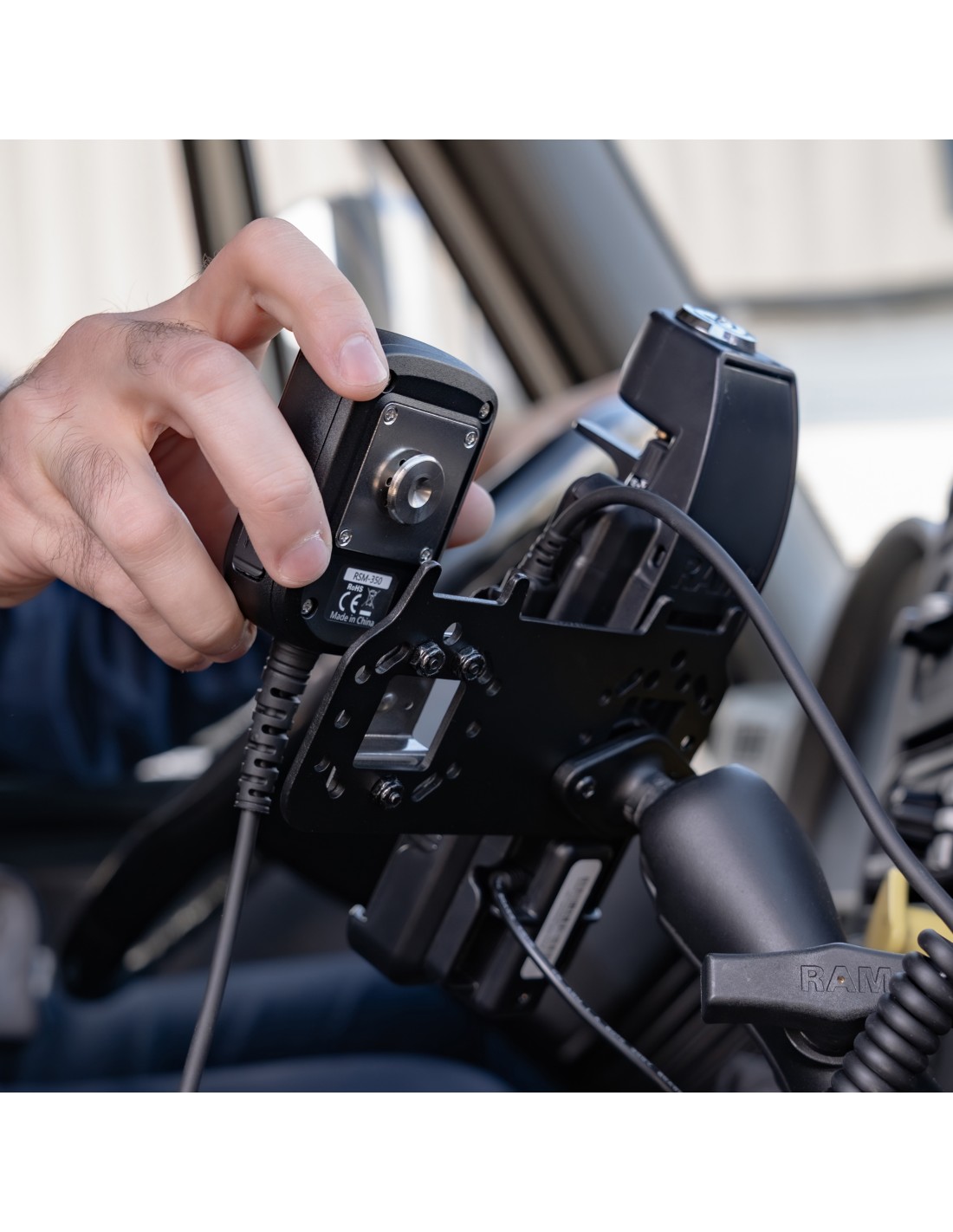

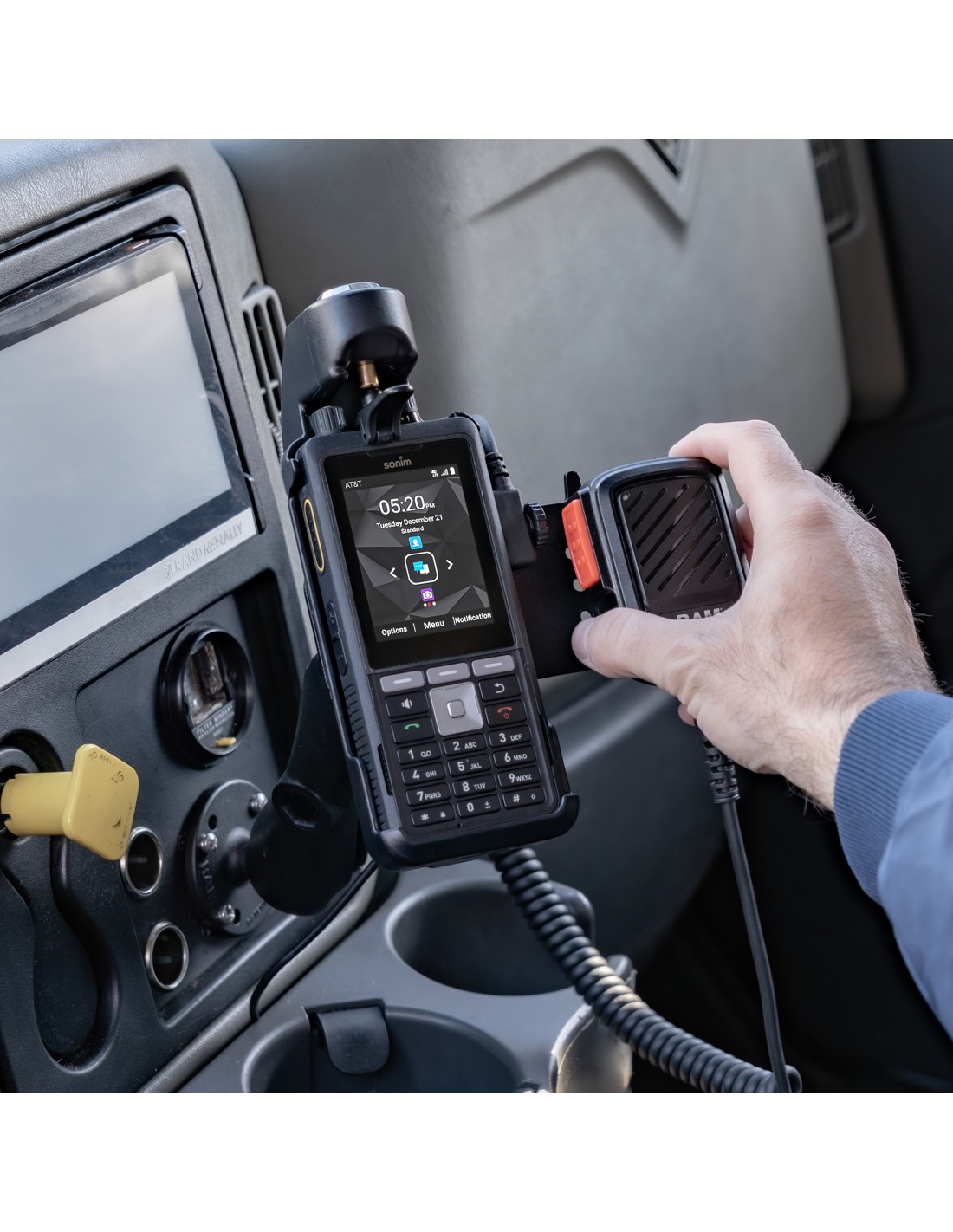

The RAM PTT Remote Speaker Mic Bundle for Sonim XP5plus (RAM-138-S-SNM3PL-V7B1-1U) is a turn-key push-to-talk solution that will meet the demands of whatever your day brings. This kit is made of the RAM EZ-Roll'r Powered Key Locking Dock for Sonim XP5plus, double ball mount with RAM Pin-Lock Security Knob, a RAM Remote Speaker Mic with a custom connector designed for Sonim, and a mounting bracket. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided RAM Remote Speaker Mic plugs directly into the Sonim unit. Included with the complete bundle is a 10-30V modular vehicle hardwire charger and backing plate hardware.

  • Bundle for Sonim XP5plus includes powered locking holder, remote speaker microphone, and mounting bracket for all-in-one communication
  • Powered RAM® EZ-Roll'rT form-fit dock for the Sonim XP5plus; provides charging through two integrated pogo pins and USB-A cable

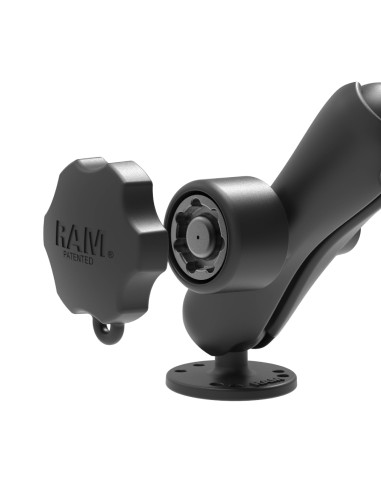

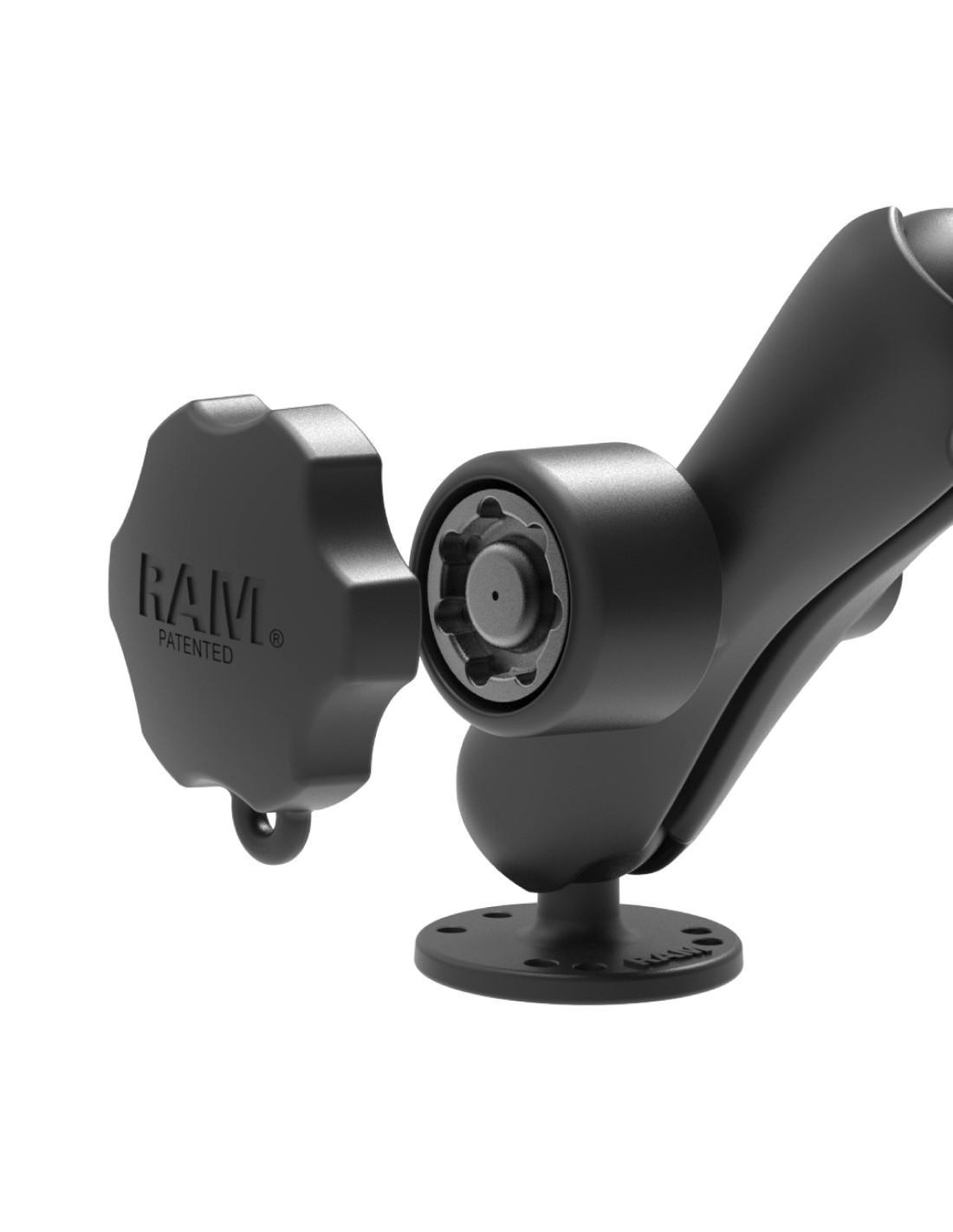

  • Key locking RAM® EZ-Roll'rT form-fit holder and RAM® Pin-LockT for theft deterrence
  • RAM® components backed by lifetime warranty; dock and electronics backed by a 3-year warranty

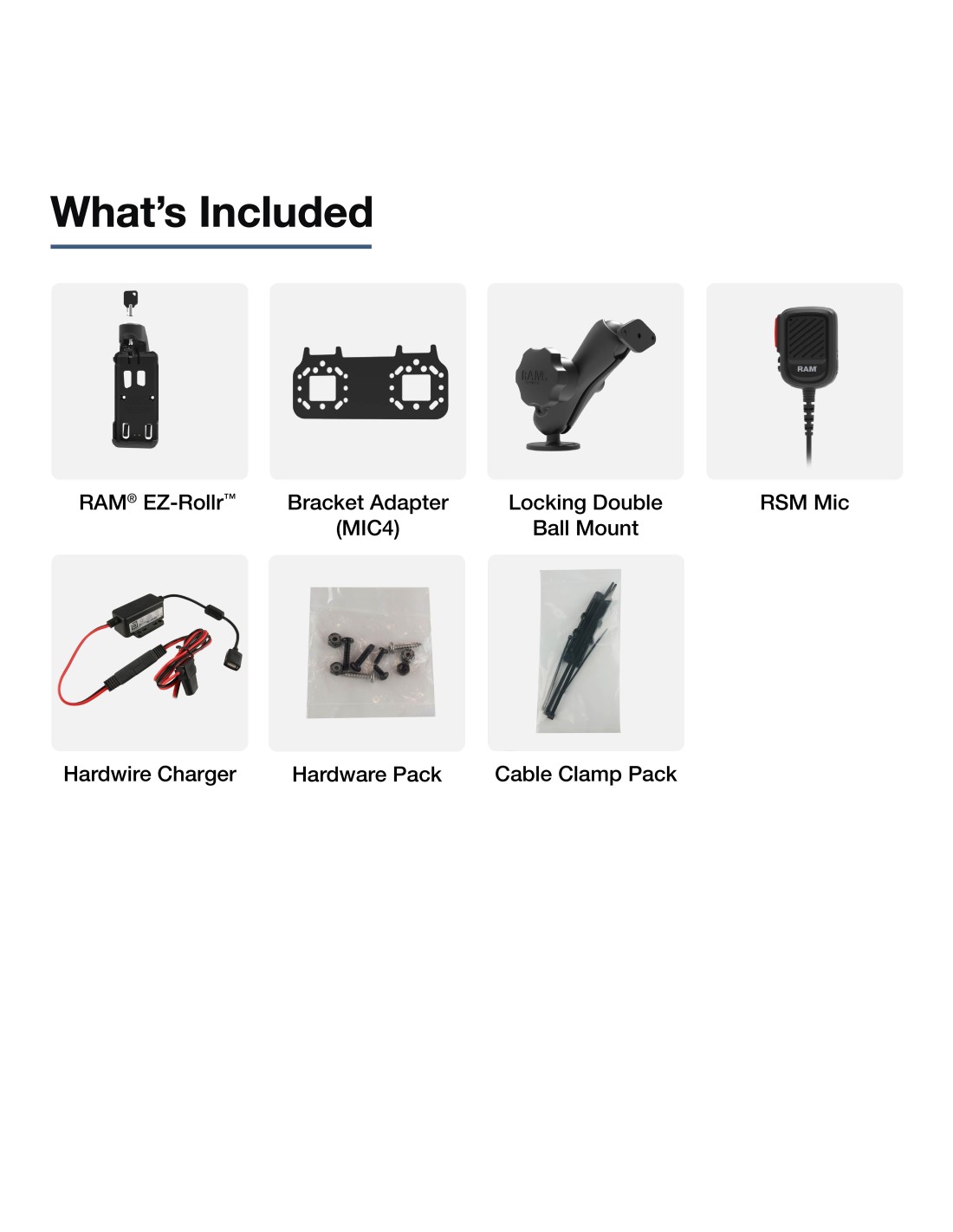

Components
RAM-101-MIC4U
RAM-138U
RAM-GDS-CHARGE-V7B1U
RAM-HOL-SNM3PLU
RAP-S-KNOB5U
Product Line
EZ-Roll'rT
Product Type
Phone Mounts
Ball Size
C Size (1.5")
Certifications
E-Mark Certification
IEC/UL 62368-1
RCM Certification
Hardware Included
(1) Key for Locking Knob
(1) Modular Hardwire Charger
(2) Keys for Holder
Assembly Hardware
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Input Connector
Charger: Female USB Type A
Input Voltage
10-30VDC
Materials
Marine-grade aluminum
High strength composite
Powder coated steel
Operating Temperature
-10°C to +70°C
Output Cable Length
.2 Meters
Output Current
2.5A max
Output Voltage
5-9VDC*
Packaging Type
Poly Bag
Plate Size
2.5" Diameter
Product Weight
4.22 lb
Regulatory
FCC, CE, UKCA, IC
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance
Socket To Socket Length
4.66"
Storage Temperature
-40°C to +70°C
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442035050
