RAM-GDS-U4L-RSM-A04

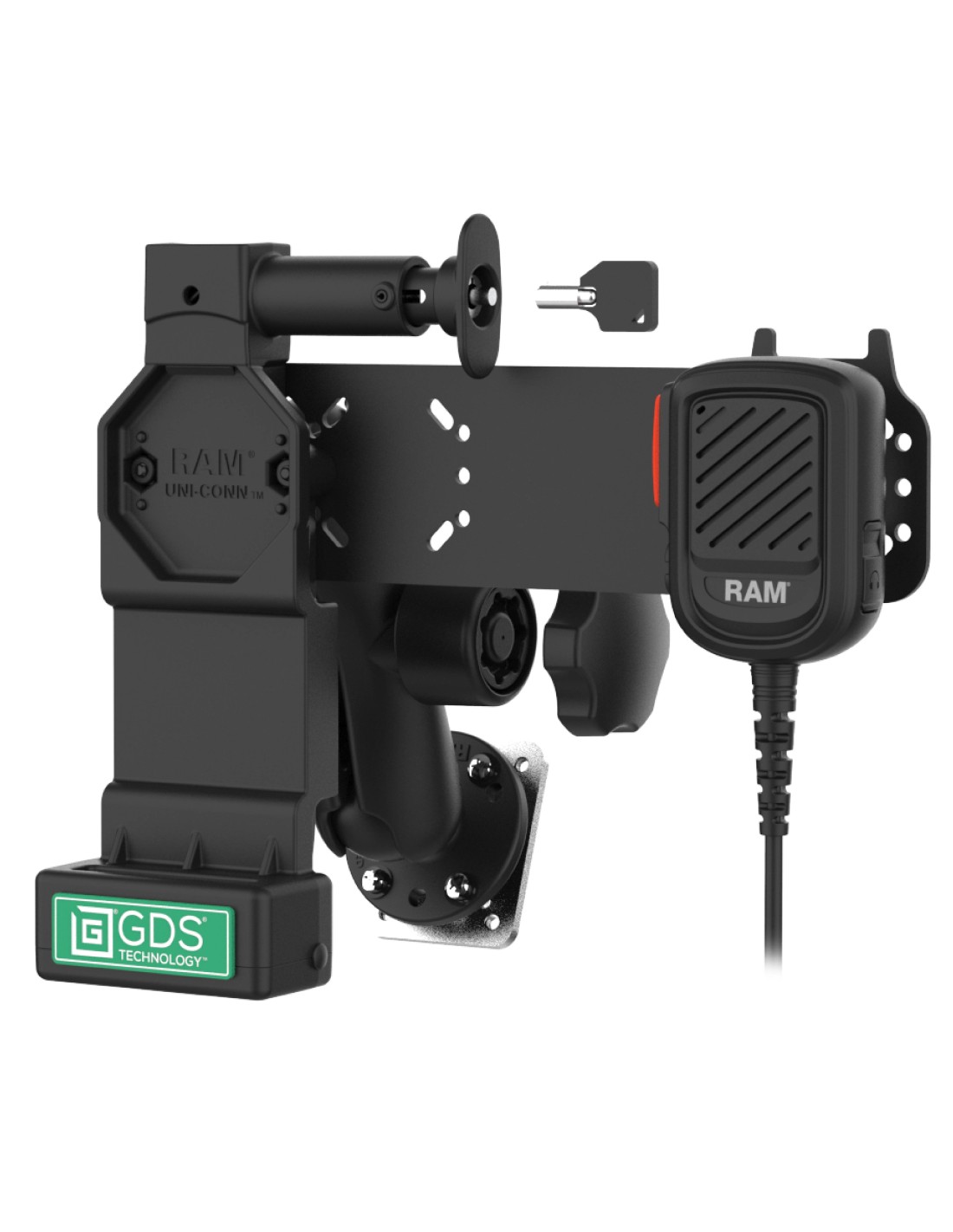

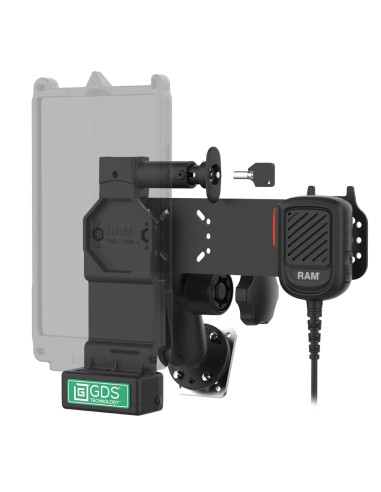

The GDS Uni-Conn Locking PTT Remote Speaker Mic Bundle for ESChat & Zello (RAM-GDS-U4L-RSM-A04) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin, ideal for organizations already using IntelliSkin device sleeves or deploying a mixed-device fleet within the GDS Ecosystem. It includes the universal Uni-Conn locking dock with side release button, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with ESChat and Zello, the RSM ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces. Plus, with locking knobs for theft deterrence, your hardware stays protected in the field.

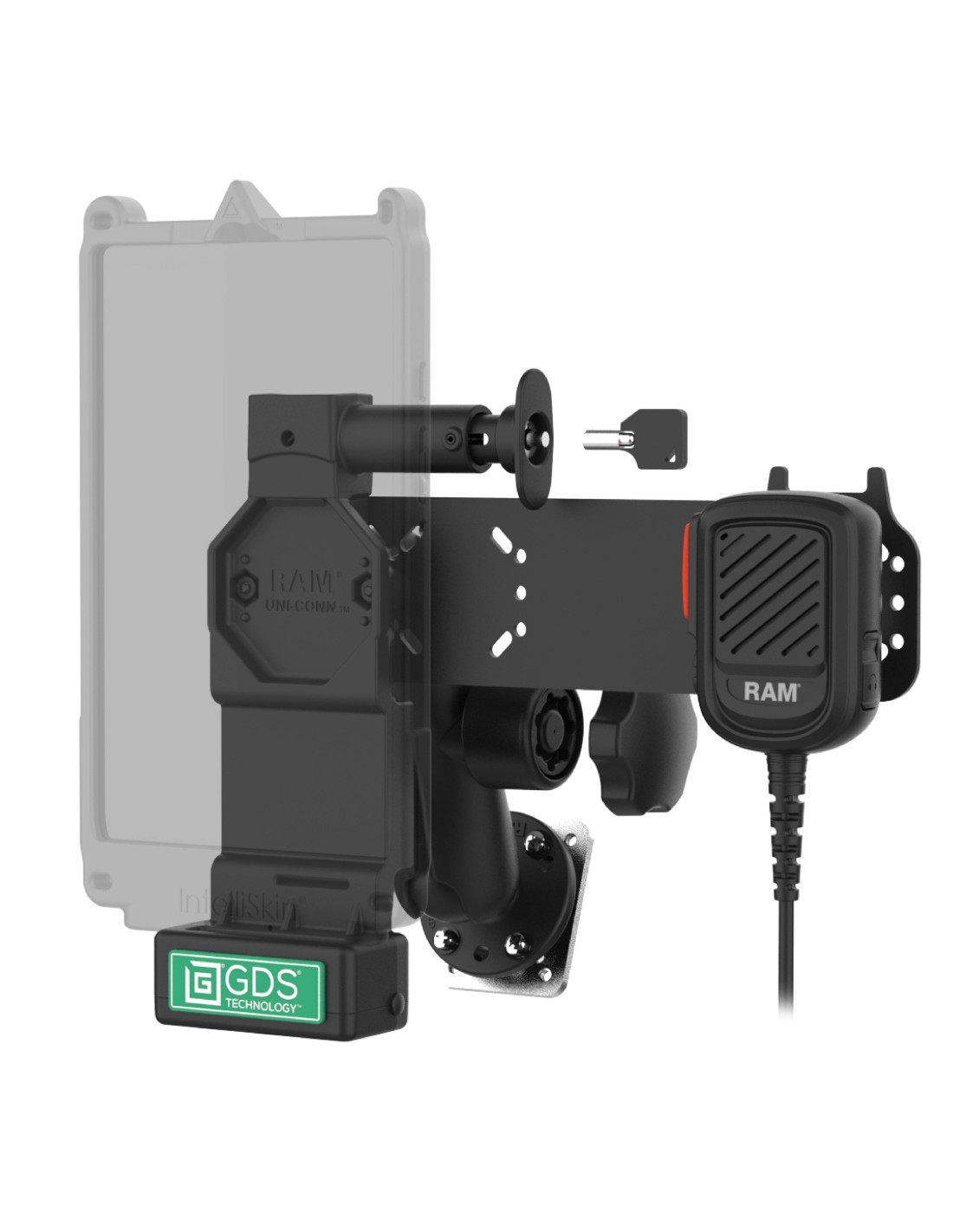

  • GDS® Uni-ConnT Push-to-Talk mounting bundle designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-ConnT Adapter installed (sold separately)
  • Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
  • Uni-ConnT dock featuring GDS® TechnologyT uses an integrated pogo pin connector to provide high-speed charging

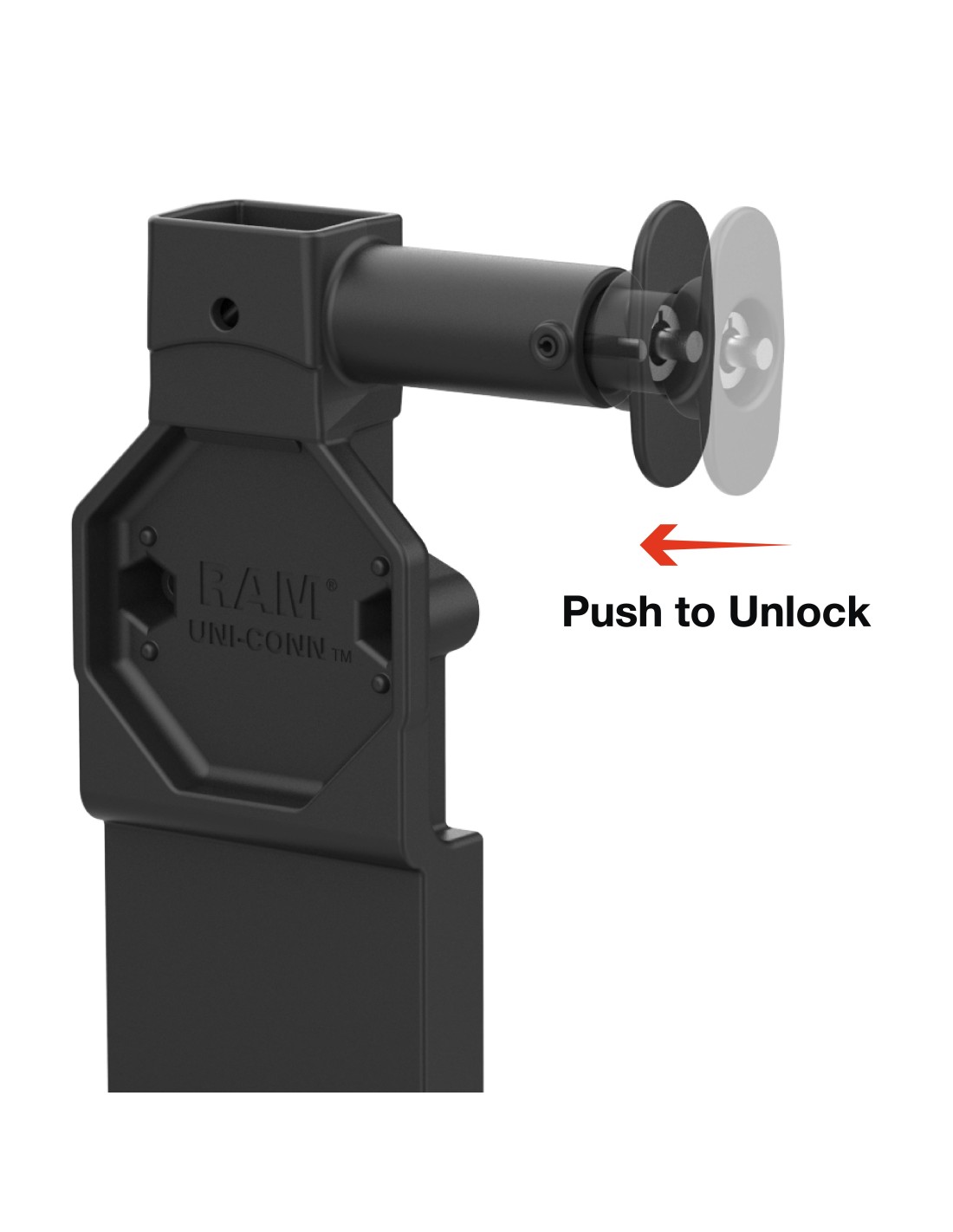

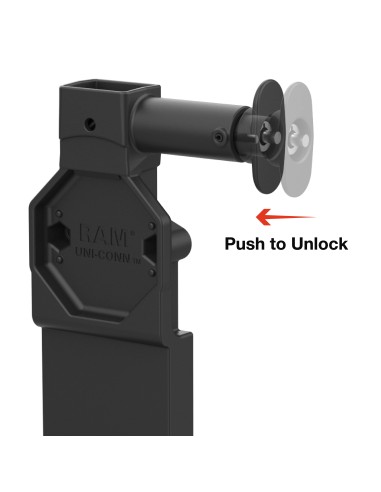

  • Locking dock and knob provide theft deterrence for added security
  • Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

Product Line
GDS® TechT Uni-ConnT
Product Type
Tablet Mounts
Ball Size
C Size (1.5")

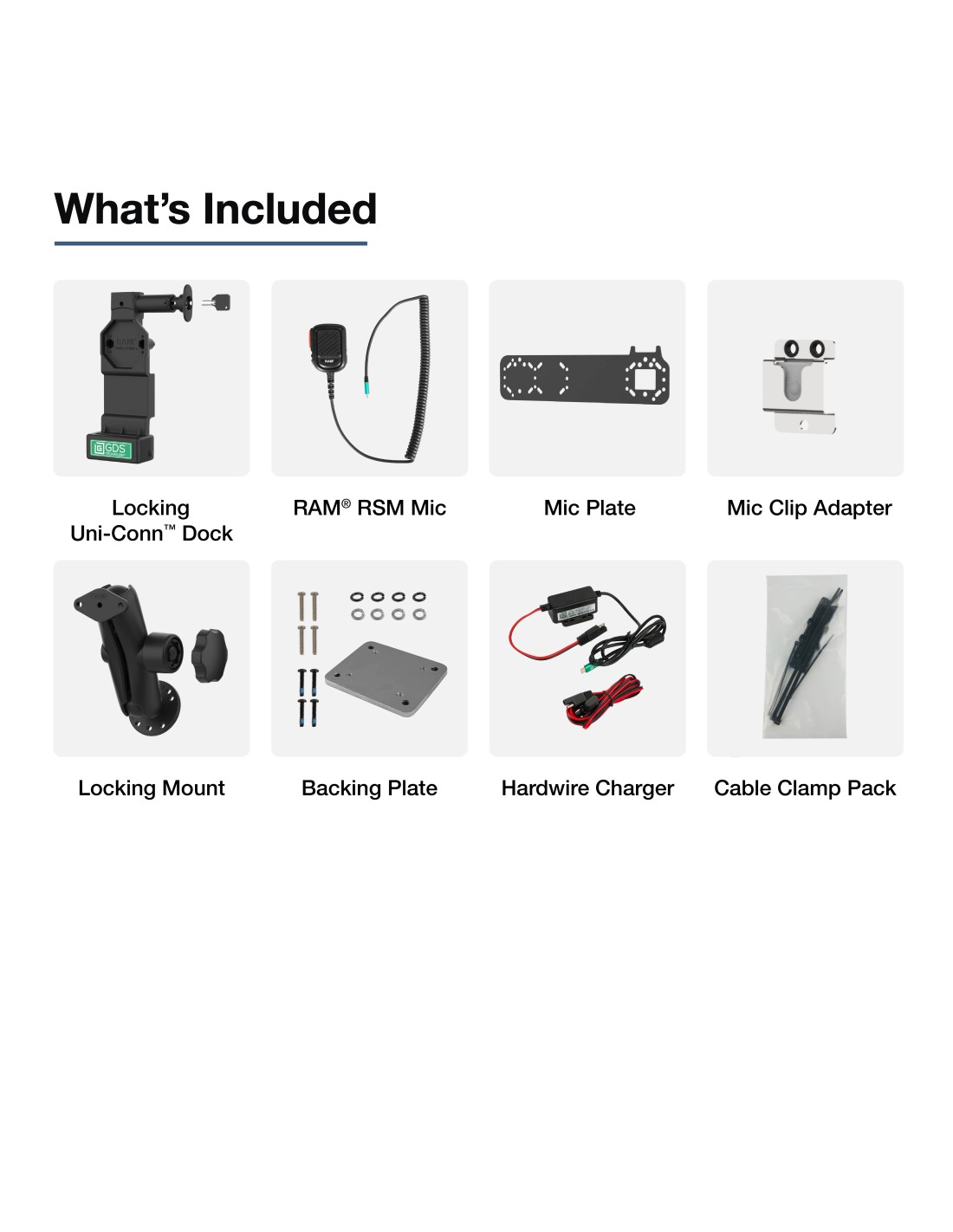

Hardware Included
(1) Remote Speaker Mic
(1) Uni-ConnT Dock (Locking)
(1) Mic Bracket
(1) Mic Clip Receiver
(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(2) Cable Clamp Kits
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
215mm
Input Connector
USB Type-C
USB Type-C for 1 Peripheral
Materials
High strength composite
Marine-grade aluminum
Steel
Output Cable Length
215mm
Output Voltage
5V - 15V @ 3A
Packaging Type
Box
Peripheral Output
500mA
Power Output
45W
Power Specifications
Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67
Product Weight
4.97 lb
Socket To Socket Length
4.66"
