RAM-GDS-DOCKL-U4CP-RJ45AU

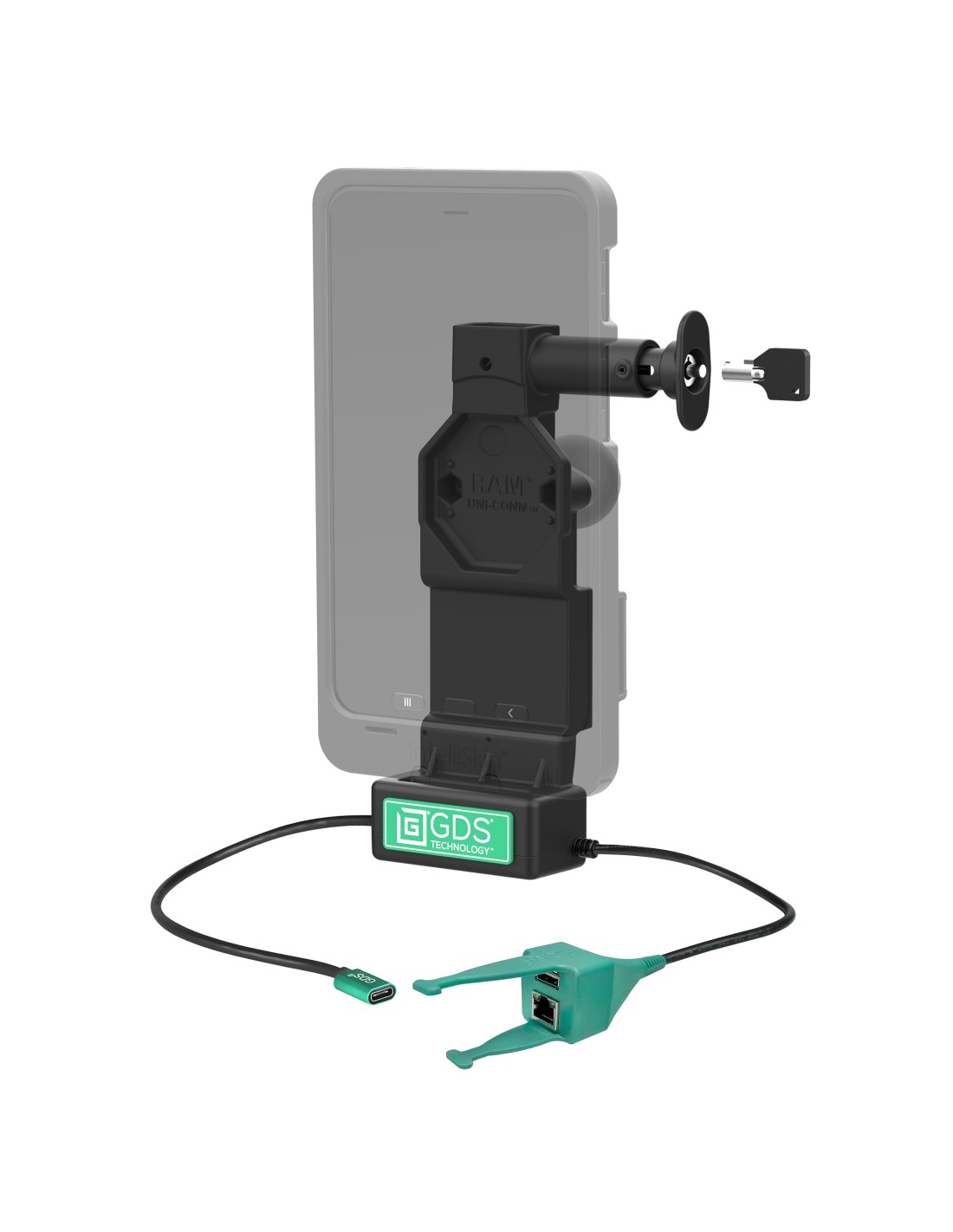

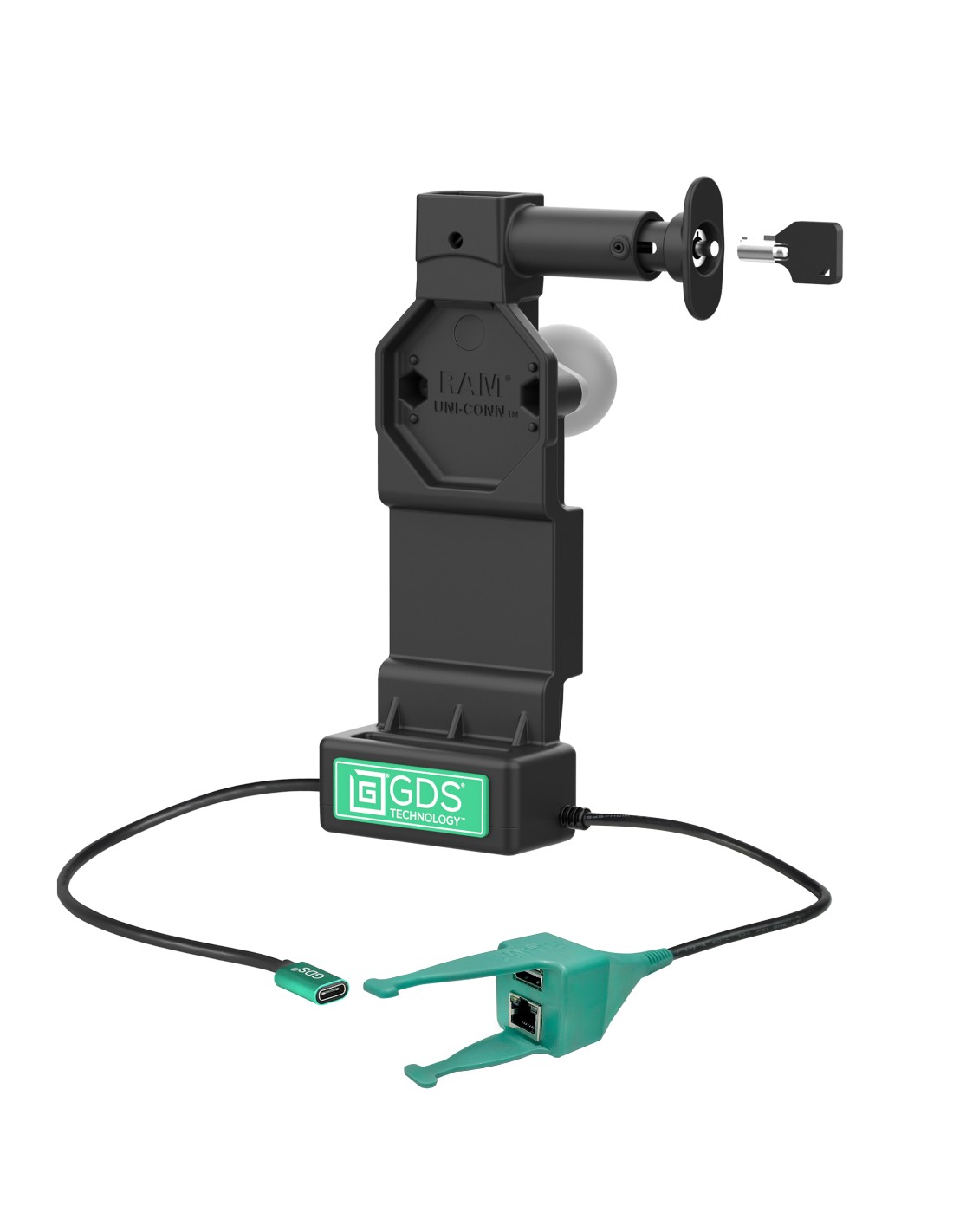

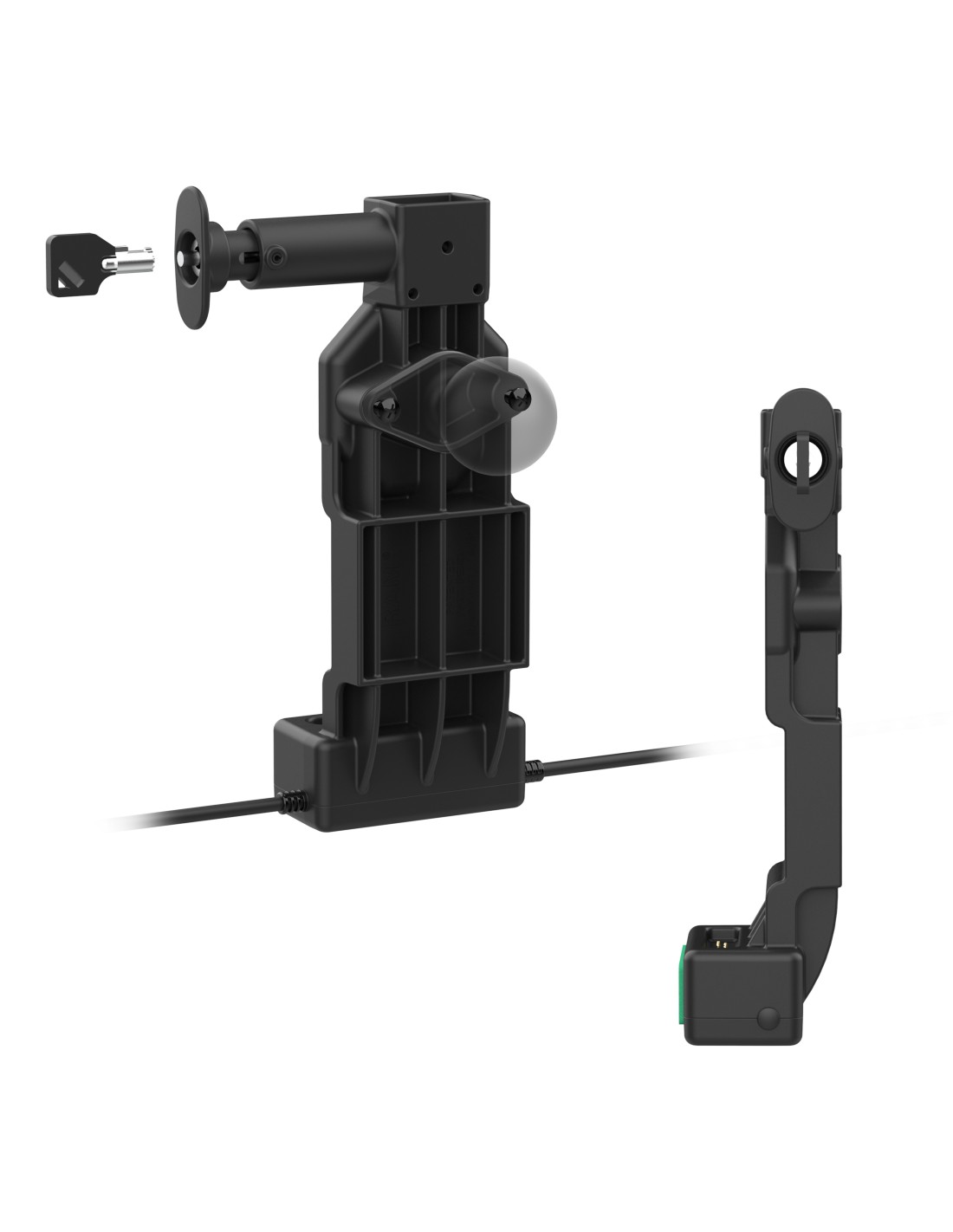

The GDS Uni-Conn Locking Dock + USB-A & RJ45 with Release Button (RAM-GDS-DOCKL-U4CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock on the right side for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (Ethernet) connector for a direct and secure connection to your network, alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process; simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of the quick-release button frees the device. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. The GDS Uni-conn dock is backed by a 3-year warranty. Always Protected. Always Connected. One Dock to Connect Them All.

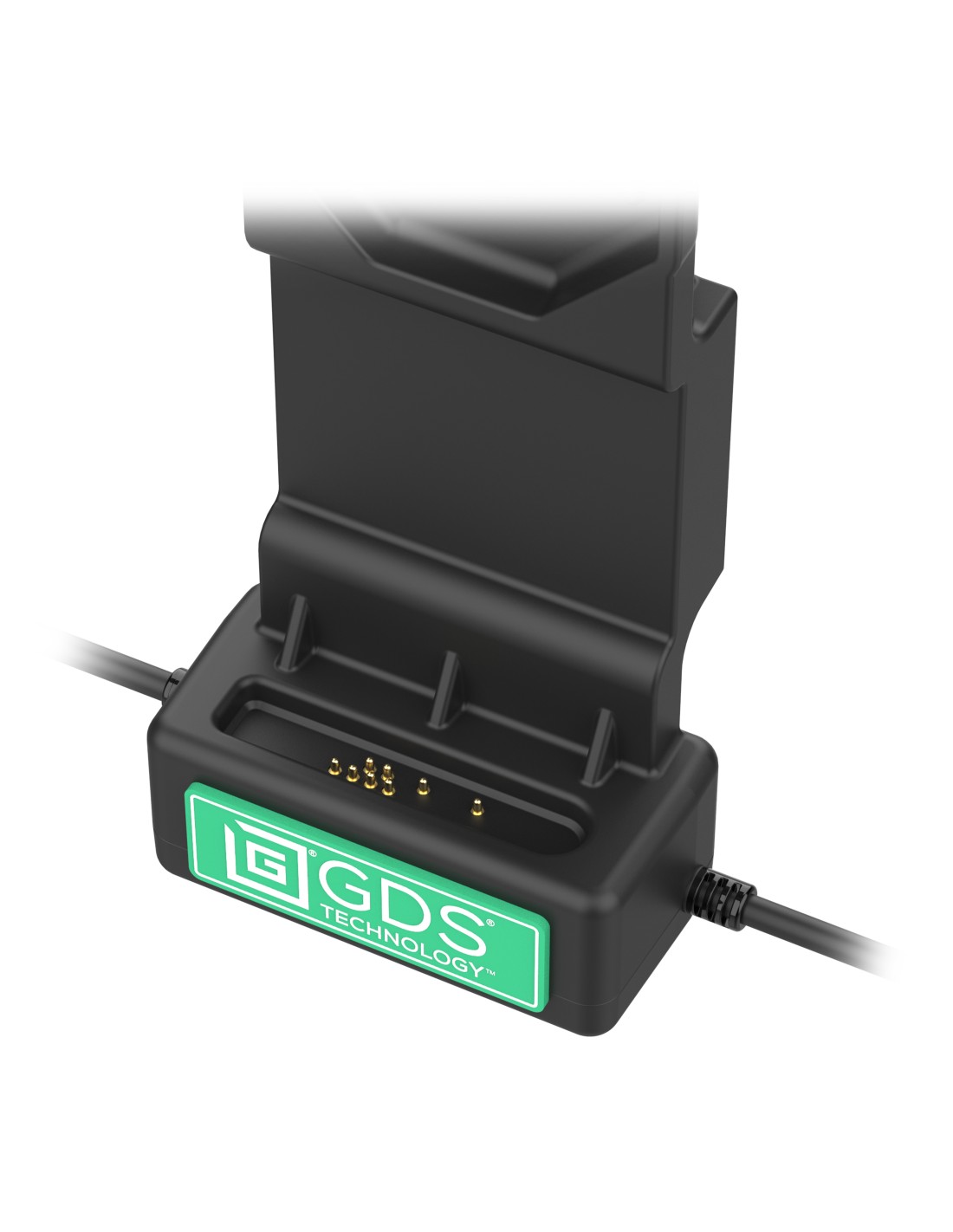

  • Locking Dock features GDS® TechnologyT for charging capabilities via pogo pin connectors; uses USB-C female cable to connect to power

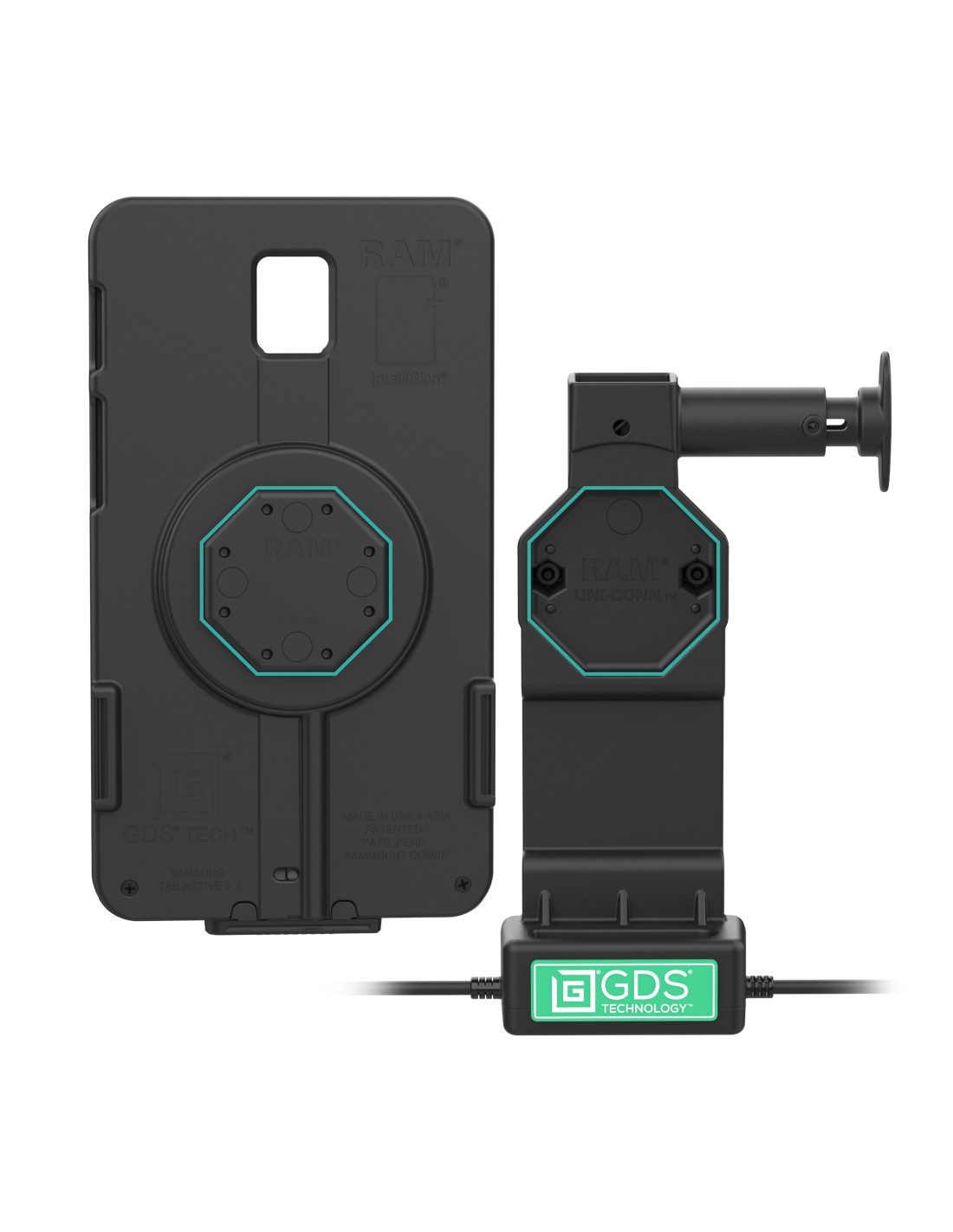

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-ConnT Adapter installed; RAM® Mounts CompatibleT

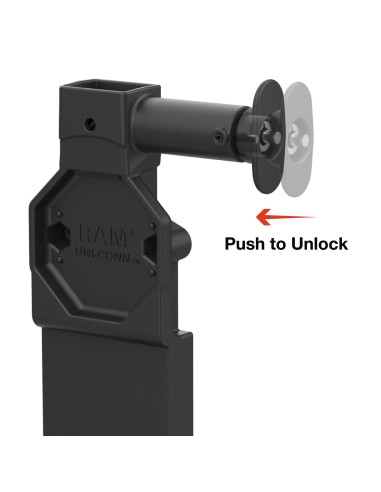

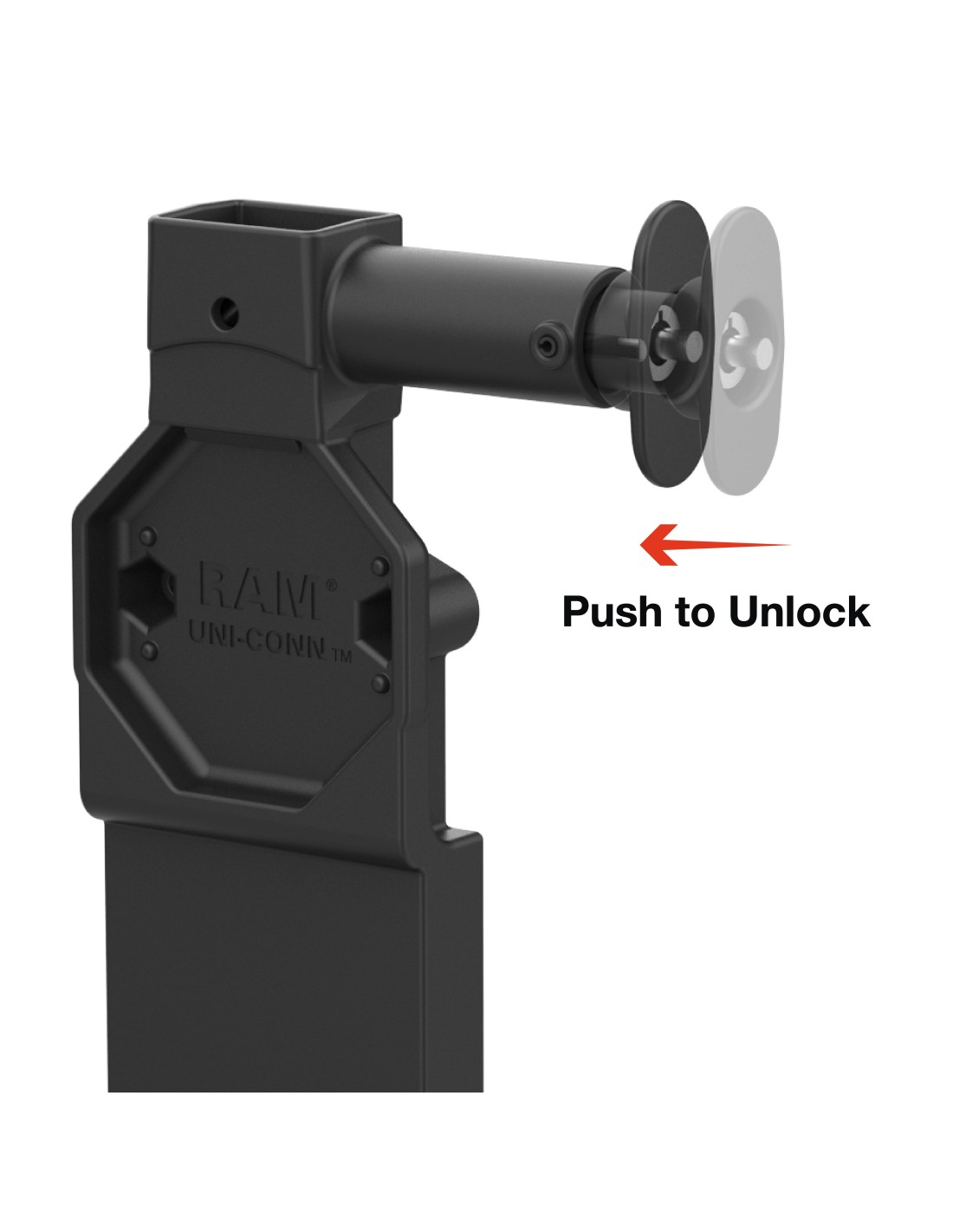

  • Uni-ConnT dock features a quick-release button for easy device insertion and removal
  • Power delivered via USB-C connector; data and ethernet connects to dual USB-A and RJ45 connector
  • Backed by a 3-year warranty

Product Line
GDS® TechT Uni-ConnT
Product Type
Components
Hardware Included
(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit
Hole Pattern
2-Hole AMPS: 1.912"
Input Cable Length
215mm
Input Connector
USB Type-C (Power In)
Materials
High strength composite
Output Cable Length
215mm
Output Connector
(1) USB Type-A & (1) RJ45 Female
Output Voltage
5V - 20V @ 3A
Packaging Type
Poly Bag
Peripheral Output
900mA
Power Output
60W
Product Weight
0.82 lb
793442034114
