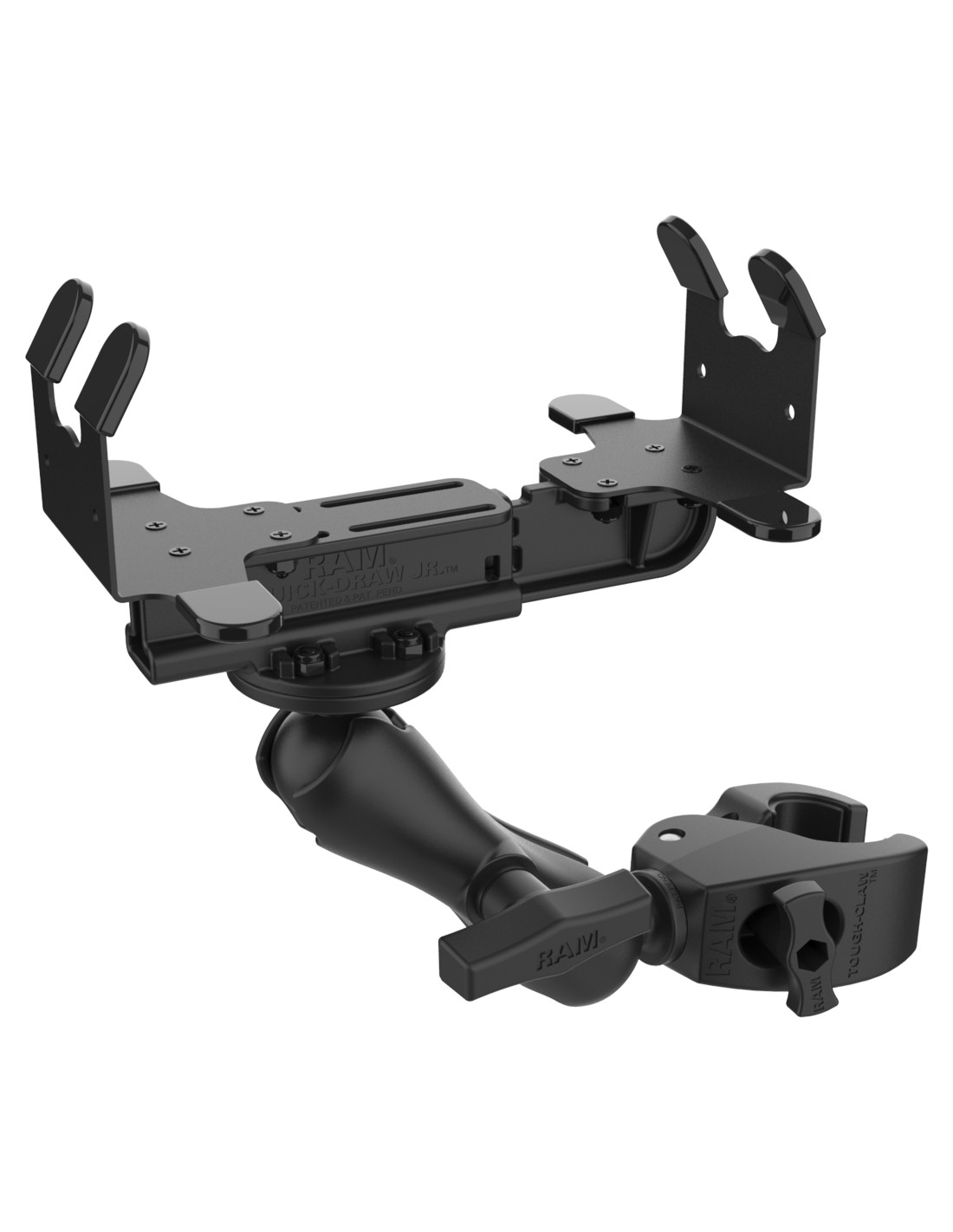

RAM® Quick-DrawT Jr. Printer Mount with Medium RAM® Tough-ClawT
  • Nuevo
RAM® Quick-DrawT Jr. Printer Mount with Medium RAM® Tough-ClawT

RAM® Quick-DrawT Jr. Printer Mount with Medium RAM® Tough-ClawT

RAM-404-VPR-104U


The RAM Quick-Draw Jr. Printer Mount with Medium RAM Tough-Claw (RAM-404-VPR-104U) is a spring-loaded, rugged mounting solution that securely attaches to rails and bars. At each end of the spring loaded cradle, there are small side clamp plates that fit cleanly around the edges of the device. Paired with the Tough-Claw base, this mount installs quickly and tool-free on round, square, and irregular rails from 1" to 1.6" in diameter. The RAM double socket arm and ball-and-socket system deliver near-infinite adjustability, making it easy to position your printer exactly where you need it. Be sure to verify your printers dimensions, including any case or sleeve, to ensure proper fit.

  • Spring-loaded RAM® Quick-DrawT holder provides easy removal of your printer; verify compatibility above
  • Medium Tough-ClawT base accommodates round, square, and odd-shaped rails and bars from 1" to 1.6" in outer diameter; rubber pads provide stable gripping and protection of mounting surface
  • Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
  • Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty

Components
RAM-202-404U
RAM-VPR-104
Product Line
Tough-ClawT Quick-DrawT
Product Type
Printer Mounts
Ball Size
C Size (1.5")
Clamp Range
1" - 1.6" diameter
Hardware Included
Assembly Hardware
Holder Dimensions
Max Height: 1.75"
Width Range: 5.625" - 9.5"
Materials
High strength composite
Marine-grade aluminum
Powder coated steel
Packaging Type
Poly Bag
Product Weight
2.46 lb
Socket To Socket Length
4.66"
Weight Capacity
Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
Device Compatibility
Bixolon SPP-R400
Brother RuggedJet 2140
Brother RuggedJet 2150
Brother RuggedJet 3050
Brother RuggedJet 3230BL
Brother RuggedJet 3230BLCP
Brother RuggedJet 3250WBL
Brother RuggedJet 3250WBLCP
Datamax-O'Neil RL3E
Datamax-O'Neil RL4e
Fujitsu FP-100
Fujitsu FP-1000
Zebra QLn220
Zebra QLn320
Zebra QLn420
Zebra RW-420
Zebra ZQ510
Zebra ZQ511
Zebra ZQ520
Zebra ZQ521
Zebra ZQ610
Zebra ZQ620
Zebra ZQ630
793442034039
