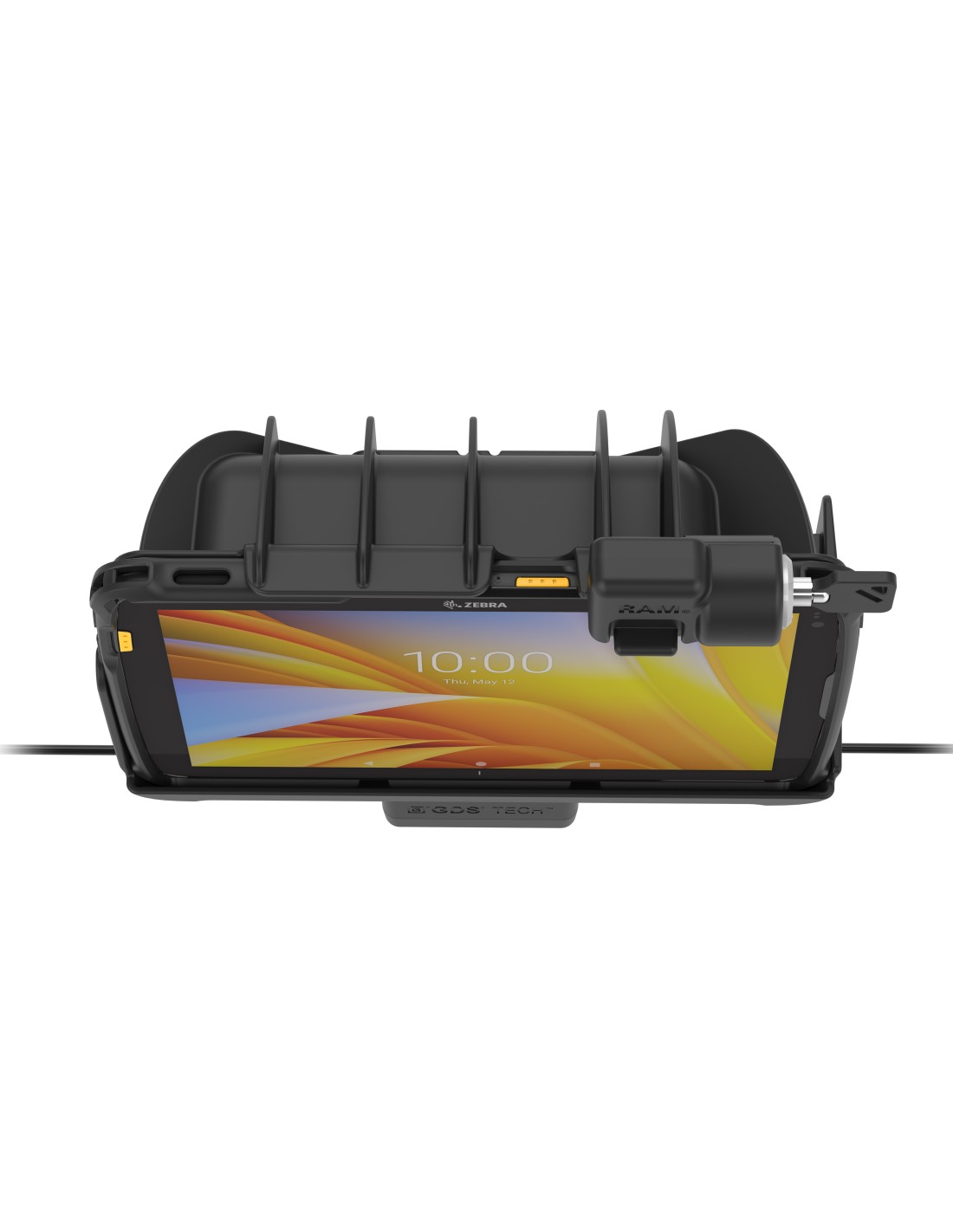

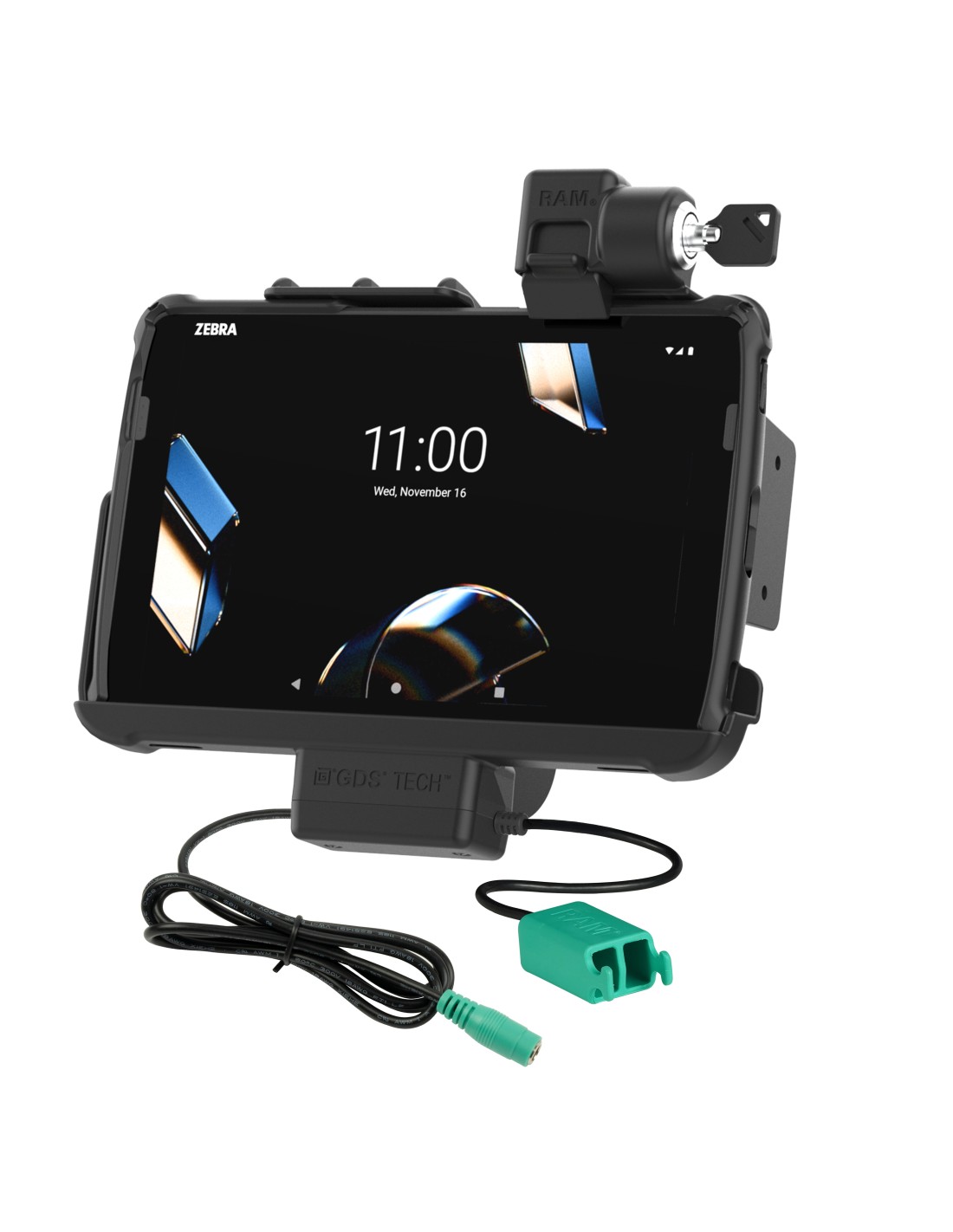

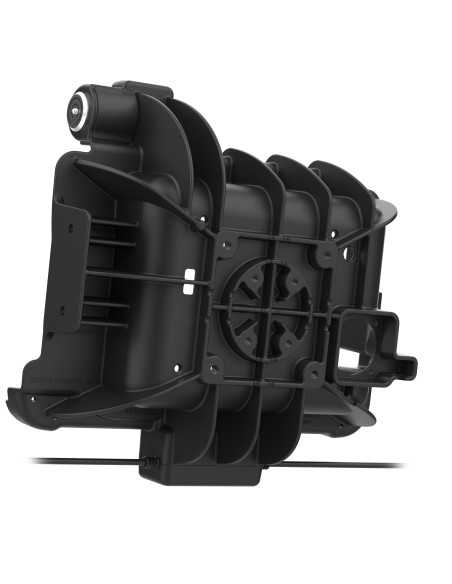

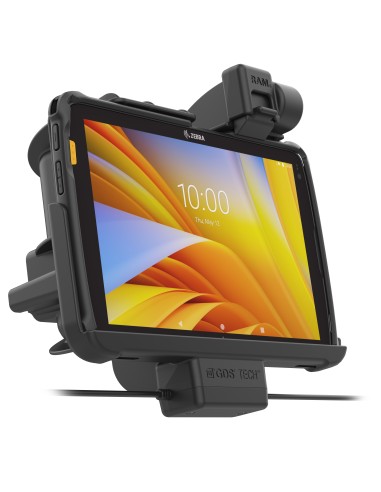

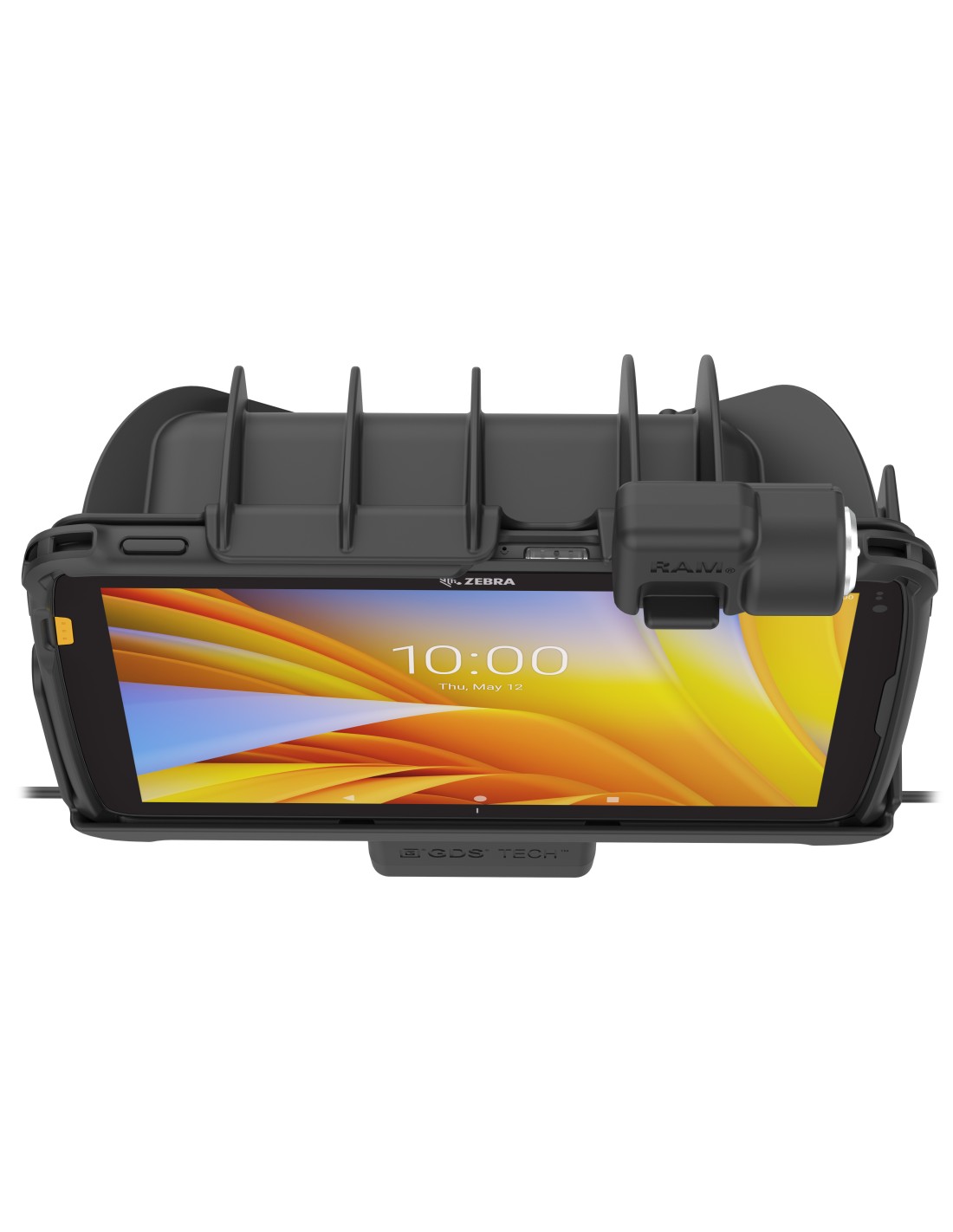

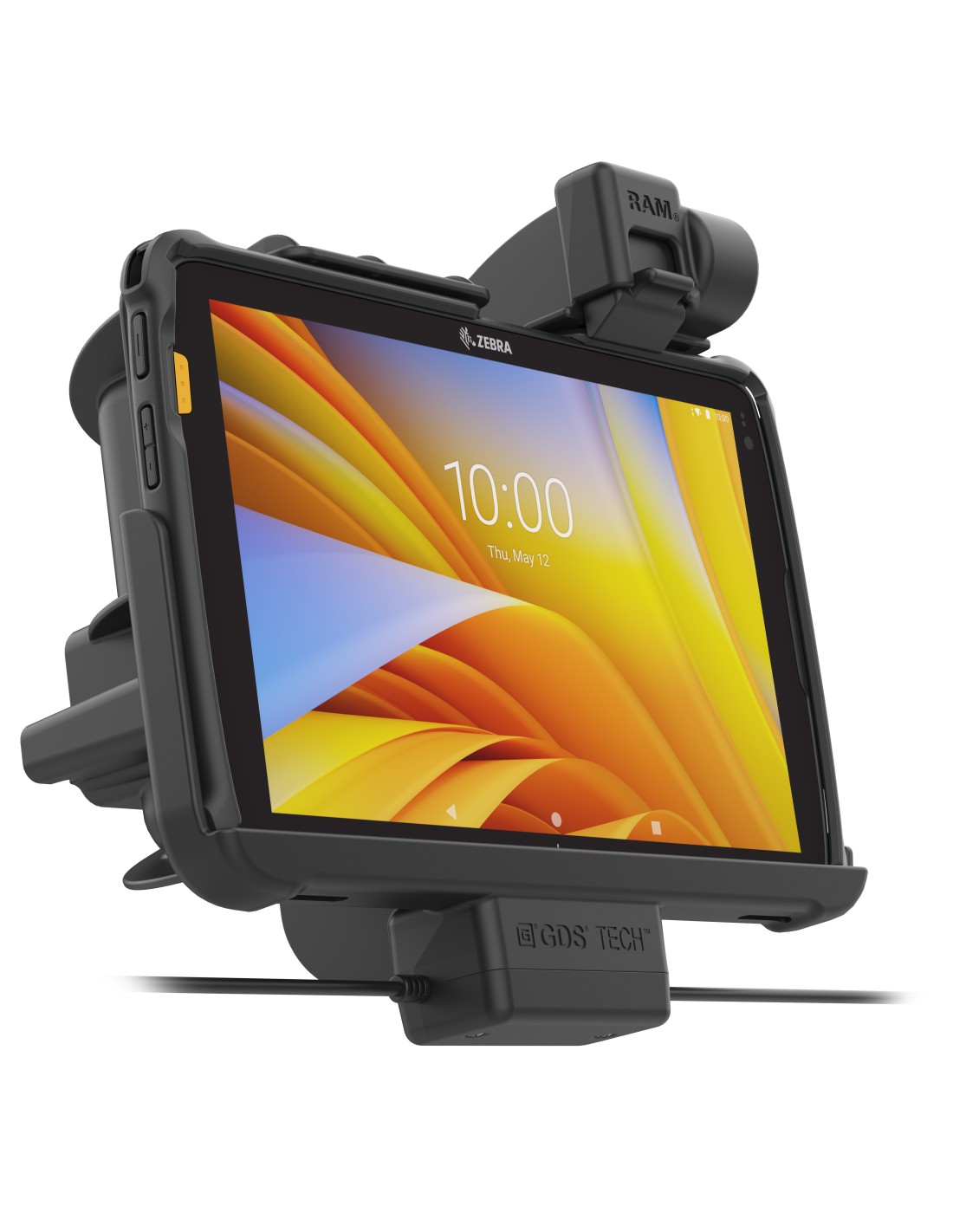

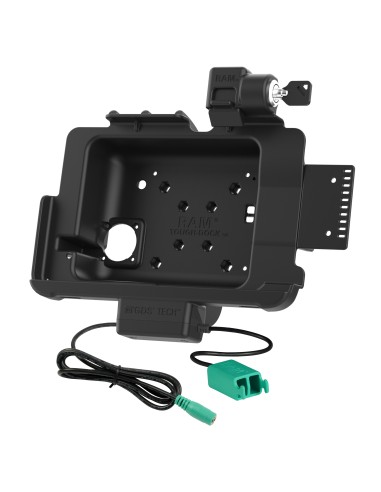

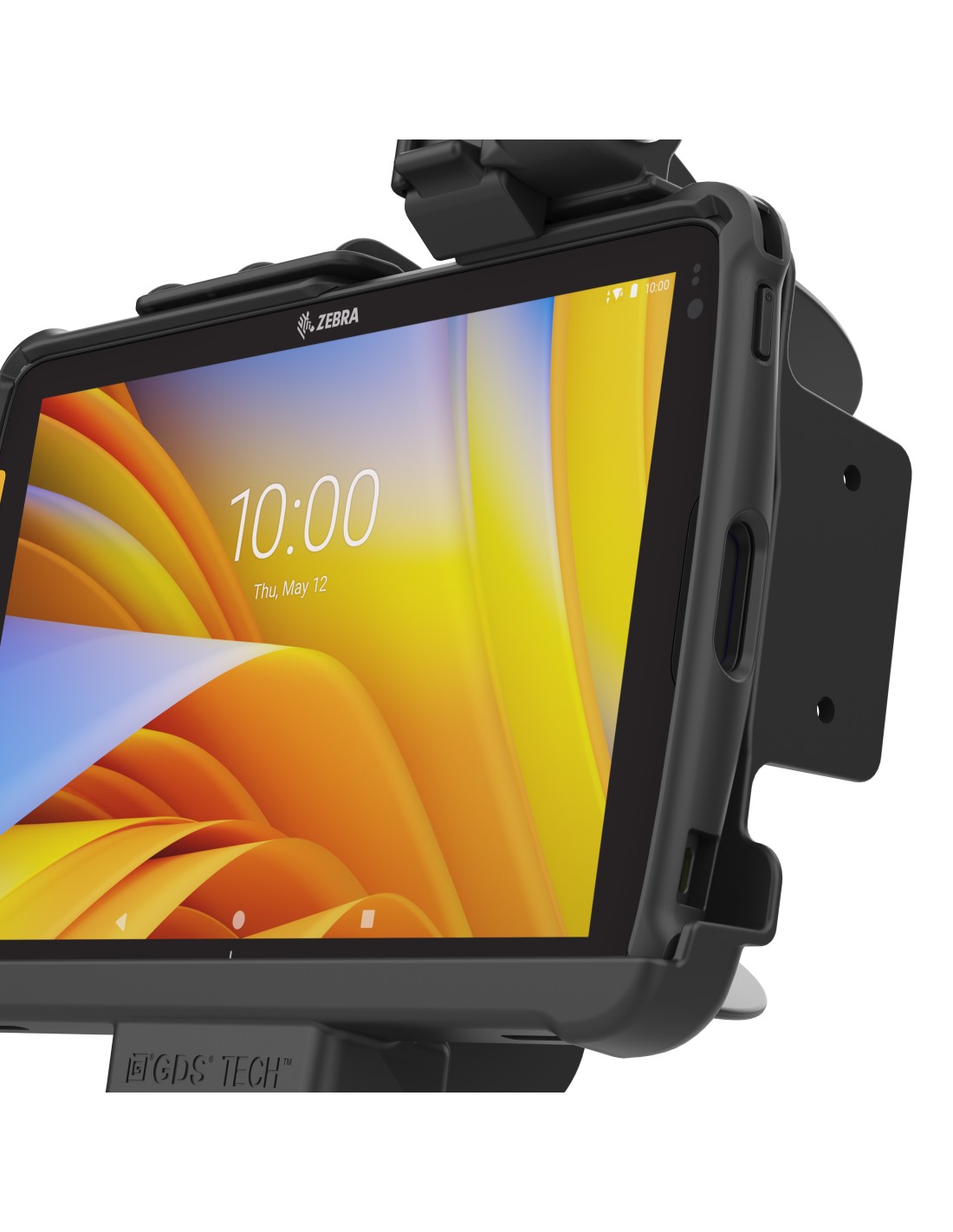

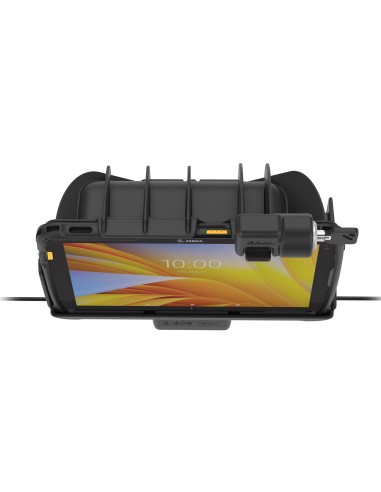

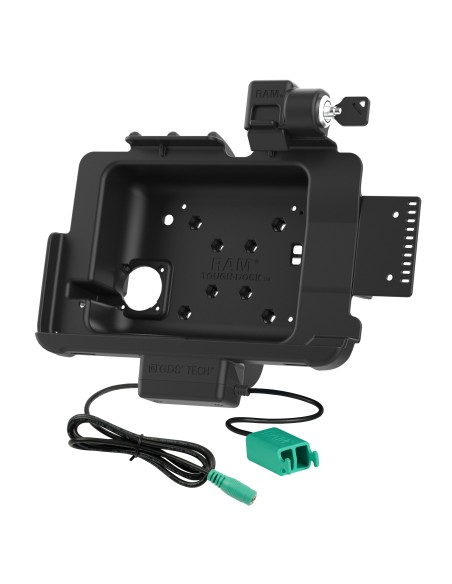

Locking RAM® Tough-DockT Power + Dual USB for Zebra ET401 10"
Featuring data and charging capabilities and a key lock for theft deterrence, this RAM Tough-Dock (RAM-HOL-ZE45PD2LU) works with the Zebra ET401 10" with Rugged Boot or RAM Skin. This dock allows you to connect up to two desired peripherals while keeping the device charged through the pogo pin contacts when the device is docked. Power is provided by connecting to the dock's 5.5mm DC power jack, while peripheral support is provided by the built-in dual USB Type-A cable. The dock also allows the tablet's scanning function to work on the side, as well as tablet add-ons such as the Zebra Expansion Back and PowerPack Battery. This vehicle dock is compatible with C and D size RAM 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone or other handheld device.
- Locking RAM® Tough-DockT with data and charging capabilities for the Zebra ET401 10" enterprise tablets with Rugged Boot via DC 5.5mm power jack and dual USB Type A connector for adding up to 2 peripherals; MIL-STD 810G Shock and Vibration tested
- When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
- Compatible with RAM® SkinT, as well as C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm
- Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® ErgoT accessories
- Backed by a 3-year warranty
- Product Line
- Tough-DockT
- Product Type
- Components
- Certifications
- CE
FCC
ICES
RoHS
UKCA
WEEE - Hardware Included
- (1) Side bracket for accessory mounting
(2) #8-32 x 1/2" Machine Screws
(2) Keys
(2) Small Cable Ties
(4) #8-32 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(6) #8-32 Nylock Nuts - Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA - Input Cable Length
- 1 Meter
- Input Connector
- 5.5mm DC Connector
- Materials
- High strength composite
- Output Cable Length
- 250mm
- Output Connector
- (2) USB 2.0 Type A
- Packaging Type
- Poly Bag
- Peripheral Output
- 900mA (per port)
- Product Weight
- 2.03 lb
- Transfer Speed
- 12Mbps
- Device Compatibility
- Zebra ET40 10" with Rugged Frame
Zebra ET45 10" with Rugged Frame
Zebra ET401 10" with Rugged Frame or RAM® SkinT
