RAM-HOL-ZE44PLU

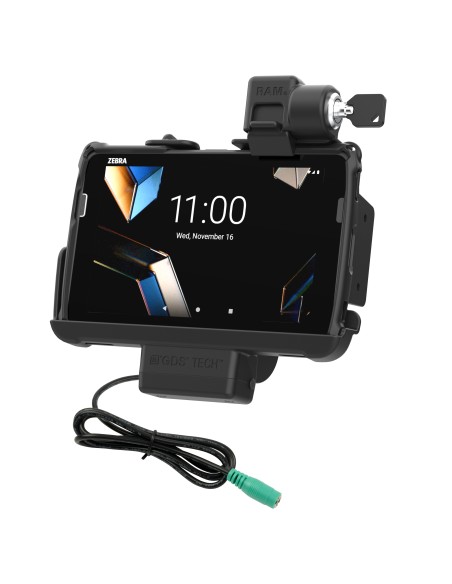

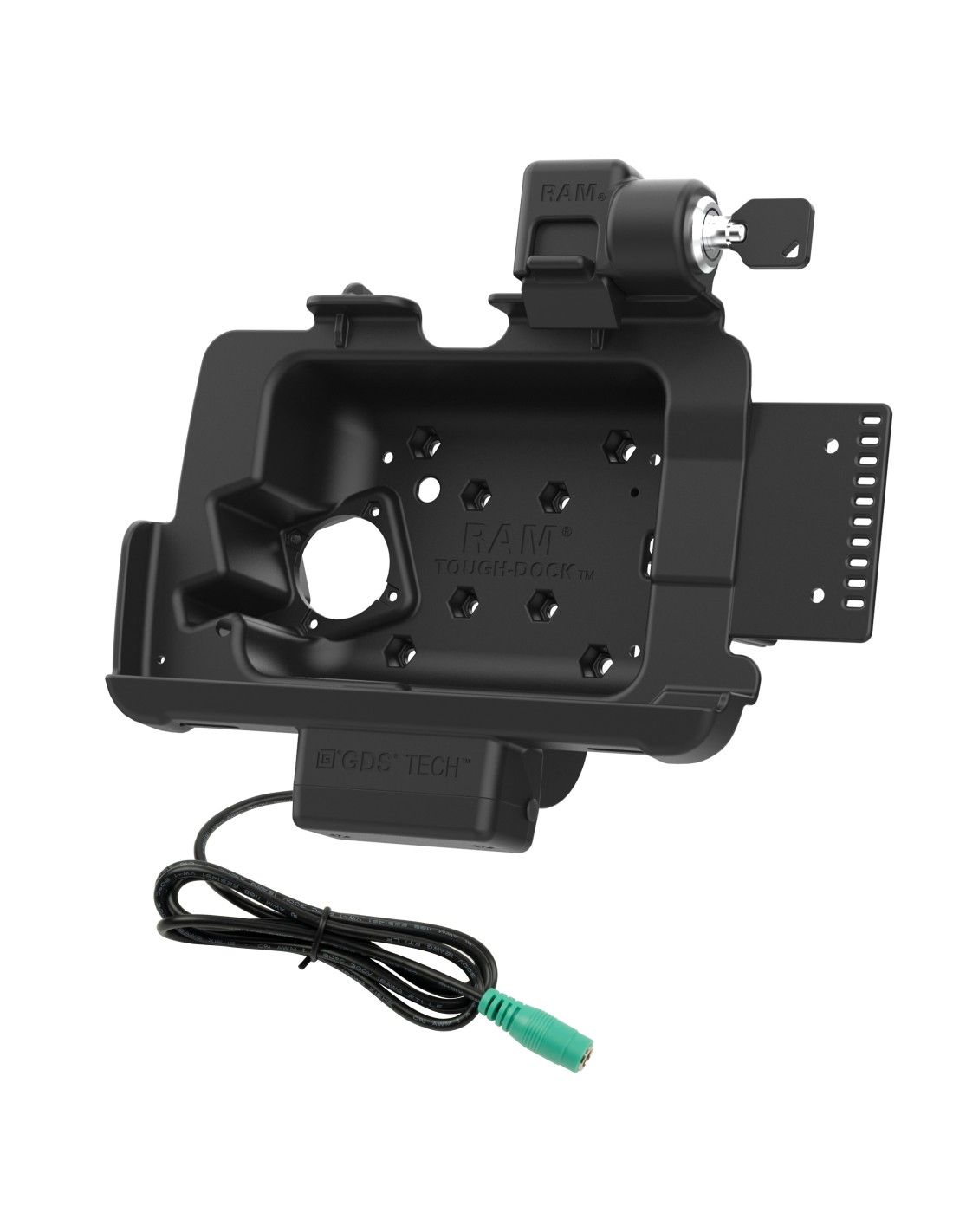

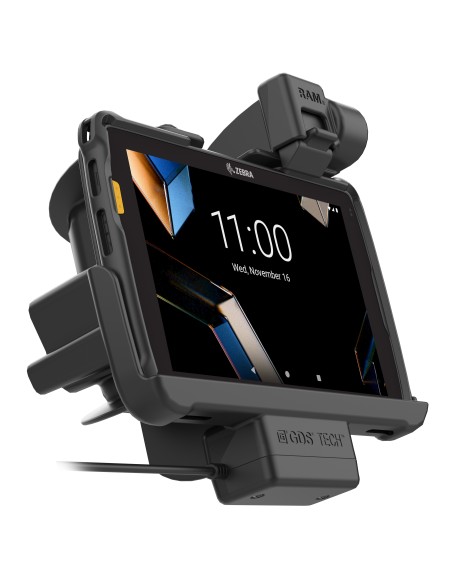

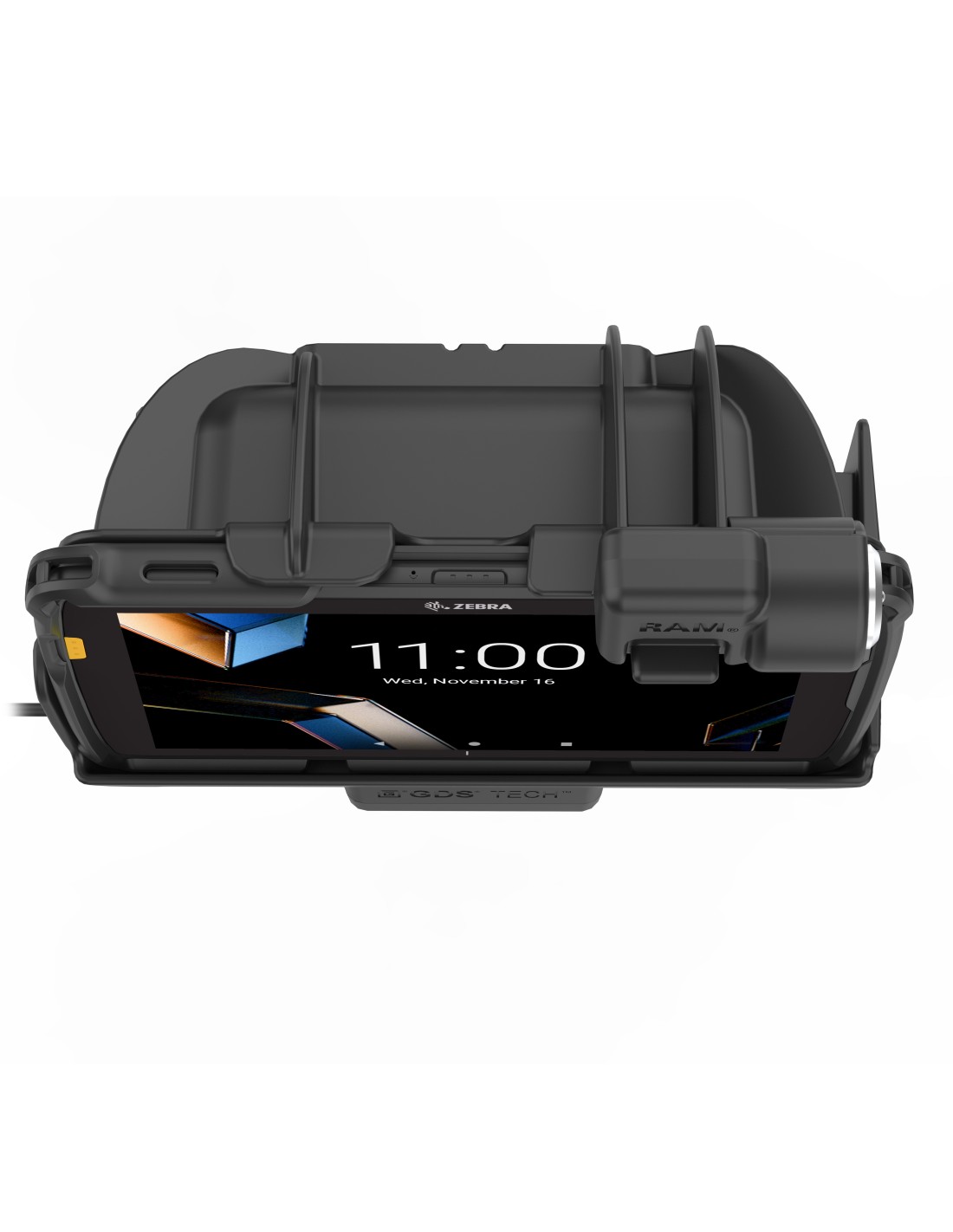

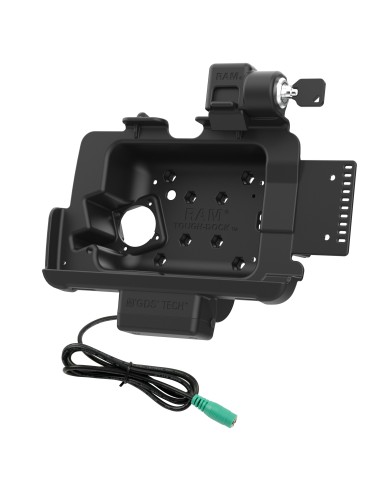

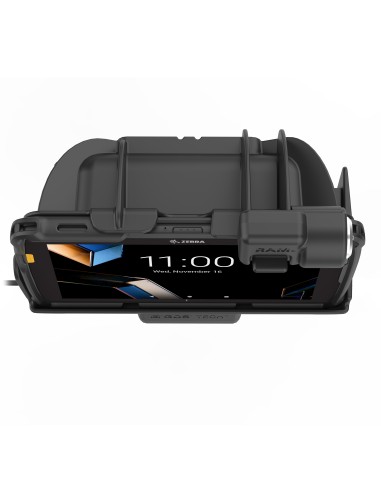

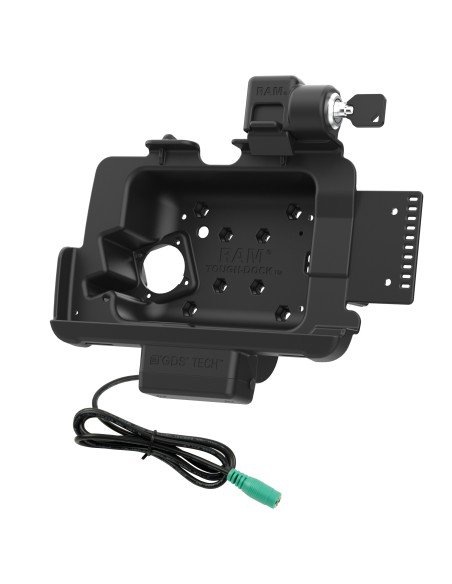

Featuring charging capabilities and a key lock for theft deterrence, the RAM Tough-Dock (RAM-HOL-ZE44PLU) works with the Zebra ET401 with RAM Skin. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A single USB Type-A pigtail connector is provided for adding one additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

  • Secures the Zebra ET401 with RAM® SkinT; includes set of keys for locking capabilities; MIL-STD 810G Shock and Vibration tested
  • When connected to a power source via DC 5.5mm power jack, integrated pogo pins provide power to the device while docked

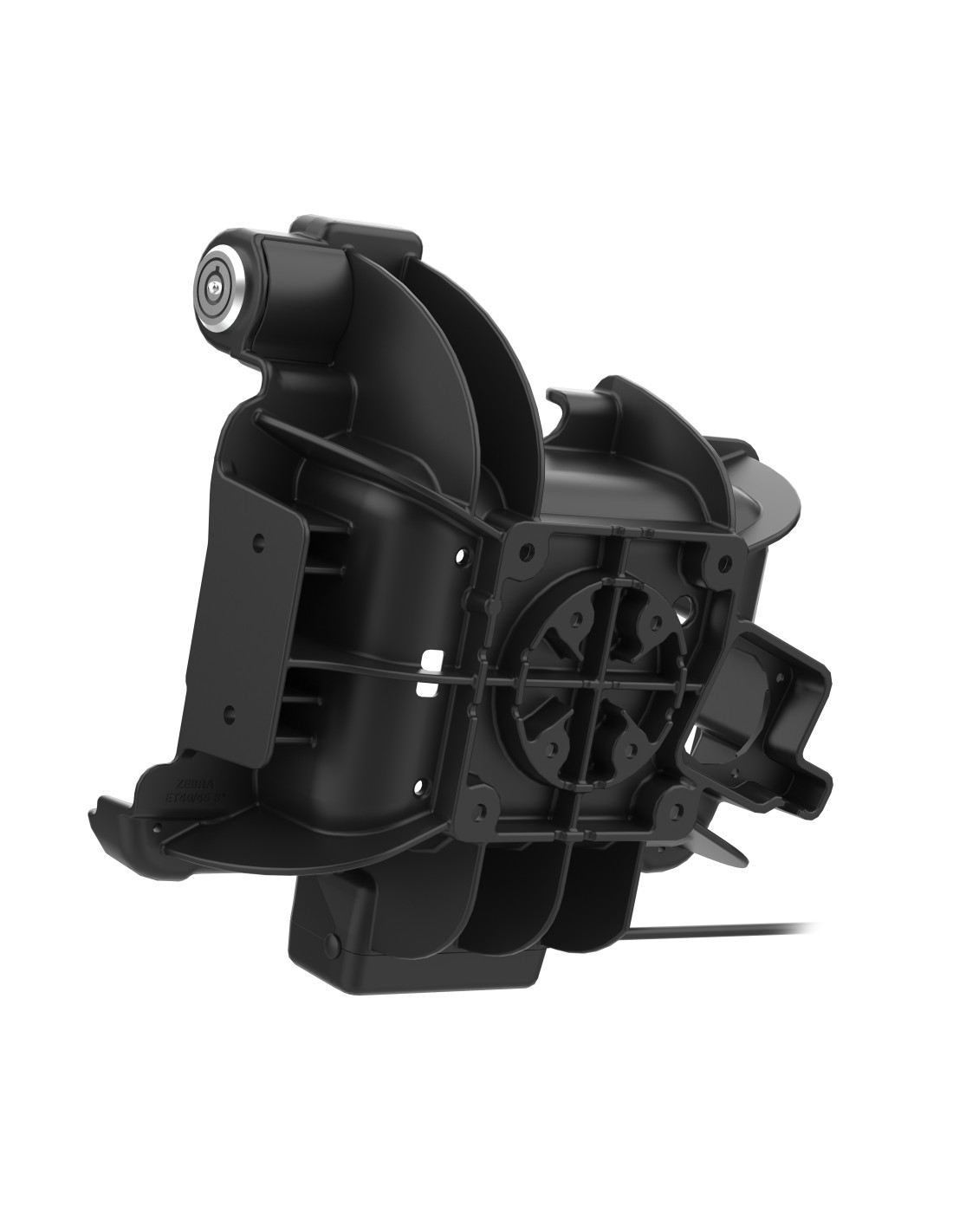

  • Space in the back of the dock to accommodate tablet add-ons such as the Expansion Back, PowerPack Battery, and GDS® ErgoT accessories

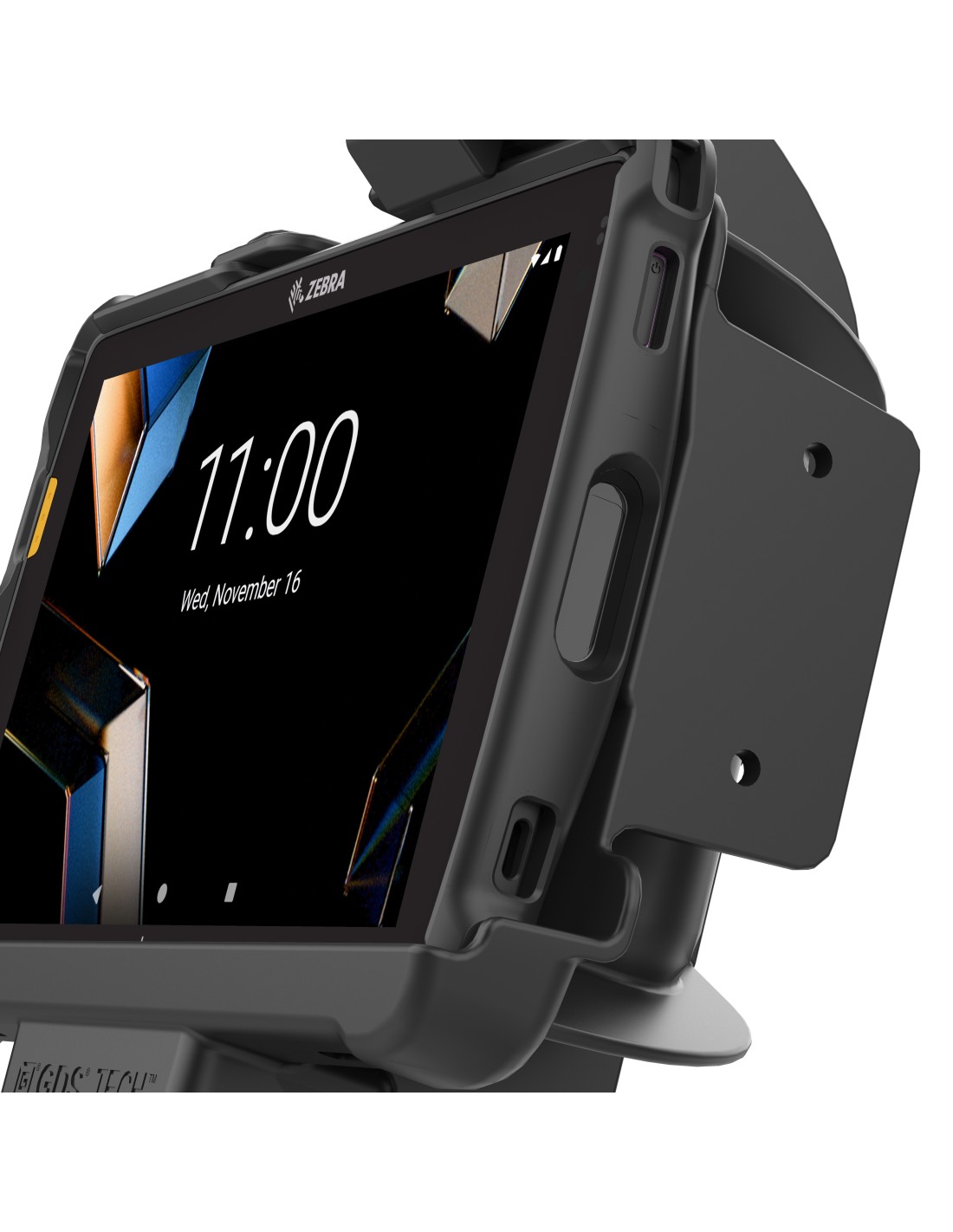

  • Built-in 2-hole mounting plate for additional device mounting such as a phone, scanner, printer, and more
  • Backed by a 3-year warranty

Product Line
Tough-DockT
Product Type
Components
Certifications
CE
RoHS
UKCA
WEEE
Hardware Included
(1) Side bracket for accessory mounting
(2) #8-32 x 1/2" Machine Screws
(2) Keys
(2) Small Cable Ties
(4) #8-32 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(6) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Input Cable Length
1 Meter
Input Connector
5.5mm DC Connector
Materials
High strength composite
Packaging Type
Poly Bag
Device Compatibility
Zebra ET40 8" with Rugged Frame
Zebra ET45 8" with Rugged Frame
Zebra ET401 8" with Rugged Frame or RAM® SkinT
793442032820
