RAM-HOL-ZE44PD2U

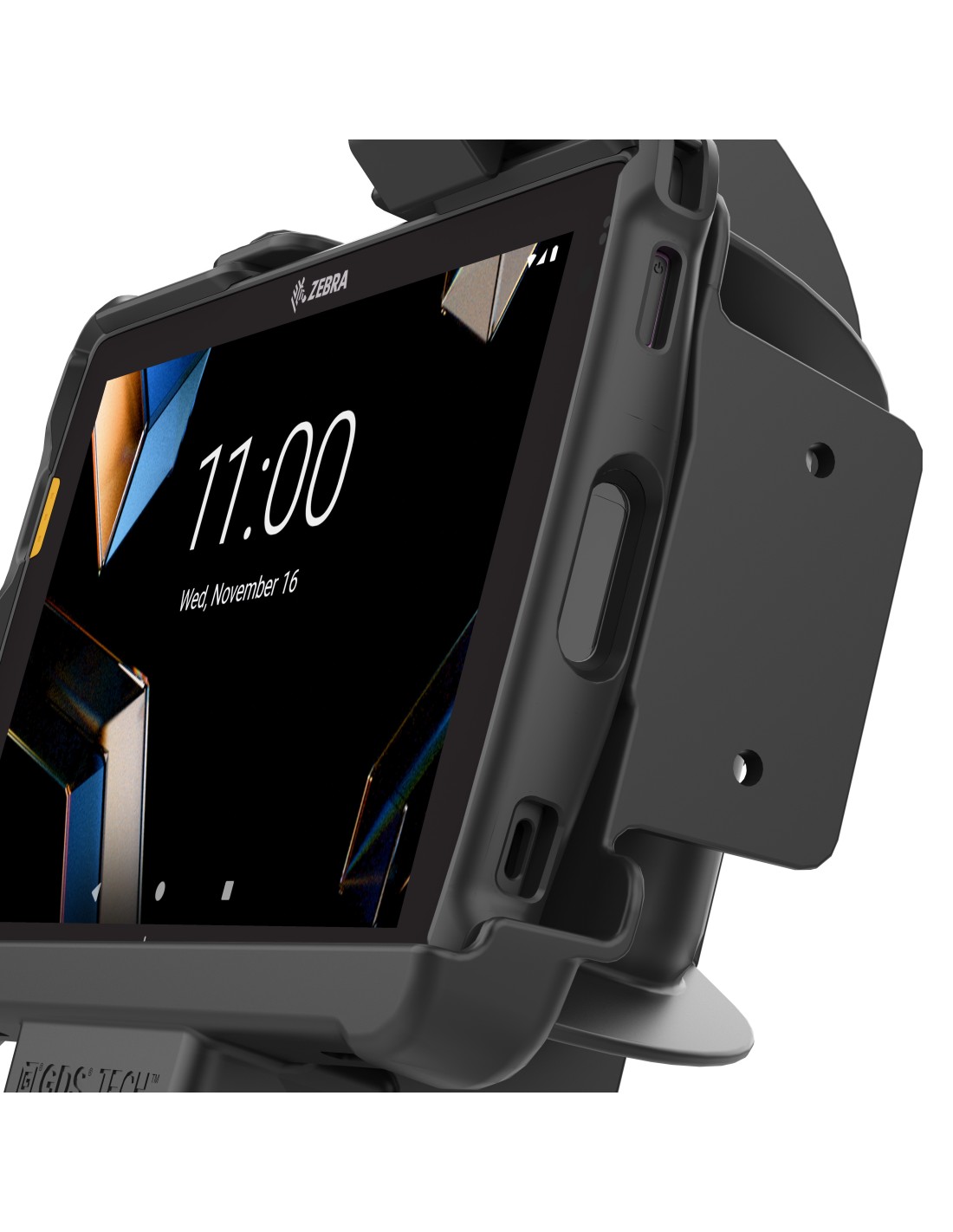

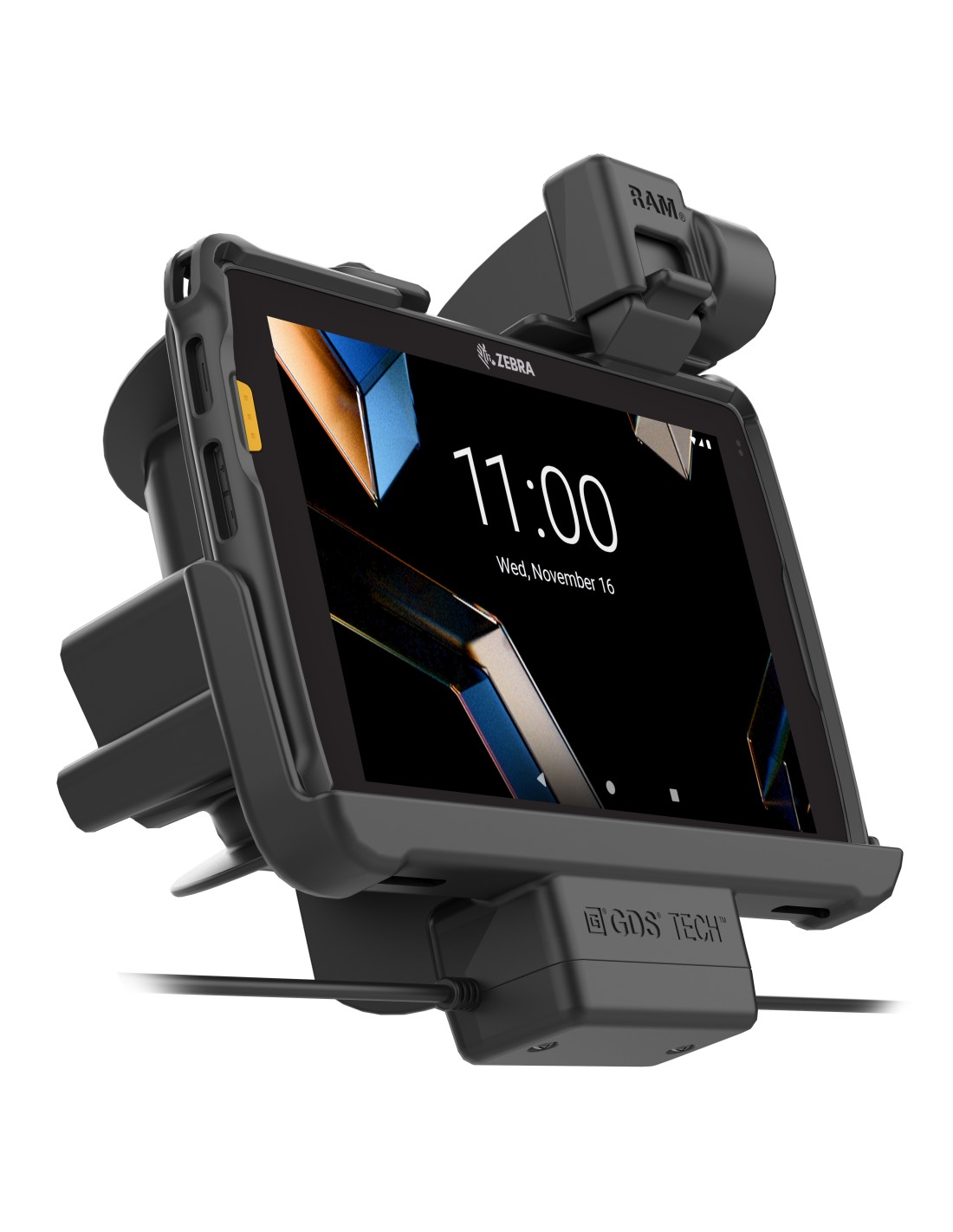

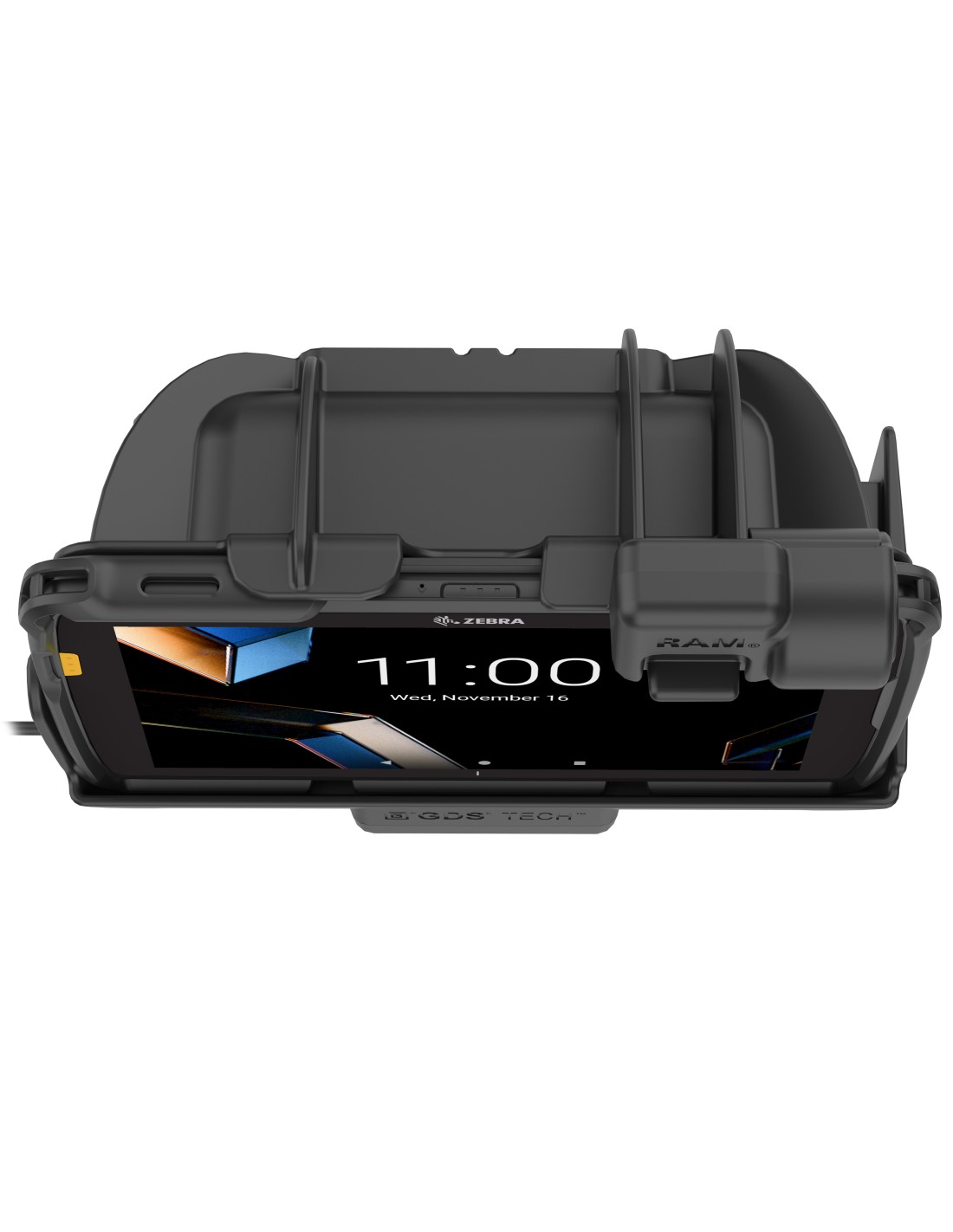

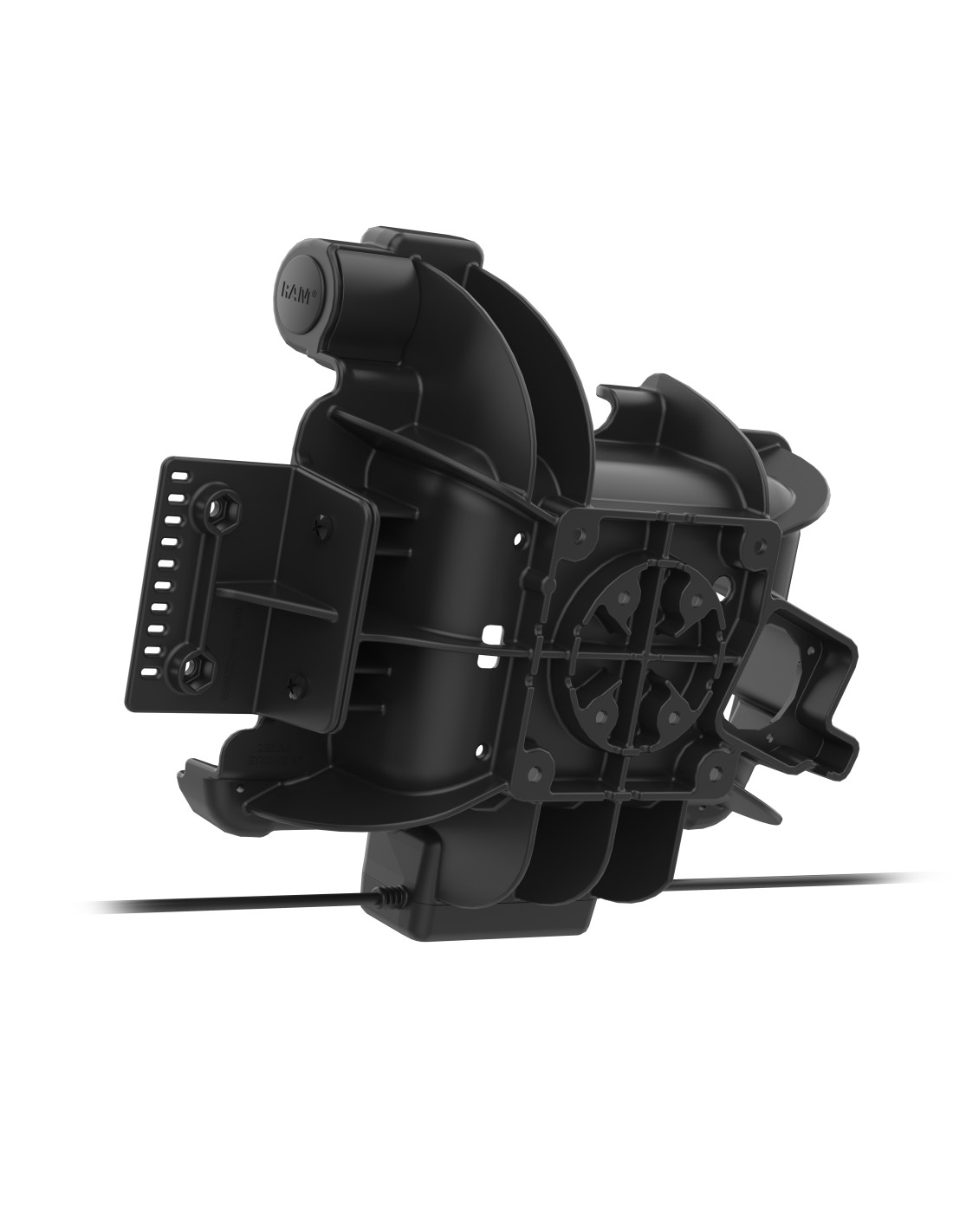

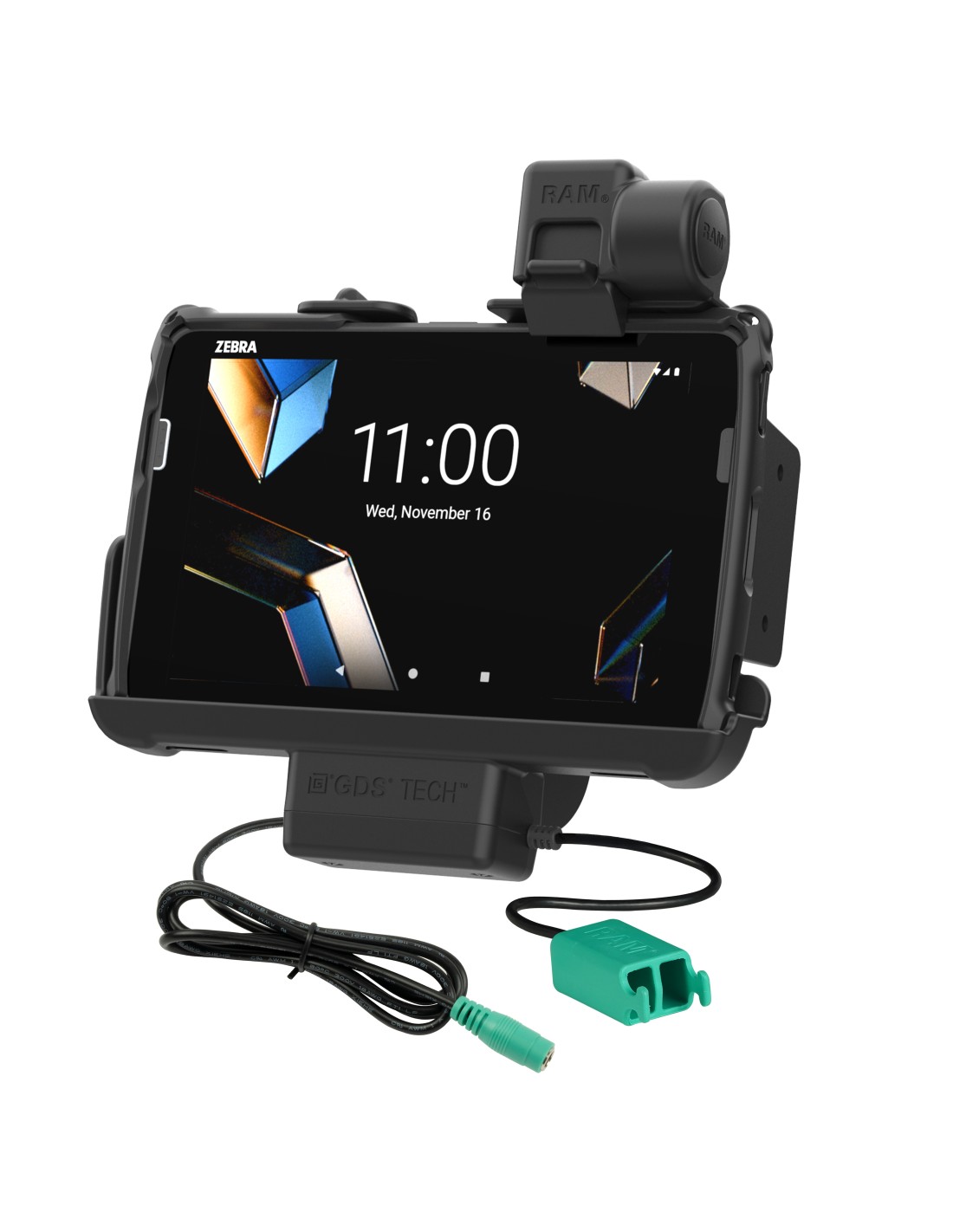

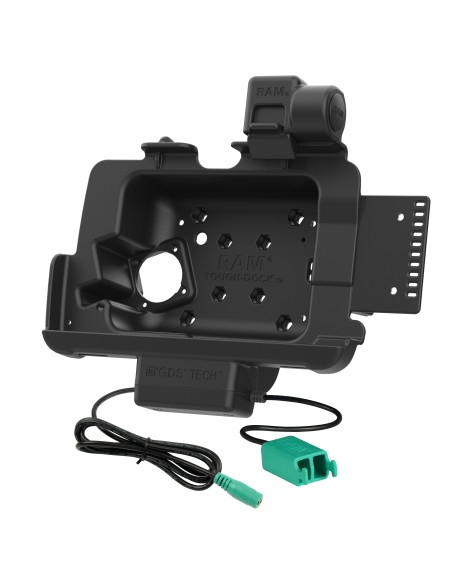

The RAM Tough-Dock Power + Dual USB with Latch for Zebra ET401 8" (RAM-HOL-ZE44PD2U) features a top latch design for securing the tablet without wear and tear on the dock itself. Power is provided via a 5.5mm DC barrel connector and allows you to keep the device charged through the pogo pin contacts when the device is docked. A dual USB Type-A pigtail connector is provided for adding up to two additional input device. The dock also includes space in the back for tablet add-ons such as the Zebra Expansion Back, PowerPack Battery, and GDS Ergo accessories like the GDS Roto-Mag and GDS Hand-Stand. To mount this dock, pair any C and D size RAM 4-hole AMPS or 75mm x 75mm VESA pattern bases for attaching a double socket arm in order to complete your mounting solution. Take the solution a step further by taking advantage of the built-in 2-hole mounting plate compatible with RAM 2-hole diamond base for additional device mounting such as a phone, scanner, printer, or any other handheld device.

  • RAM® Tough-DockT with data and charging capabilities for the Zebra ET401 with RAM® SkinT via DC 5.5mm power jack and dual USB Type A connector for adding two peripherals; MIL-STD 810G Shock and Vibration tested
  • When connected to a power source, integrated pogo pins provide power to the device as well as peripheral connectivity while docked; Dock accommodates tablet add-ons such as the Expansion Back and PowerPack Battery; tablet scanning works while tablet is docked
  • Compatible with C and D size RAM® 4-hole AMPS and 75mm x 75mm VESA pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Built-in 2-hole mounting plate for additional device mounting such as a phone; compatible with RAM® 2-hole diamond bases and accessory side bracket
  • Backed by a 3-year warranty

Product Line
Tough-DockT
Product Type
Components
Certifications
CE
FCC
ICES
RoHS
UKCA
WEEE
Hardware Included
(1) Side bracket for accessory mounting
(2) #8-32 x 1/2" Machine Screws
(2) Small Cable Ties
(4) #8-32 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(6) #8-32 Nylock Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Input Cable Length
1 Meter
Input Connector
5.5mm DC Connector
Materials
High strength composite
Output Cable Length
250mm
Output Connector
(2) USB 2.0 Type A
Packaging Type
Poly Bag
Peripheral Output
900mA (per port)
Transfer Speed
12Mbps
Device Compatibility
Zebra ET40 8" with Rugged Frame
Zebra ET45 8" with Rugged Frame
Zebra ET401 8" with Rugged Frame or RAM® SkinT
793442032790
