RAM-HOL-ZE41L-1U

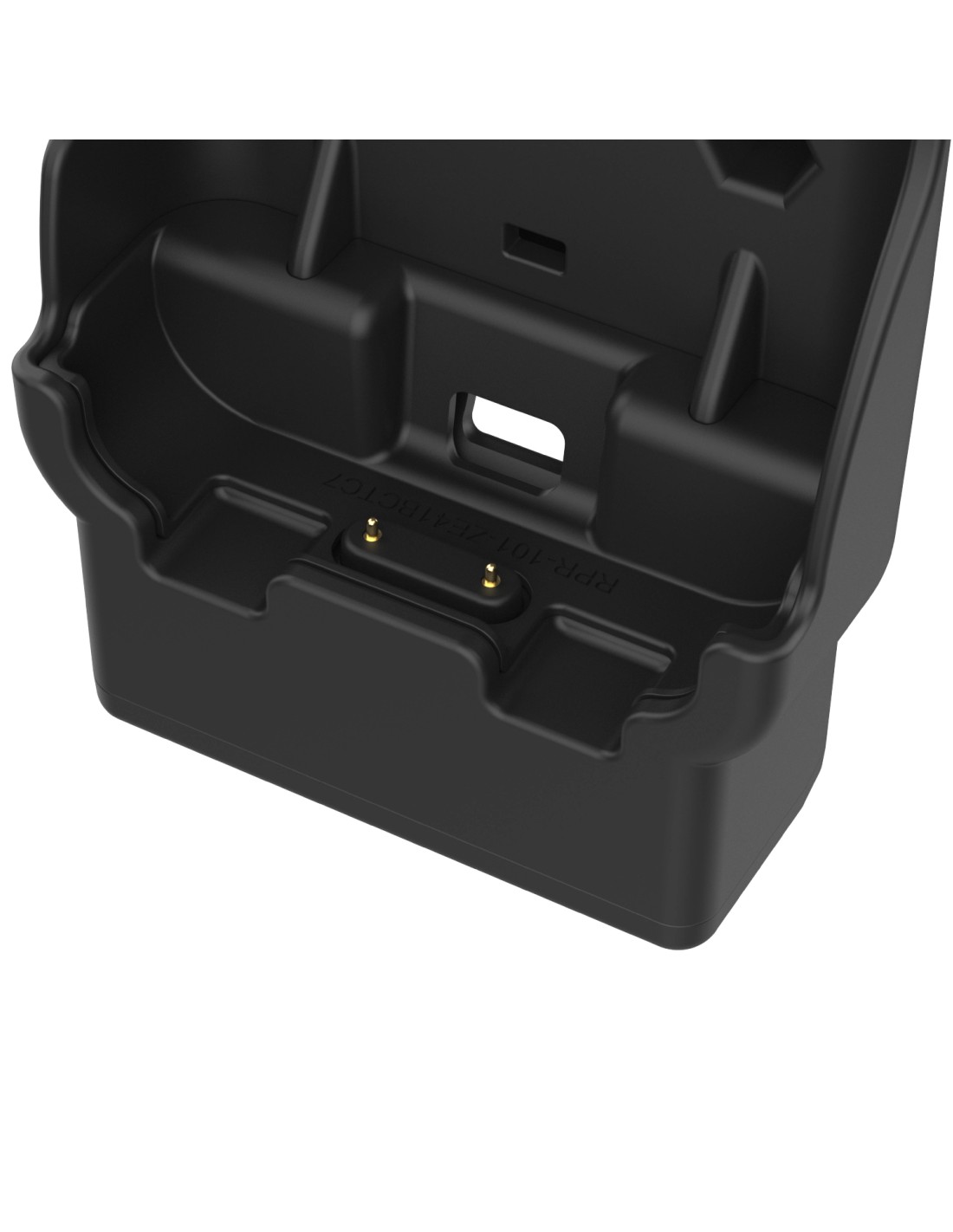

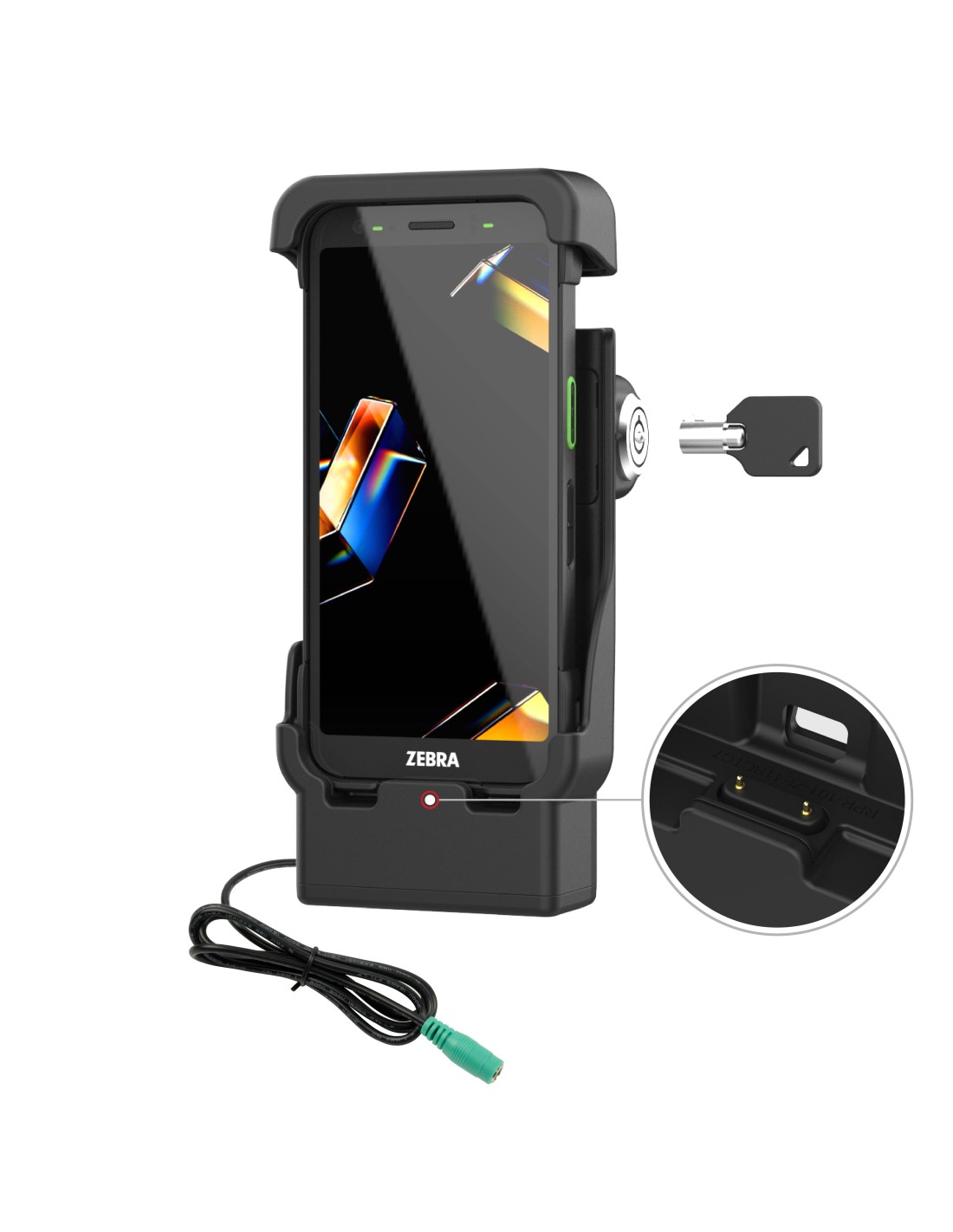

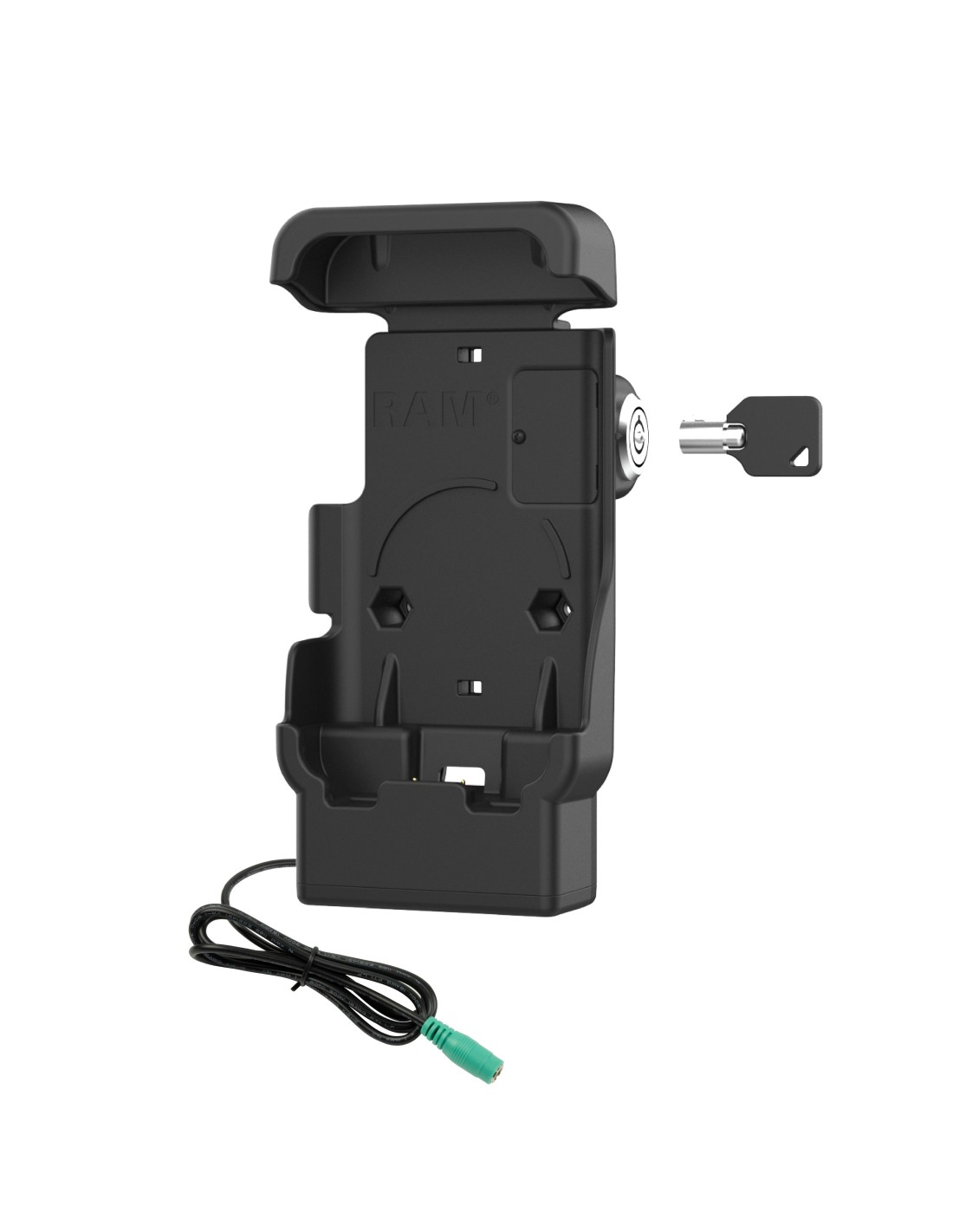

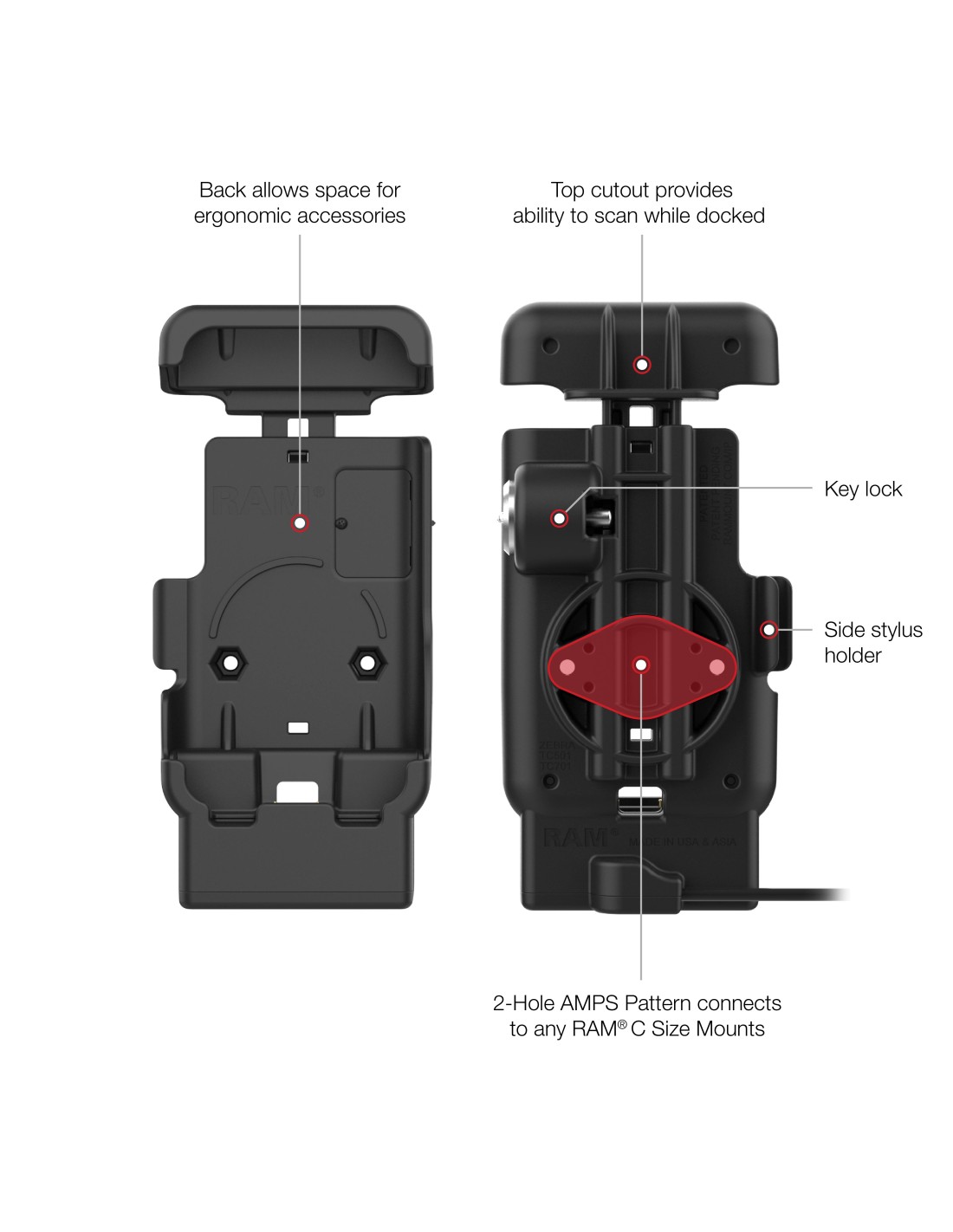

The RAM Locking Powered Dock with Pogo Pins for Zebra TC701 (RAM-HOL-ZE41L-1U) is built to perform in demanding, real-world workflows. By charging through the devices pogo pad docking contacts, the pogo pin design protects the TC701s charge port while enhancing overall durability. A spring-loaded mechanism enables quick, one-handed docking and removal, keeping operators efficient on the move. The integrated top-cup cutout allows access to buttons, ports, and scanners without removing the device, so productivity never slows down. For added security in high-traffic environments, the integrated key lock provides reliable theft deterrence. Complete your mounting solution with confidencethis holder is RAM Compatible and features a 2-hole AMPS pattern for seamless integration with a diamond ball adapter.

  • Key-locking, spring-loaded powered dock for Zebra TC701
  • Power delivered through two integrated pogo pins via 5.5mm DC barrel connector

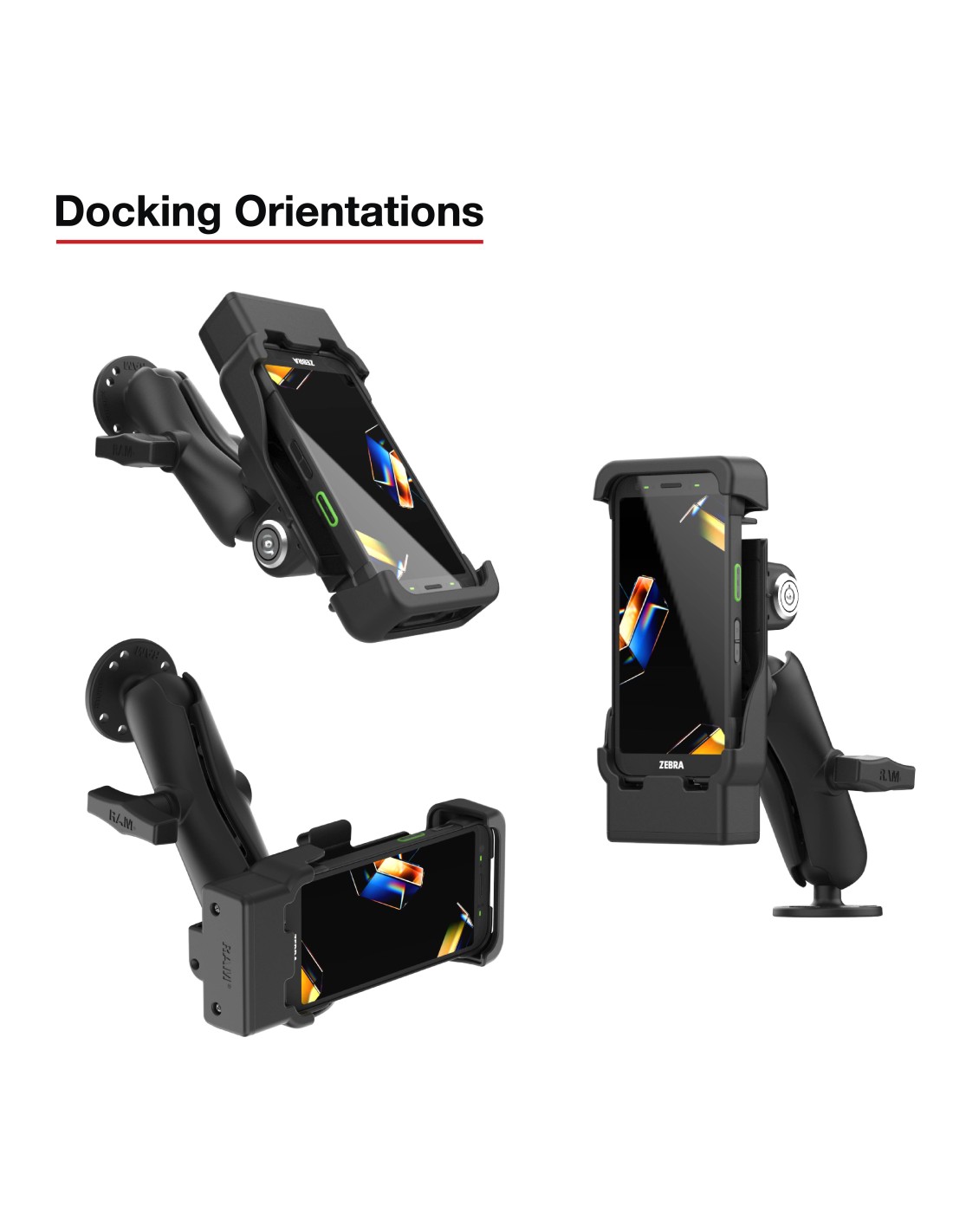

  • Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

Product Type
Components
Hardware Included
(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
(1) Adhesive for Wireless Charger
(1) Cable Clamp
Hole Pattern
2-Hole AMPS: 1.912"
Input Connector
5.5mm DC Connector
Input Voltage
5V @ 1.6A
Materials
High strength composite
Packaging Type
Poly Bag
Power Output
9W
Product Weight
1.02 lb
Device Compatibility
Zebra TC701
