RAM-VBD-122-SW3

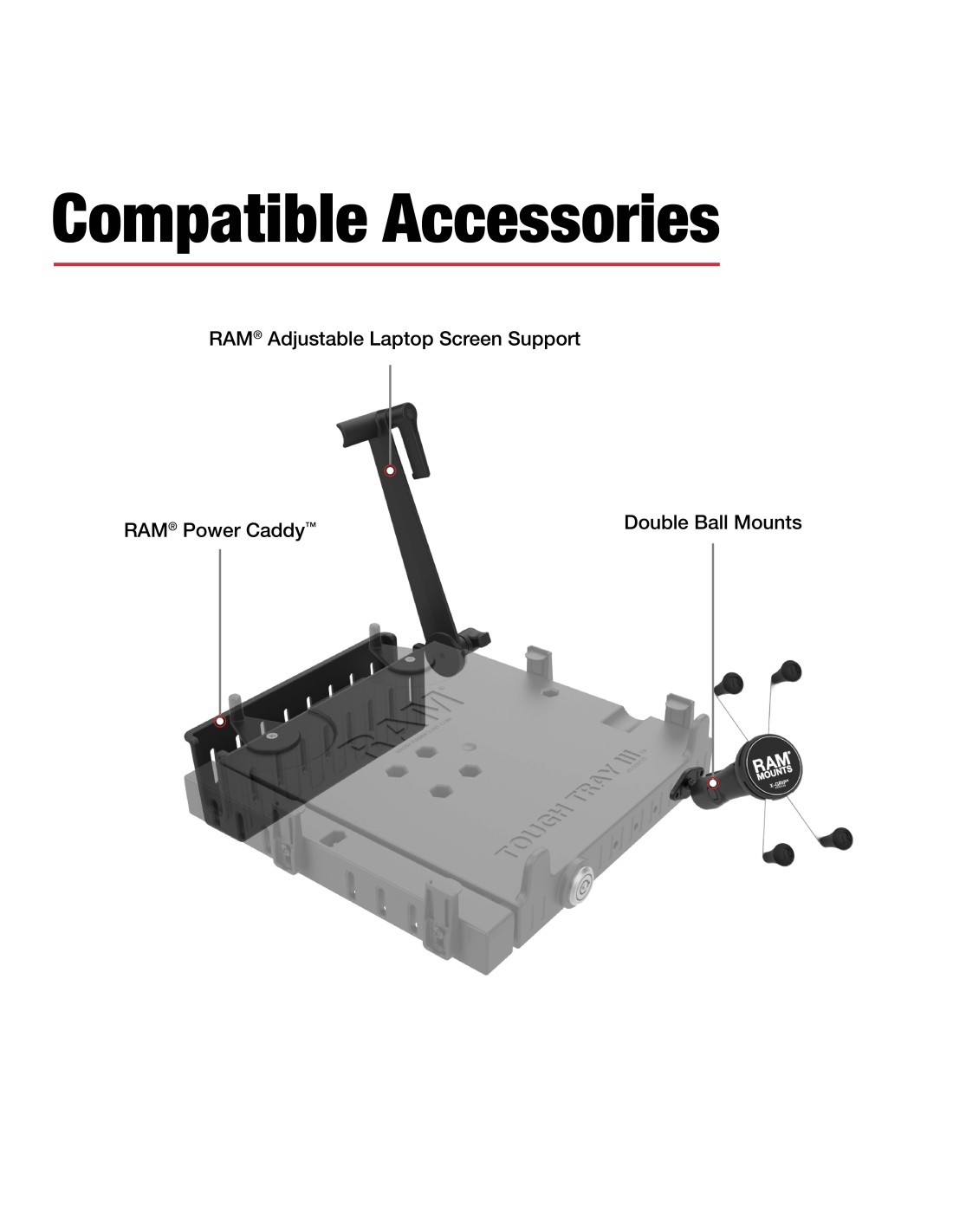

The RAM Universal Drill-Down Vehicle Laptop Mount (RAM-VBD-122-SW3) installs into most vehicles using self-tapping screws, or alternatively, by drilling and then bolting down the mount base to the vehicle*. This laptop mounting kit is telescoping, allowing users to adjust the height range from 12 to 18. Dual swing arms provide articulation and 12 of reach for passenger and driver access to the mounted device. RAM rubber ball and socket technology provides additional adjustability as well as shock and vibration isolation. The spring-loaded RAM Tough-Tray III laptop holder accommodates 10" to 17" laptops (measured diagonally). The tray features four adjustable retaining arms that can be moved both vertically and horizontally. These arms allow for a custom fit for laptops of varying thickness while not blocking drives or ports. Upgrade your mounting kit with compatible accessories that are not included, such as the RAM Adjustable Screen Support and RAM Power Caddy. Integrated 2-hole AMPS mounting locations around the tray perimeter allow for easy attachment of accessories such as printers, handheld devices, or scanners. Verify full range of vehicle compatibility on tab above.

  • Custom laptop vehicle mount; drilling required
  • Dual articulating swing arm provides a high-level of adjustability
  • Universal laptop tray accommodates most laptops
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

Components
RAM-234-7
RAM-VBD-122
RAM-VP-SW1-8
Product Line
Tough-TrayT
Product Type
Laptop Mounts
Ball Size
C Size (1.5")
Hardware Included
Assembly Hardware
Hole Pattern
Base: See Drawing
Materials
High strength composite
Marine grade-aluminum
Powder coated steel
Packaging Type
Box
Plate Size
8" x 8"
Product Dimensions
Maxium Height: 32.05"
Minimum Height: 25.05"
Product Weight
16.00 lb

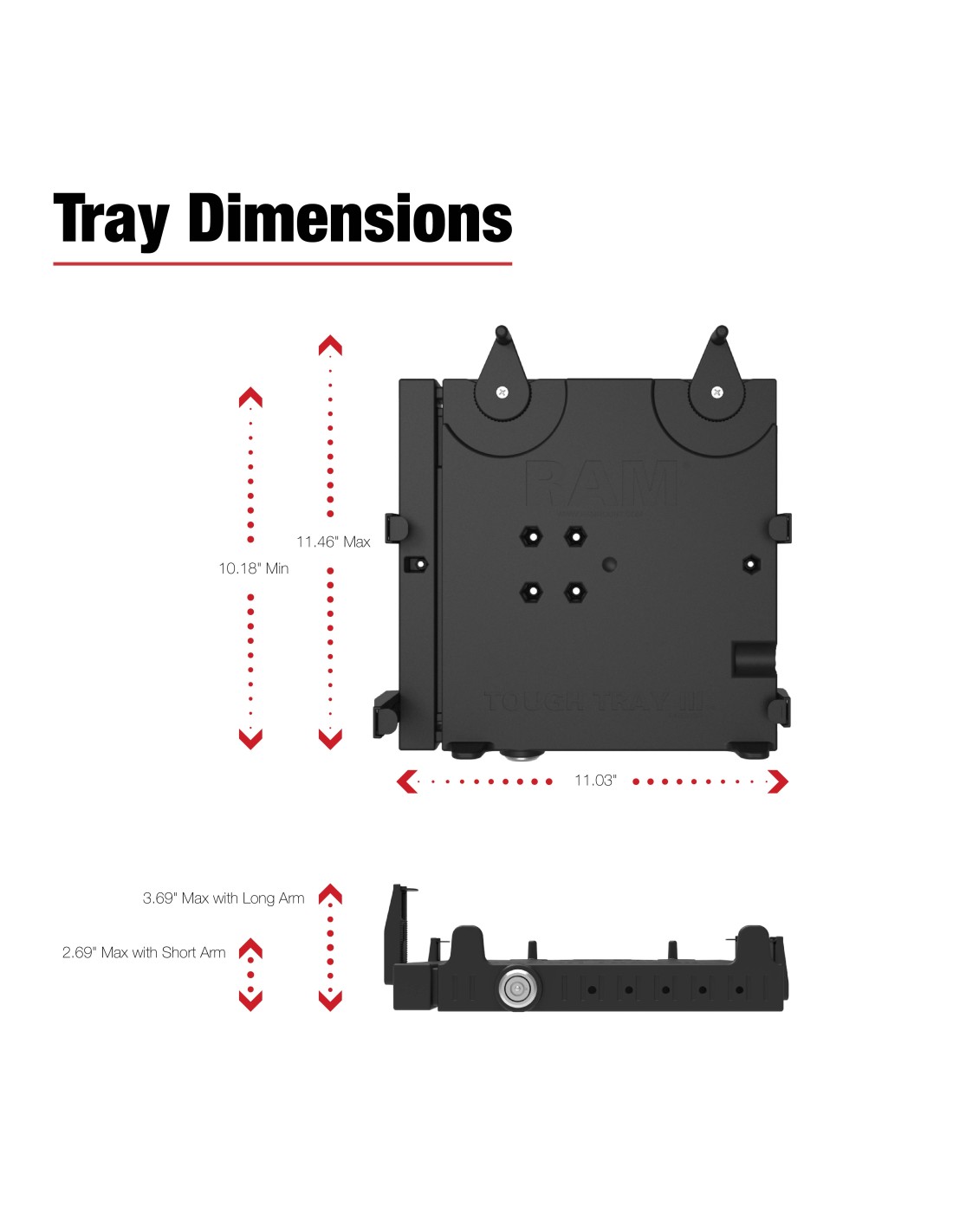

Tray Dimensions
Depth Range: 7.625" - 10.625"
Side Arm Clamp Height: 0" - 1.875"
Tray Thickness: 1.26"
Width Range: 10" - 15.25"
793442033599
