RAM-HOL-ZE46PD2U

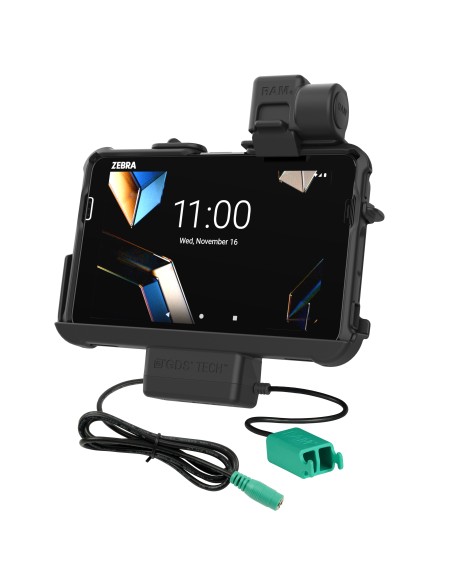

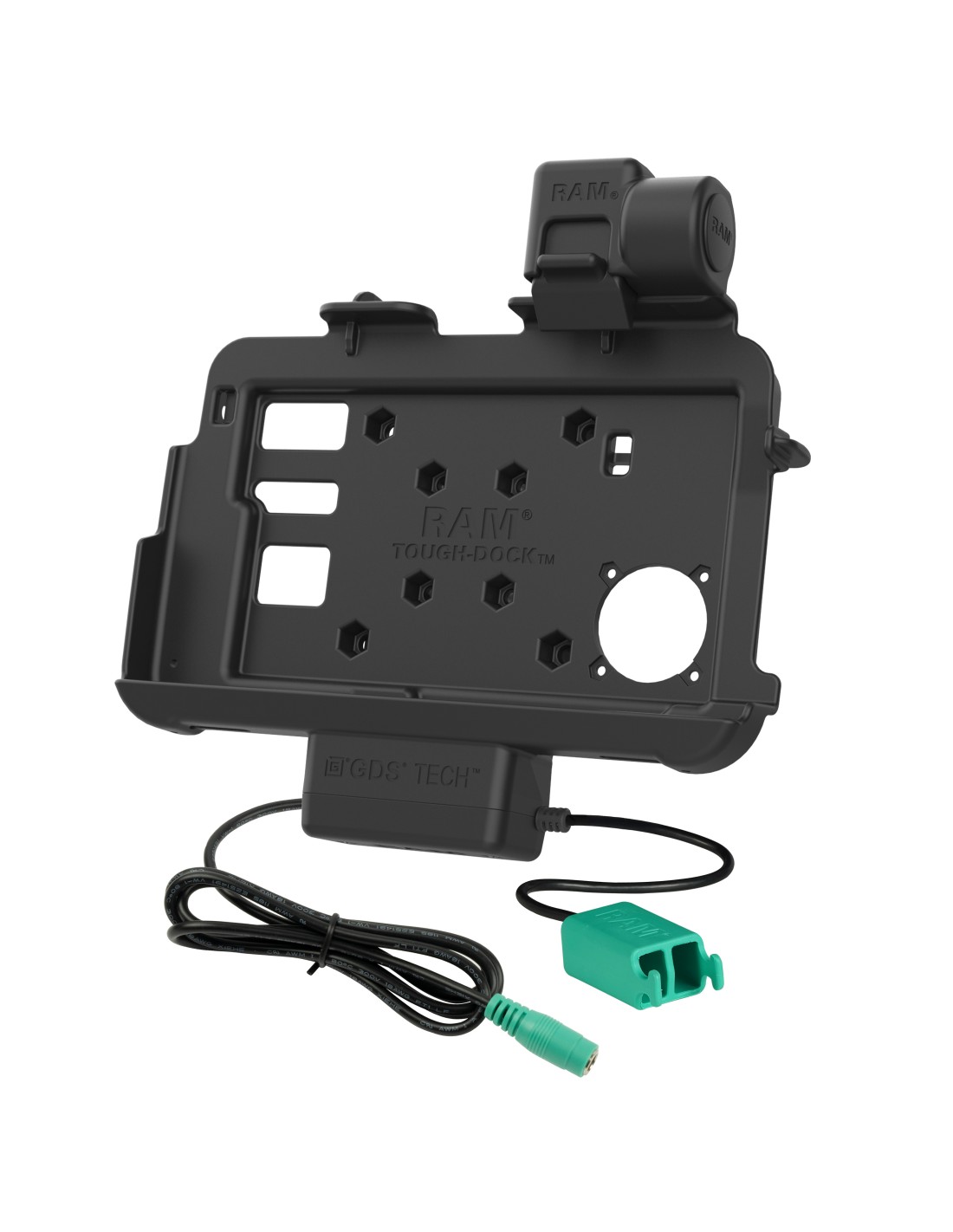

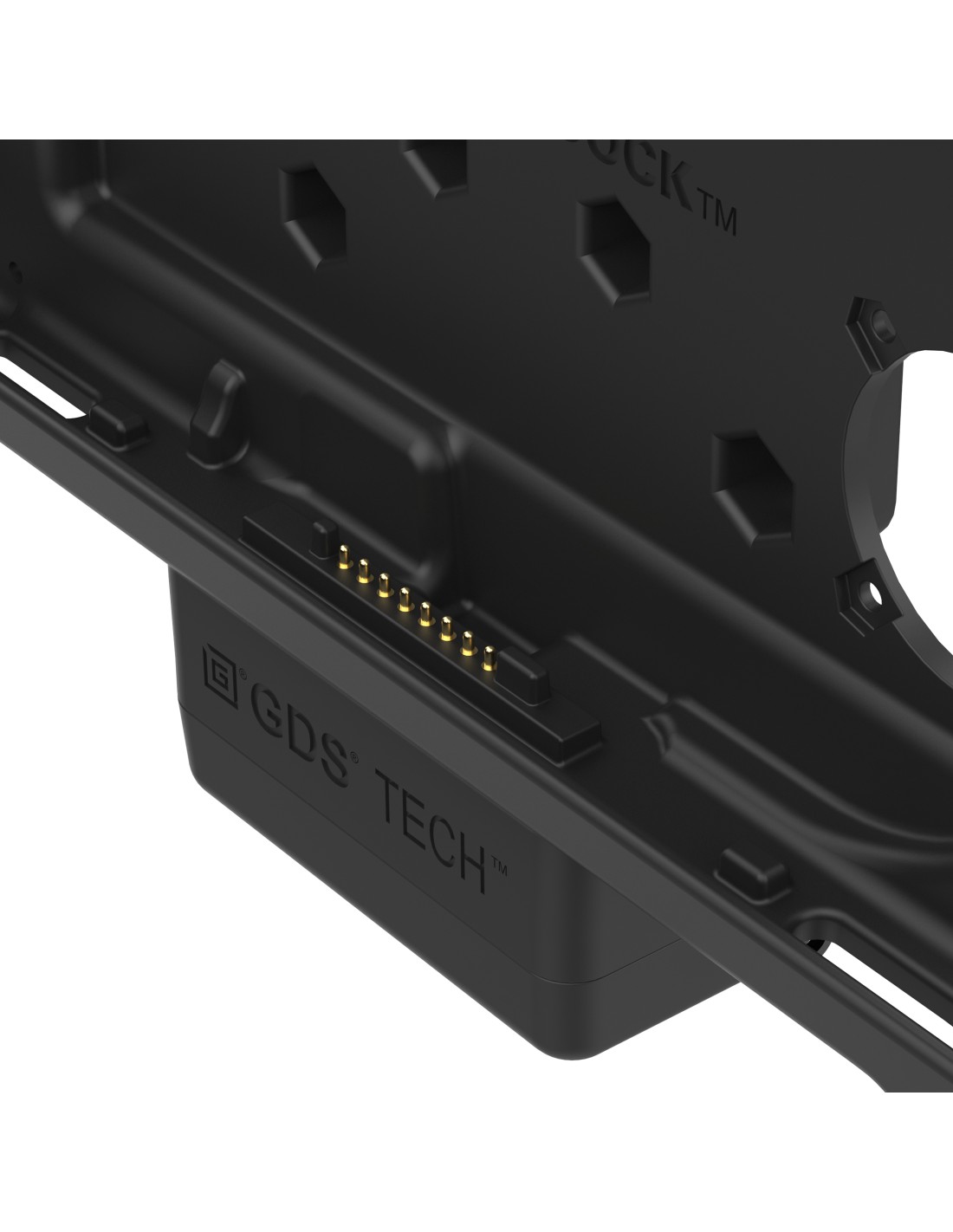

The RAM Thin-Dock + Dual USB for Zebra ET401 & ET4x 8" (RAM-HOL-ZE46PD2U) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets, connecting directly to the tablet's integrated pogo pins to ensure a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the docks USB Type-C connector. Connect up to two peripheral devices such as a mouse, keyboard, or printer using the peripheral dual USB-A connector. The design also maintains access to the tablets side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support OEM accessories like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories.

  • Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45

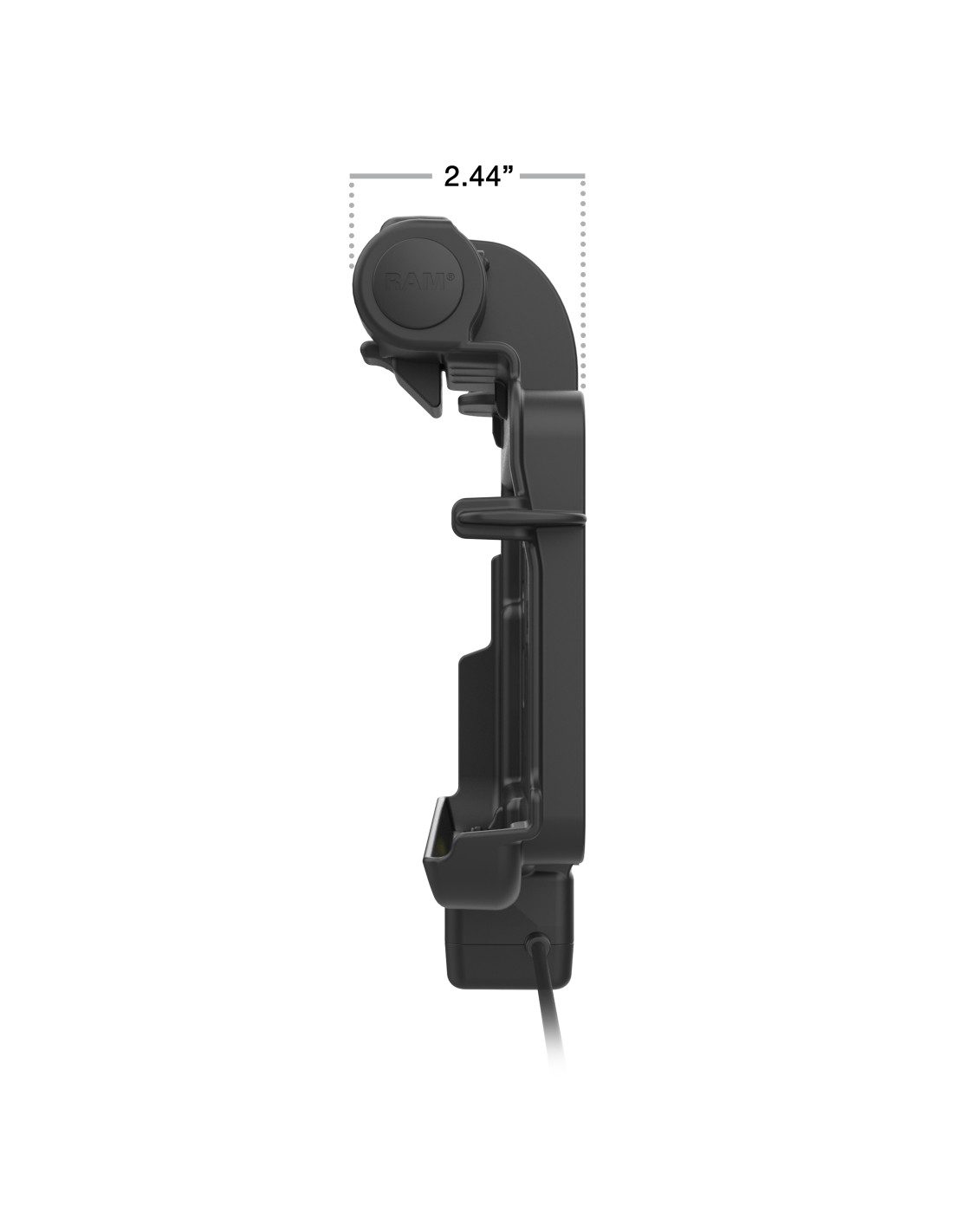

  • Slim-profile design at 2.44" depth with metal reinforcement plate

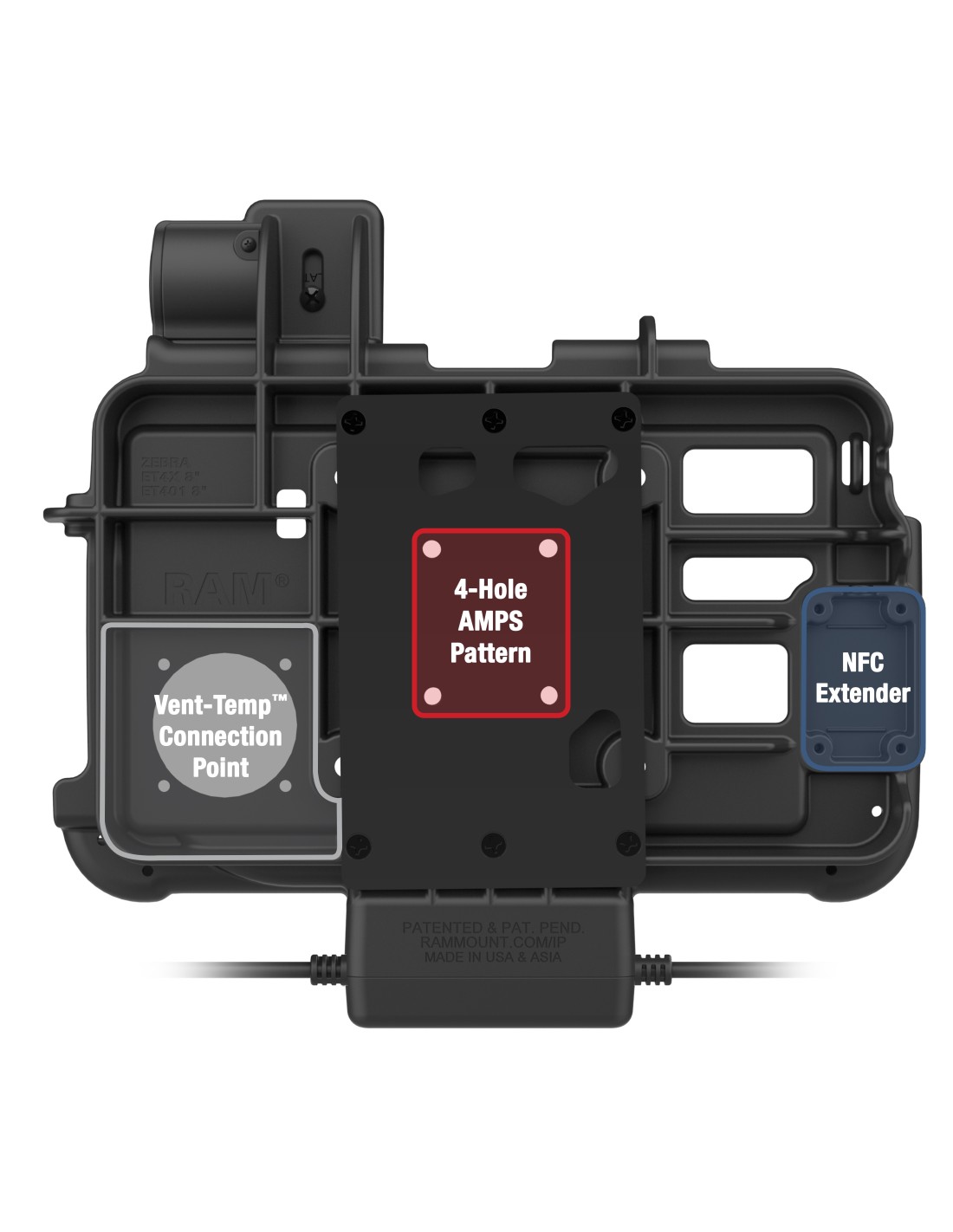

  • Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Compatible with RAM® Vent-TempT and NFC Extender
  • Backed by a 3-year warranty

Product Line
Thin-DockT
Product Type
Components
Certifications
CE
FCC
IC
RCM
RoHS
WEEE
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Input Cable Length
1 Meter
Input Connector
5.5mm DC Connector
Materials
High strength composite
Output Cable Length
225mm
Output Connector
(2) USB 2.0 Type A
Output Voltage
12V @ 2A
Packaging Type
Poly Bag
Peripheral Output
900mAh (per port)
Power Output
24W
Transfer Speed
12Mbps
Device Compatibility
Zebra ET40 8"
Zebra ET45 8"
Zebra ET401 8"
793442032417
