RAM-GDS-DOCKL-SAM62C-RJ45AU

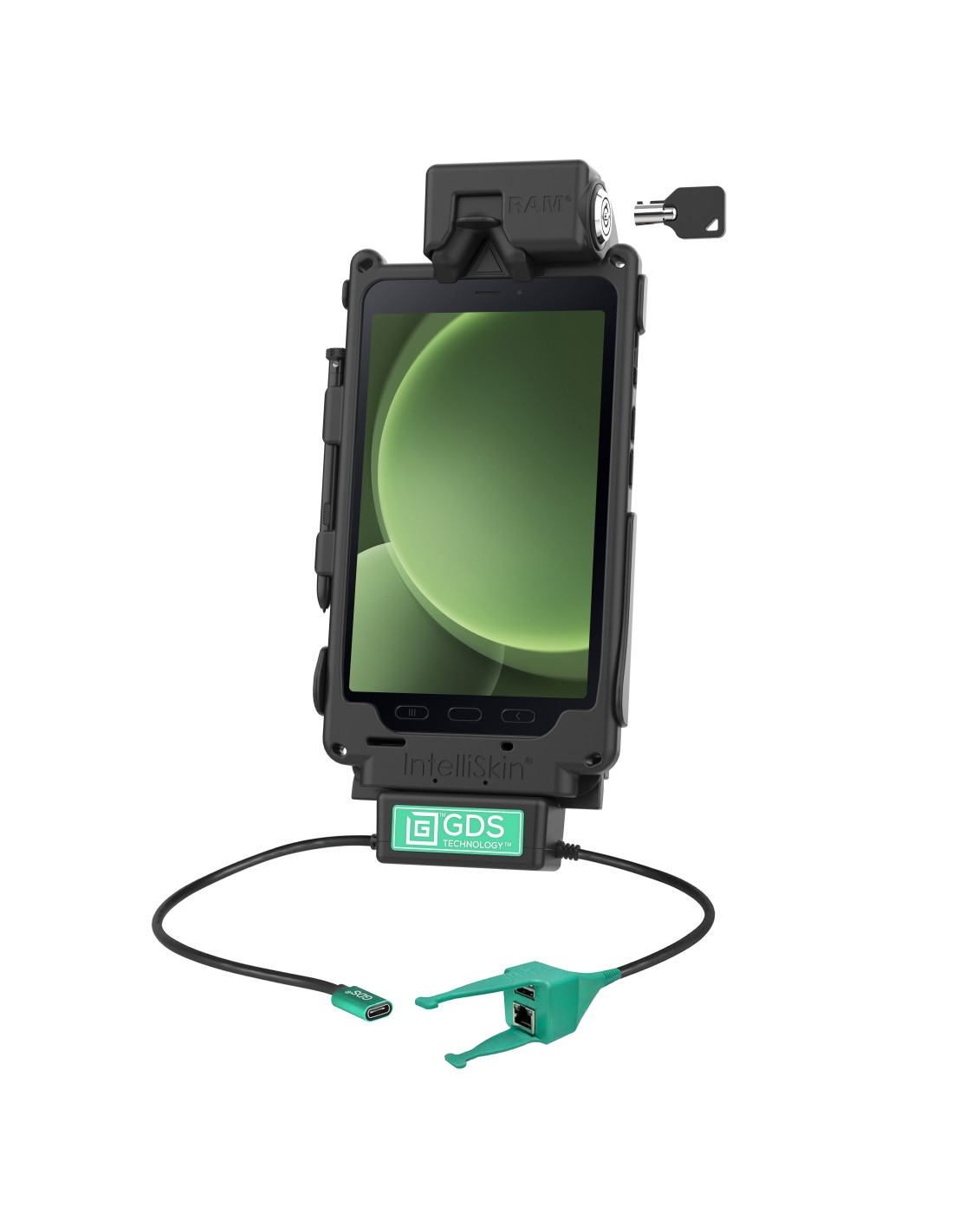

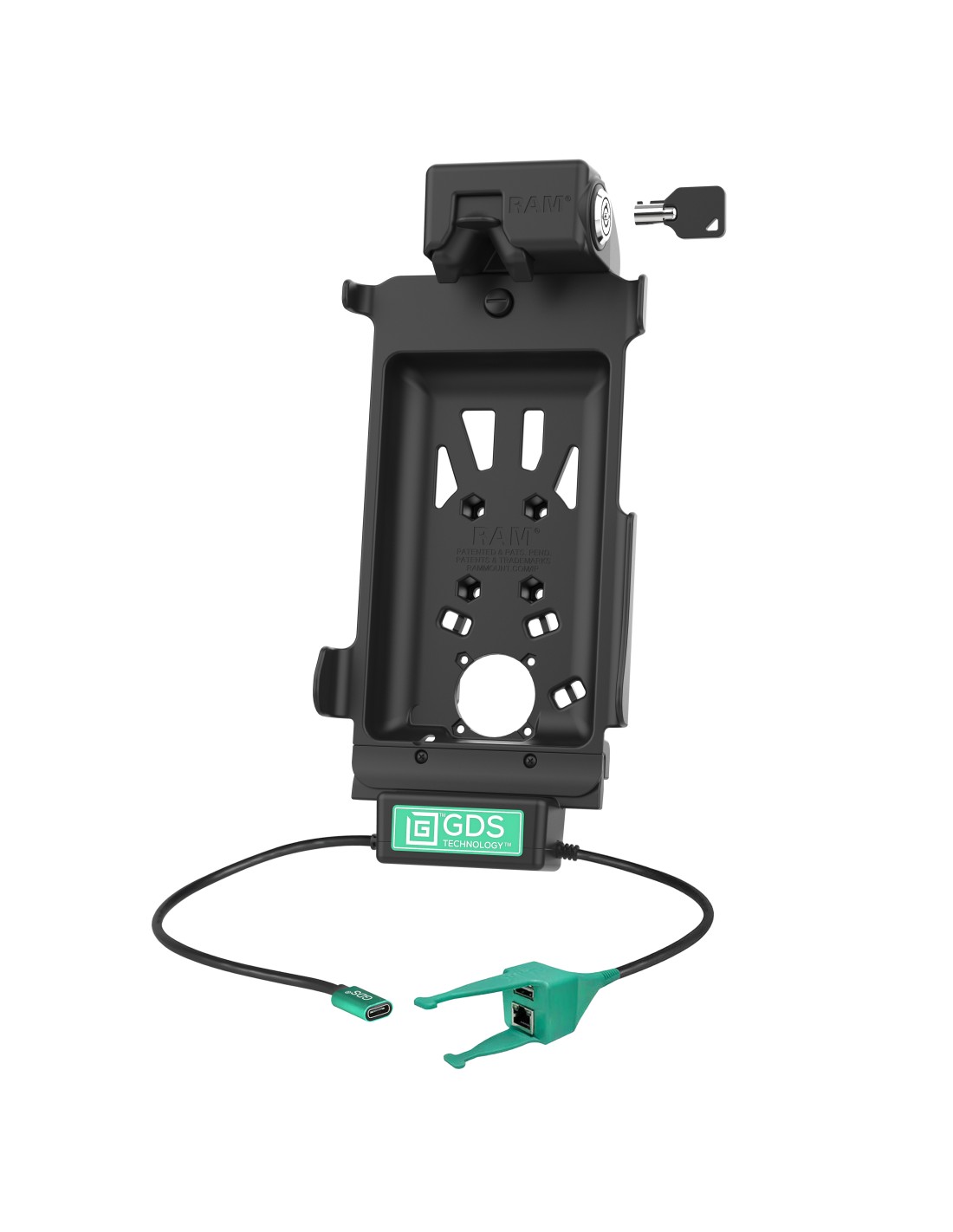

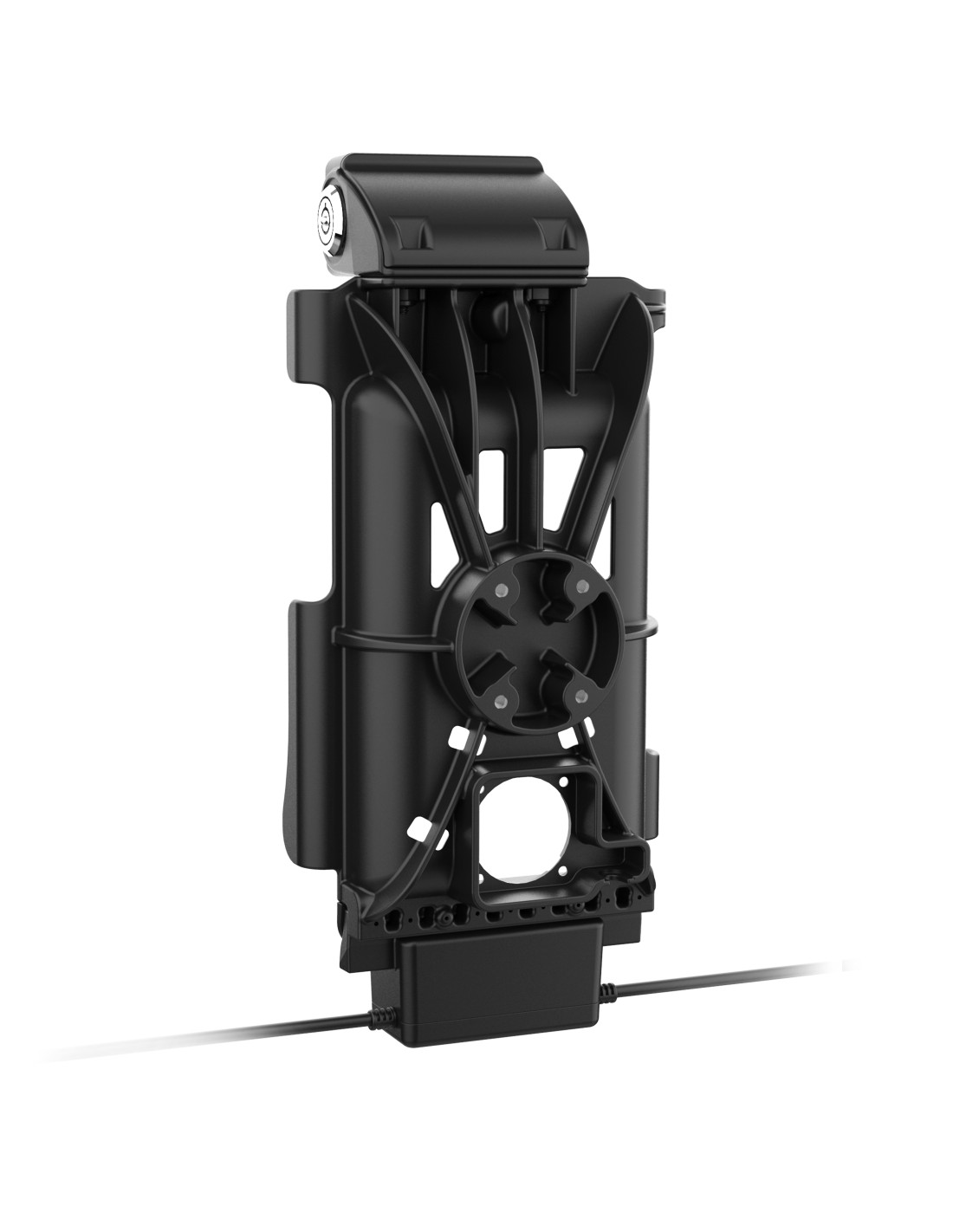

The Locking GDS Tough-Dock + USB-A & RJ45 for Samsung Tab Active5 & 3 (RAM-GDS-DOCKL-SAM62C-RJ45AU) is a rugged vehicle dock is designed to support the Samsung Galaxy Tab Active5, Tab Active3 and 2 in an IntelliSkin Next Gen protective sleeve. The dock uses a USB Type-C female power connector and integrated pogo pins to provide power to the device while docked. The dual-input pigtail features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals, such as printers, mouse, or keyboard, to your tablet. Designed for heavy-duty environments, the dock wraps protectively around the back and sides of a device to protect from impact. The GDS Tough-Dock is compatible with RAM ball and socket systems using the integrated 4-hole AMPS hole pattern. The GDS Tough-Dock is backed by a 3-year warranty. Always Protected. Always Connected.

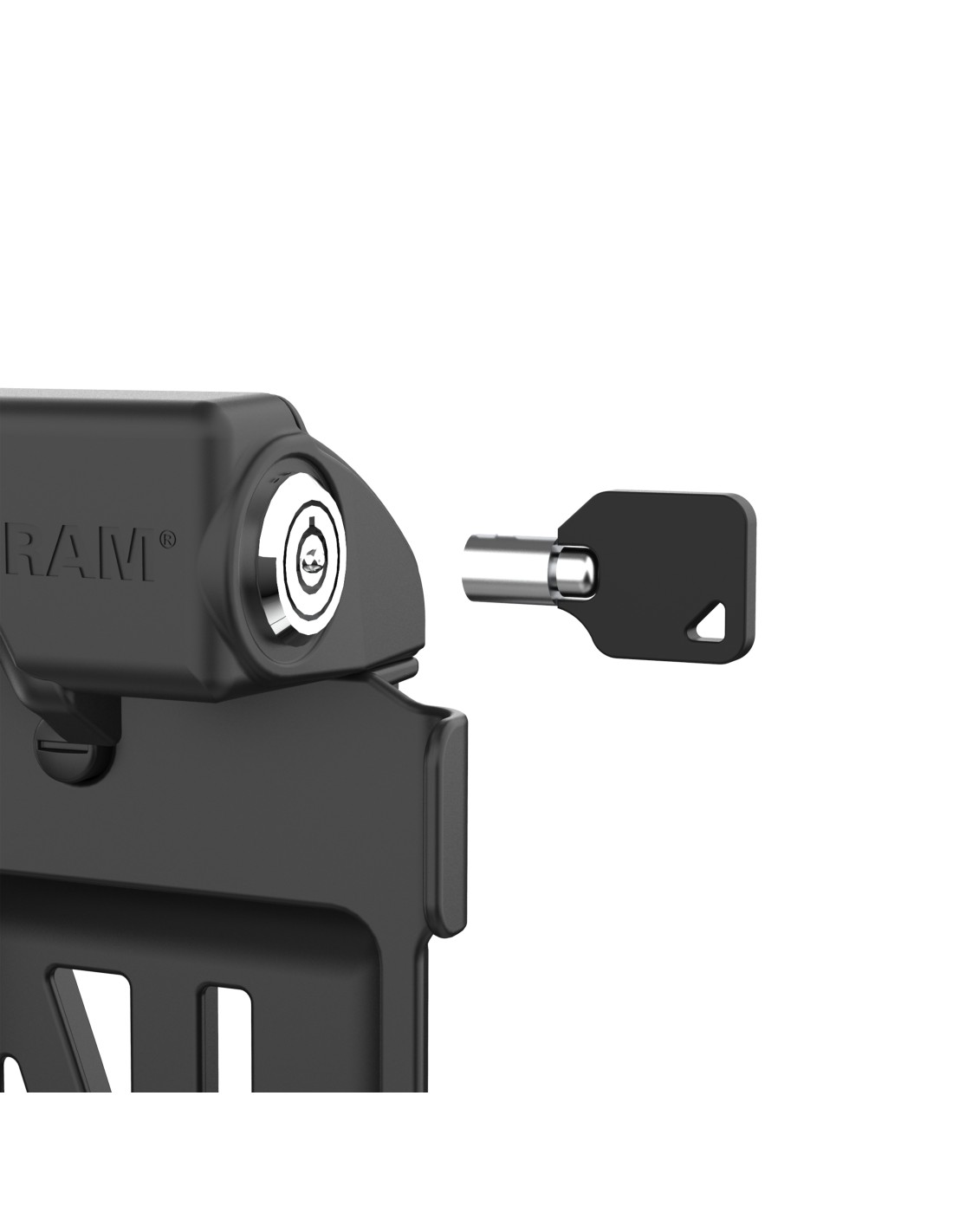

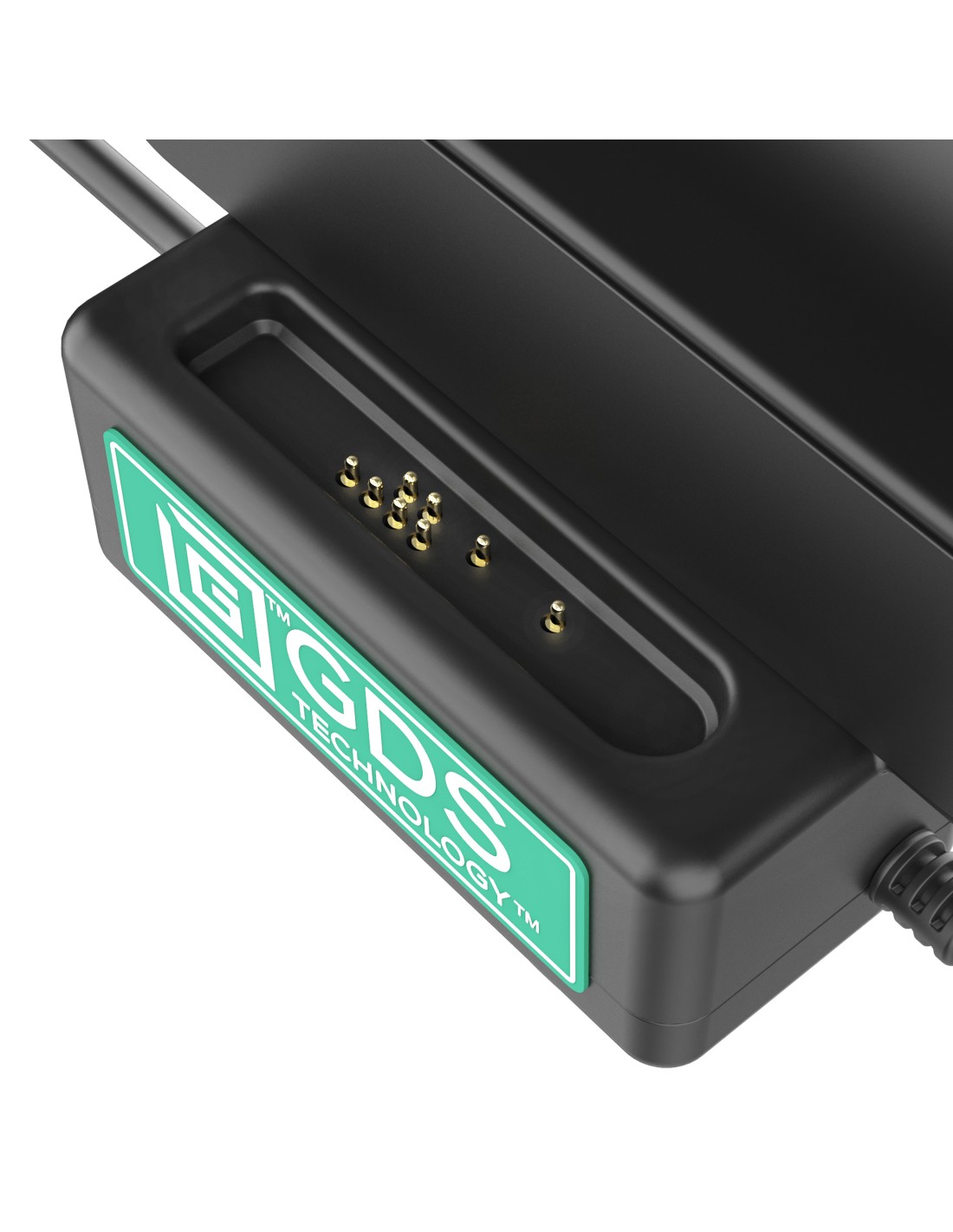

  • Spring-loaded key-locking vehicle dock featuring GDS® TechnologyT uses an integrated pogo pin connector to provide charging and peripheral connection
  • Designed specifically for the Samsung Galaxy Tab Active5, Tab Active3 and 2 wrapped in an IntelliSkin® Next Gen protective sleeve
  • RJ45 connector provides secure ethernet connection
  • RAM® Mounts CompatibleT and compatible with the GDS® Hand-StandT Hand Strap and Kickstand attachment
  • Backed by a 3-year warranty

Components
RAM-GDS-CAB-CLAMP1U
RAM-GDS-DOCK-V10C-RJ45AU
RAM-GDS-DOCKB-SAM62U
RAM-GDS-DOCKLH2U
Product Line
GDS® TechT Tough-DockT
Product Type
Components
Hardware Included
(2) Keys
(4) #8-32 Nylock Nuts
(4) #8-32 x 5/8" Machine Screws
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Cable Length
215mm
Input Connector
USB Type-C (Power In)
Materials
High strength composite
Output Cable Length
215mm
Output Connector
(1) USB Type-A & (1) RJ45 Female
Output Voltage
Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max
Packaging Type
Poly Bag
Peripheral Output
900mAh
Power Output
15W
Product Weight
1.54 lb
Device Compatibility
Samsung Galaxy Tab Active2 with IntelliSkin® Next Gen
Samsung Galaxy Tab Active3 with IntelliSkin® Next Gen
Samsung Galaxy Tab Active5 with IntelliSkin® Next Gen
793442032103
