RAM-GDS-DOCK-ZE46PU

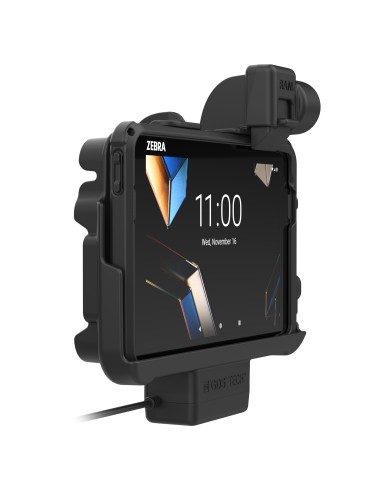

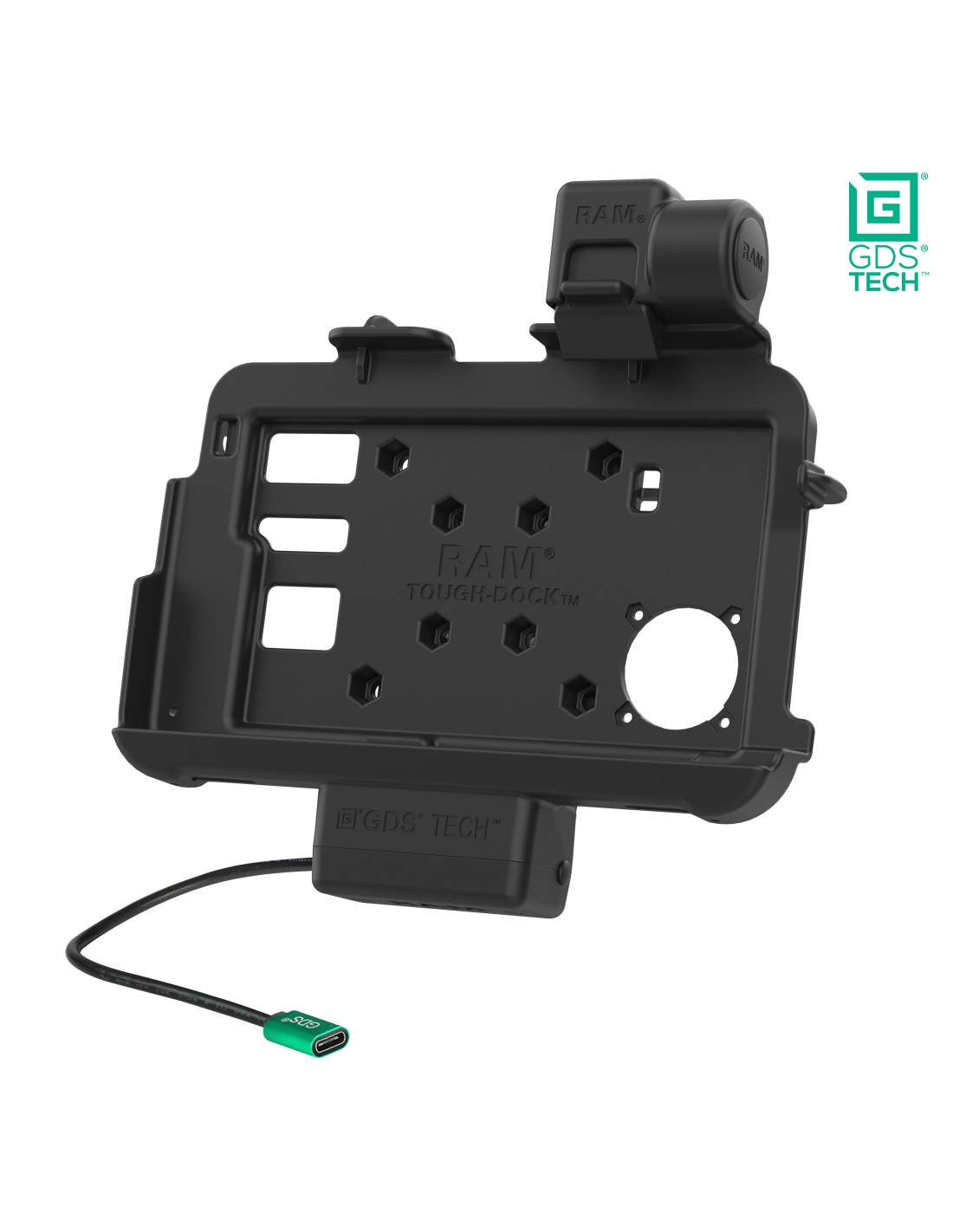

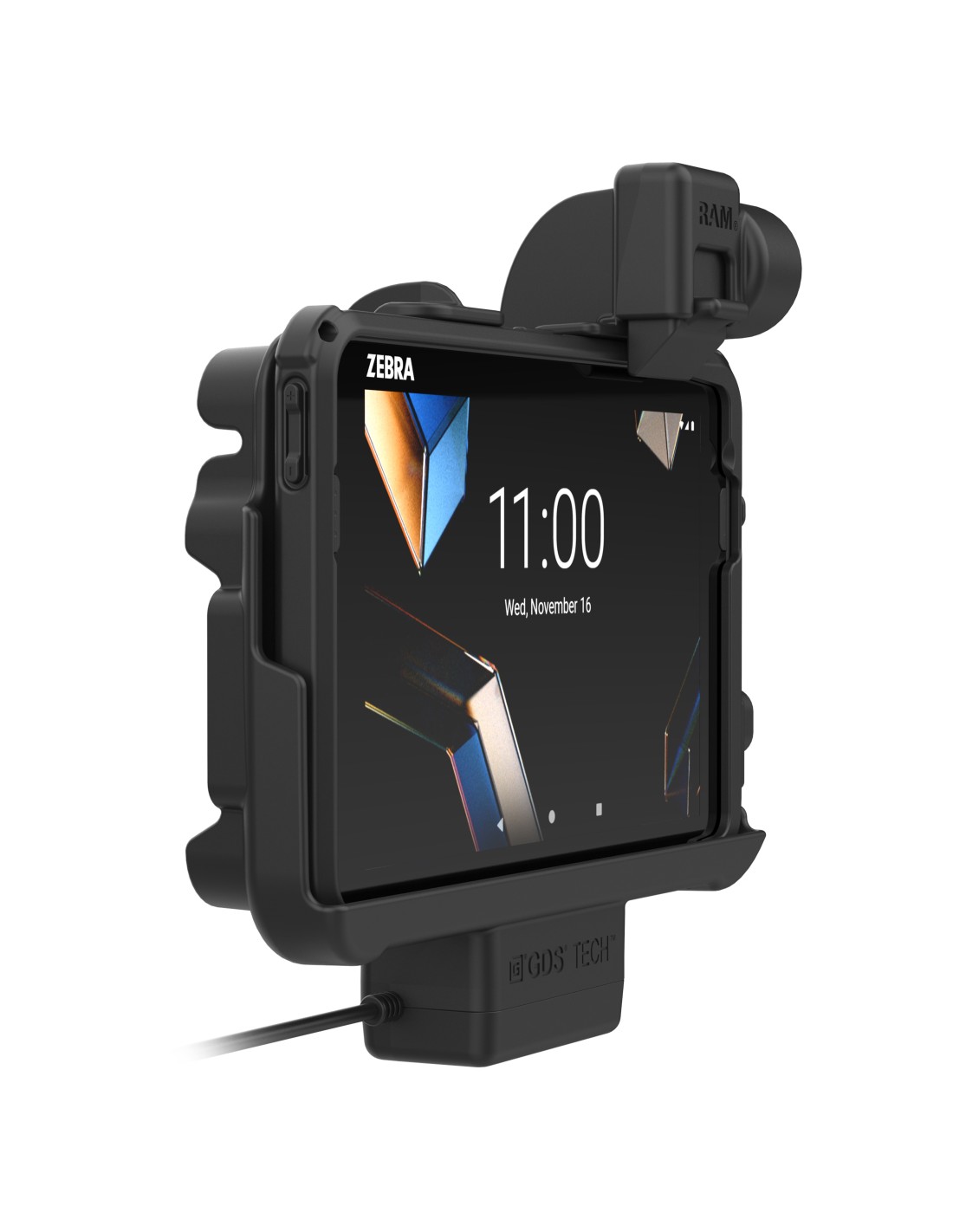

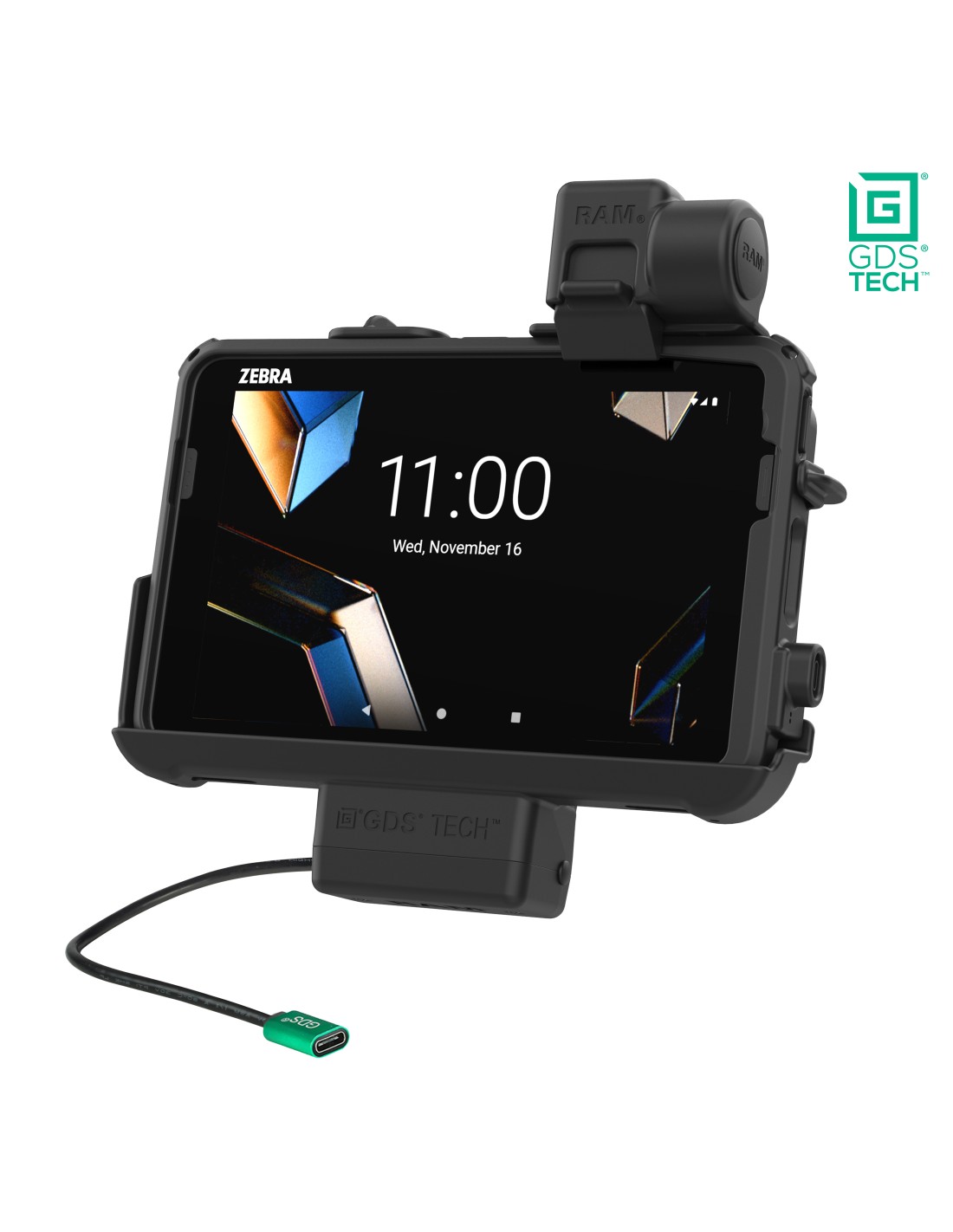

The GDS Thin-Dock for Zebra ET401 & ET4x 8" with IntelliSkin (RAM-GDS-DOCK-ZE46PU) delivers a low-profile, 2.44"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 8" enterprise tablets when used with an IntelliSkin protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the docks USB Type-C connector. The design also maintains access to the tablets side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support OEM accessories like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories. Always Protected. Always Connected.

  • Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®

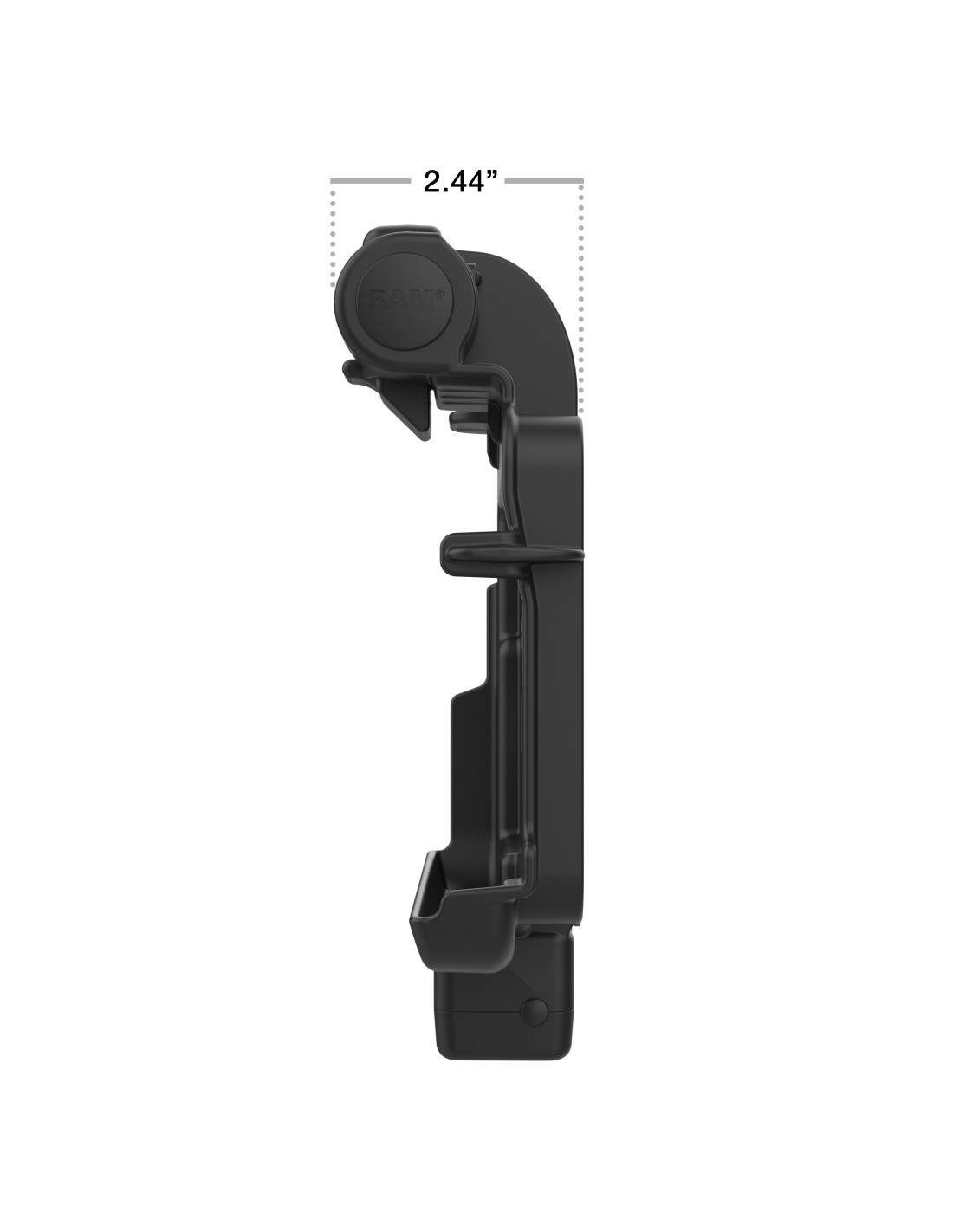

  • Slim-profile design at 2.44" depth with metal reinforcement plate

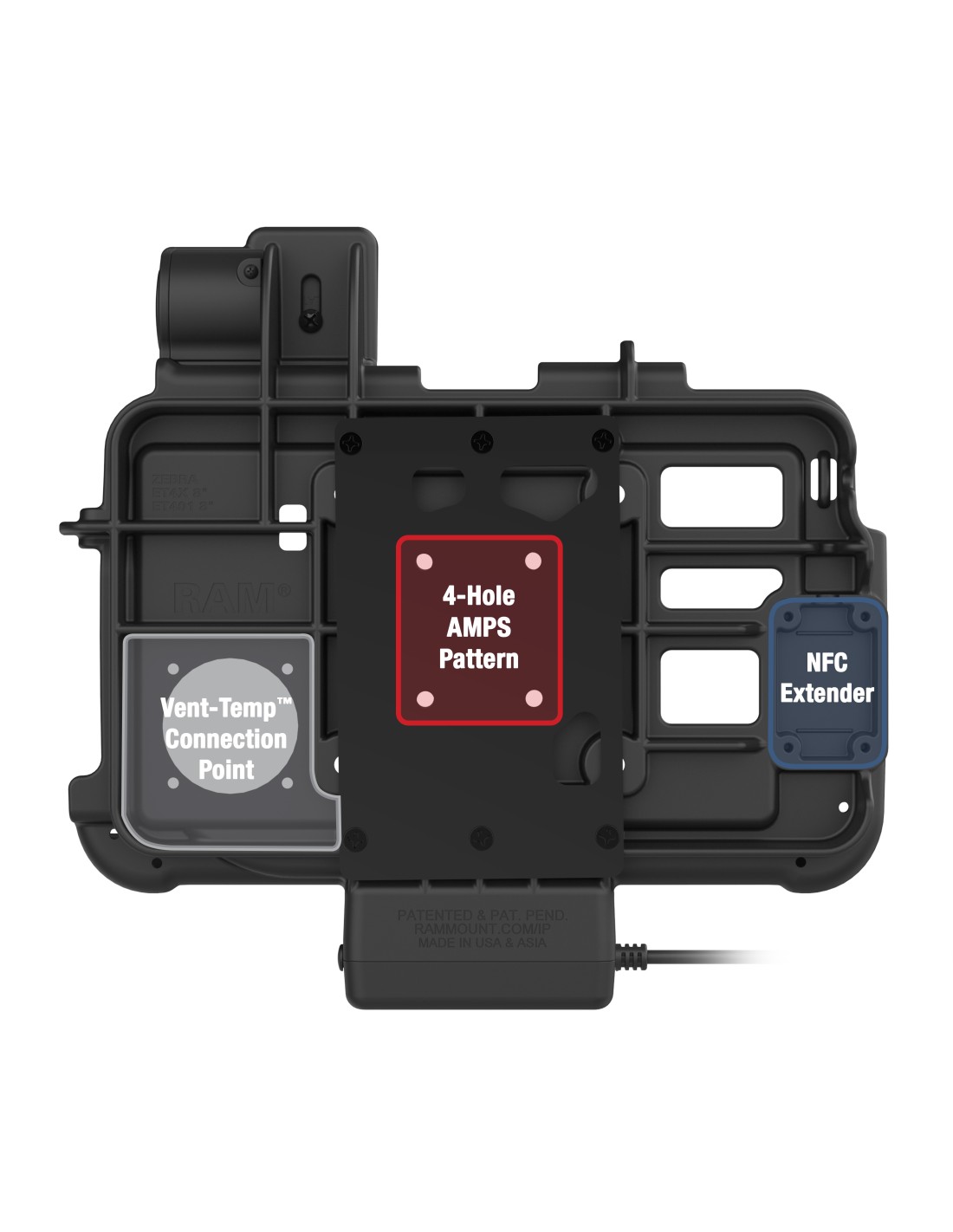

  • Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Compatible with RAM® Vent-TempT and NFC Extender
  • Backed by a 3-year warranty

Product Line
GDS® TechT Thin-DockT
Product Type
Components
Certifications
CE
RoHS
UKCA
WEEE
Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Input Cable Length
215mm
Input Connector
USB Type-C
Materials
High strength composite
Output Voltage
5V - 20V @ 3A
Packaging Type
Poly Bag
Power Output
60W
Product Weight
1.35 lb
Device Compatibility
Zebra ET40 8" Tablet with IntelliSkin® Next Gen
Zebra ET45 8" Tablet with IntelliSkin® Next Gen
Zebra ET401 8" Tablet with IntelliSkin® Next Gen
793442032363
