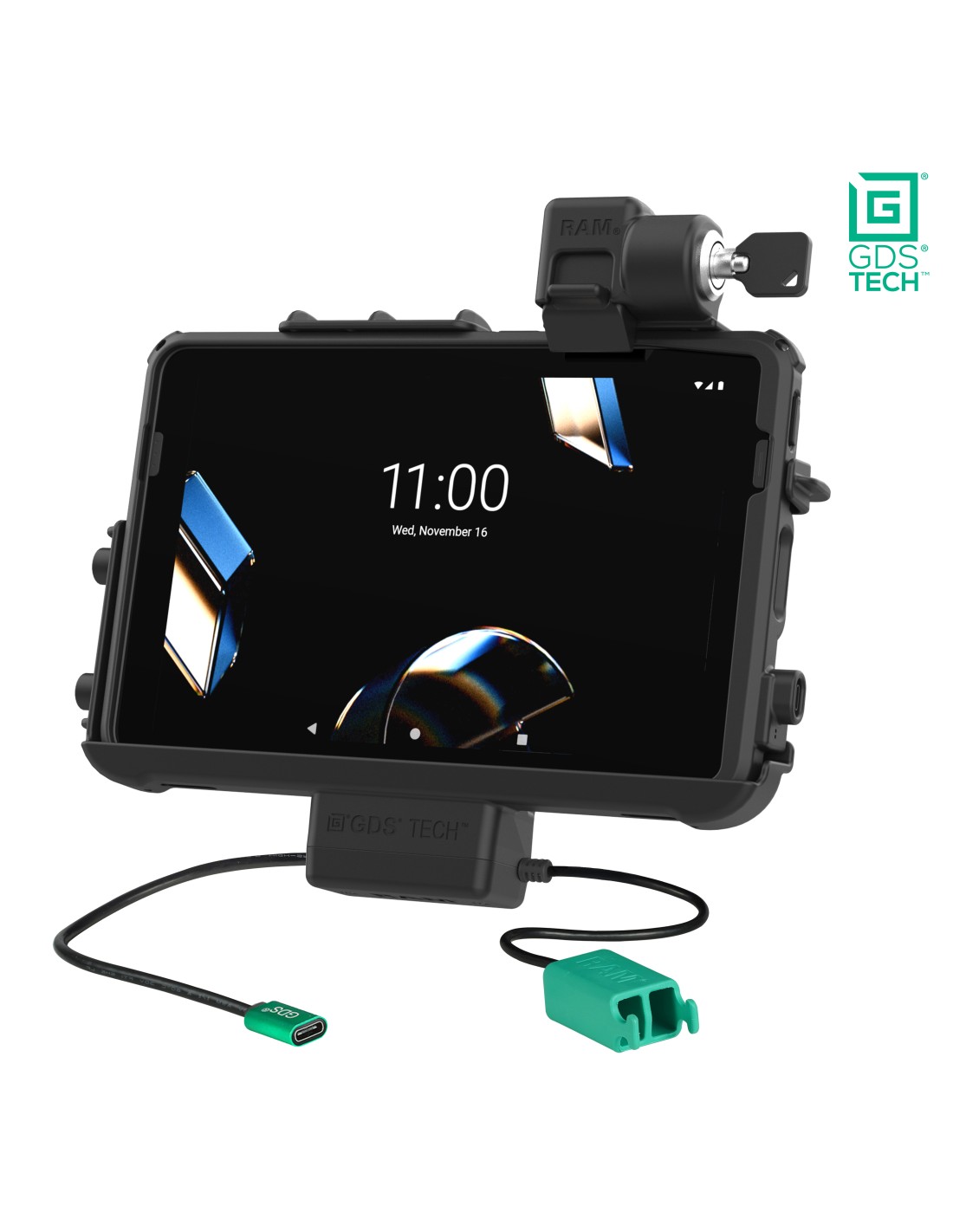

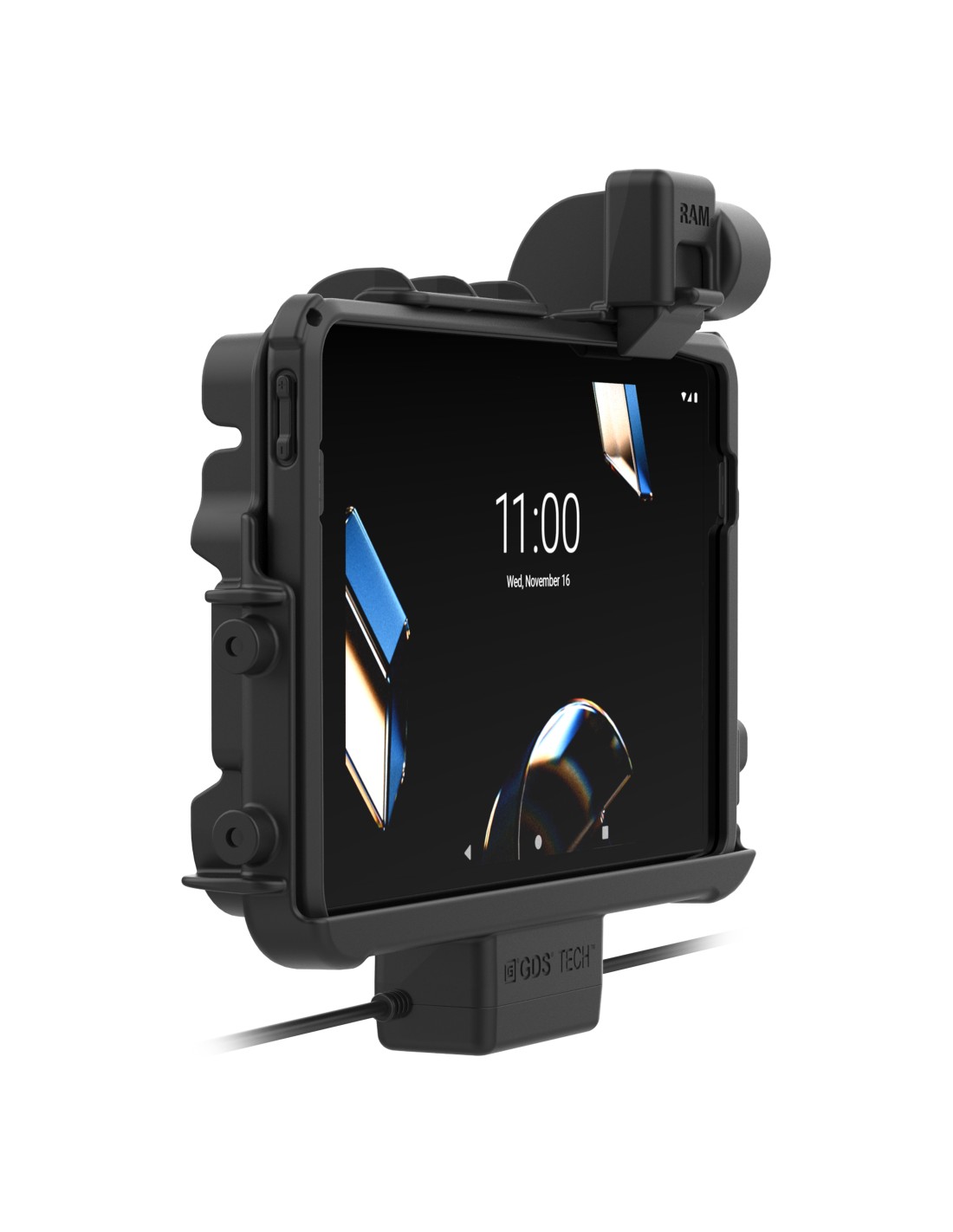

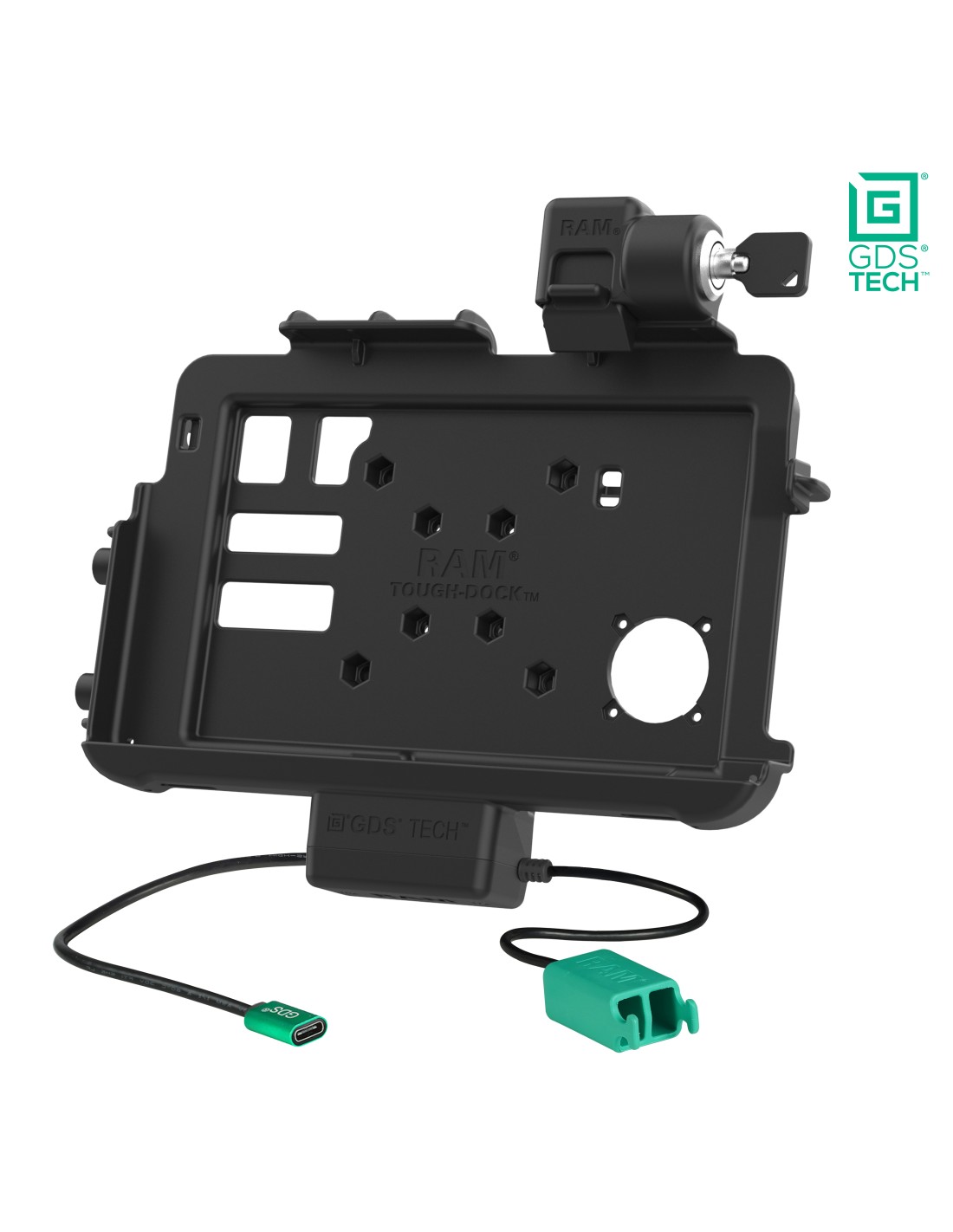

Locking GDS® Thin-Dock + Dual USB for Zebra ET401 10" with IntelliSkin®
The Locking GDS Thin-Dock + Dual USB for Zebra ET401 10" with IntelliSkin (RAM-GDS-DOCKL-ZE47PD2U) delivers a low-profile, 2.45"-deep design reinforced with a durable metal plate, ideal for applications where space is limited. This vehicle dock is purpose-built for the Zebra ET401, ET40, and ET45 10" enterprise tablets when used with an IntelliSkin protective sleeve, ensuring a reliable, long-lasting mounting and charging solution. Engineered for efficiency, the Thin-Dock keeps your tablet powered through pogo pin contacts while docked, with power supplied via the docks USB Type-C connector. Connect up to two peripheral devices such as a mouse, keyboard, or printer using the peripheral dual USB-A connector. The design also maintains access to the tablets side scanning function, making it a strong fit for field service, warehousing, retail, transportation, and other data-capture environments. Because of its compact footprint, this dock does not support add-ons like the Zebra Expansion Back or PowerPack Battery. For mounting flexibility, the dock is compatible with both RAM C and D size 4-hole AMPS pattern bases, ideal for pairing with a double socket arm to complete your vehicle or workstation setup. This dock also features integrated attachment points for the RAM Vent-Temp, a temperature control accessory, and the RAM NFC Extender. Enhance your workflow further using the integrated 2-hole mounting plate, compatible with RAM 2-hole diamond bases, allowing you to mount an additional device such as a phone, handheld scanner, or other accessories. Always Protected. Always Connected.
- Form-fit powered dock designed specifically for the Zebra ET401, ET40, and ET45 wrapped in an IntelliSkin®

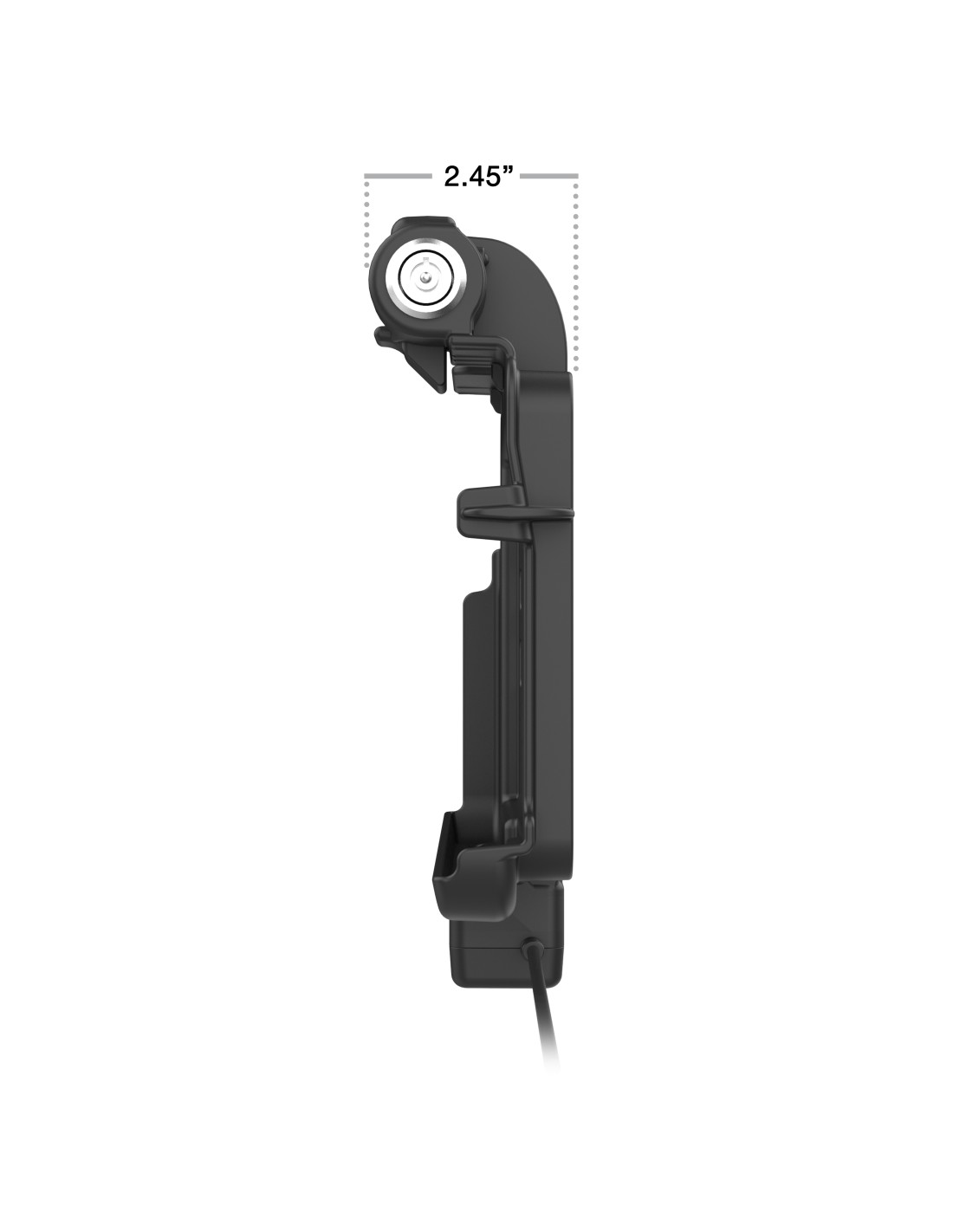

- Slim-profile design at 2.45" depth with metal reinforcement plate

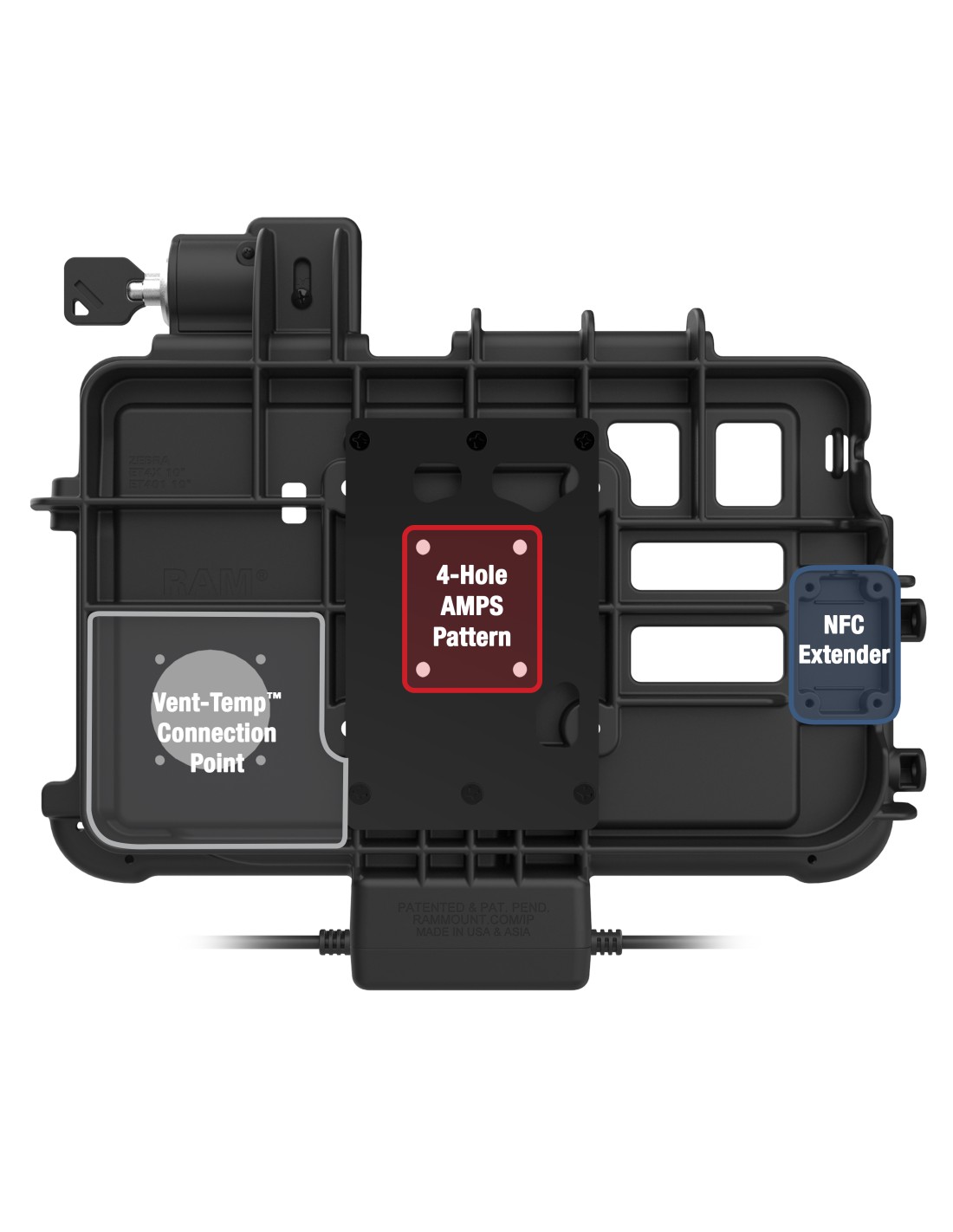

- Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
- Compatible with RAM® Vent-TempT and NFC Extender
- Backed by a 3-year warranty
- Product Line
- GDS® TechT Thin-DockT
- Product Type
- Components
- Certifications
- CE
FCC
ICES
RoHS
UKCA
WEEE - Hardware Included
- (2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(1) Cable Clamp - Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA - Input Cable Length
- 215mm
- Input Connector
- USB Type-C
- Materials
- High strength composite
- Output Cable Length
- 215mm
- Output Connector
- (2) USB 2.0 Type A
- Output Voltage
- 5V - 20V @ 3A
- Packaging Type
- Poly Bag
- Peripheral Output
- 900mAh (per port)
- Power Output
- 60W
- Product Weight
- 1.35 lb
- Transfer Speed
- 12Mbps
- Device Compatibility
- Zebra ET40 10" Tablet with IntelliSkin® Next Gen
Zebra ET45 10" Tablet with IntelliSkin® Next Gen
Zebra ET401 10" Tablet with IntelliSkin® Next Gen
