RAP-D11-7-SBA-GRY-CC1

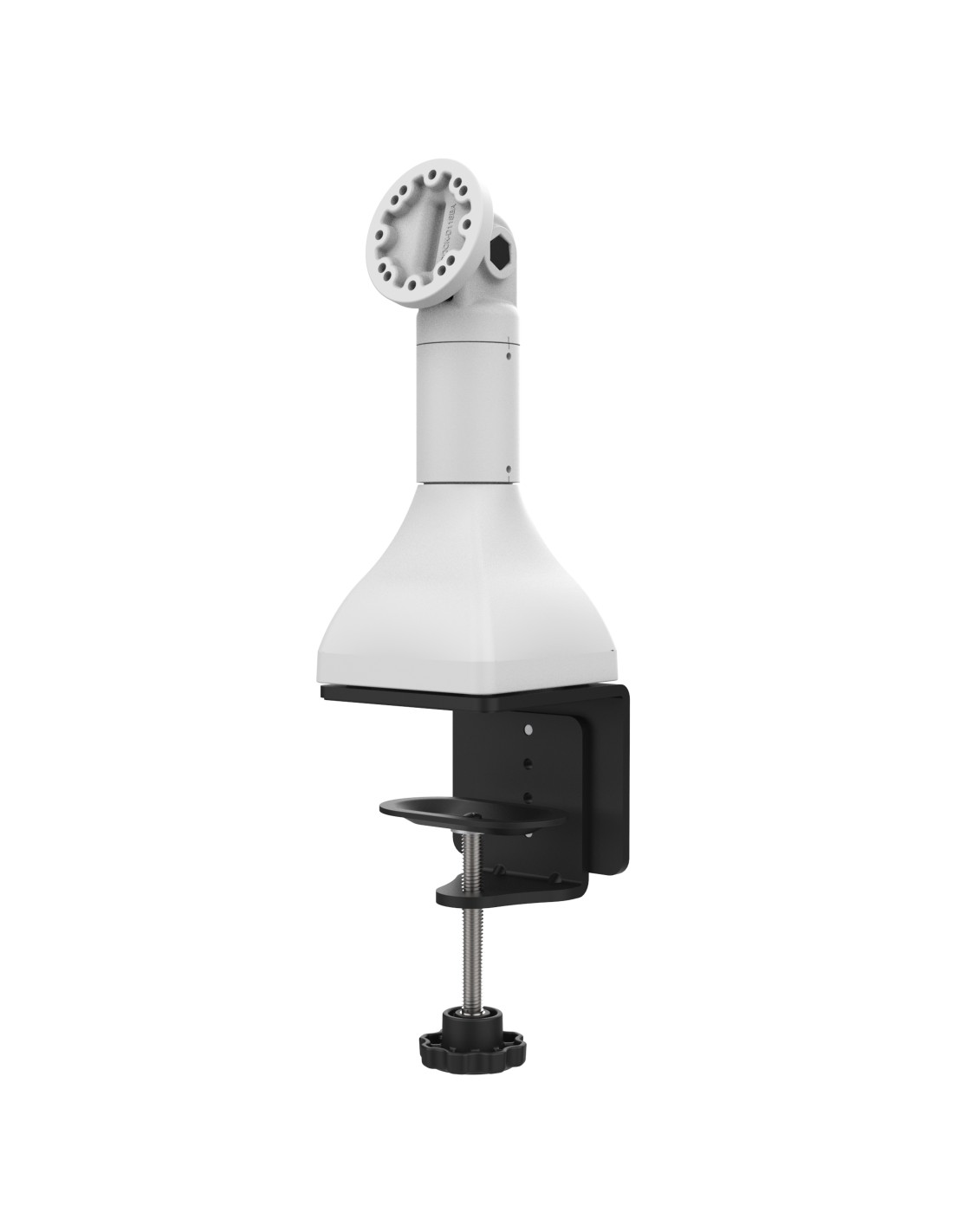

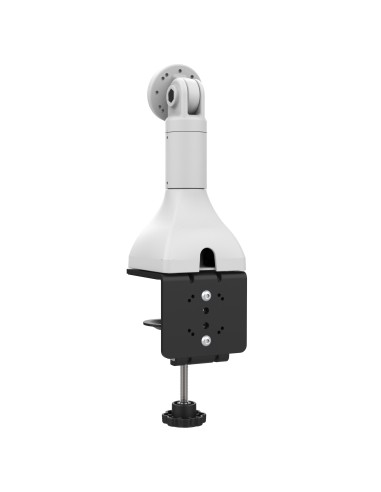

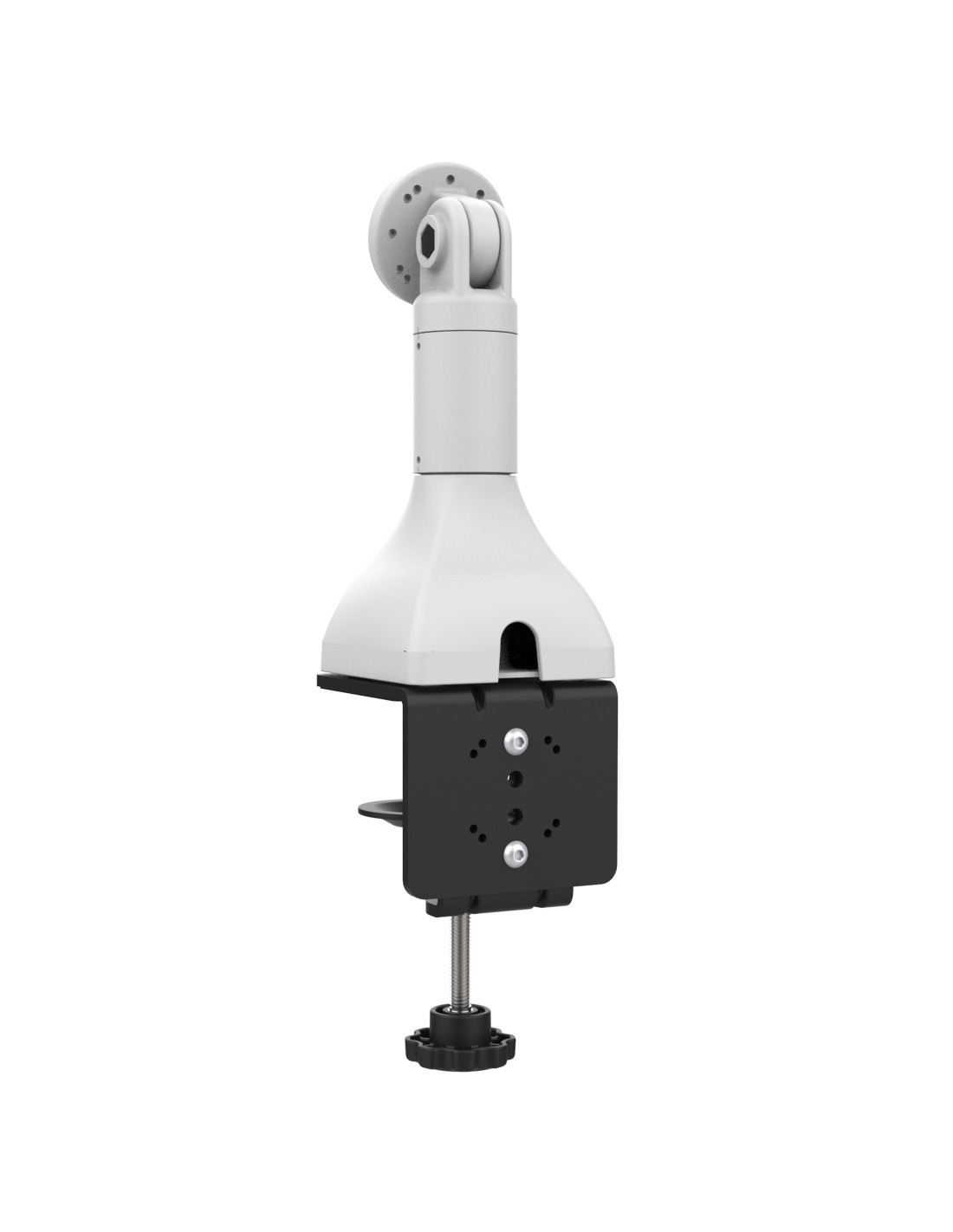

The RAM 7" Pedestal Mount with AMPS Pattern & C-Clamp Base - Gray (RAP-D11-7-SBA-GRY-CC1) is a free-standing, 7-inch pedestal that allows you to mount any RAM powered dock or passive holder to create a workstation that maintains the mobility of your tablet. Designed for flexibility and stability, this solution features a 180-degree swivel base and 180-degree device tilt, allowing for optimal viewing, positioning, and screen-sharing with co-workers or customers. Ideal for healthcare, retail, hospitality, food service, and other point-of-sale or customer-interaction environments, this mount supports 2-hole and 4-hole AMPS pattern for broad device compatibility alongside RAM docks and holders. The c-clamp base secures firmly to surfaces ranging from 0" up to 4" in thicknessno minimum edge depth required. The tool-less adjustment knob allows for fast installation and easy removal, making it perfect for temporary workstations, demo stations, or environments where adaptability is key. Made in a light gray color, the mount blends seamlessly into clean, modern, and aesthetic environments where subtlety and professional appearance matter.

  • 7-inch pedestal stand with 2-hole and 4-hole AMPS pattern
  • AMPS hole pattern supports connection to a wide variety of devices, RAM® docks, and RAM® holders

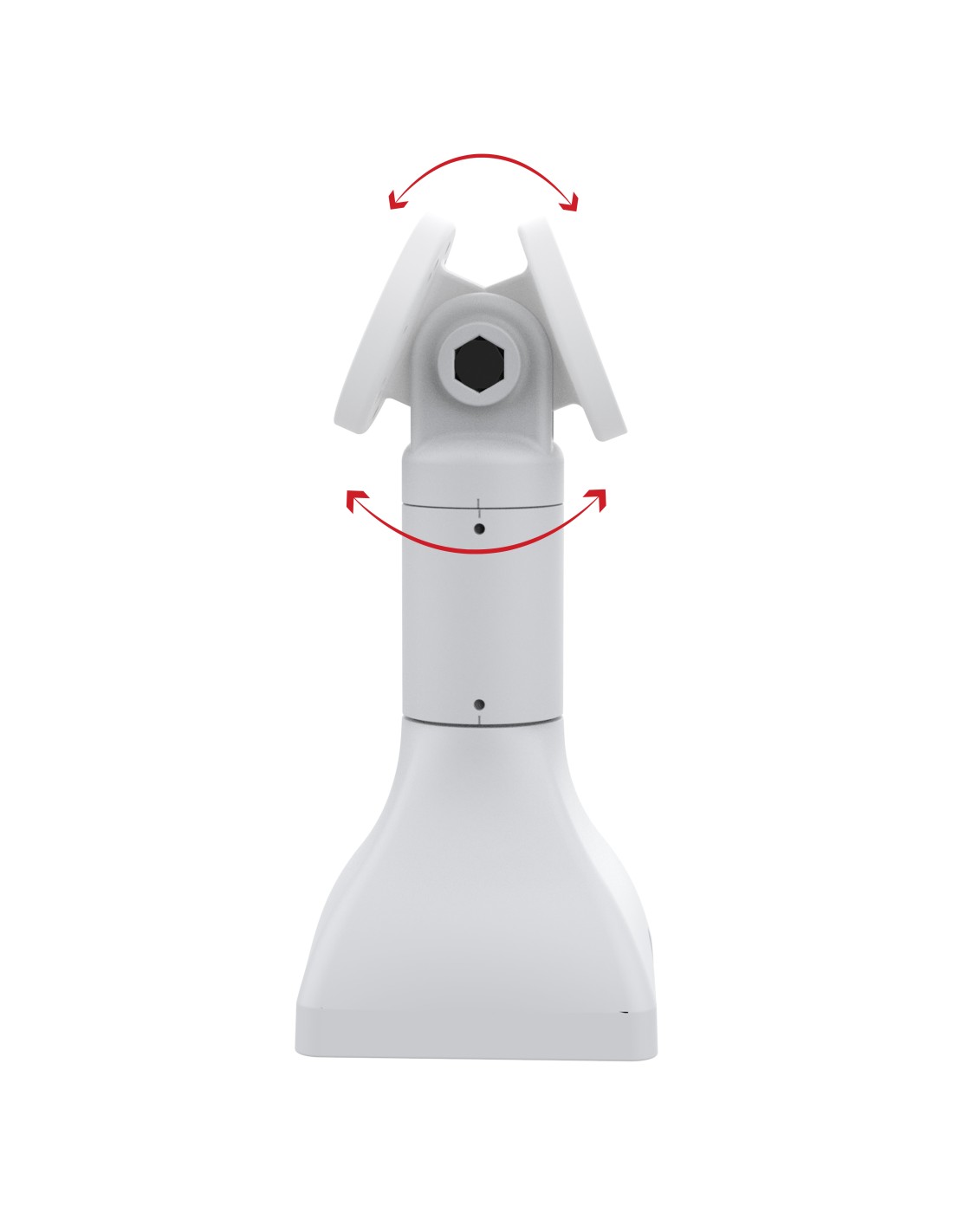

  • Dock swivels 180 degrees and enables connected devices to tilt 180 degrees

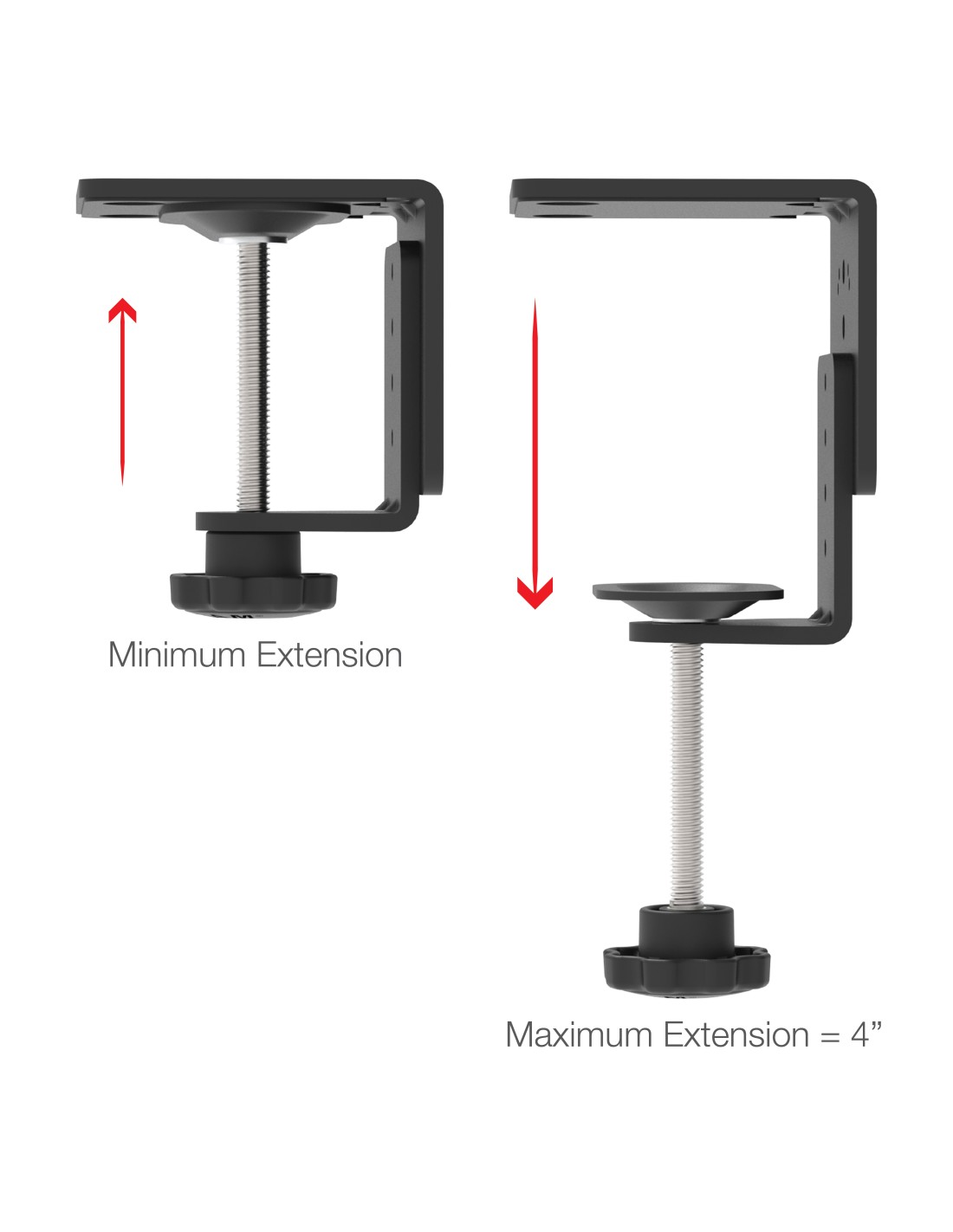

  • C-clamp base secures to surfaces 0-4" thick
  • Backed by a lifetime warranty

Components
RAM-CC1U
RAP-D11-7-SBA-GRY
Clamp Range
0" - 4"
Hardware Included
Assesmbly Hardware

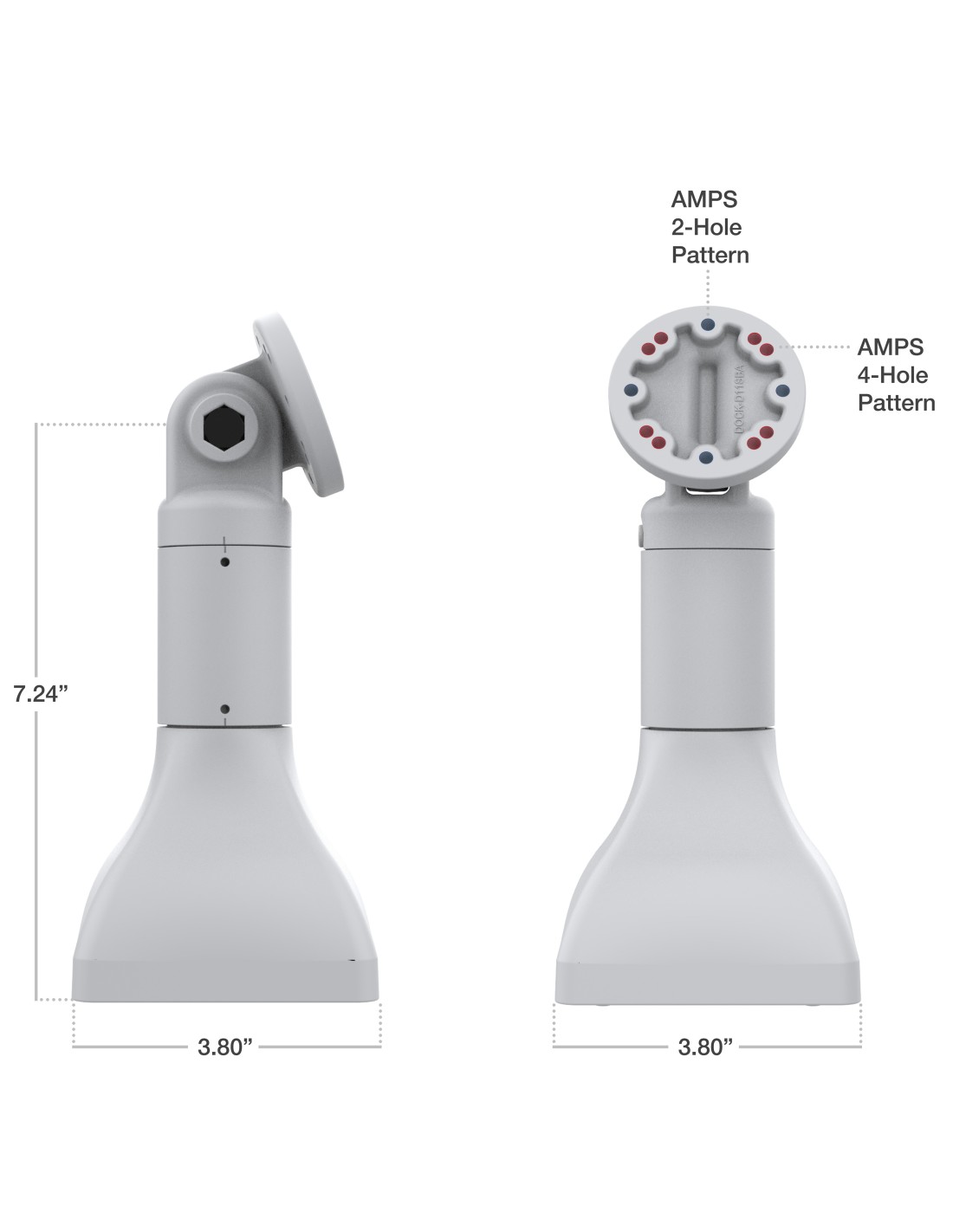

Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
2-Hole AMPS 1.912"
Materials
High strength composite
Powder-Coated Steel
Packaging Type
Box
Product Dimensions
Base Depth: 3.8"
Base Width: 3.8"
Height from Base to Tilt Bolt: 7.24"
Product Weight
1.63 lb
793442033216
