RAM-TB-471-SW2BU

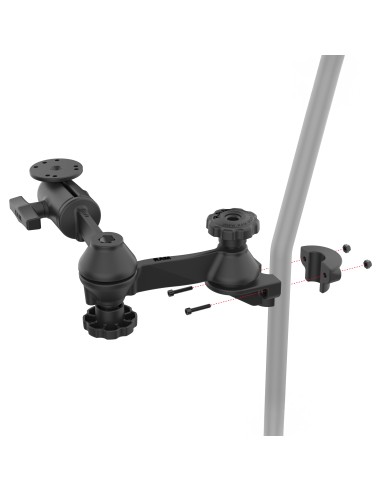

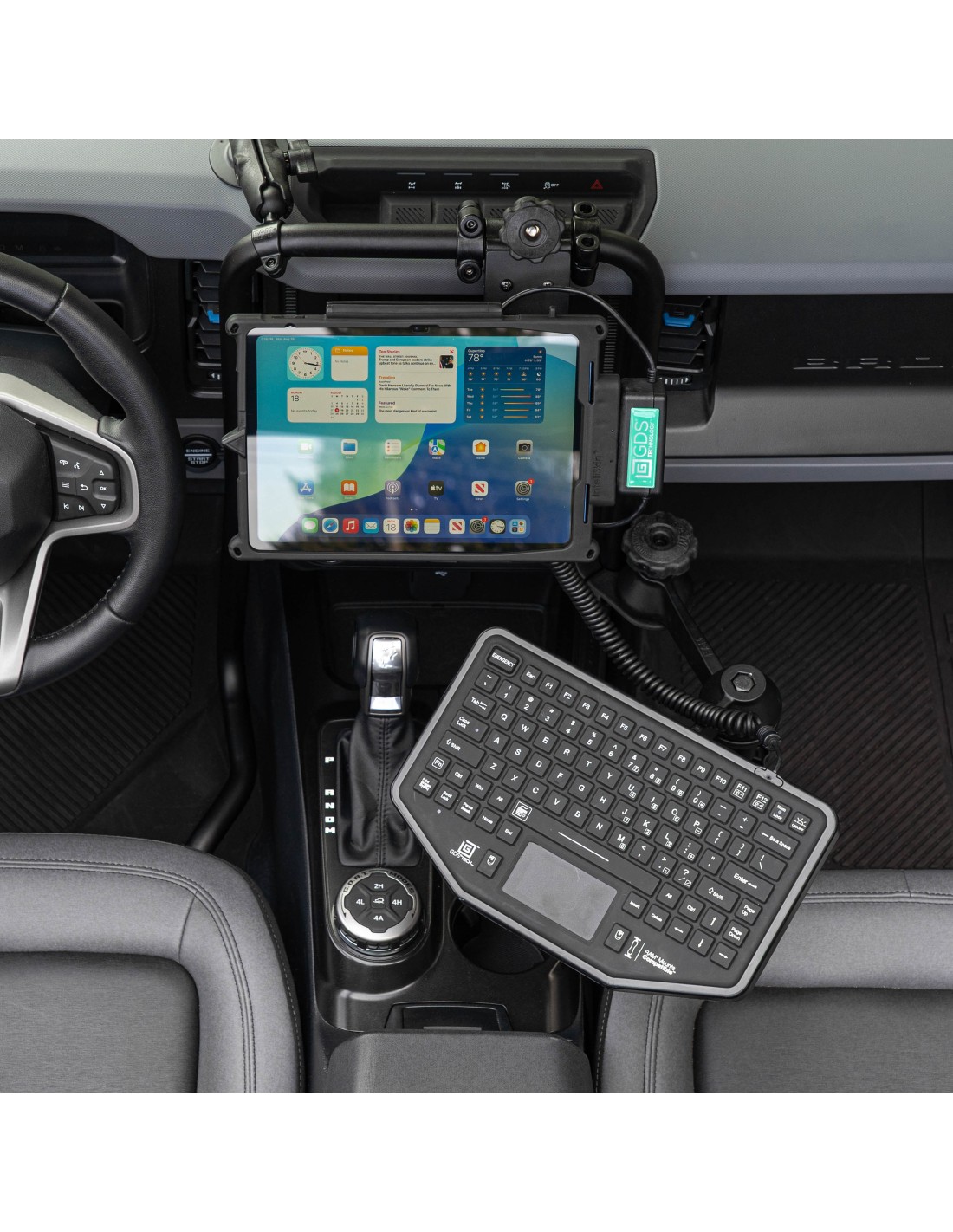

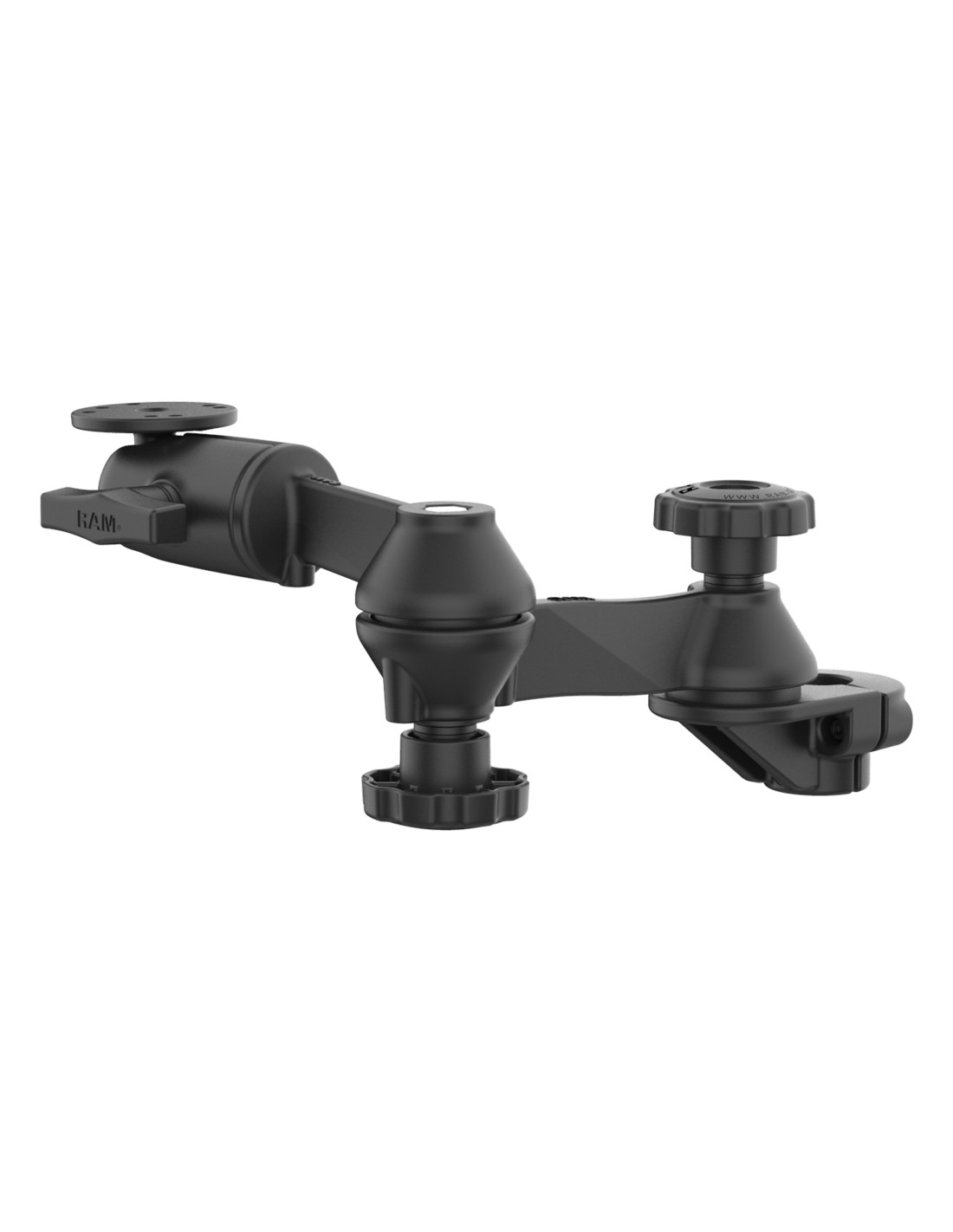

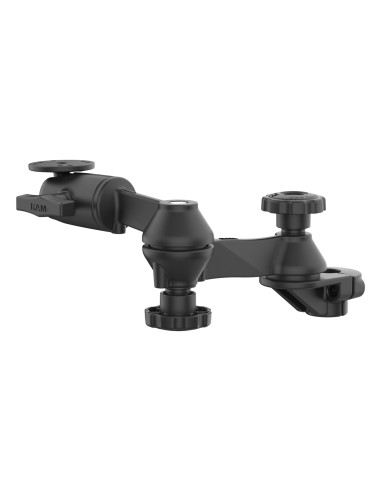

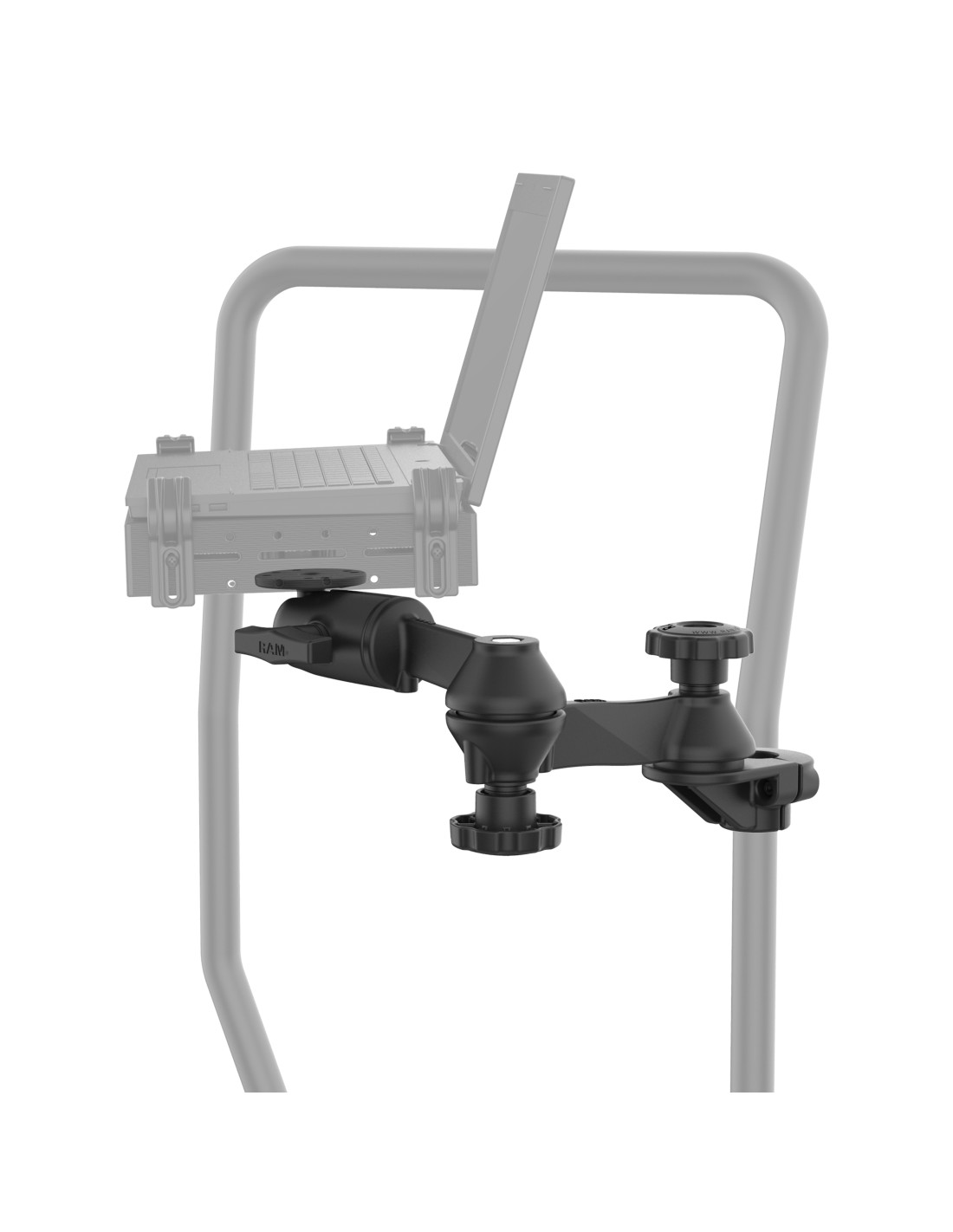

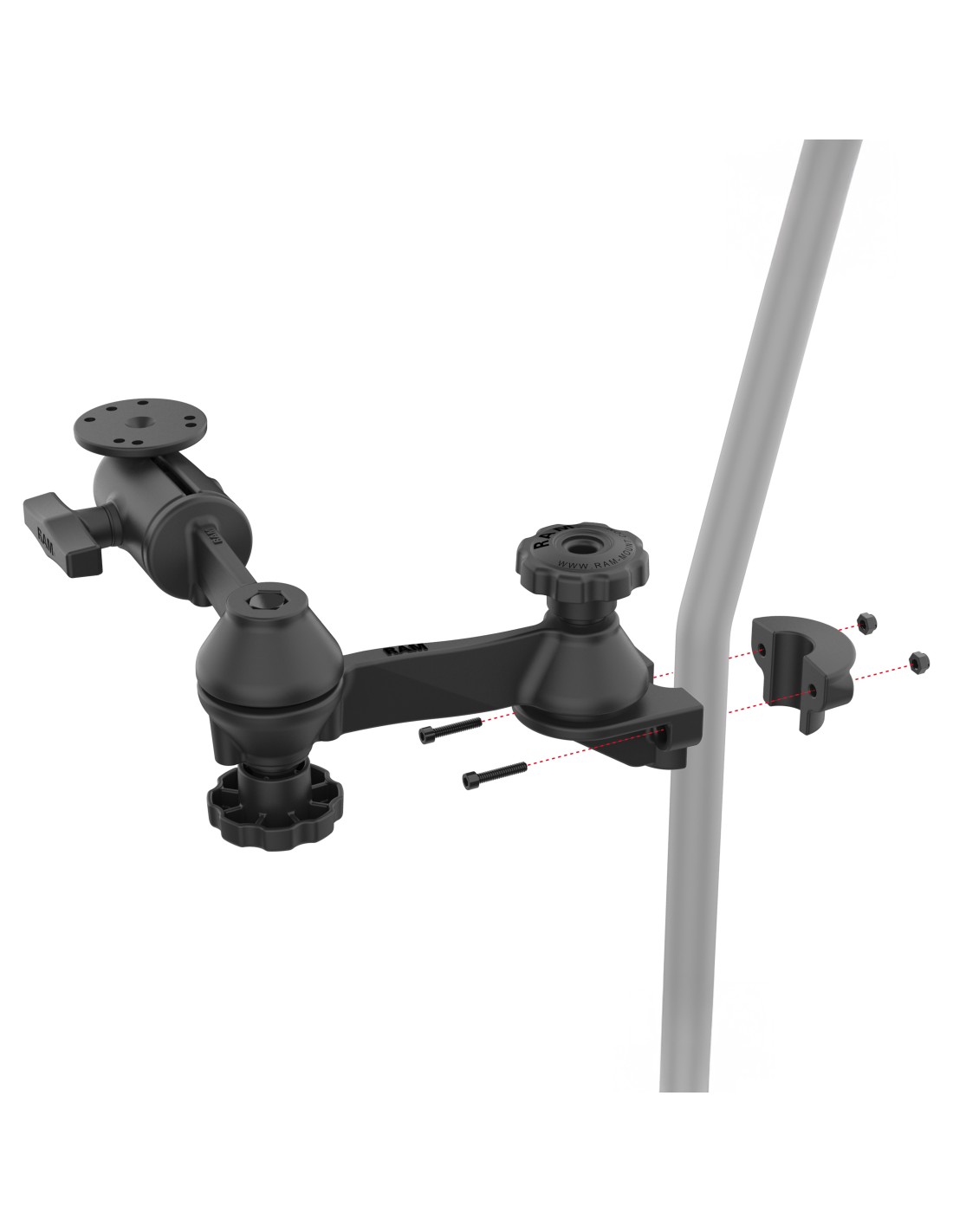

The RAM 90-Degree Dual Swing Arm Mount with Ball for Tough-Bar (RAM-TB-471-SW2BU) is a versatile attachment designed to mount a laptop or keyboard to the RAM Tough-Bar with smooth, controlled adjustability. Each swing arm offers 360 of horizontal rotation at its joint, allowing you to move a laptop aside or bring it closer for comfortable use. The integrated C size RAM ball and socket connection provides fine tilt adjustments, enabling precise positioning for typing or viewing. Constructed from powder-coated marine-grade aluminum, this mount delivers the strength and stability needed to support heavy, ruggedized laptops while minimizing vibration during use. Ideal for fleet, commercial, and personal vehicles, the RAM 90-Degree Dual Swing Arm Mount combines durability, smooth articulation, and professional-grade performance for any Tough-Bar setup.

  • Made for laptop mounting, two 6" swing arms provide precise single-axis pivoting and full 360° horizontal rotation
  • Integrated Collar-LockT system prevents over-rotation to protect devices and vehicle interiors during adjustment or impact
  • Dual articulating swing arms allow for ideal device placement
  • Made of powder-coated steel and marine-grade aluminum
  • Backed by a lifetime warranty

Components
RAM-TB-471U
RAM-VB-110-1U
Product Line
Tough-BarT
Product Type
Components
Ball Size
C Size (1.5")
Hardware Included
Assembly Hardware
Hole Pattern
3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496"
Materials
Marine-grade aluminum
Packaging Type
Poly Bag
Product Dimensions

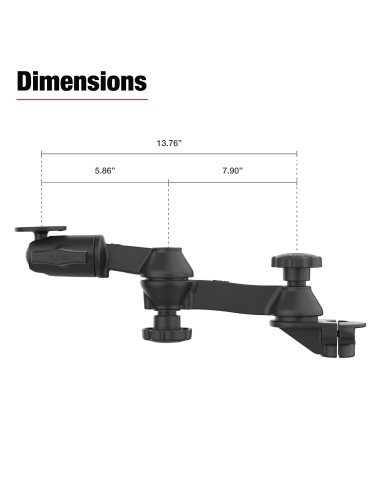

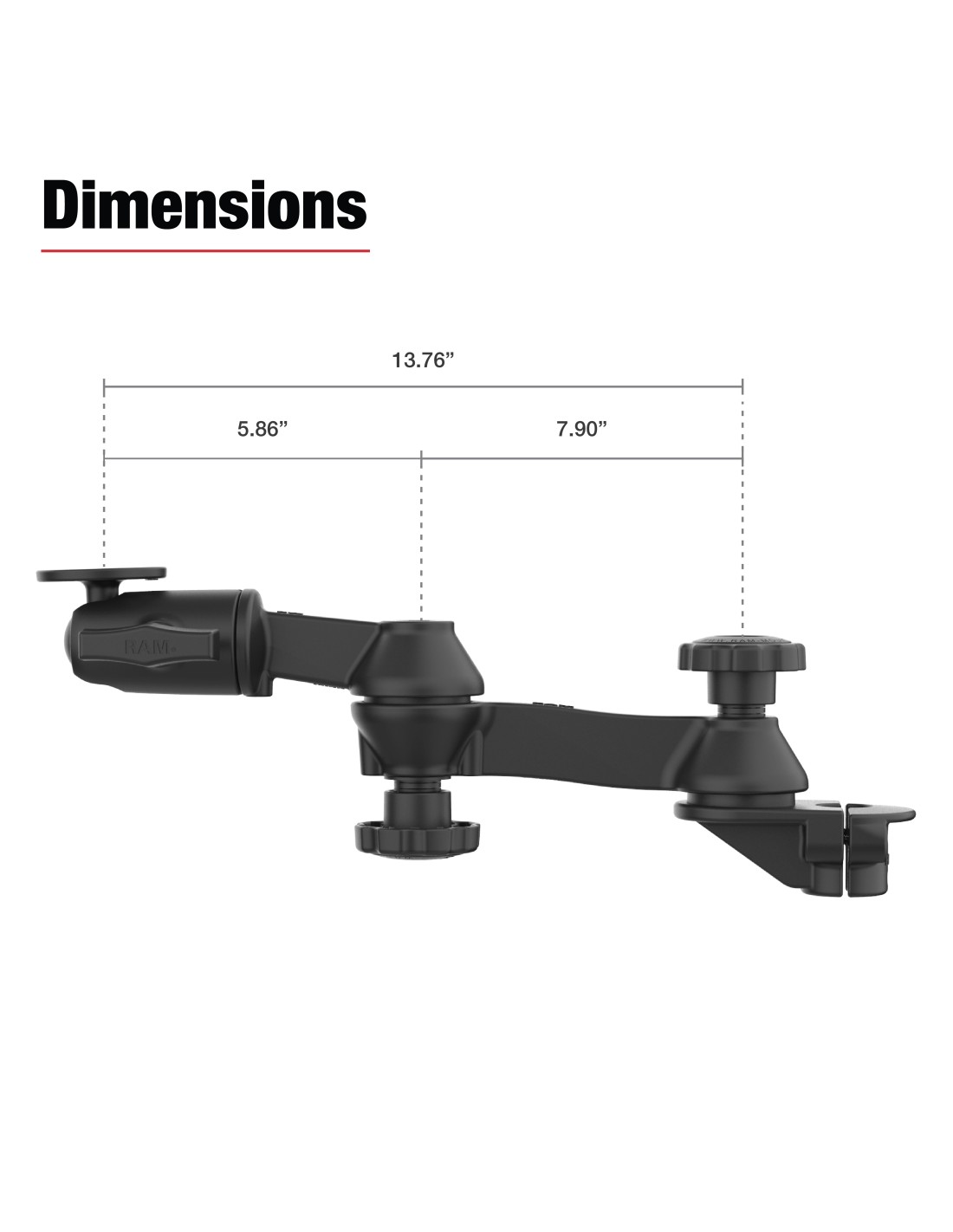

Length: 13.76" (center clamp to center socket)
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
793442028120
