GDS® Uni-ConnT PTT Remote Speaker Mic Bundle for Kodiak

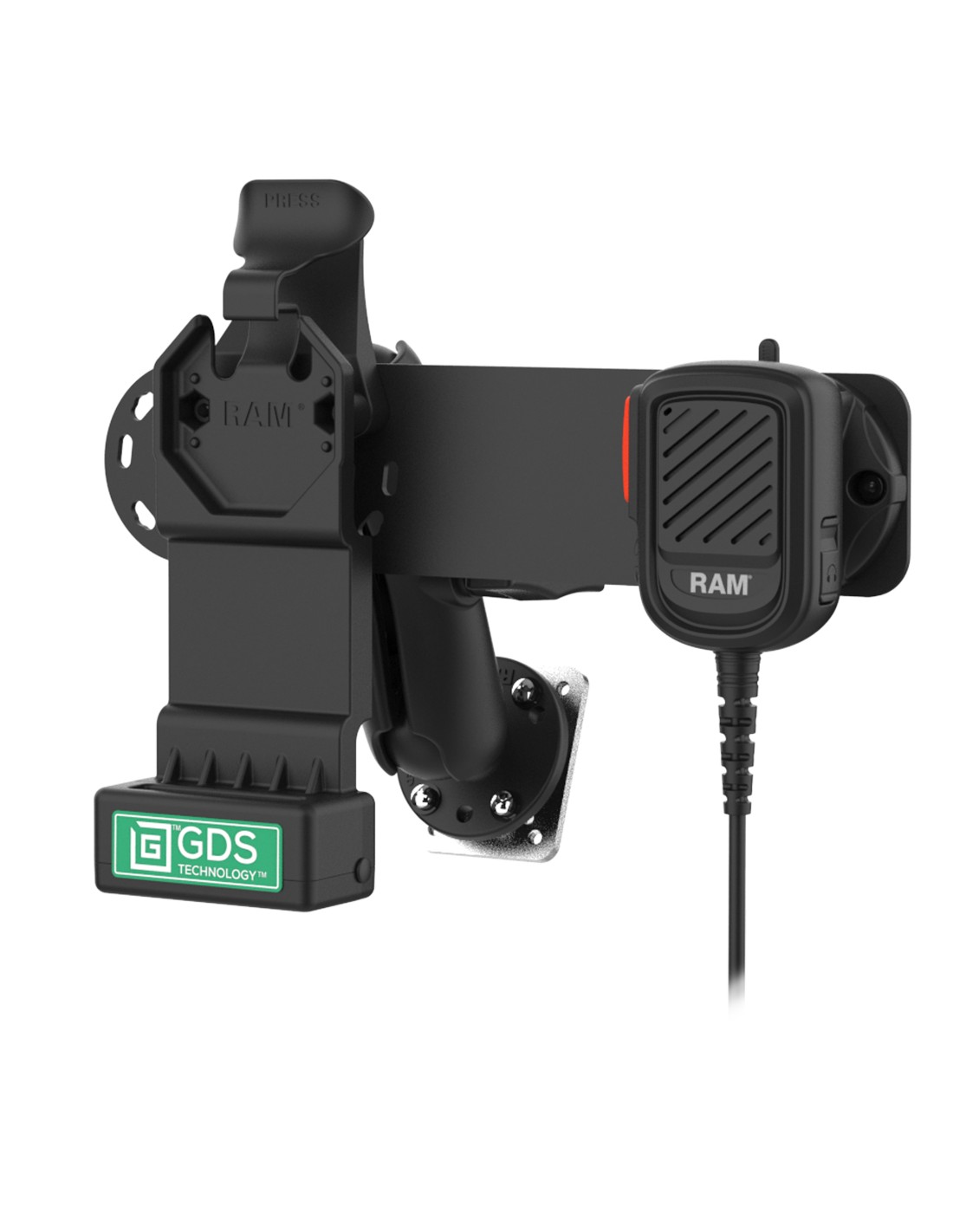

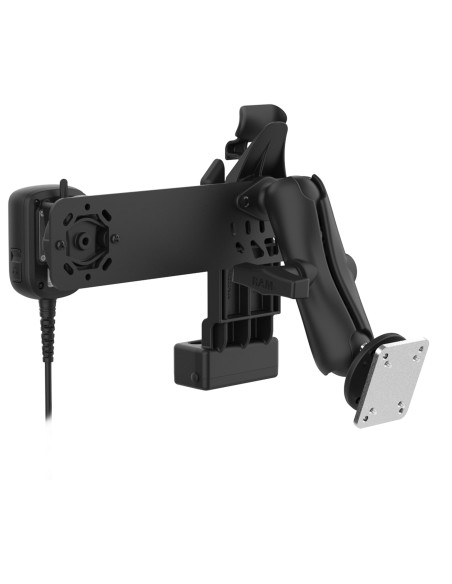

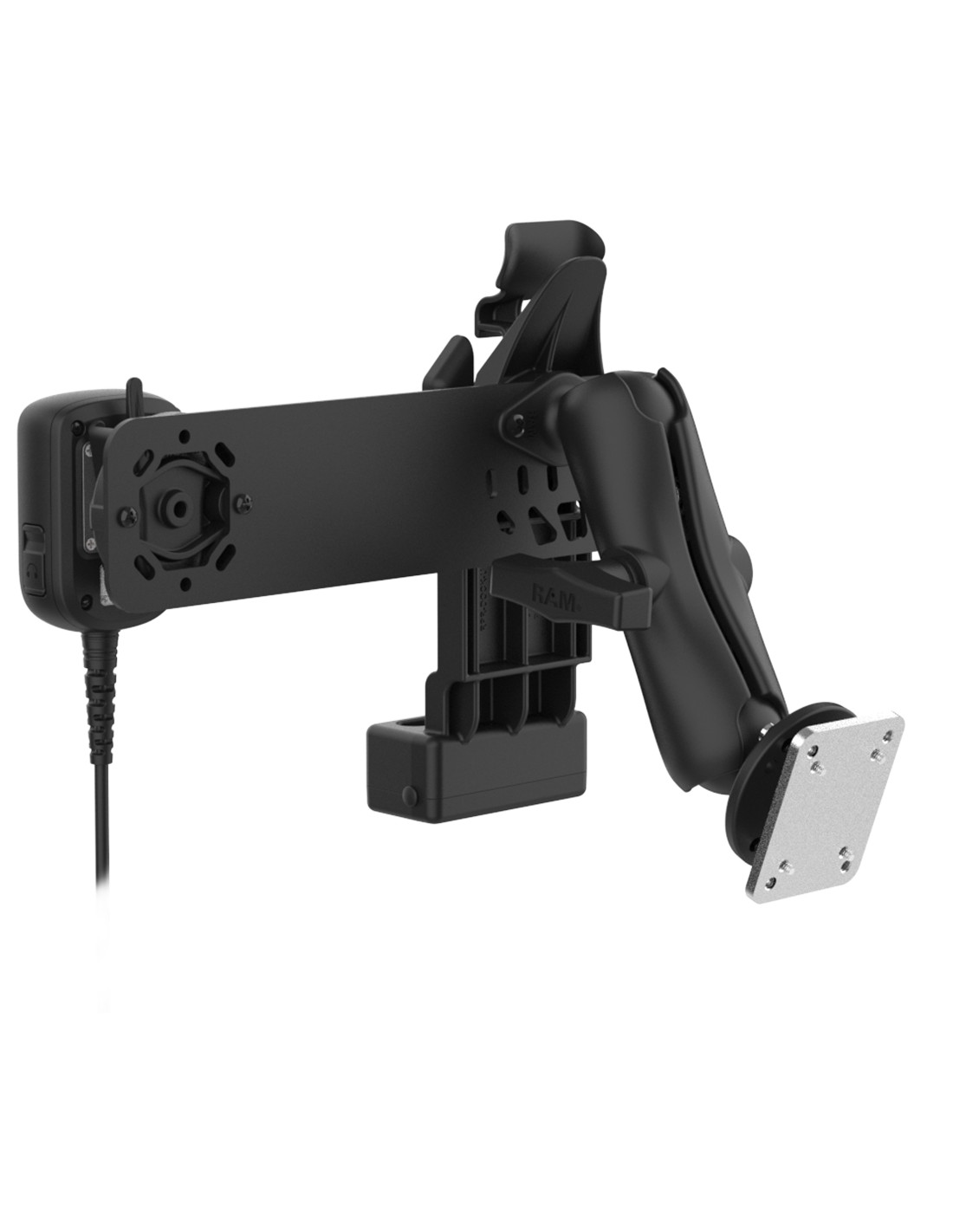

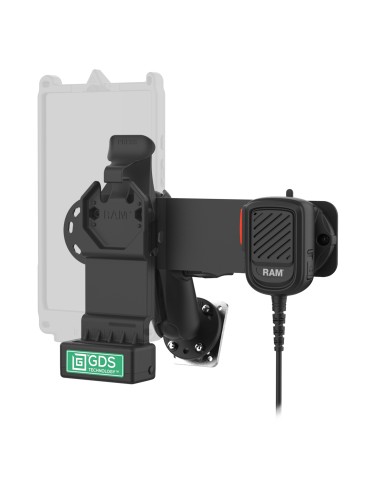

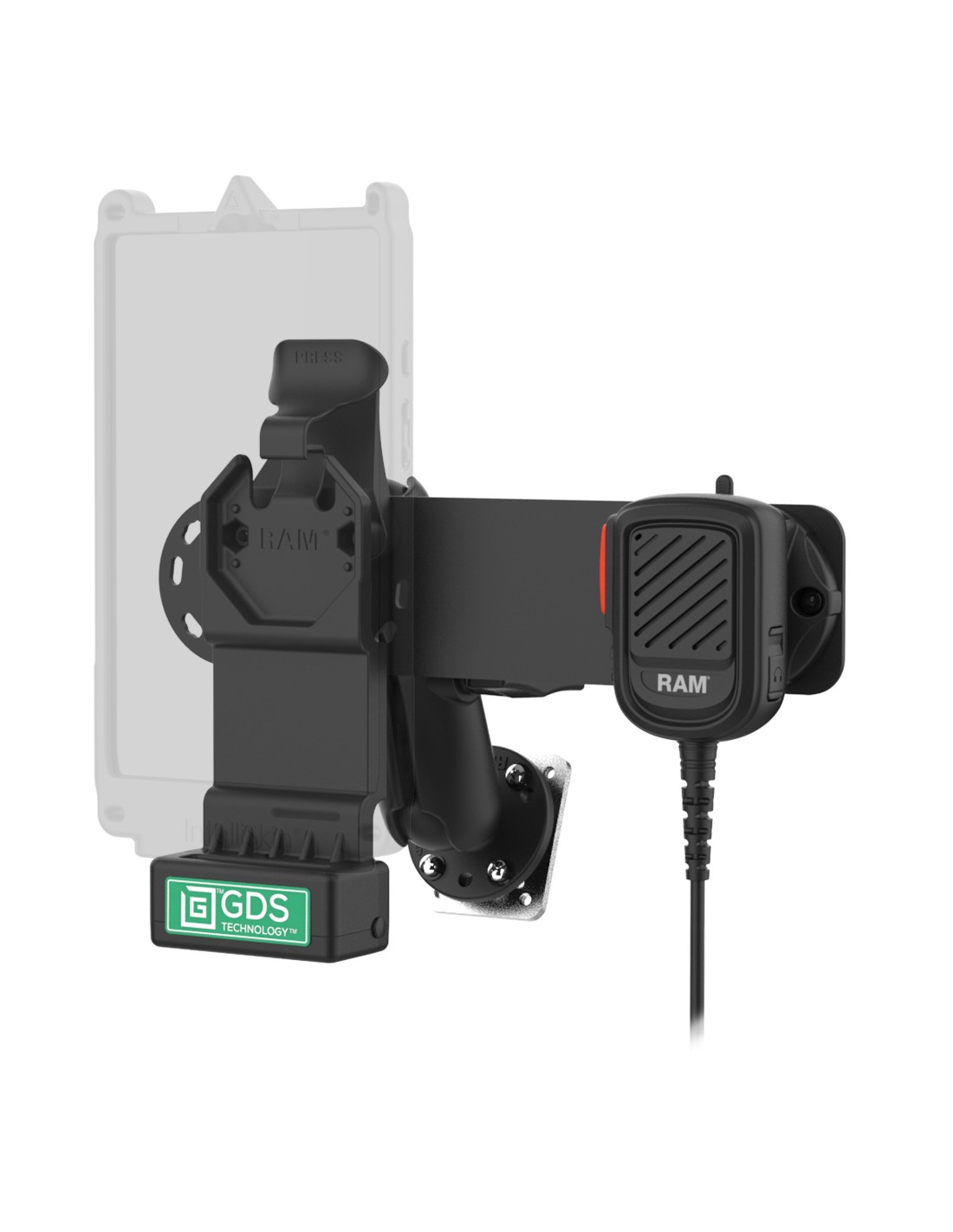

The GDS Uni-Conn PTT Remote Speaker Mic Bundle for Kodiak (RAM-GDS-U1-RSM-A05) delivers everything you need to enable reliable Push-to-Talk over Cellular (PoC) in your fleet. This bundle does not include an IntelliSkin, ideal for organizations already using IntelliSkin device sleeves or deploying a mixed-device fleet within the GDS Ecosystem. This bundle includes the universal Uni-Conn dock, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). Compatible with Kodiak, it ensures clear, instant communication for fleets, first responders, logistics teams, and mobile workforces.
- GDS® Uni-ConnT Push-to-Talk mounting bundle; IntelliSkin® sold separately
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- Uni-ConnT dock featuring GDS® TechnologyT uses an integrated pogo pin connector to provide high-speed charging
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty
- Components
- RAM-101-MIC2U
RAM-138-225B2U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CHARGE-V3C-3U
RAM-GDS-DOCK-U1CP-CU
RAM-RSM-A05
RAM-VC-MC - Product Line
- GDS® TechT Uni-ConnT
- Product Type
- Tablet Mounts
- Ball Size
- C Size (1.5")

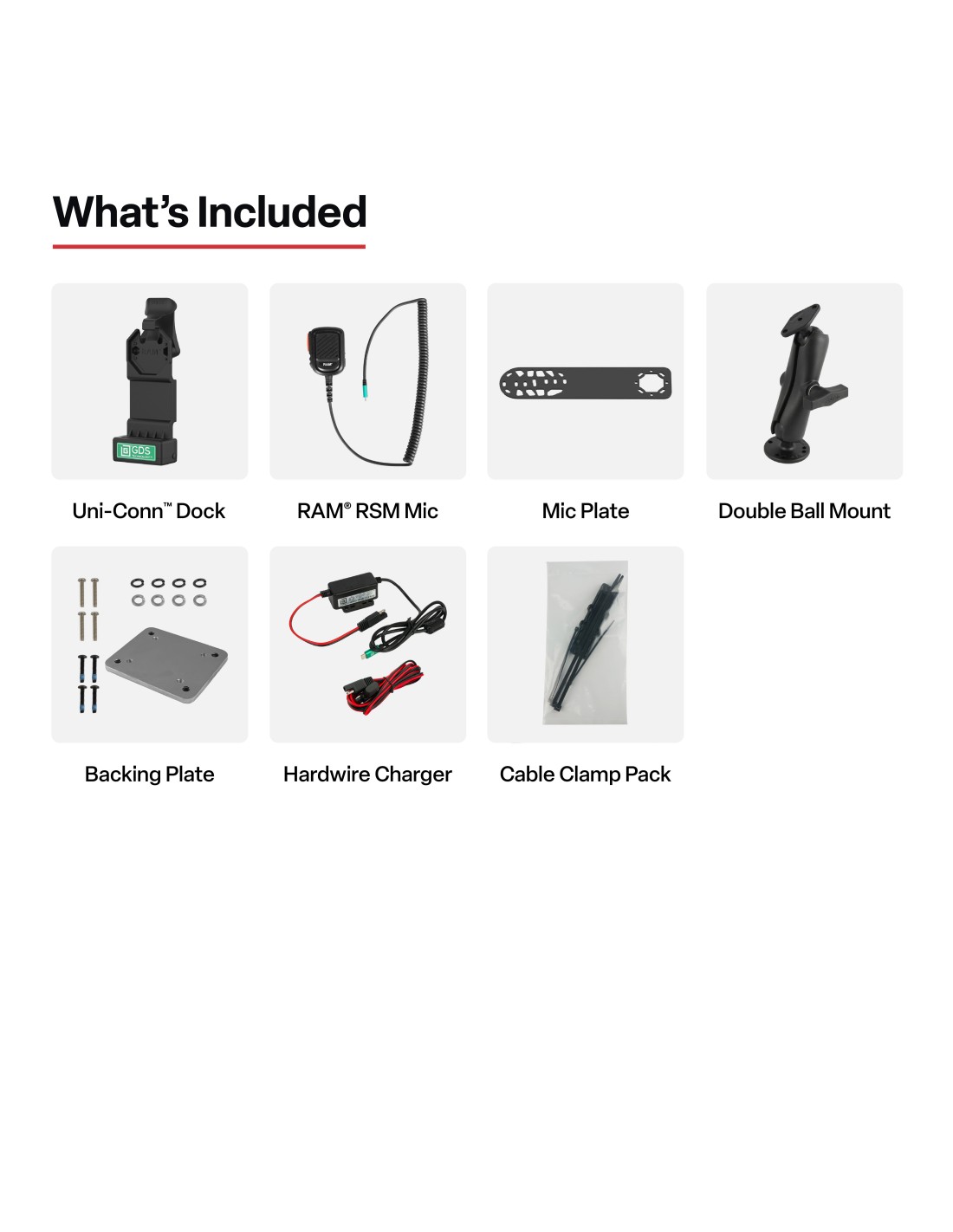

- Hardware Included
- (1) Remote Speaker Mic
(1) Uni-ConnT Dock

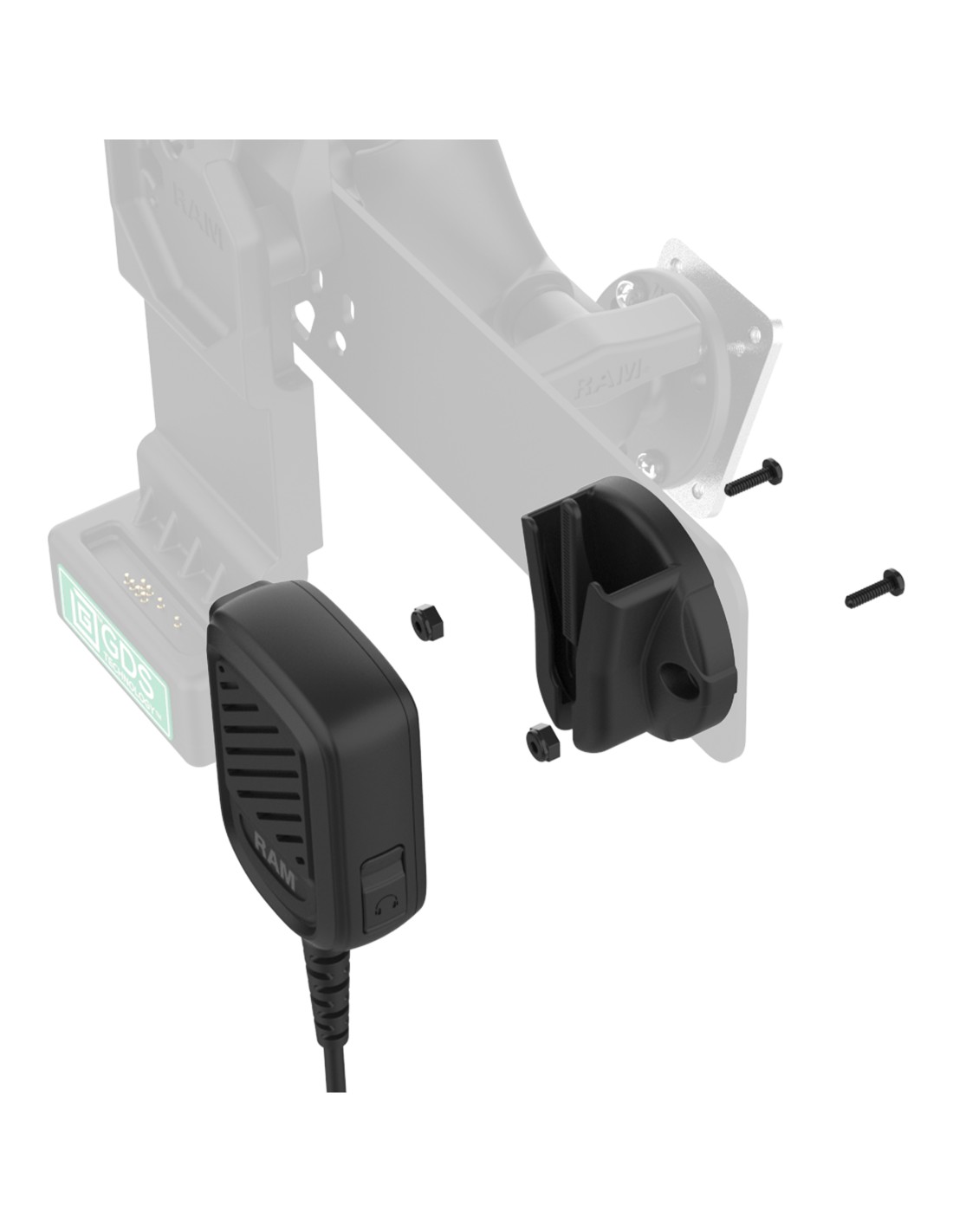

(1) Mic Bracket
(1) Mic Clip Receiver

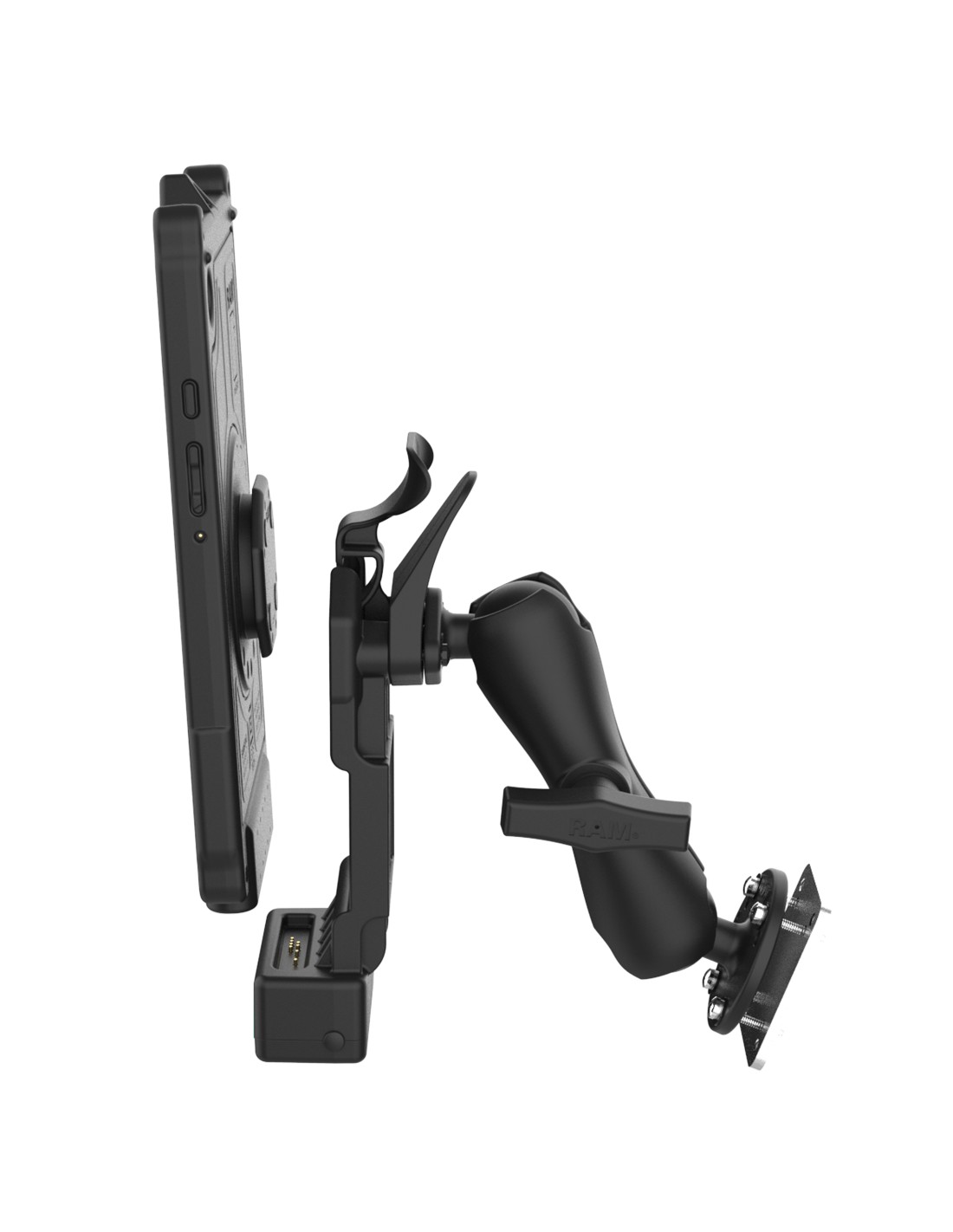

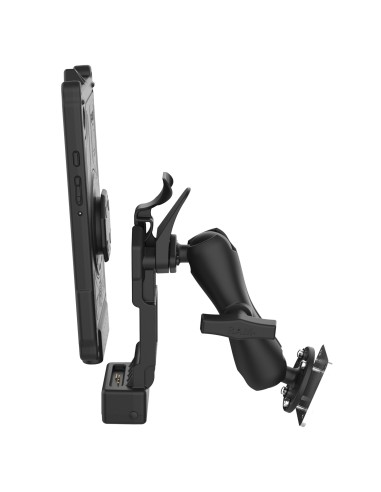

(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(2) Cable Clamp Kits - Hole Pattern
- 3-Hole 120-Degree: 1.812" Diameter
4-Hole AMPS: 1.181" x 1.496" - Input Cable Length
- 215mm
- Input Connector
- USB Type-C
USB Type-C for 1 Peripheral - Materials
- High strength composite
Marine-grade aluminum
Steel - Output Cable Length
- 215mm
- Output Voltage
- 5V - 12V @ 3A
- Packaging Type
- Box
- Peripheral Output
- 500mAh
- Power Output
- 15W
- Power Specifications
- Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67 - Product Weight
- 4.81 lb
- Socket To Socket Length
- 4.66"
