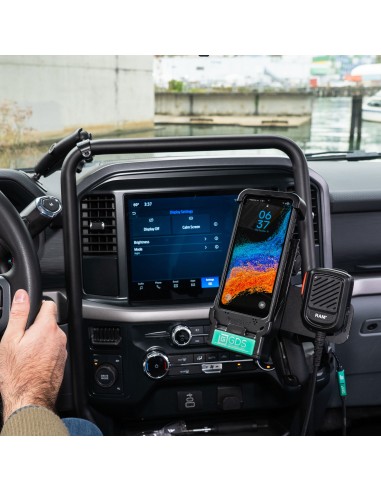

GDS® Locking PTT Speaker Mic Kit for XCover7 Pro/6 Pro - Kodiak

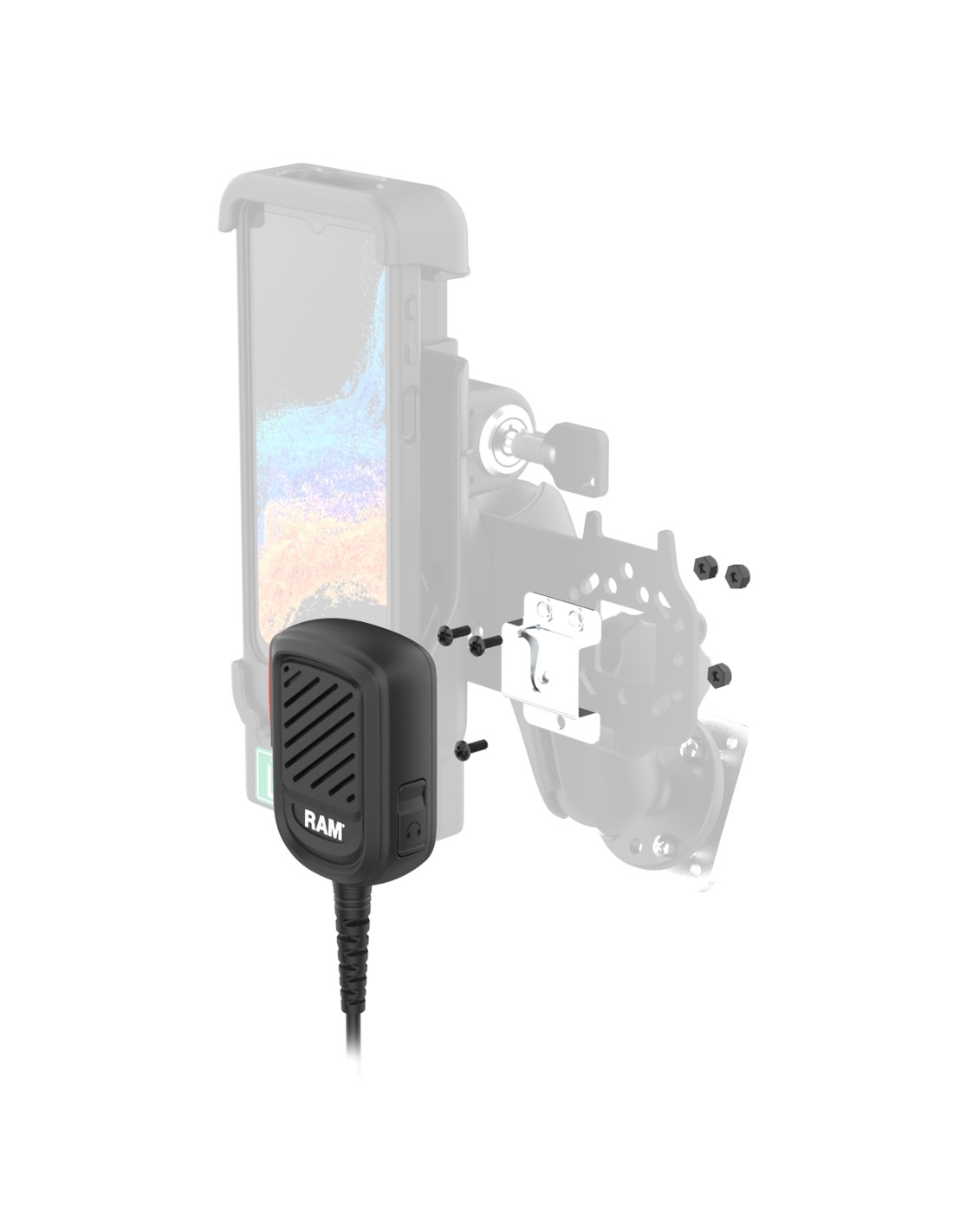

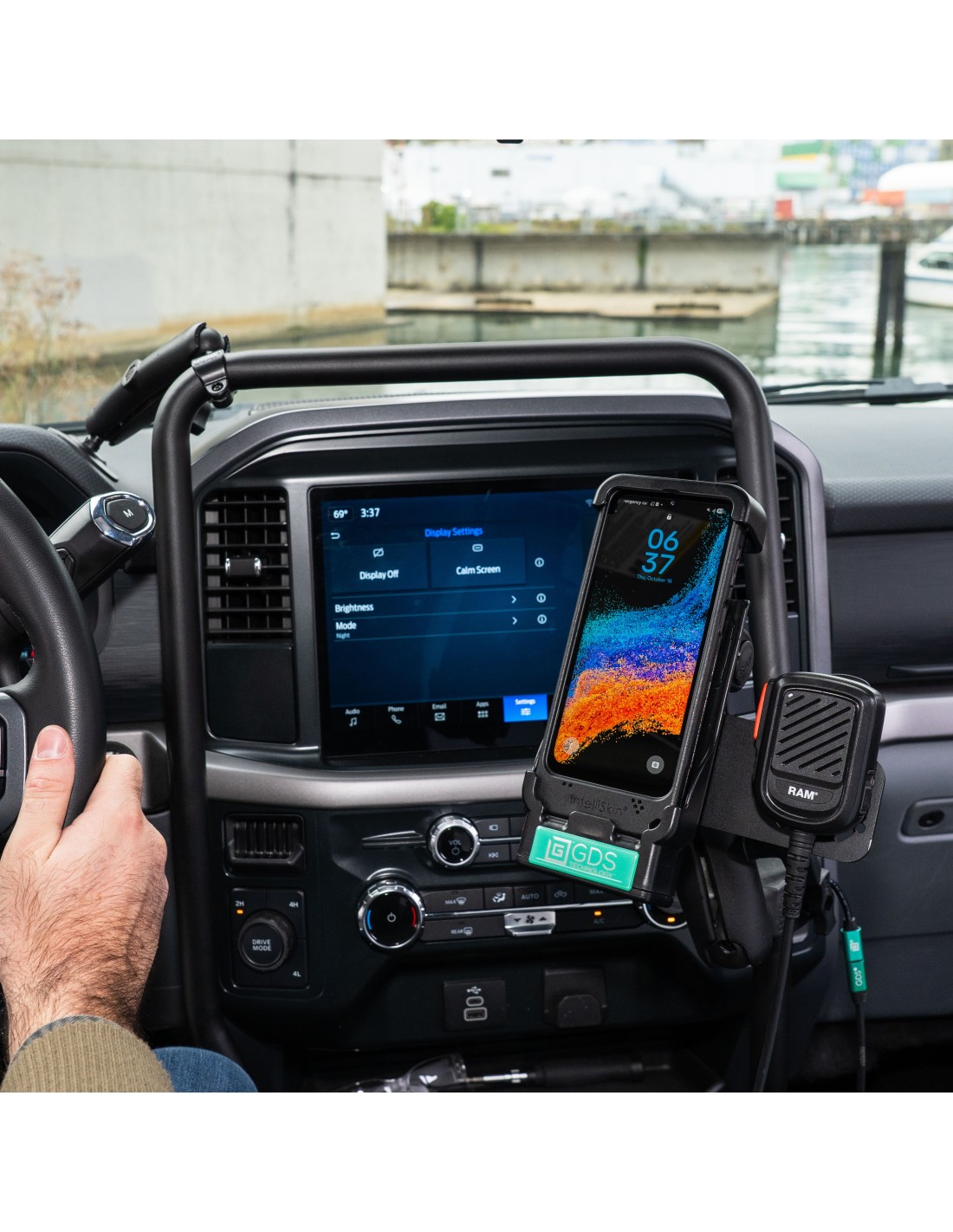

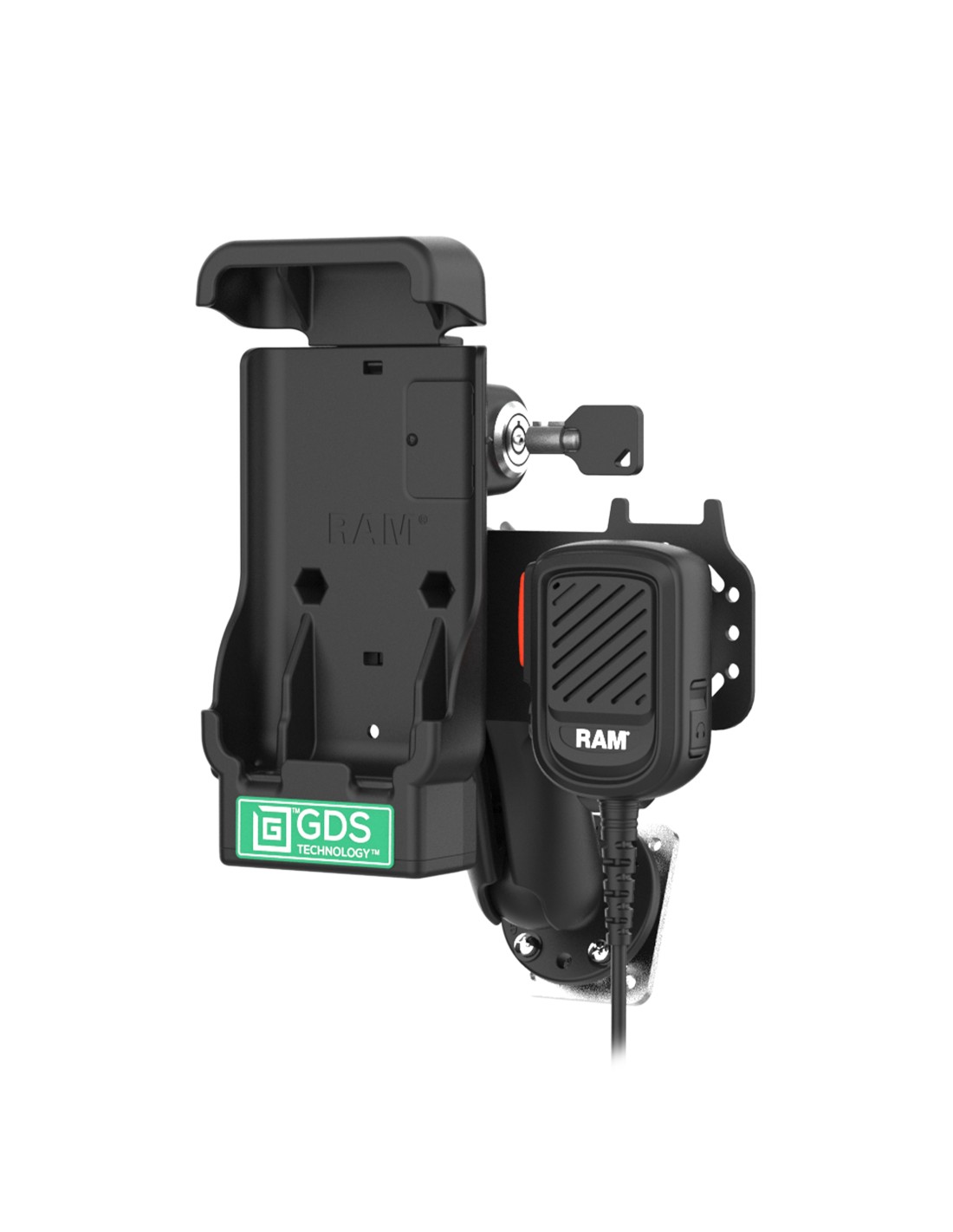

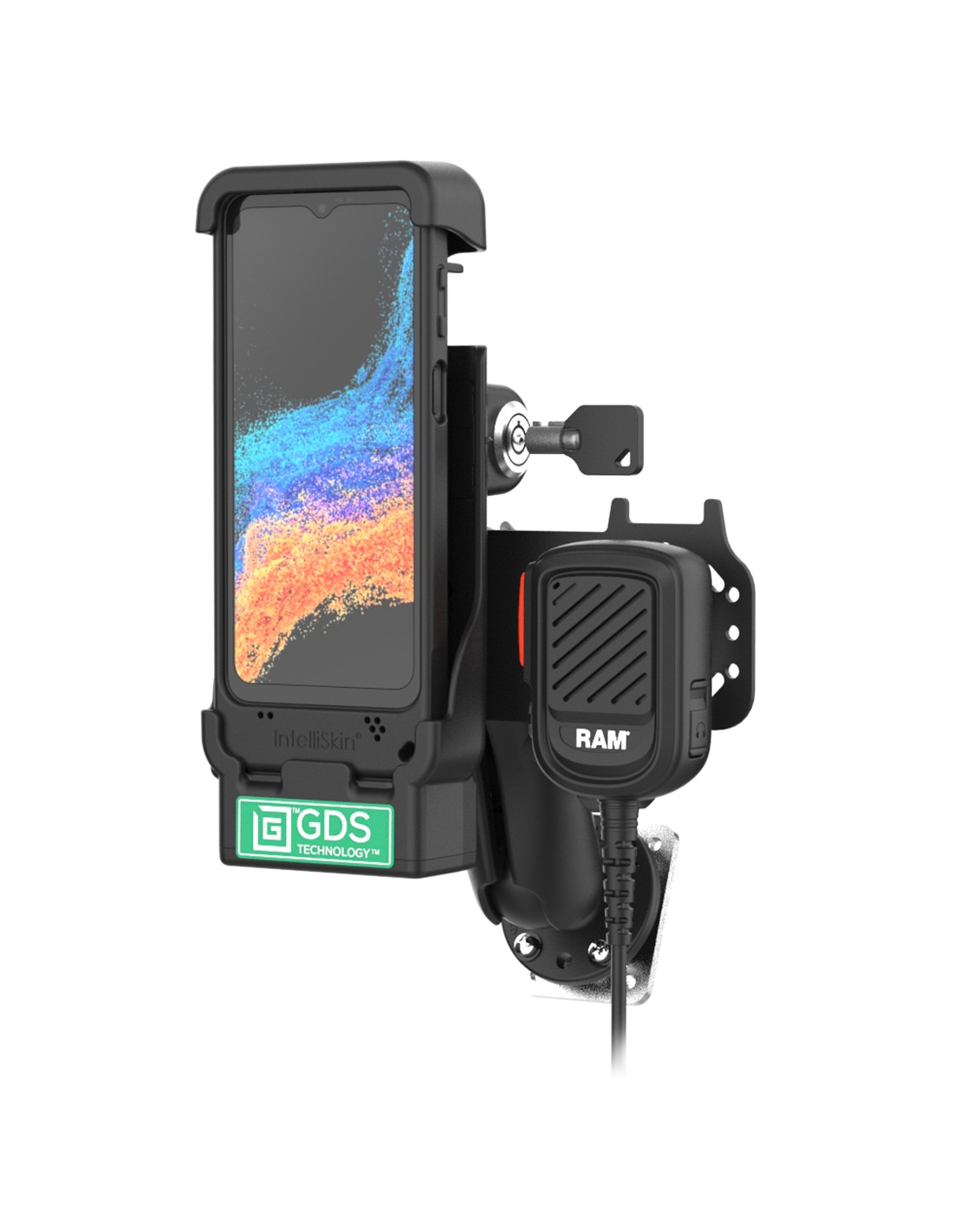

The GDS PTT Speaker Mic Kit for XCover7 Pro/6 Pro - Kodiak (RAM-GDS-DOCKL-V15-SAM84-RSM5) delivers a complete solution for enabling reliable Push-to-Talk over Cellular (PoC) communication. Built specifically with the rugged Samsung XCover6 Pro in mind, this kit includes a form-fit GDS Dock, drill-down base with backing plate, microphone bracket, microphone clip, and a rugged USB-C Remote Speaker Microphone (RSM). The RSM provides dependable push-to-talk functionality through a USB-C connection, optimized for Kodiak.
- Spring-loaded powered dock featuring USB-C device connection designed for the Samsung XCover7/6 Pro
- Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
- GDS® DockT uses an integrated pogo pin connector to provide high-speed charging
- Locking knobs provide theft deterrence for added security
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warrant
- Components
- RAM-101-MIC4U
RAM-201-SU
RAM-202-225-2U
RAM-238U
RAM-CAB-CM2CF-1U
RAM-GDS-CHARGE-V7CU
RAM-GDS-DOCKL-V15-AU
RAM-GDS-SKIN-SAM84-C
RAM-RSM-A05 - Product Line
- GDS® TechT IntelliSkin®
- Product Type
- Phone Mounts
- Ball Size
- C Size (1.5")

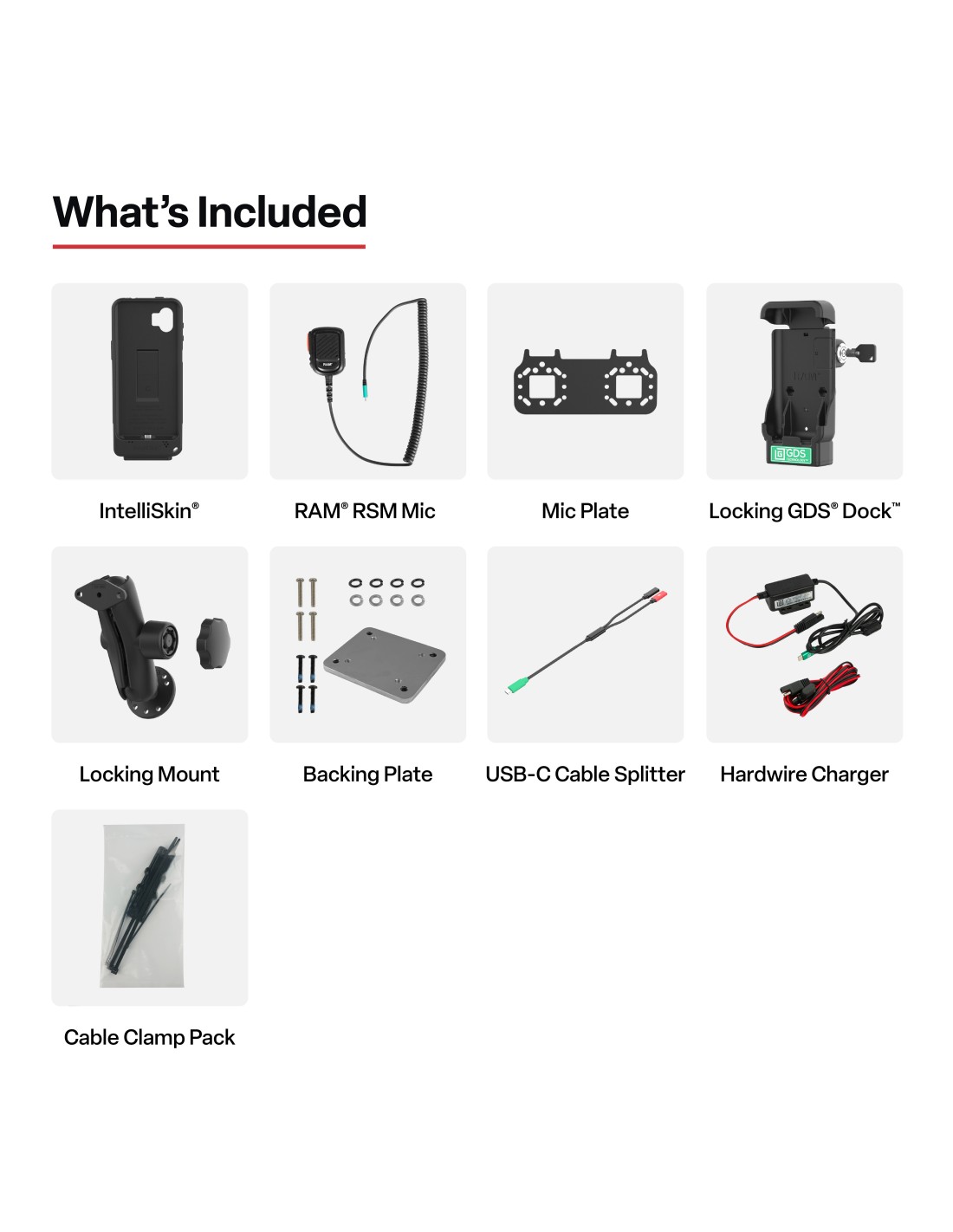

- Hardware Included
- (1) IntelliSkin® for XCover7 Pro & 6 Pro
(1) GDS® DockT (Locking)
(1) Remote Speaker Mic with Mounting Plate
(1) Mic Bracket

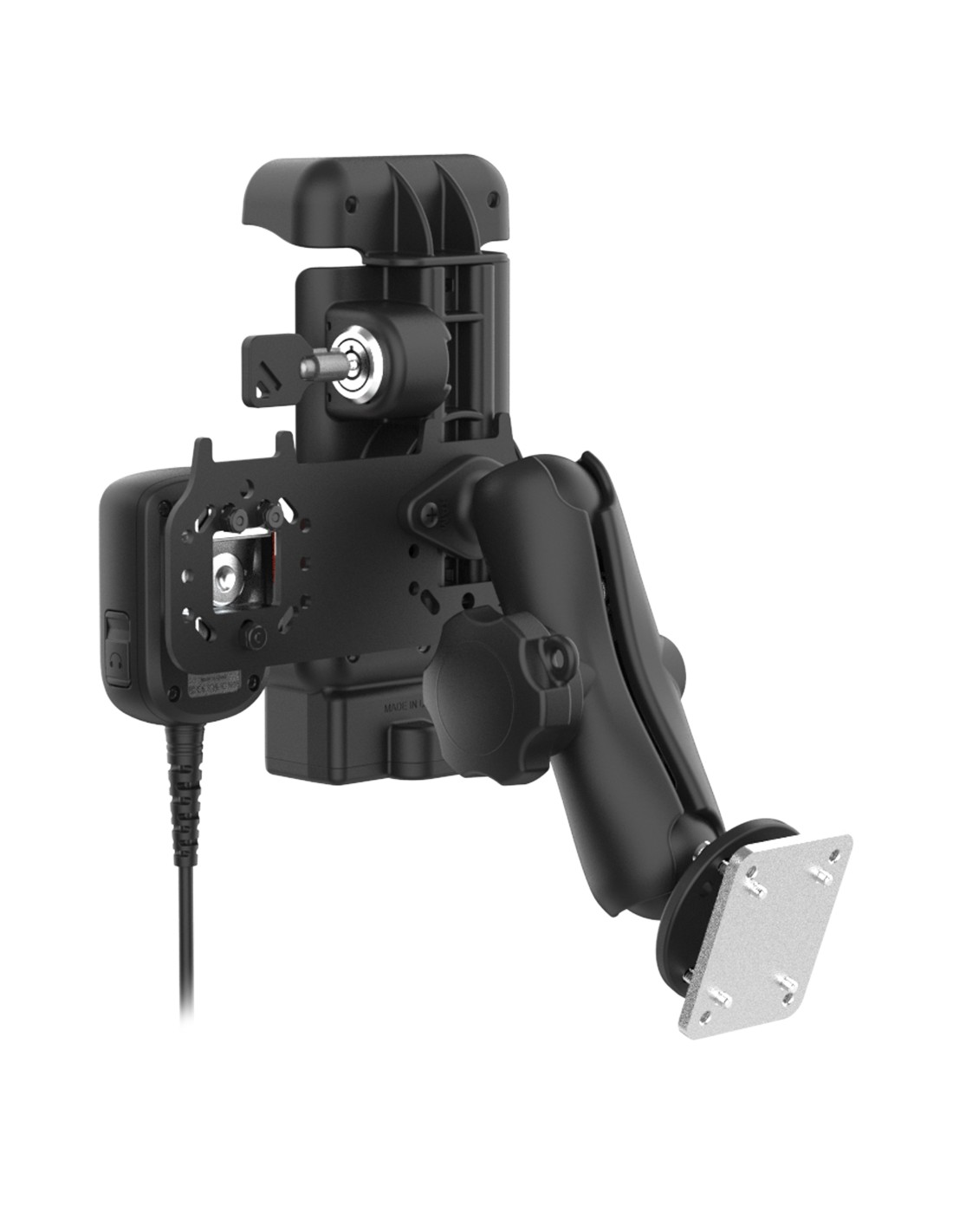

(1) Double Ball Mount with Backing Plate
(1) Hardwire Charger
(1) USB-C Splitter Cable
(3) Cable Clamp Kits - Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496"
- Input Cable Length
- 380mm
- Input Connector
- USB Type-C
- Materials
- High strength composite
Marine-grade aluminum
Steel - Output Voltage
- 5V - 12V @ 3A
- Packaging Type
- Box
- Power Output
- 15W
- Power Specifications
- Remote Speaker Mic:
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67 - Socket To Socket Length
- 4.66"
- Weight Capacity
- Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs - Device Compatibility
- Samsung Galaxy XCover6 Pro
Samsung Galaxy XCover7 Pro
