RAP-B-299-4-AP-MAG-1-W2MU

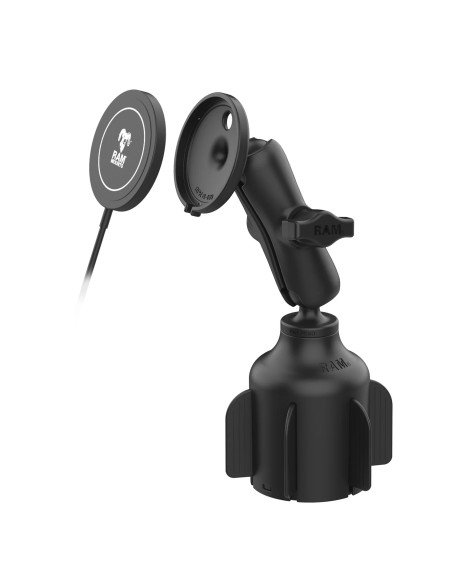

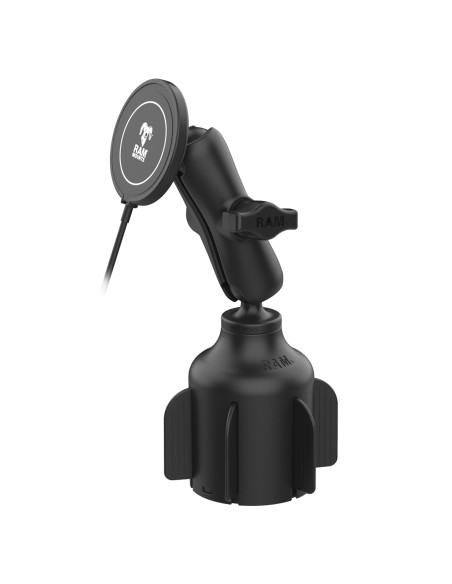

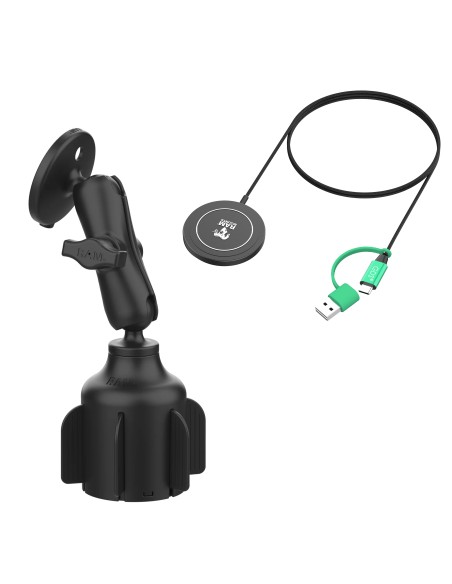

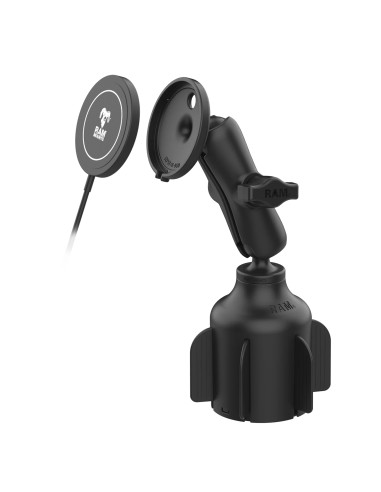

The RAM Stubby Cup Holder Mount with RAM Qi2 15W Wireless Charger (RAP-B-299-4-AP-MAG-1-W2MU) is your all-in-one solution for mounting and charging on the go. Just drop the Stubby base into your cup holder for quick, no-tools installation, its that easy. This kit includes the RAM Qi2 15W Wireless Charger, ball adapter, Stubby cup holder base, and B size medium socket armdesigned to fit snugly in small to medium cup holders (2.57"3.5" inside diameter). With IP67 waterproof protection and a durable woven USB-C cord, youll get a reliable charge every time. Plus, harness your iPhones MagSafe magnetic charging for a seamless, secure connection, no fumbling with cables.

  • Wireless charging bundle built for vehicle cup holders
  • 15W Qi2 fast charging for efficient power delivery
  • Includes RAM® StubbyT cup holder weighted ball base and medium length B size RAM® double socket arm
  • Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
  • Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

Components
RAM-GDS-CHARGE-W2M
RAP-B-201U
RAP-B-202-AP-MAG-1U
RAP-B-299-4U
Product Line
StubbyT
Product Type
Phone Mounts
Ball Size
B Size (1")
Certifications
CE Certification
E-Mark Certification
FCC Certification
IP67
RCM Certification
SAE J1455
Input Voltage
QC2.0 9V @ 2.22A
USB 5V @ 3A
USB PD 2.0 5-15V @ 2A
Materials
High strength composite
Operating Temperature
0°C to +40°C
Output Cable Length
1 Meter
Output Connector
USB Type-C Male with USB-A Adapter
Packaging Type
Poly Bag
Power Output
BPP - 5W
EPP - 7.5W
MPP - 15W
Power Specifications
80% Wireless Power Transfer Efficiency or Greater
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Supports USB 2.0 BC1.2 Power Supply (5V)
Product Weight
1.43 lb
Regulatory
Over Current Protection
Over Temperature Protection
RoHS Compliance
Short Cirtcuit Protection
WEEE Compliance
Socket To Socket Length
3"
Storage Temperature
-20°C to +80°C
Wedge Dimensions
Fits cup holders between 2.57" - 3.5" inside diameter
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
793442031731
