RAP-B-202-AP-MAG-1-W2MU

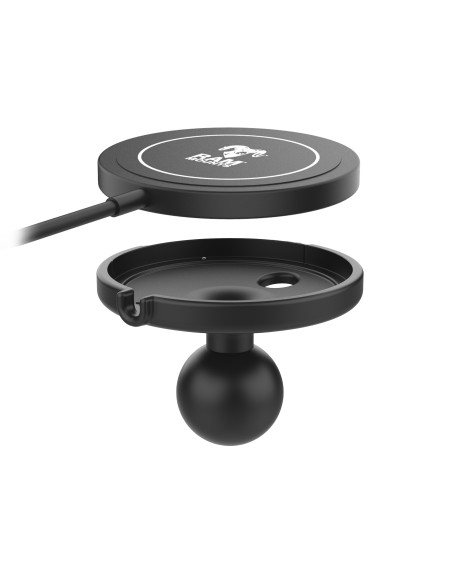

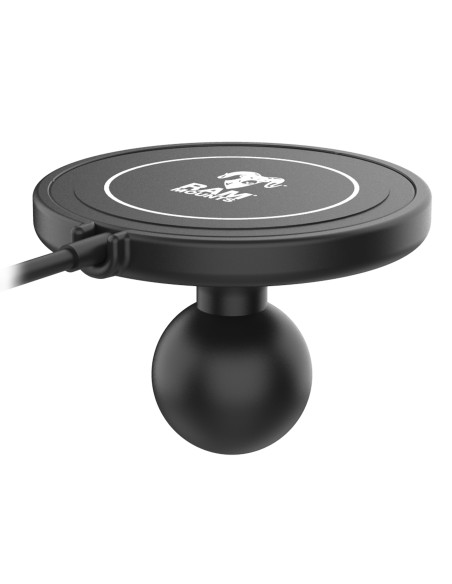

The RAM Ball Adapter with RAM Qi2 15W Wireless Charger (RAP-B-202-AP-MAG-1-W2MU) makes it easy to add wireless charging to your existing RAM Mount setupor build a custom one from scratch. The ball adapter securely holds the Qi2 15W Wireless Charger, giving your iPhone 12, 13, 14, 15, 16 (Plus, Pro, Pro Max, and later) a snap-on magnetic connection for effortless MagSafe charging. Compatible with RAM B size socket arms, this bundle gives you the flexibility to mount your phone in virtually any vehicle location with the right base. A simple, reliable way to keep your device powered while youre on the move.

  • Wireless charger and form-fit ball adapter compatible with any RAM® B size ball and socket components
  • 15W Qi2 fast charging for efficient power delivery
  • Magsafe compatible; precise magnetic alignment for iPhone 12 and later, and AirPods
  • Mounting components backs by a lifetime warranty; electronics backed by a 3-year warranty

Components
RAM-GDS-CHARGE-W2M
RAP-B-202-AP-MAG-1U
Product Type
Components
Ball Size
B Size (1")
Certifications
CE Certification
E-Mark Certification
FCC Certification
IP67
RCM Certification
SAE J1455

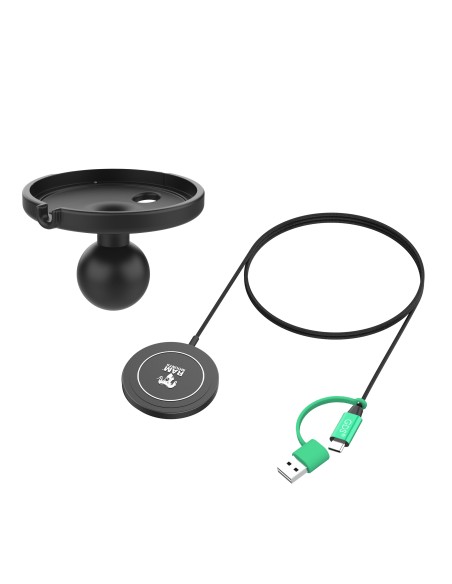

Hardware Included
(1) Ball Adapter
(1) RAM® Qi2 Wireless Charging Puck
Input Voltage
QC2.0 9V @ 2.22A
USB 5V @ 3A
USB PD 2.0 5-15V @ 2A
Materials
High strength composite
Operating Temperature
0°C to +40°C
Output Cable Length
1 Meter
Output Connector

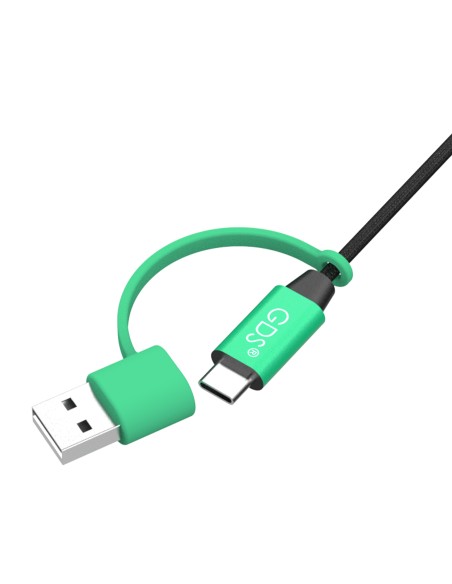

USB Type-C Male with USB-A Adapter
Packaging Type
Poly Bag
Power Output
BPP - 5W
EPP - 7.5W
MPP - 15W
Power Specifications
80% Wireless Power Transfer Efficiency or Greater
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Supports USB 2.0 BC1.2 Power Supply (5V)
Regulatory
Over Current Protection
Over Temperature Protection
RoHS Compliance
Short Cirtcuit Protection
WEEE Compliance
Storage Temperature
-20°C to +80°C
Weight Capacity
Heavy-Duty Use: 1 lb
Standard Use: 2 lbs
