GDS® AudioT Amplified Speaker with PTT Breakout Feature

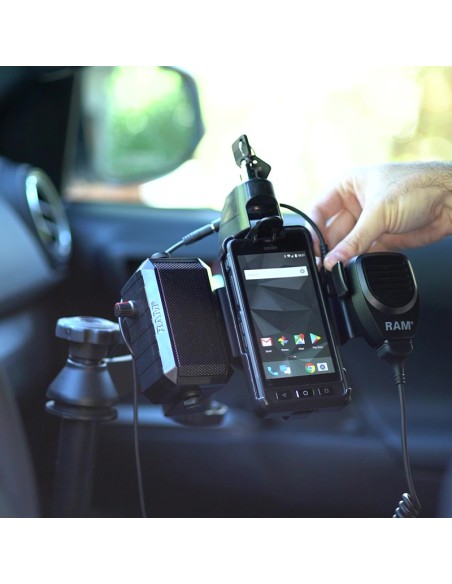

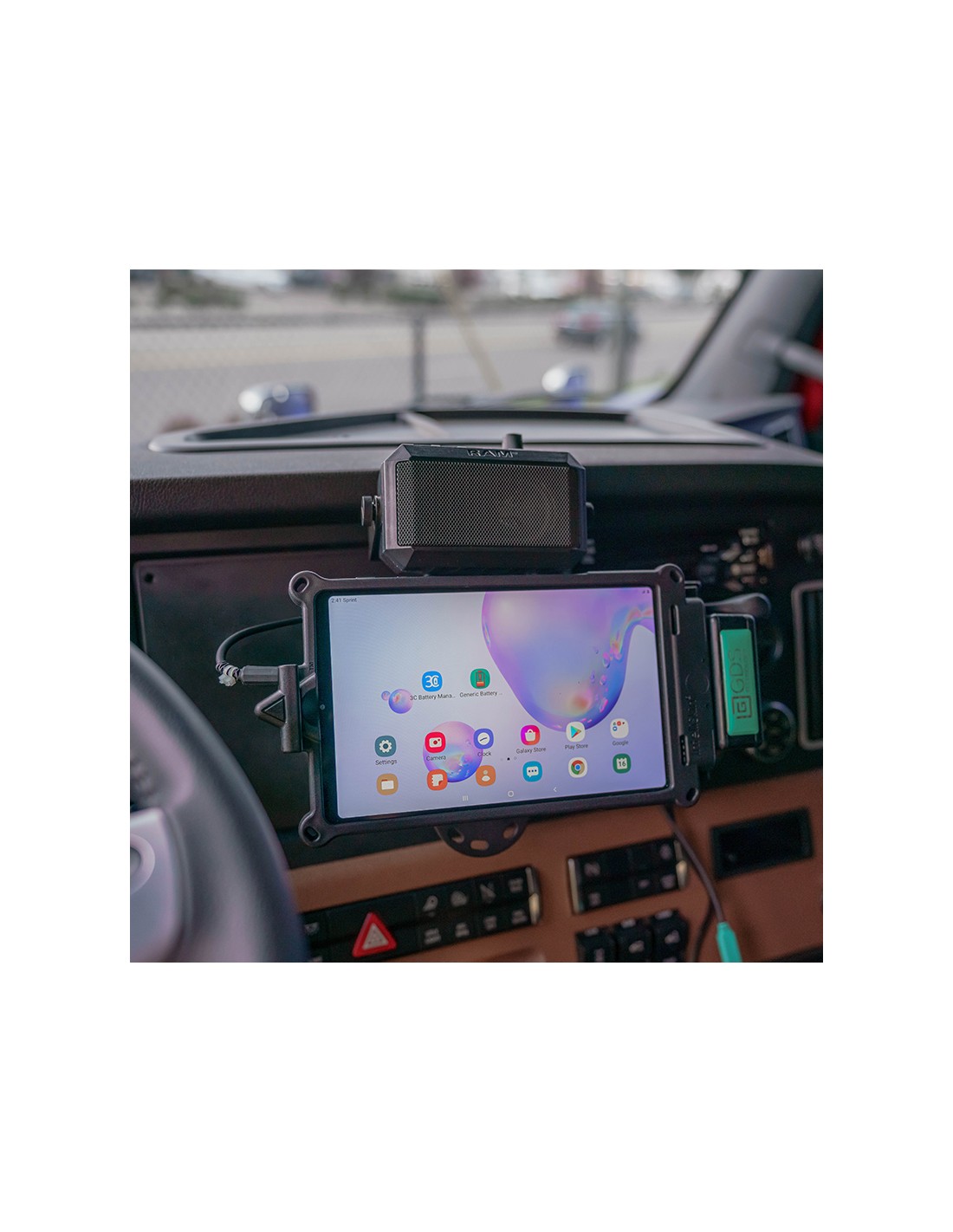

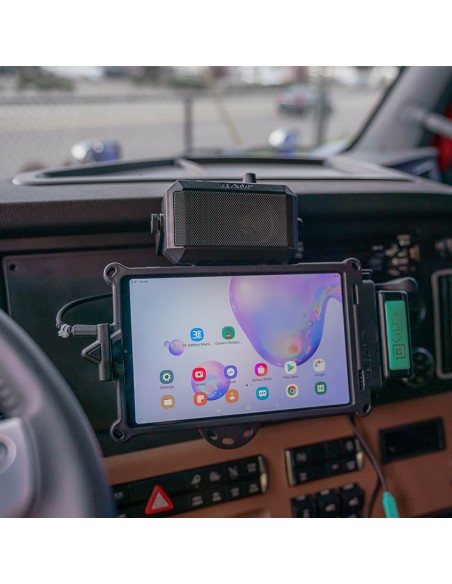

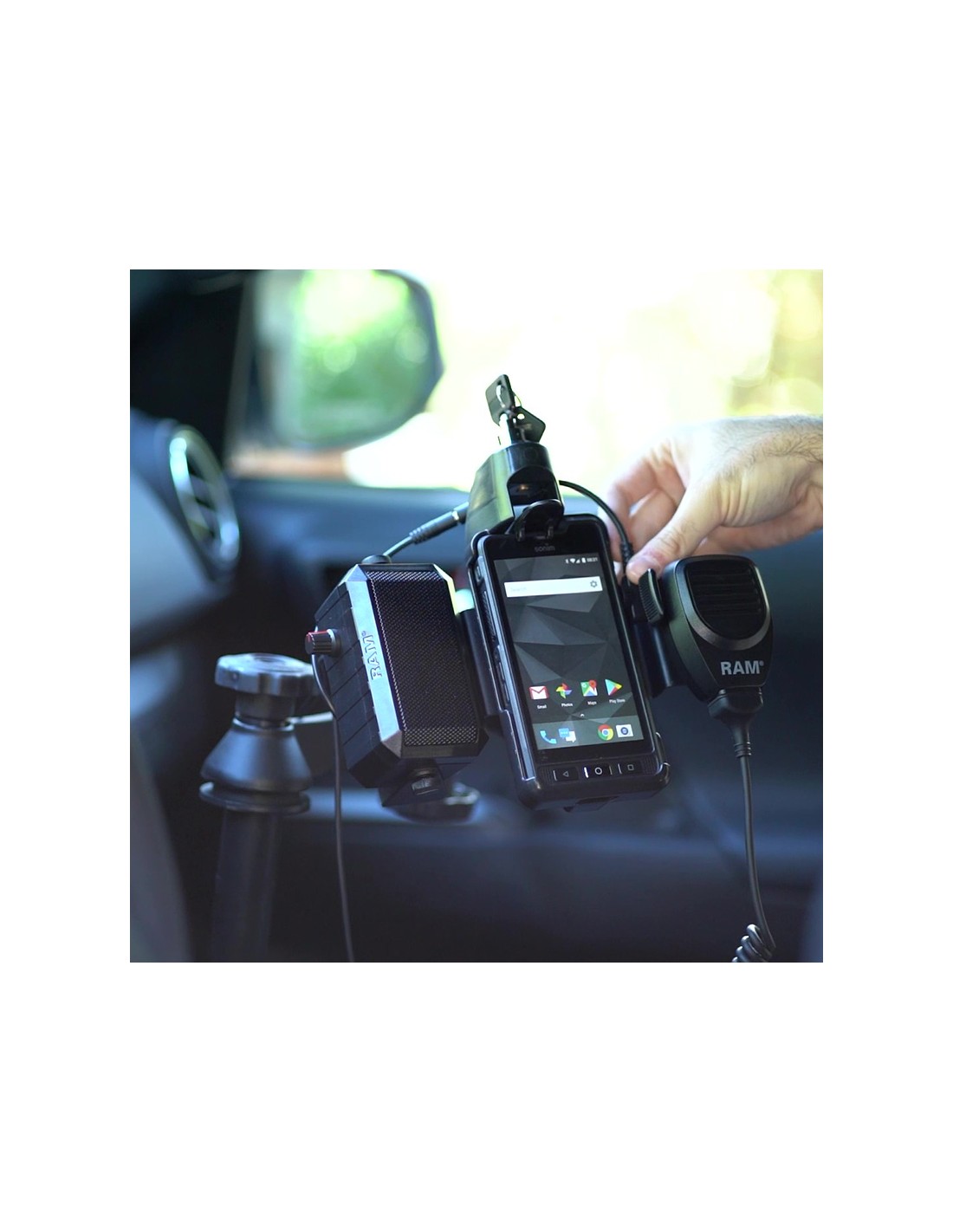

The GDS Audio Amplified Speaker with PTT Breakout Feature (RAM-SPEAK-A03) delivers powerful, reliable sound for in-cab communicationno batteries required. Hardwire it directly into your vehicle or connect via a GDS hardwire charger using the SAE connector. The built-in audio breakout feature supports an optional PTT microphone or headset (sold separately), enabling half- or full-duplex conversations depending on your setup. With an adjustable output of up to 99dB, this speaker ensures clear audio even in noisy environments. Integrated overcurrent, short circuit, and overvoltage protection provide added peace of mind. Designed as part of the GDS Ecosystem, the speaker easily mounts to any GDS vehicle dock with the included short or standard bracket adapter and hardware.
- PTT-enabled amplification speaker with independent adjustable volume knob

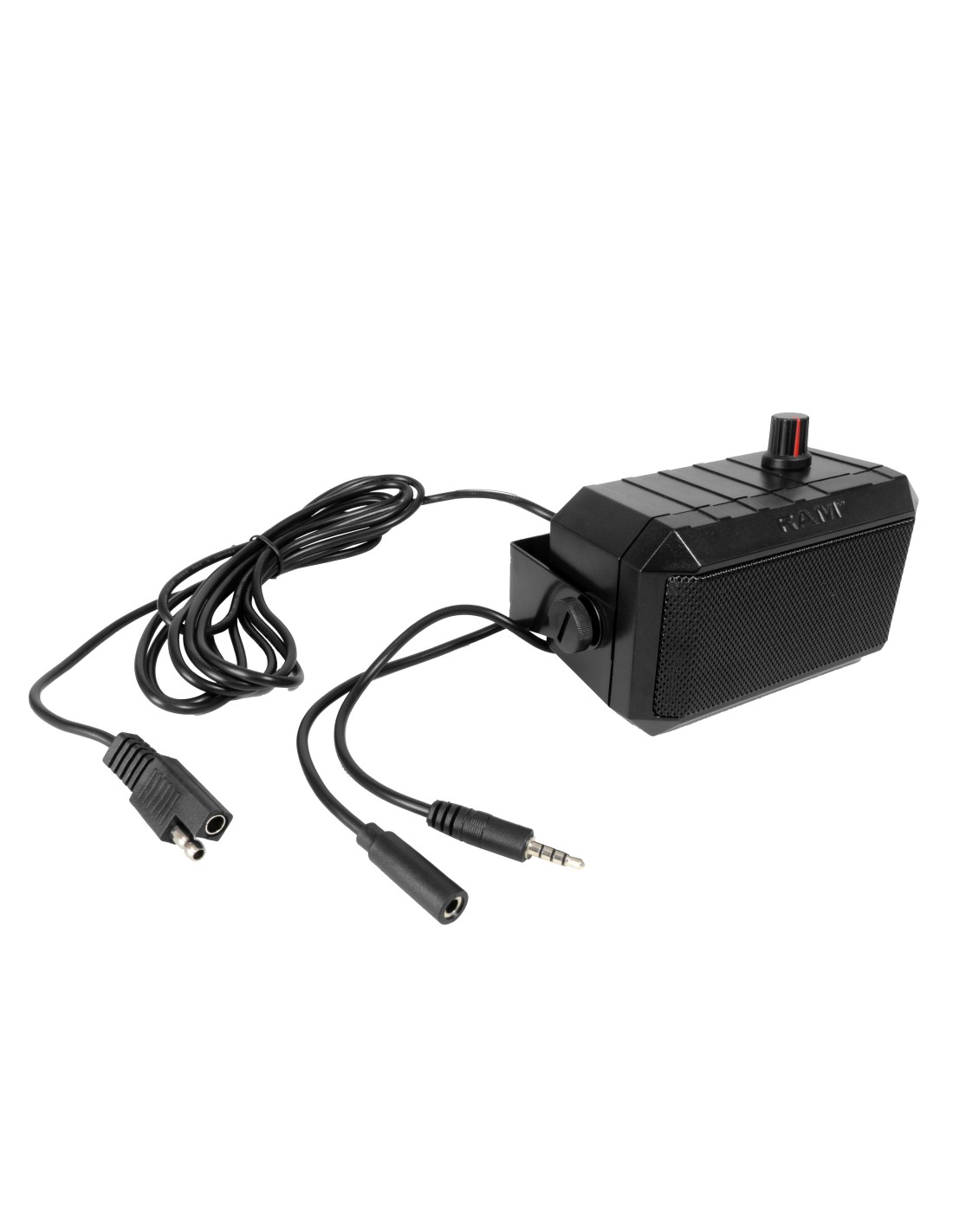

- Includes SAE hardwire power input cable, audio input cable and audio output cable
- 99db max volume level
- Backed by a 3-year warranty
- Product Line
- GDS® AudioT GDS® TechT
- Product Type
- Components
- Certifications
- FCC, IC, RCM, CE, RoHS, WEEE, SAE J1113-5a
- Hardware Included
- (2) #8-32 Nylock Nuts
(2) #8-32 x 5/8" Machine Screws
Mounting Bracket - Input Cable Length
- 2.5 Meter SAE Cable
- Input Connector
- 3.5mm TRRS connector, with a modified CTIA pin map for audio in/out
- Input Voltage
- 9-26VDC
- Operating Temperature
- -20°C to +80°C
- Output Cable Length
- 150mm long audio cable with 3.5mm mono plug jack
- Packaging Type
- Box
- Power Output
- Peak Power: 10W
RMS Power: 8W - Product Weight
- 0.99 lb
- Regulatory
- Over current protection, short circuit protection and over volatage protection
- Speaker Specifications

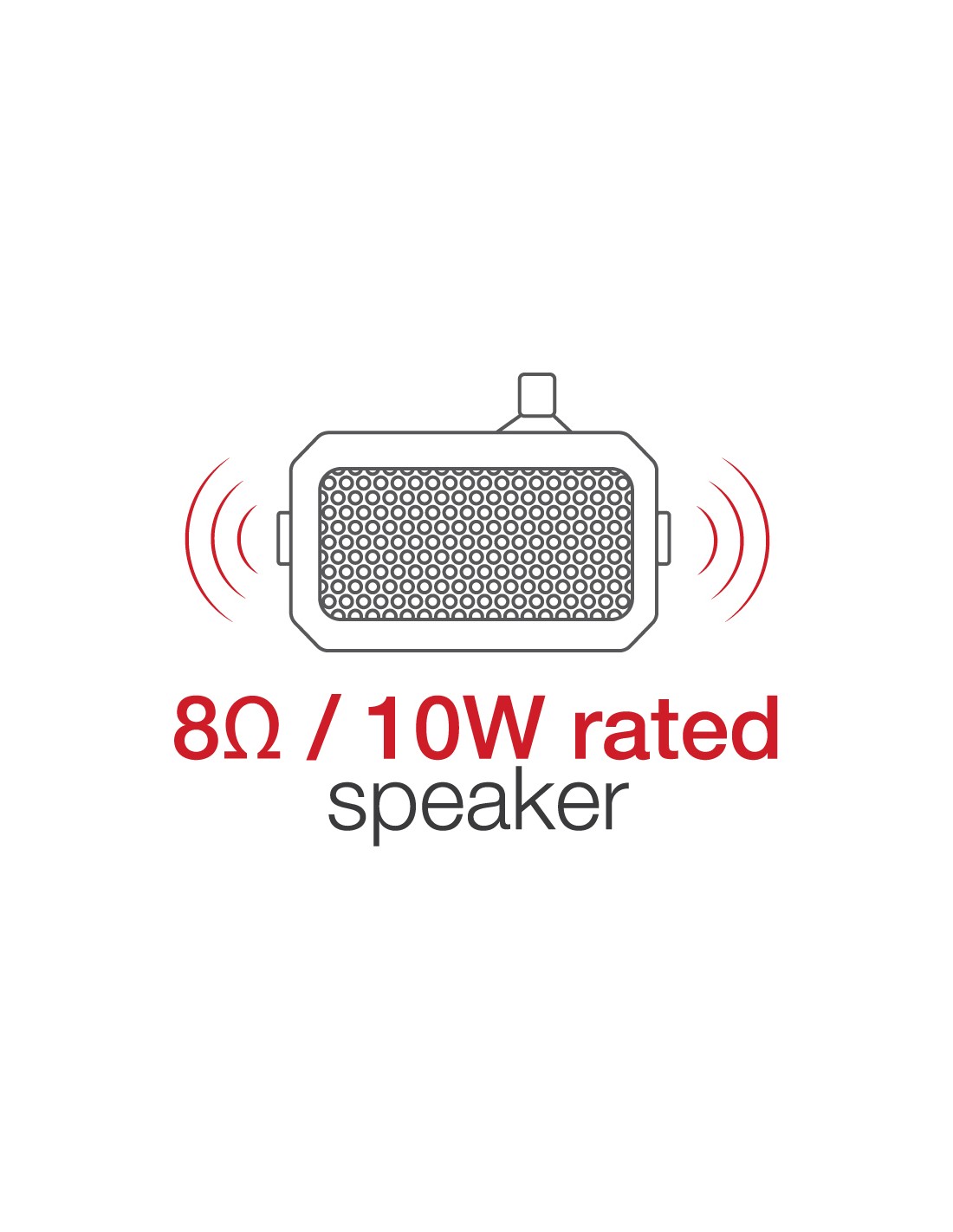

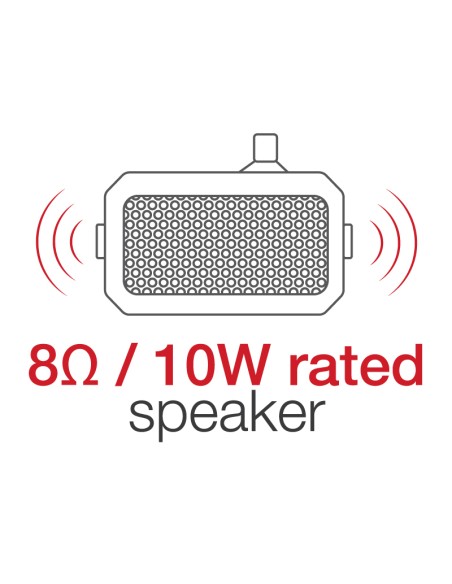

- 8O / 10W rated speaker

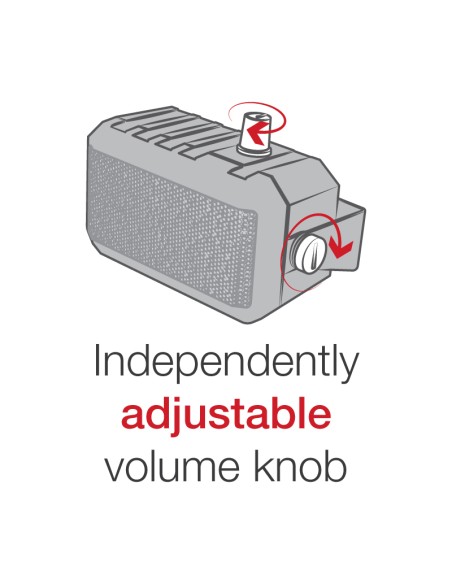

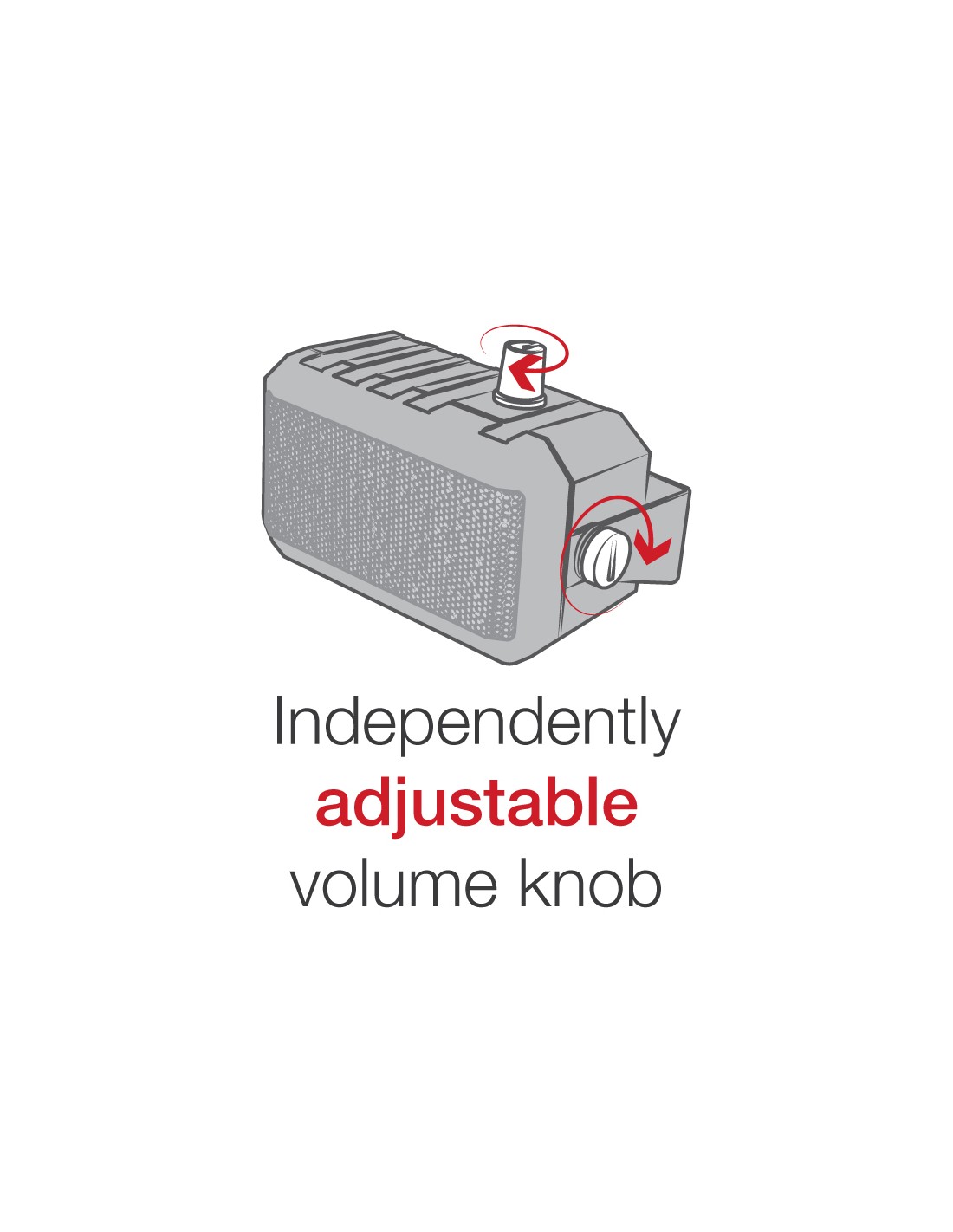

Independently adjustable volume knob
Max volume level: 99dB - Storage Temperature
- -40°C to +85°C
