RAM-RSM-A05

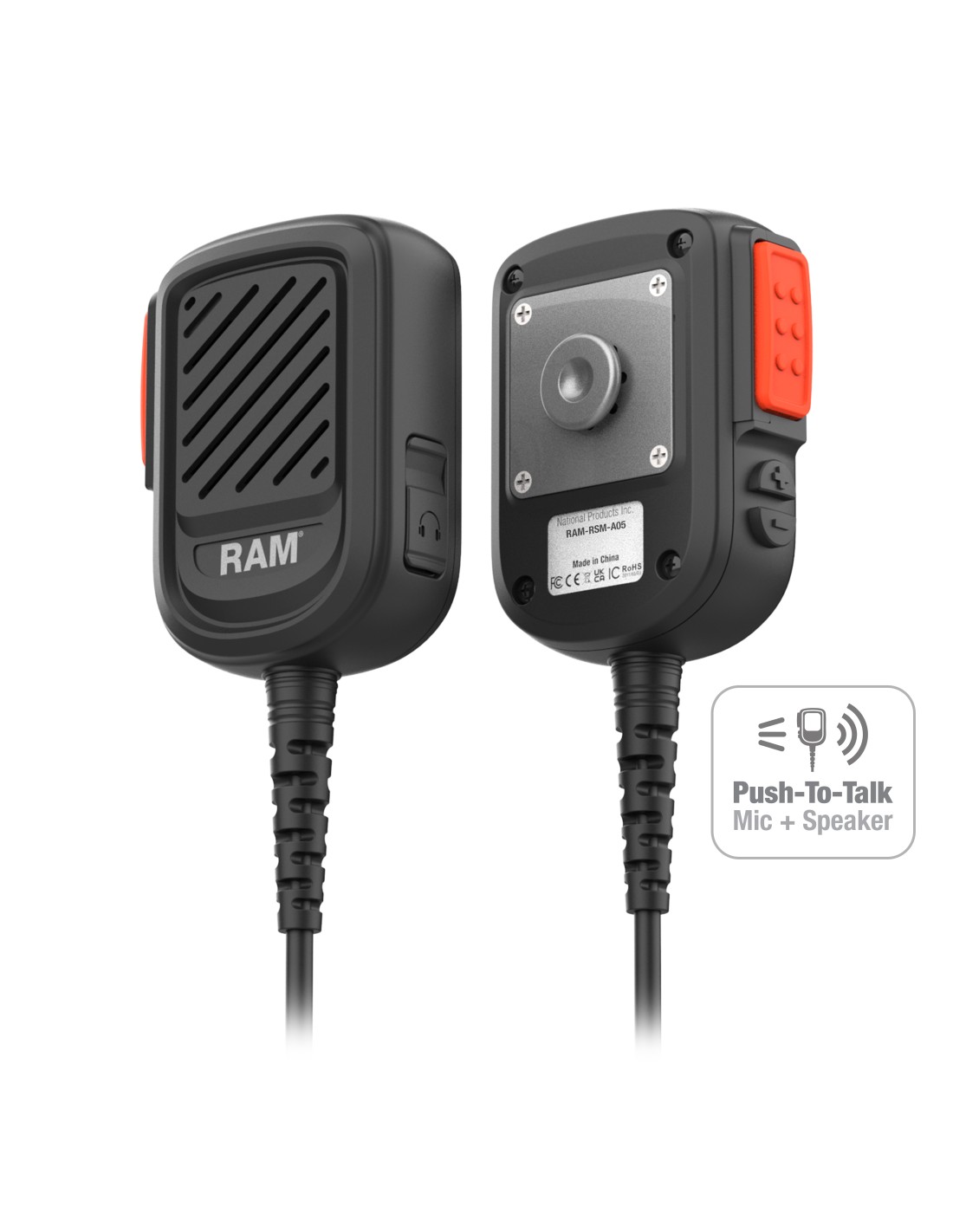

The RAM Remote Speaker Mic with USB-C for Kodiak (RAM-RSM-A05) delivers clear, reliable push-to-talk (PTT) and speaker functionality through a USB-C connection and is designed to support Push-to-Talk over Cellular (PoC). Designed for field operators who prefer an all-in-one PTT solution, this lightweight remote speaker microphone pairs seamlessly with any RAM tablet or phone docking solutionideal for public safety, utility services, logistics, delivery fleets, and more.

  • 2-in-1 microphone and speaker for amplified audio and push-to-talk (PTT)

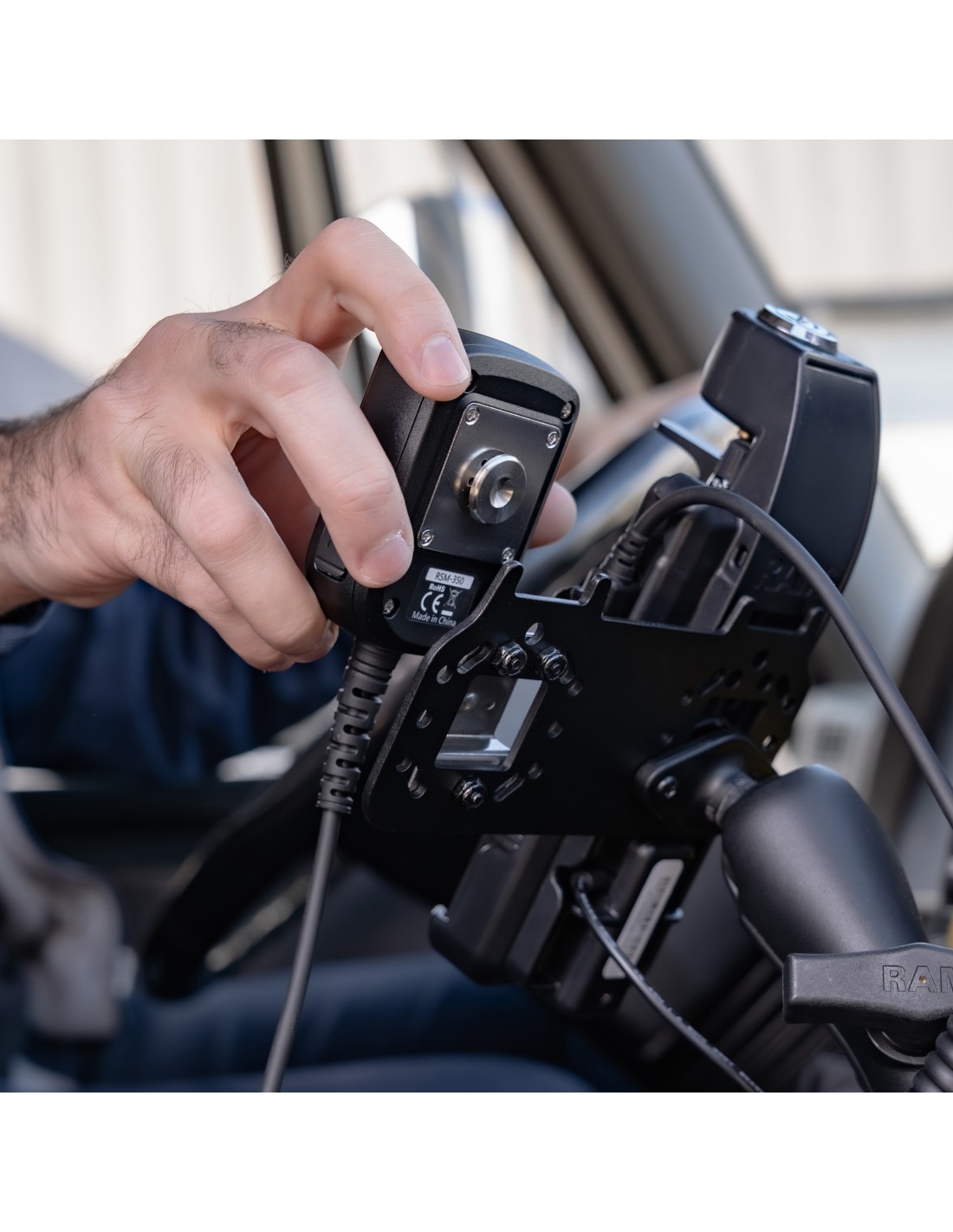

  • Uses a USB-C connector for reliable push-to-talk (PTT) or PTT over Cellular (PoC) when paired with a RAM® tablet or phone dock
  • Service compatibility specifically tested to work with Motorola's Kodiak network-integrated platform
  • Lightweight and simple design with clear access to volume buttons, audio port, and PTT button
  • Backed by a 3-year warranty

Product Type
Components
Certifications
IPCWHAA-A-620B Pull Strength
USB-IF Certified
FCC, UKCA, CE (RED), RoHS, WEEE, IC
Hardware Included

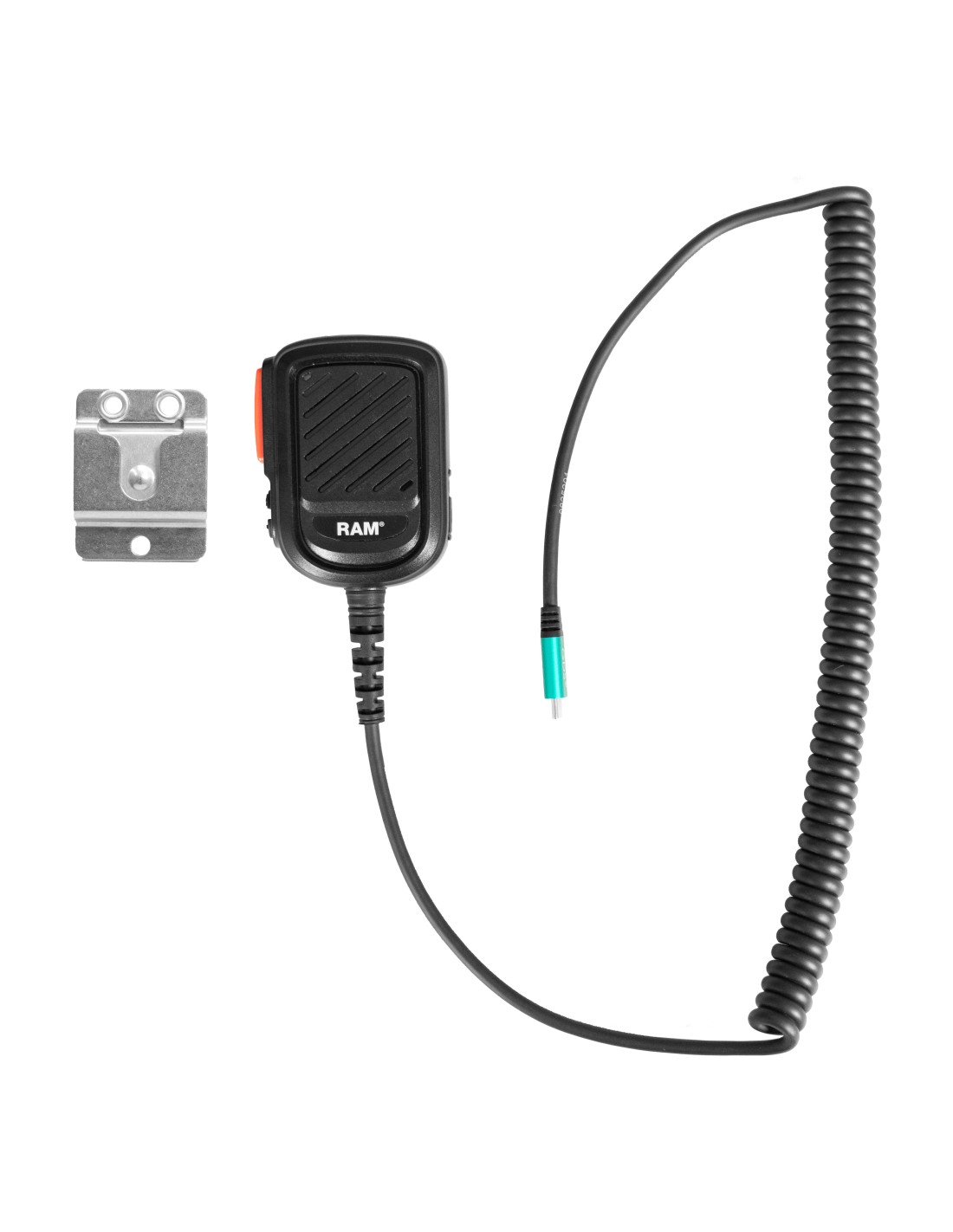

(1) Microphone
(1) Mounting Clip & Hardware
Operating Temperature
-10°C to +55°C
Packaging Type
Poly Bag
Ports
3.5mm TS Female - Mono Audio Out Only
Power Specifications
Operating Voltage: 1.2VDC - 5VDC
Current Consumption 100UA - 500UA
Output Impedance @ 1KHZ Max 2.2K Ohms
Signal to Noise Ratio: 1KHZ 60+ DB
Max Input SPL 110DB
Moisture Ingress Rating IP67
Speaker Specifications
Max Volume Level: 94db +/- 3DB (@1000-2000HZ)
Impedance: 12 OHM (+/- 15%)
Rated Noise Power for 100hrs: 1.5W @ 4.24VDC
Long Term Max Power 1min On / 2min Off: 2W @ 4.90VDC
