RAM-MAG48-3U

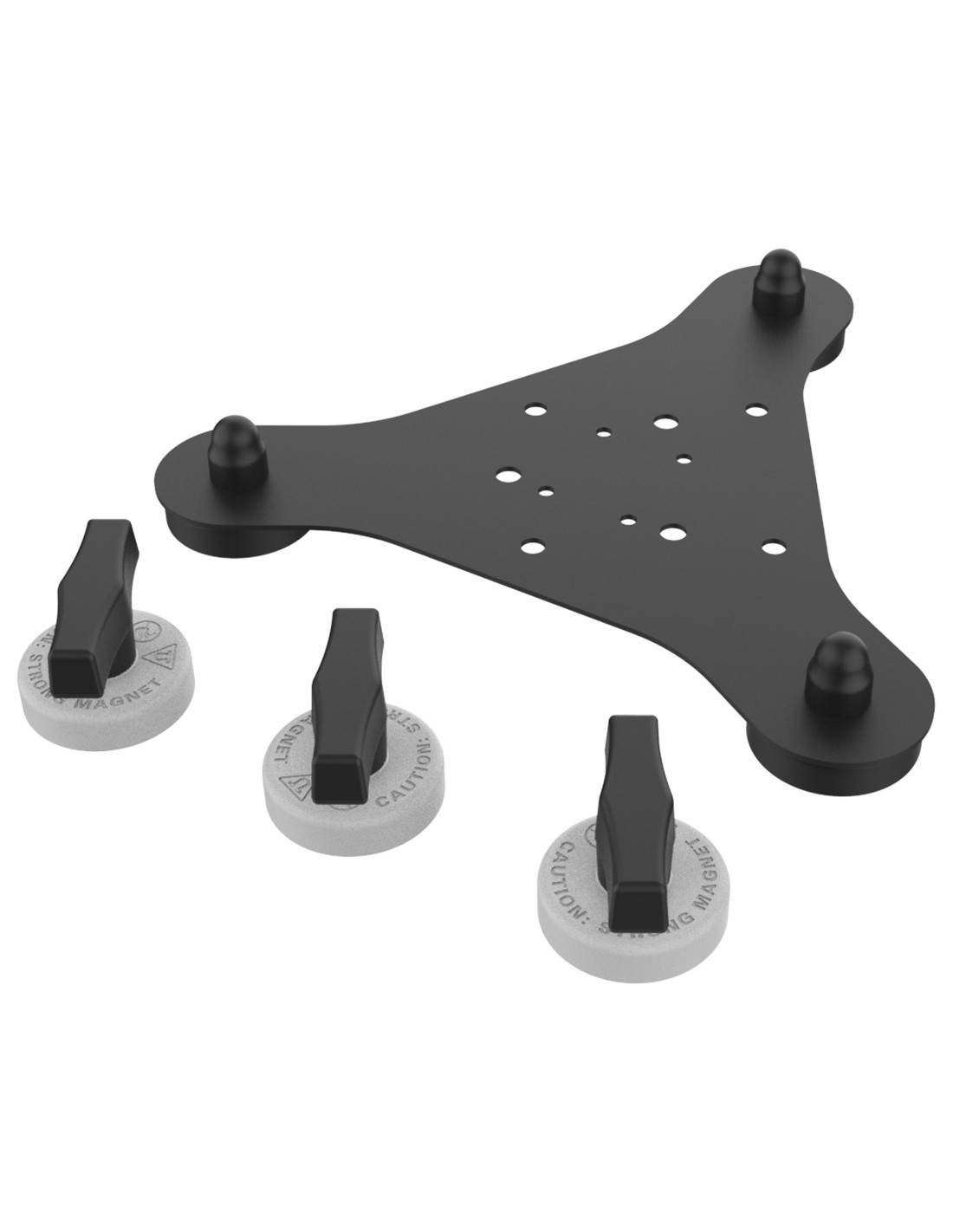

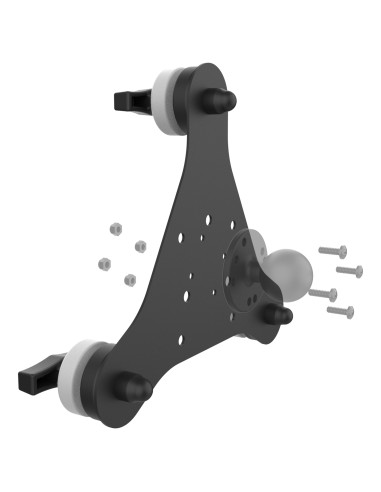

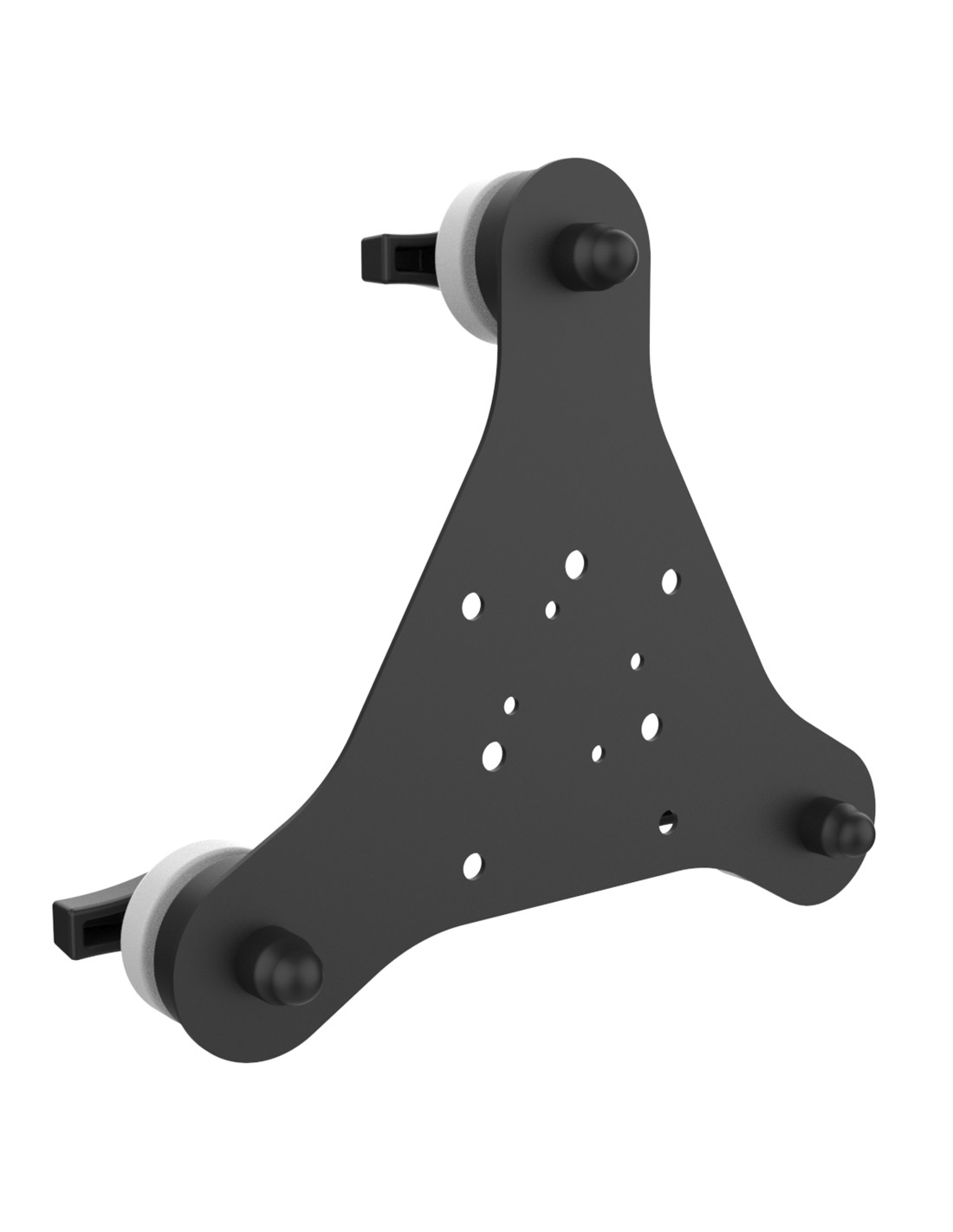

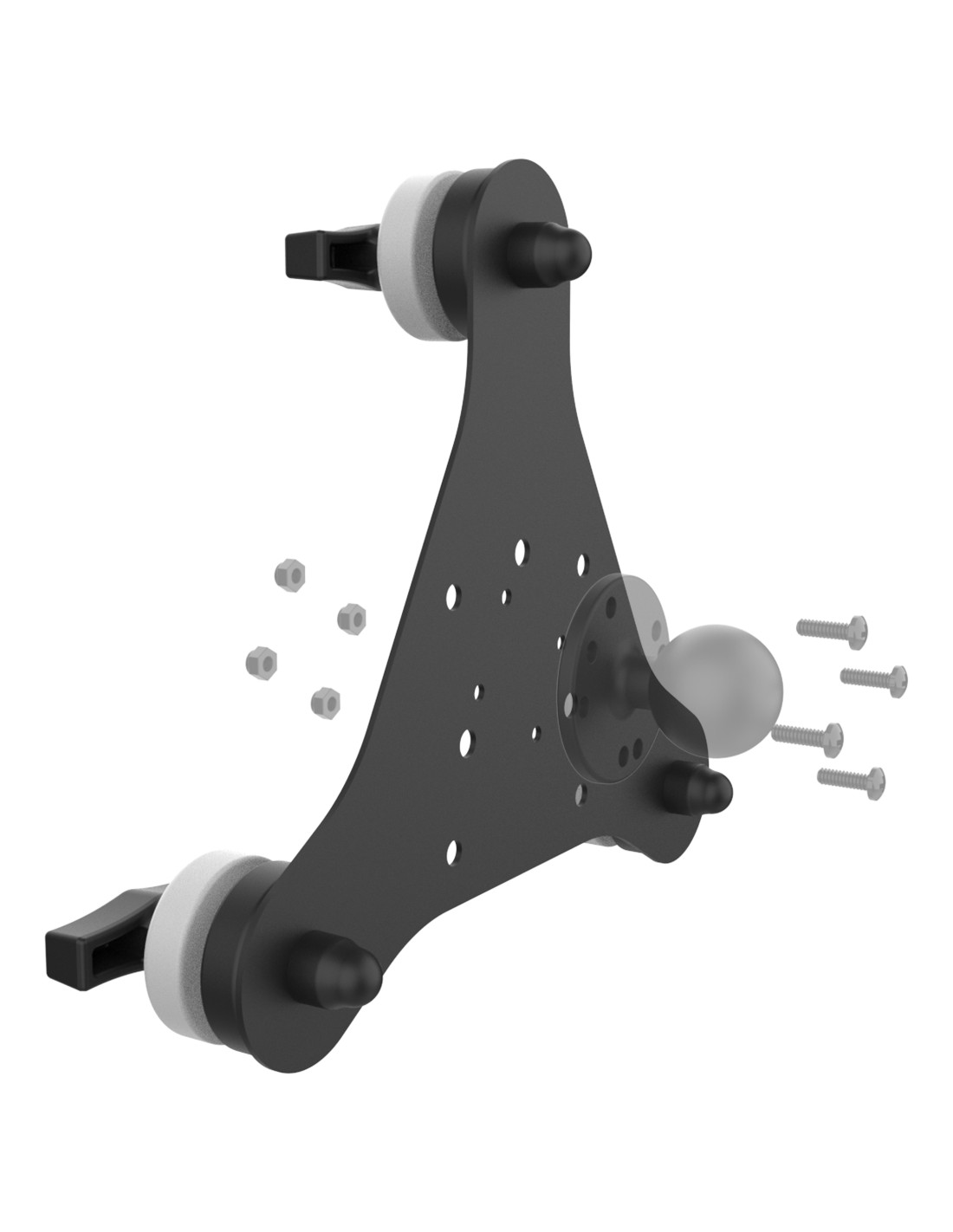

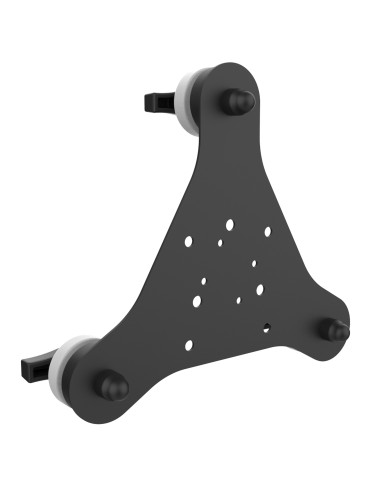

The RAM Tough-Mag 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U) consists of an aluminum plate with three magnetic ends and three 48mm external magnets for mounting any flat glass surface, like windows. The plate contains pre-drilled 4-hole AMPS pattern for attaching a recommended C size drill-down ball base. The base is designed with rubber coated magnets to prevent scratching the mounting surface and reduce the impact of the jarring magnetic pull. Each external magnet includes a handle in order to easily install the base to a window. Compatible with any sturdy, flat surface up to 6mm in thickness.

  • Three-point aluminum plate with 2 sets of 3 rubber coated external magnets for attaching to windows up to 6mm in thickness
  • 4-hole AMPS patterns for attaching C RAM® drill-down ball bases
  • External magnets include handles for ease of install
  • Backed by a lifetime warranty

Components
RAP-MAG48U
Product Line
Tough-MagT
Product Type
Components
Hardware Included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(3) 5/16"-18 x 1" Machine Screws
(3) 5/16" Nylock Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Packaging Type
Poly Bag
793442031977
