RAM-MAG48-3-PIV1U

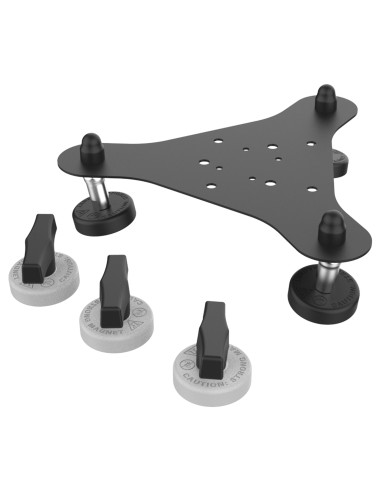

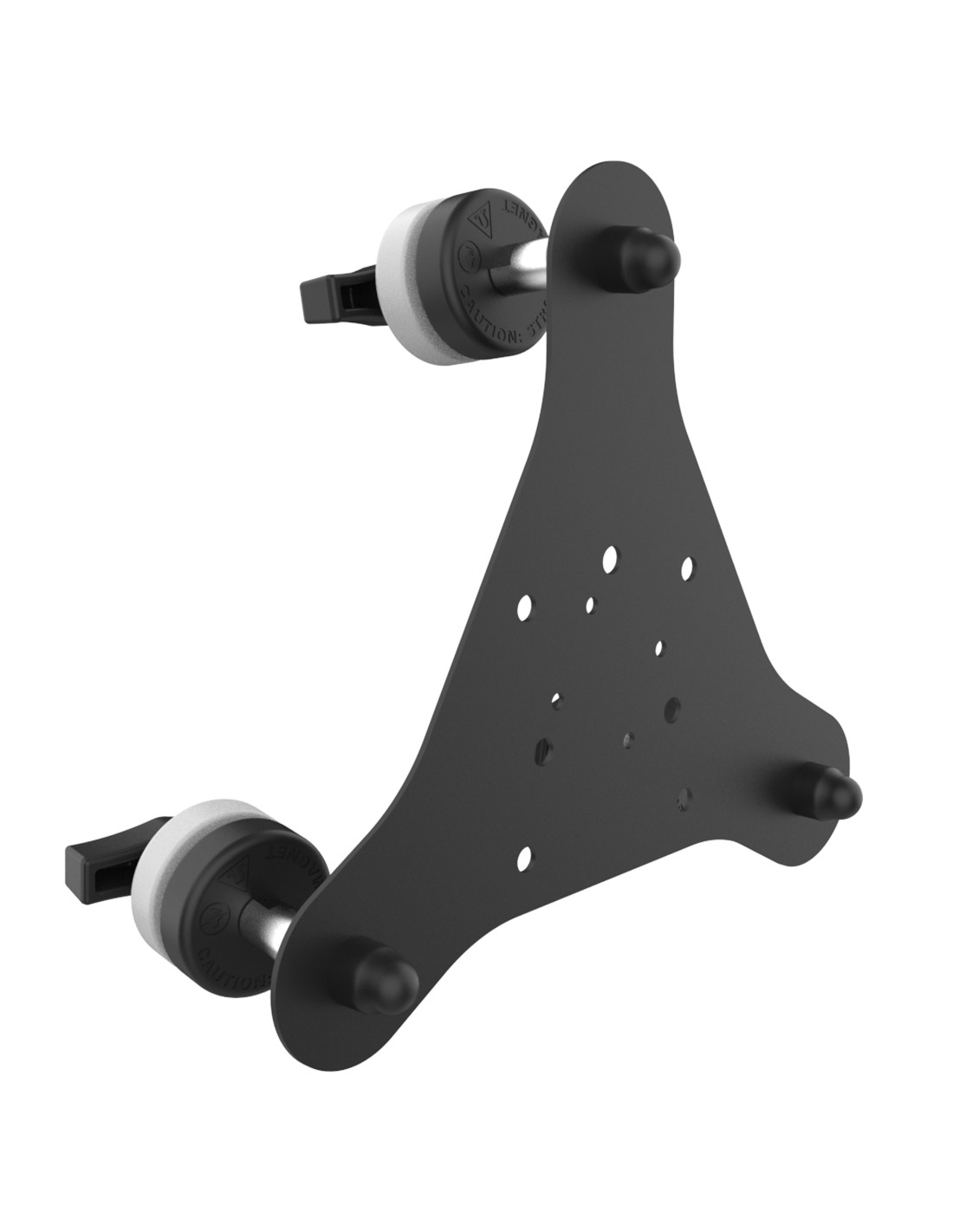

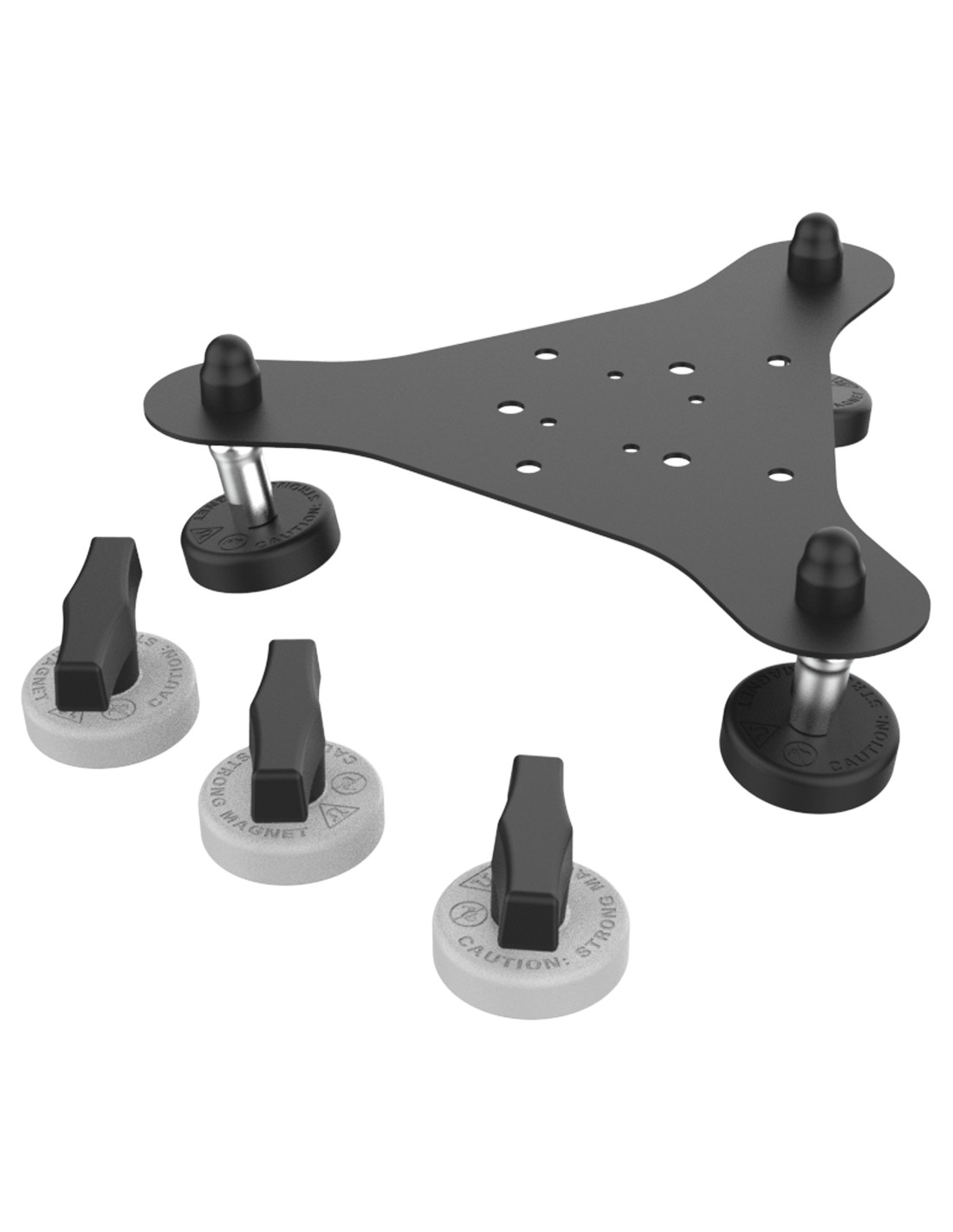

The RAM Tough-Mag 48MM 3-Point Magnetic Mounting Base (RAM-MAG48-3U) offers a flexible, high-strength solution for securing devices to flat glass or metal surfaces, including vehicle windows and windshields. Constructed with a durable aluminum plate, this base features three pivoting 48mm external magnets that adjust independently to ensure a secure hold on slightly curved or uneven surfaces. The plate includes a pre-drilled 4-hole AMPS pattern, ideal for attaching a C size drill-down ball base. Each magnet is rubber-coated to protect mounting surfaces, minimize harsh magnetic pull, and comes with an integrated handle for fast installation and removal. With its fully pivoting magnetic attachment points, this base provides unmatched versatility and secure mounting for any sturdy surface up to 6mm thick.

  • Three-point aluminum plate with 2 sets of 3 rubber coated external magnets for attaching to windows up to 6mm in thickness

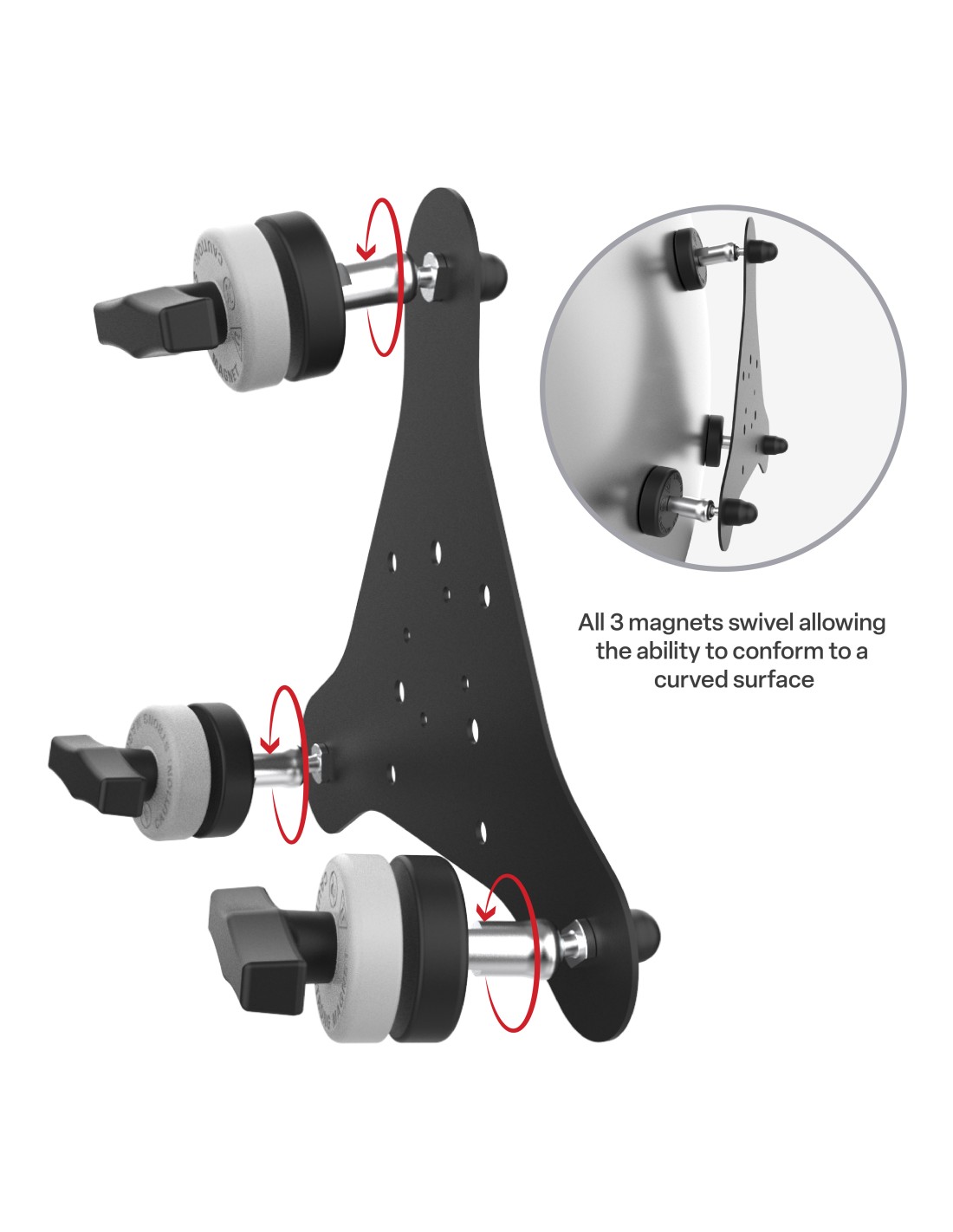

  • All 3 attachment points feature pivoting hardware that allows the base to confirm to a curved surface
  • 4-hole AMPS patterns for attaching C RAM® drill-down ball bases
  • External magnets include handles for ease of install
  • Backed by a lifetime warranty

Components
RAP-MAG48-PIV1U
Product Line
Tough-MagT
Product Type
Components

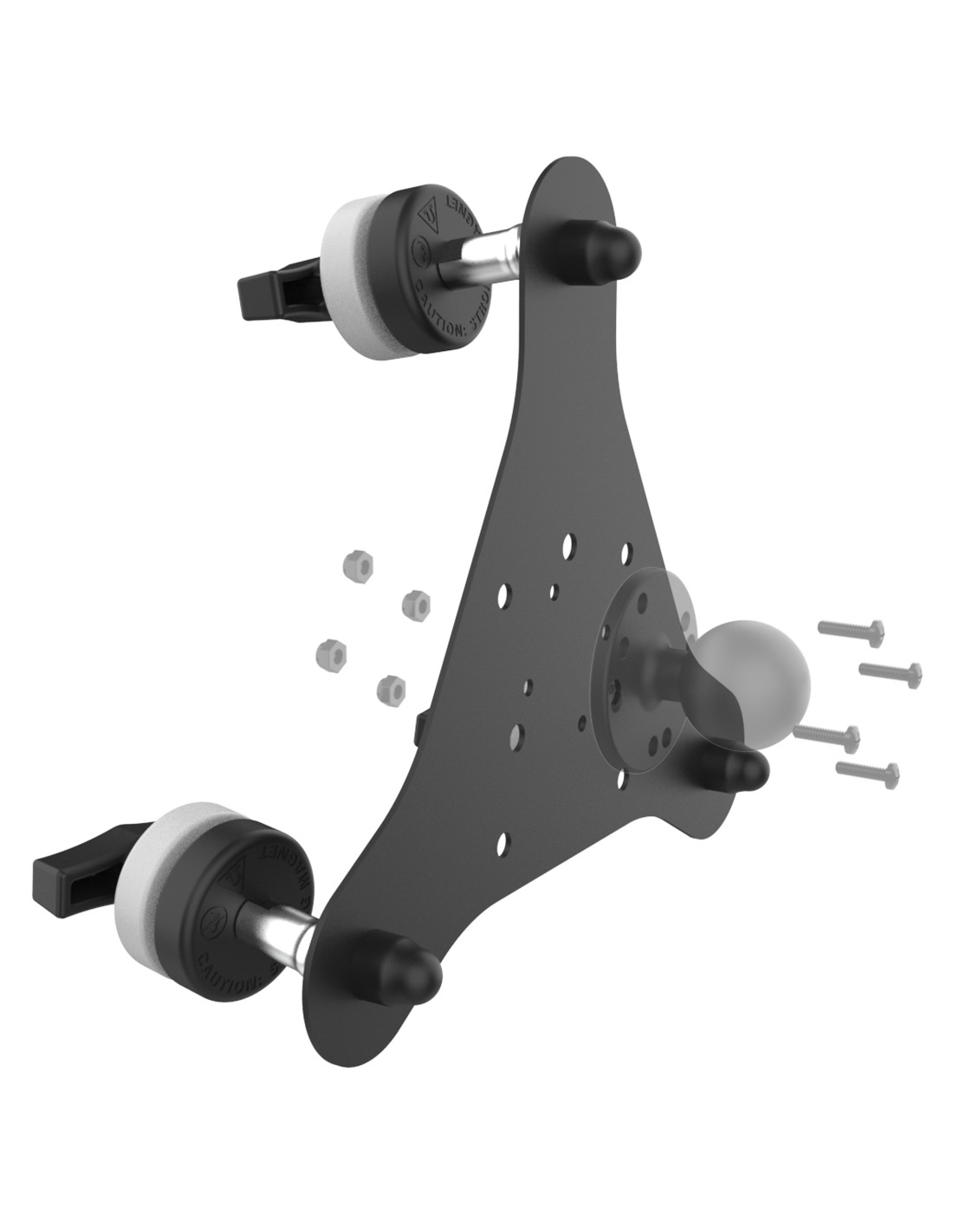

Hardware Included
Assembly Hardware
(4) #10-24 x 5/8" Machine Screws
(4) #10-24 Nylock Nuts
(3) 5/16"-18 x 1" Machine Screws
(3) 5/16" Nylock Nuts
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
75 x 75mm VESA
Packaging Type
Poly Bag
793442031960
