RAM-GDS-DOCK-W7-POEU-GRY

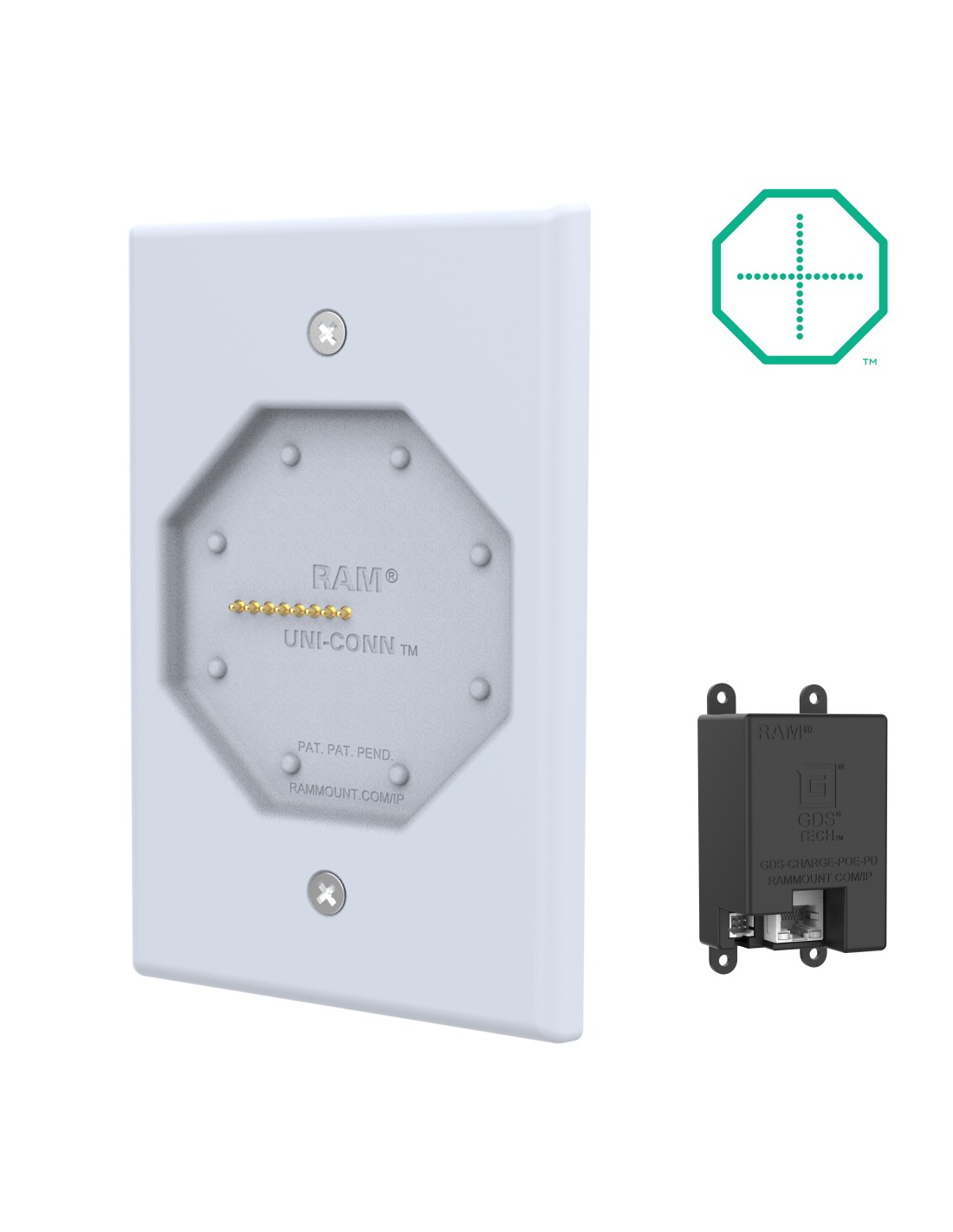

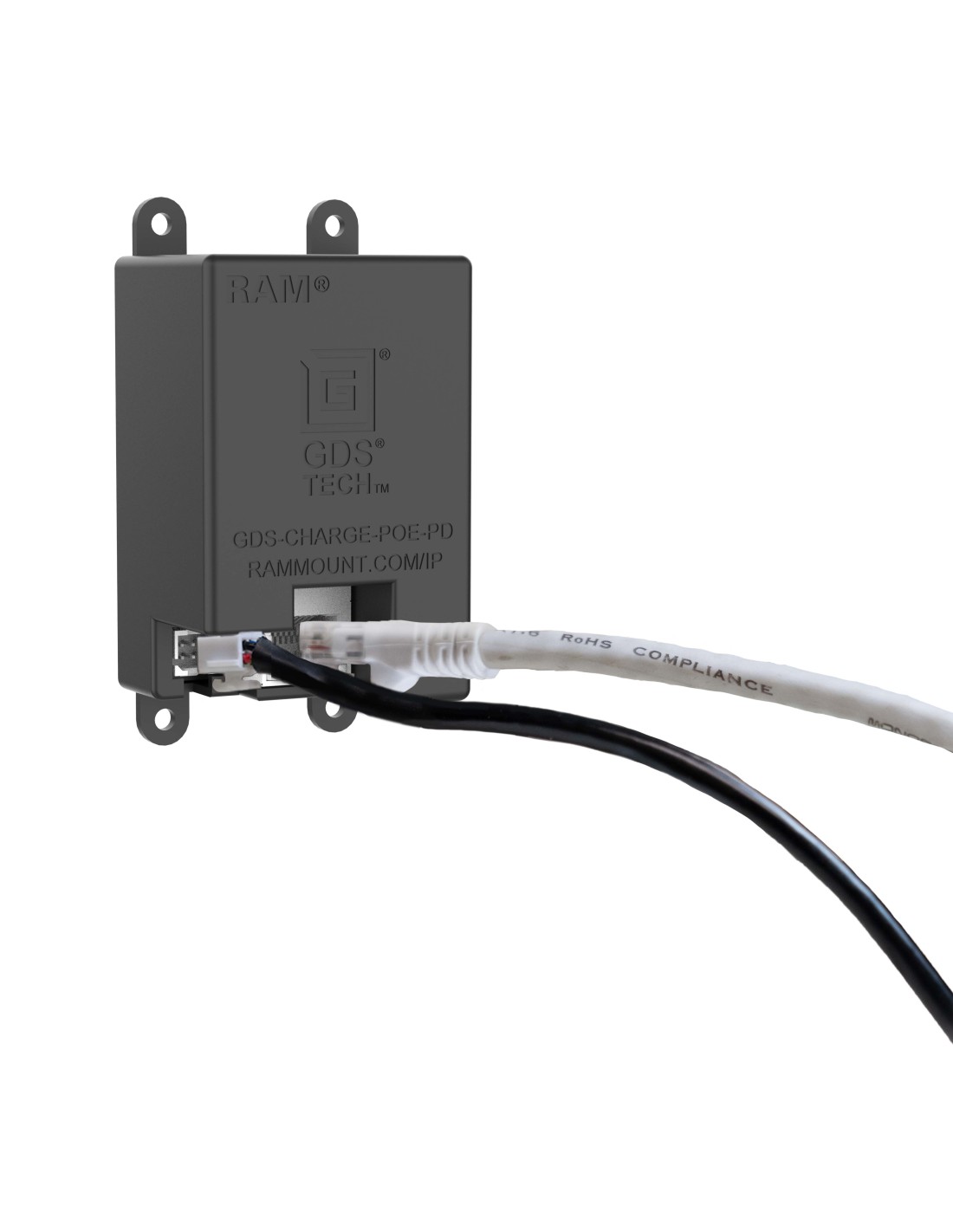

The GDS Uni-Conn Powered Low Profile Wall Dock with PoE - Gray (RAM-GDS-DOCK-W7-POEU-GRY) is a wall docking solution for devices enclosed in an IntelliSkin Thin-Case with Rear Pogo Pads. Power is provided to the pogo pins integrated into the GDS Uni-Conn adapter via the JST connector and PoE Adapter. This dock installs directly over a standard rectangular electrical outlet box. Easily dock and undock your device with the assistance of the magnetic attachment mechanism. The light gray aesthetic is ideal for sophisticated, bright workplaces in industries such as retail, medical, and more. One Dock to Connect Them All Always Protected. Always Connected.

  • Magnetic dock featuring GDS® TechnologyT uses an integrated pogo pin connector to provide high-speed charging

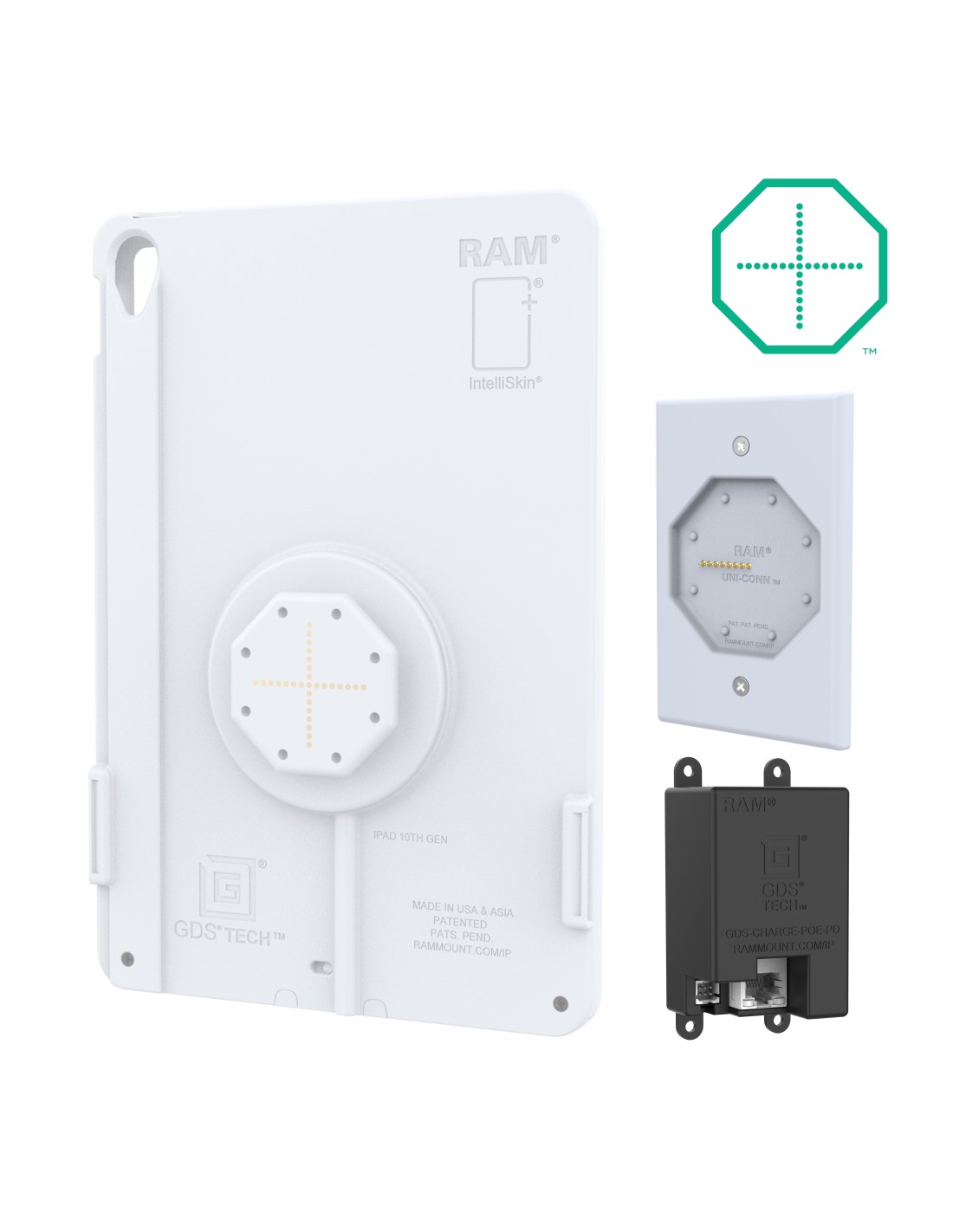

  • Designed for devices enclosed in the IntelliSkin® Thin-CaseT with Rear Pogo Pads
  • JST connector enables high-speed charging capabilities
  • Installs directly over standard outlet boxes
  • Backed by a 3-year warranty

Product Line
GDS® TechT Uni-ConnT
Product Type
Components
Hardware Included
(2) #6-32 x 7/8" Machine Screws
Hole Pattern
2-Hole: 3.281" (Standard Electrical Box)
Materials
High strength composite
Output Voltage
PD 3.0:
5V @ 3A
9V @ 2.22A
12V @ 1.67A
Packaging Type
Box
Power Output
20W Max
Power Specifications
Required Input: POE+ (802.3at) or greater
Product Weight
0.45 lb
Transfer Speed
10/100Mbps
793442029738
