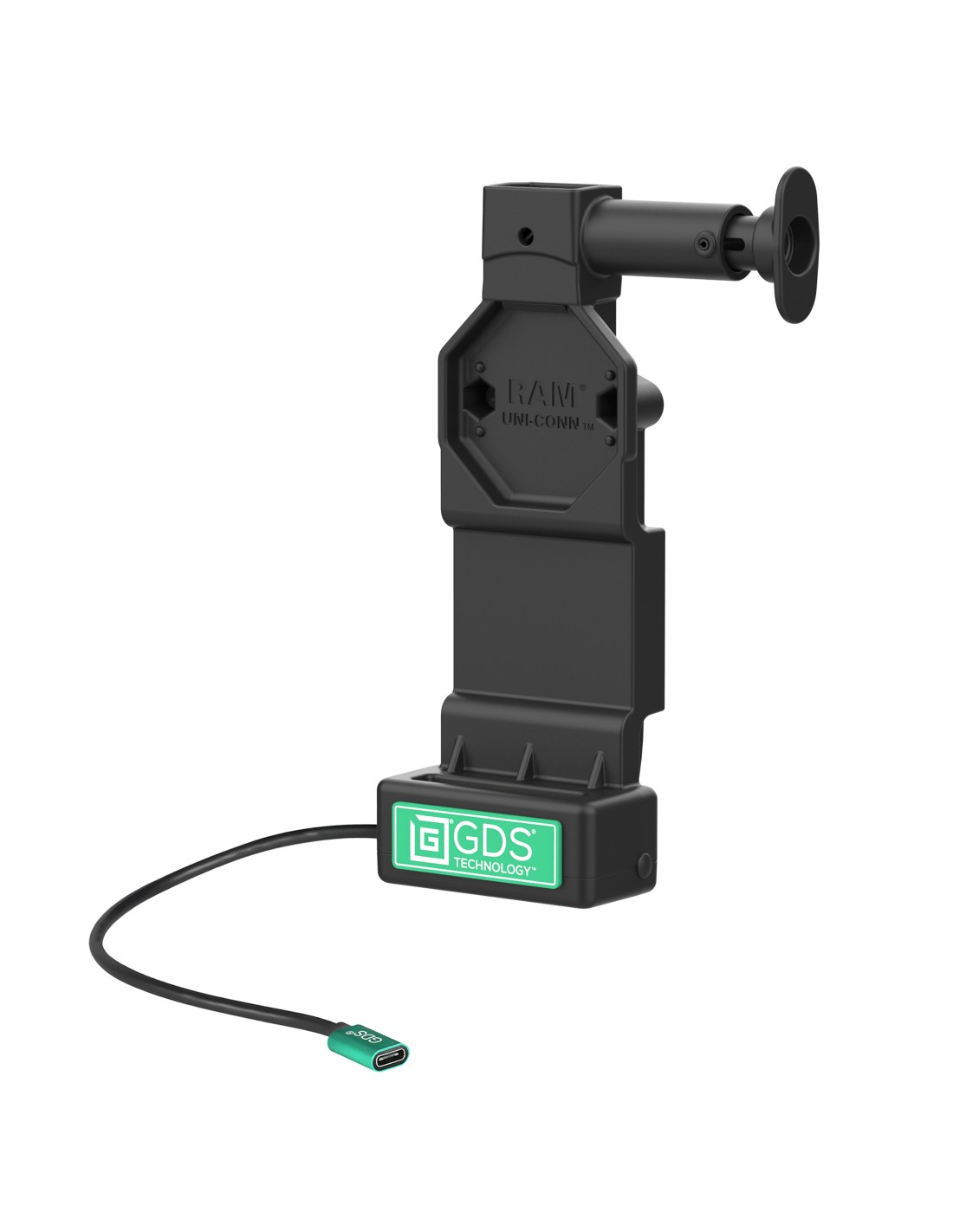

GDS® Uni-ConnT Dock with Release Button

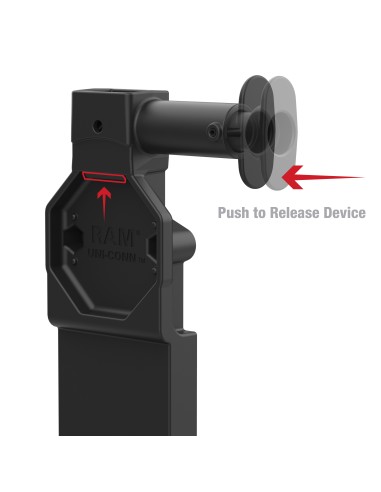

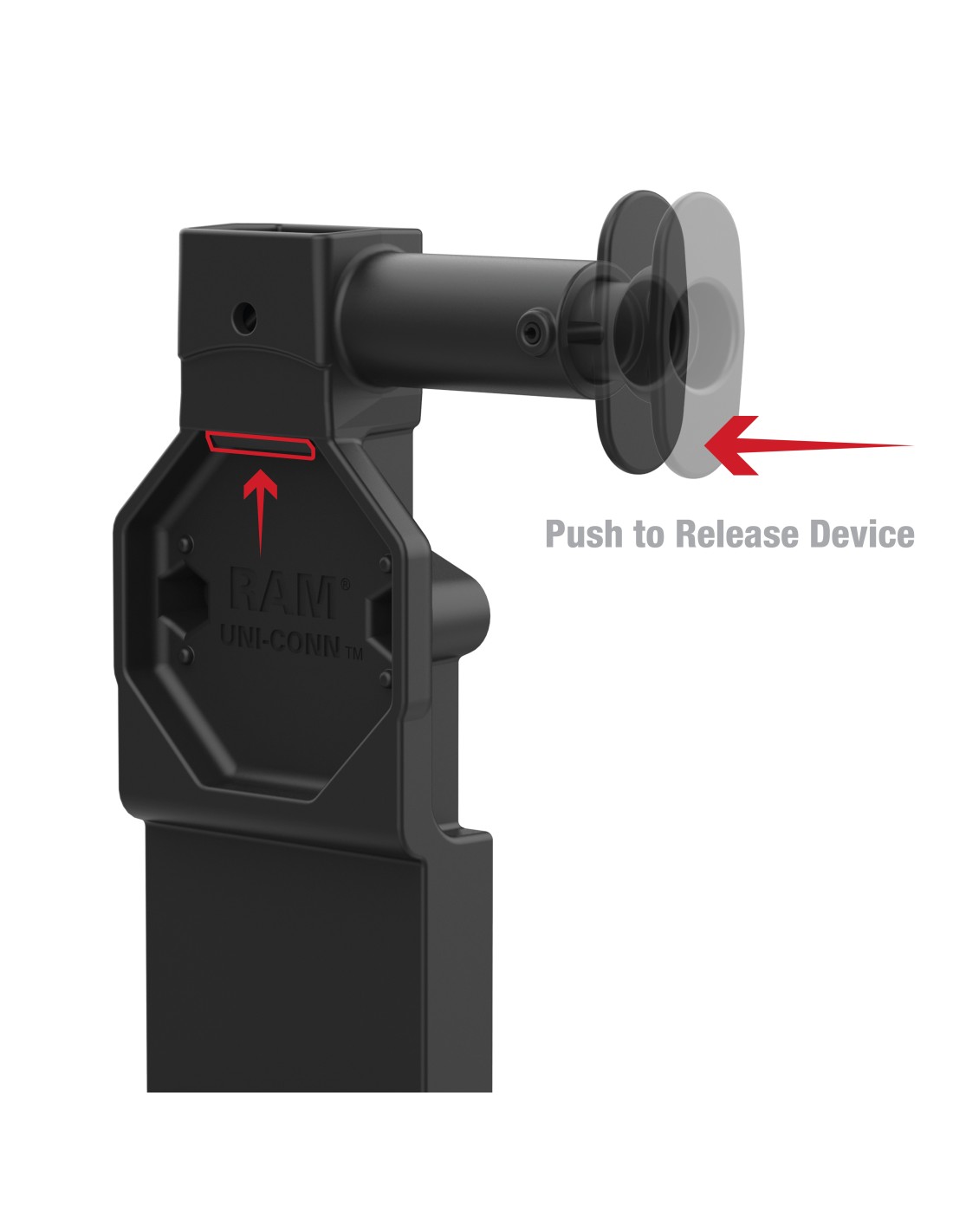

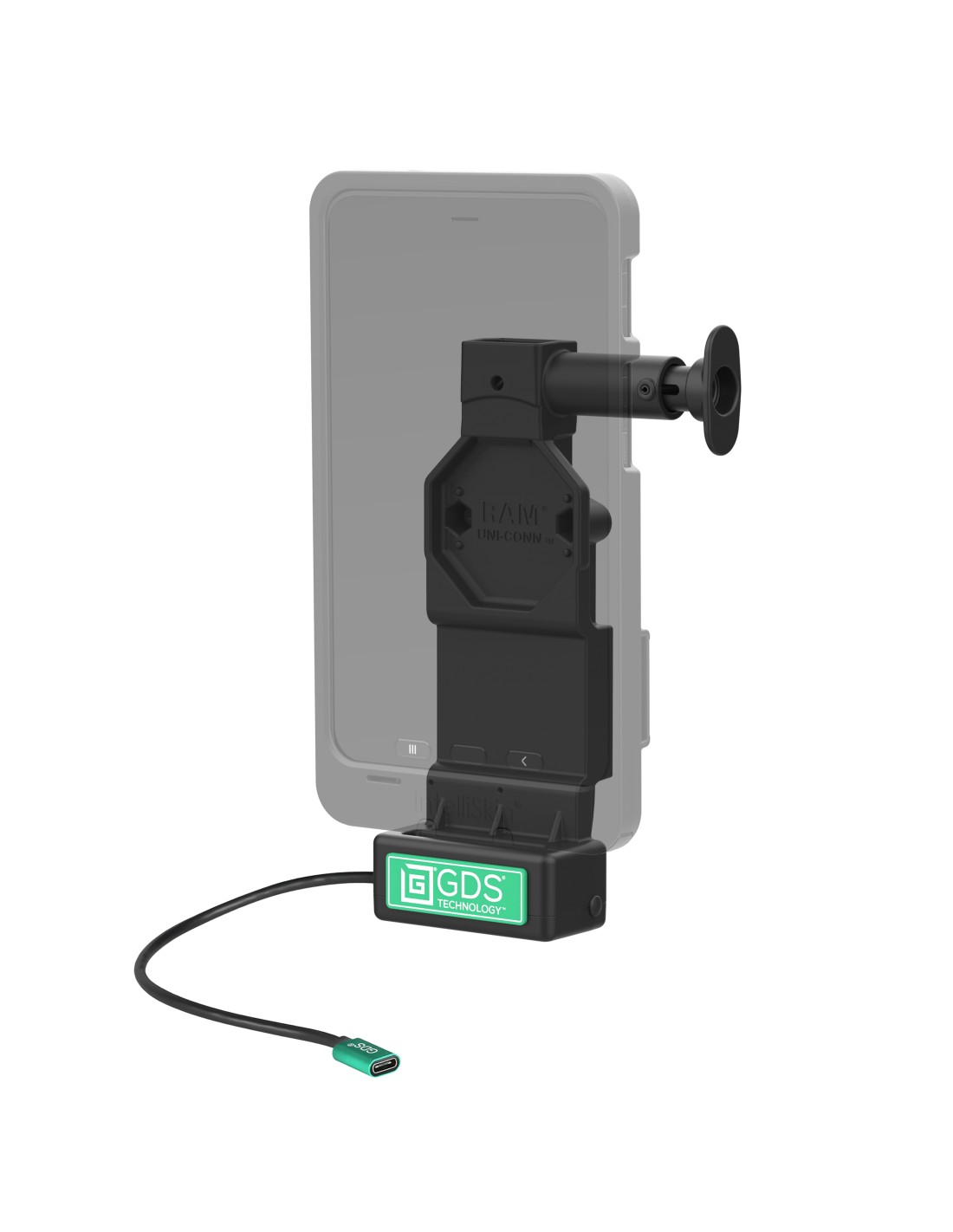

The GDS Uni-Conn Dock with Release Button (RAM-GDS-DOCK-U4CPU) is a revolutionary universal docking platform. This quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a release button frees the tablet. The docking station requires the GDS Uni-Conn adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin-wrapped device. The GDS Uni-conn dock is backed by a 3-year warranty. Always Protected. Always Connected. One Dock to Connect Them All.

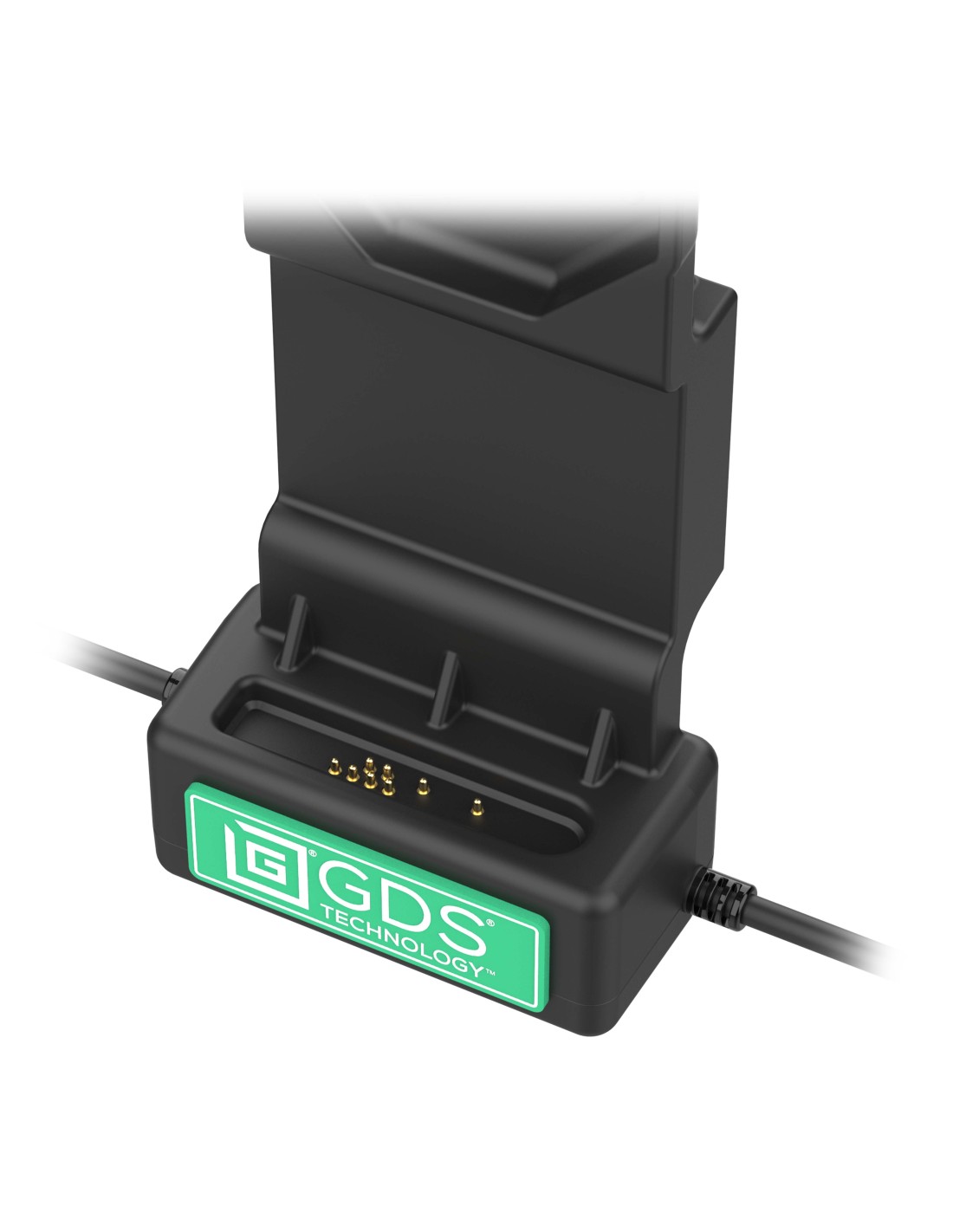

- Snap-in dock featuring GDS® TechnologyT uses an integrated pogo pin connector to provide high-speed charging

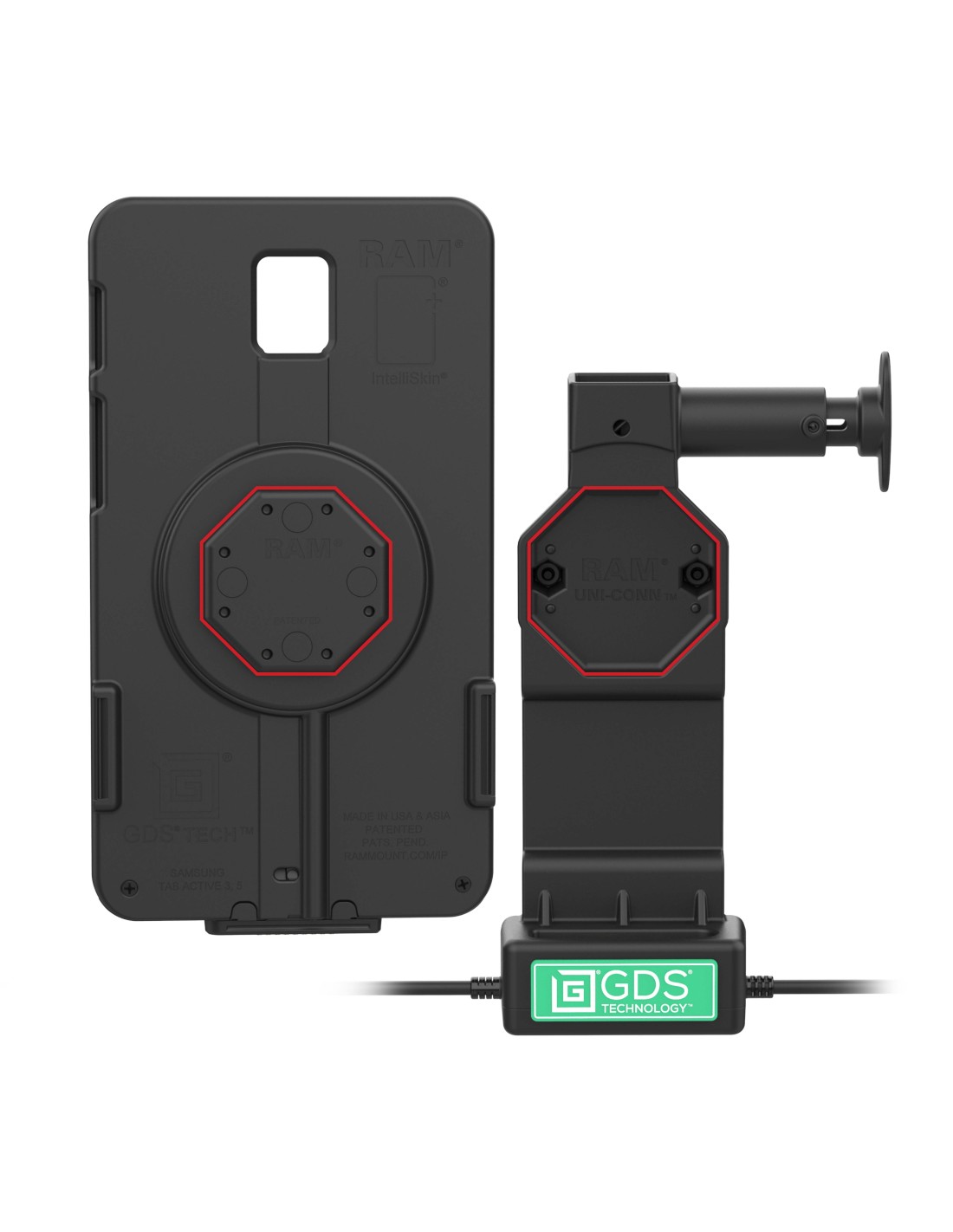

- Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-ConnT Adapter installed
- USB Type-C Female connector provides high-speed charging to the dock
- RAM® Mounts CompatibleT
- Backed by a 3-year warranty
- Product Line
- GDS® TechT Uni-ConnT
- Product Type
- Components
- Hardware Included
- (2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit - Hole Pattern
- 2-Hole AMPS: 1.912"
- Input Cable Length
- 215mm
- Input Connector
- USB Type-C
- Materials
- High strength composite
- Output Voltage
- 5V - 12V @ 3A
- Packaging Type
- Poly Bag
- Power Output
- 15W
