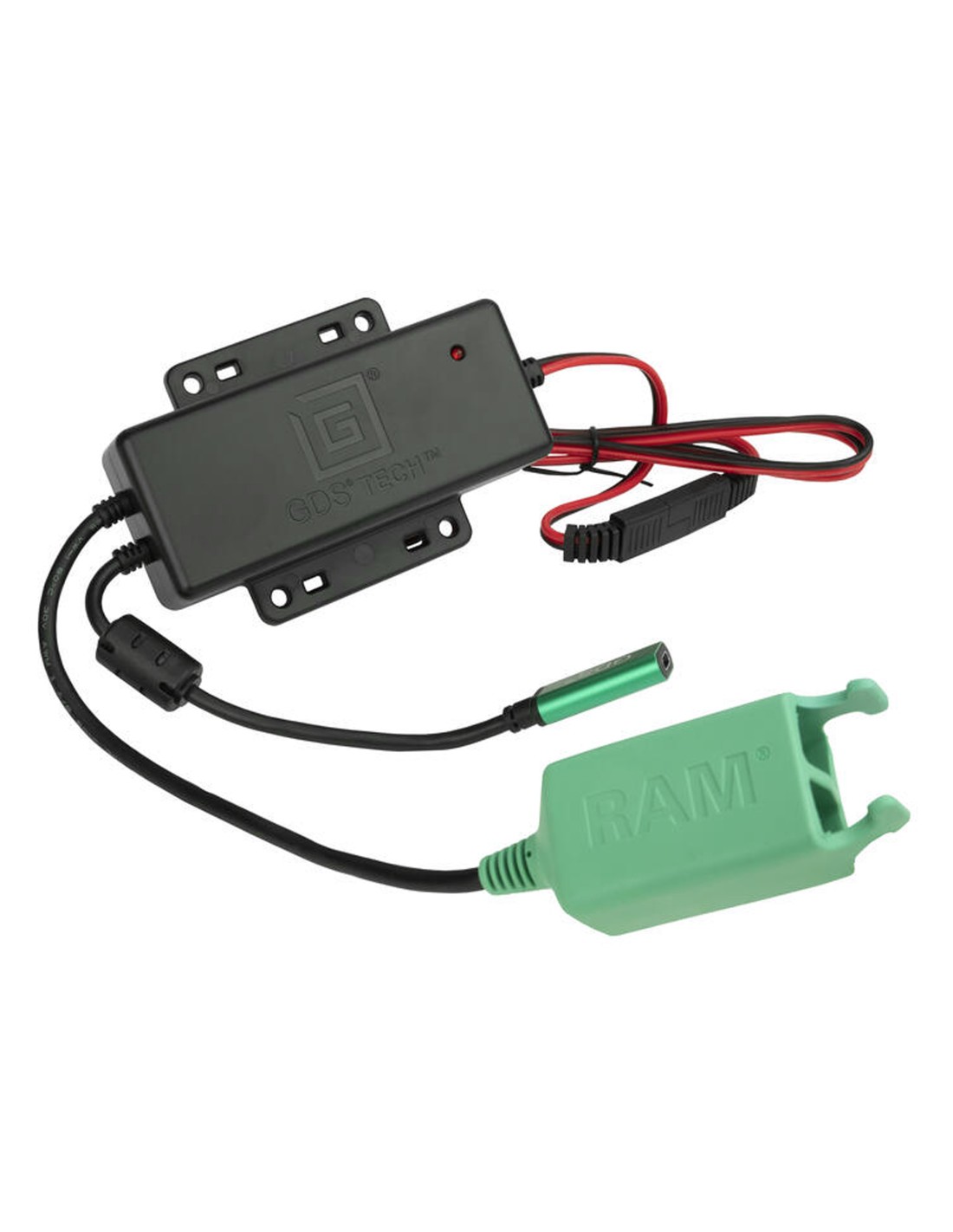

GDS® Hardwire Charger with USB Type-C & Dual USB Type A Ports
  • Nuevo
GDS® Hardwire Charger with USB Type-C & Dual USB Type A Ports

GDS® Hardwire Charger with USB Type-C & Dual USB Type A Ports

RAM-GDS-CHARGE-V3FCA2-2U


The GDS hardwire charger with USB Type-C female connector and dual USB Type-A port is the ideal solution for providing power to any Type-C GDS vehicle solution, while also allowing for the use of up to two USB Type-A peripherals such as keyboards, mice, printers, barcode scanners, or vehicle docks. By connecting directly to the power source of your vehicle, the GDS Charge accessory delivers USB Type-C power to your device with an input voltage of 10-28V, and allows you to connect up to two USB 2.0 accessories. Avoid rewiring when changing or upgrading devices by simply unplugging the power connector and installing a new GDS Charge accessory. Always Protected. Always Connected.

  • Hardwire charger includes USB Type-C female connection and dual USB Type-A female connector with an input voltage of 10-28V
  • Connect up to two peripherals to dual USB Type-A ports such as keyboards, mice, barcode scanners, vehicle docks and more
  • When upgrading devices, avoid rewiring by unplugging power connector and attaching new charger components
  • Part of the GDS® EcosystemT to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

Product Line
GDS® ChargeT GDS® TechT
Product Type
Components
Certifications
FCC, IC, CE RCM, WEEE, RoHS Compliant
USB Power Delivery 2.0 and 3.0 Support
Input Cable Length
1.2 Meters including 2 Pole Flat Marine Connector
Input Connector
Data: Dual USB Type A (500ma each)
Power: Female USB Type-C
Input Voltage
10-28VDC
Operating Temperature
-20°C to +70°C
Output Cable Length
150mm
Output Voltage
5V @ 1A (5W)
9V @ 2A (18W)
12V @ 2A (24W)
Packaging Type
Poly Bag
Product Weight
0.54 lb
Regulatory
Meets SAE J-1113 5a, Integrated Short Circuit Protection (SCP), Integrated Over Voltage Protection (OVP)
Storage Temperature
-40°C to +85°C
793442031410
