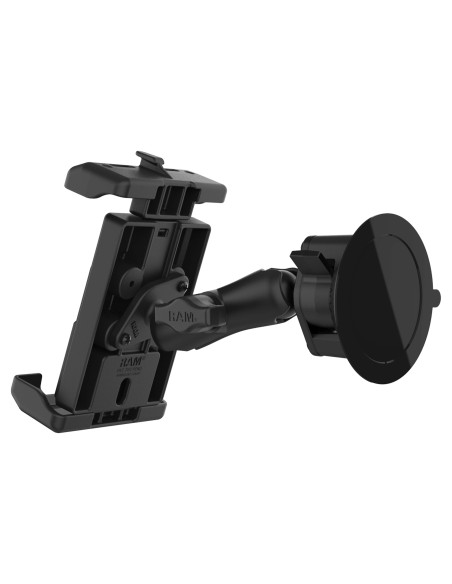

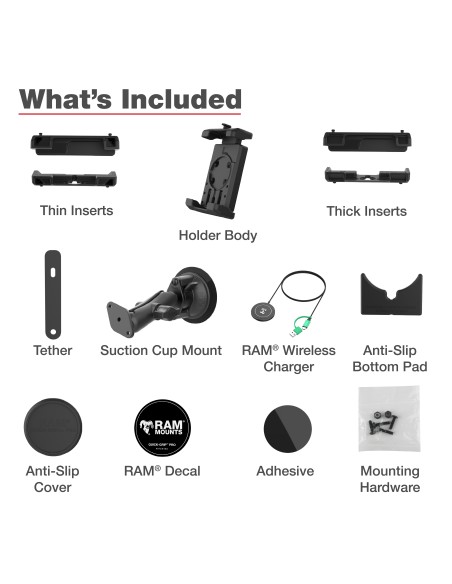

RAM® Quick-GripT Pro XL Suction Cup Mount with Qi2 15W Wireless Charger

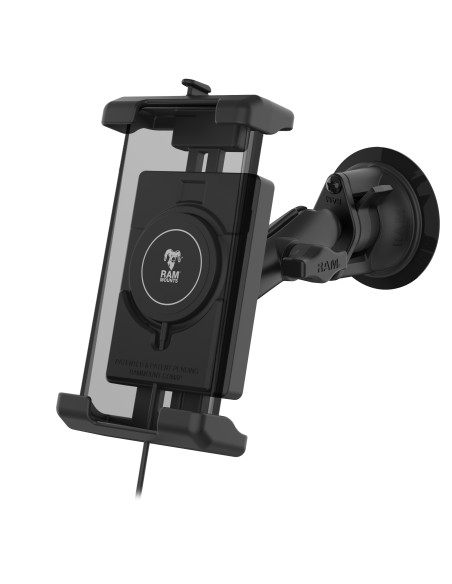

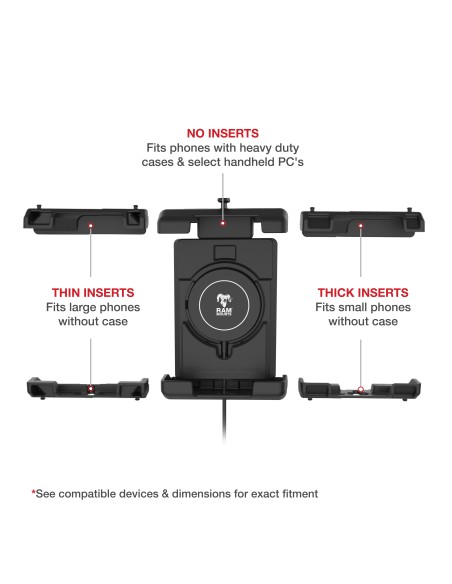

The RAM Quick-Grip Pro XL Suction Cup Mount with Qi2 15W Wireless Charger (RAM-B-166-PD7-W2MU) is the next evolution of the RAM Quick-Grip series, re-designed to be the most rugged universal phone holder that fits a wide range of phones and handheld devices. This phone holder comes with the RAM Qi2 wireless charger and features an integrated cavity to secure it in place. This phone holder comes with an anti-slip cover ensuring a flush fit when the wireless charging puck is not installed. The RAM Quick-Grip Pro XL features a spring-loaded design that allows easy one-handed insertion and removal of your device. Large and small shims are included to provide a snug, secure fit for large and small phones without a case. This kit includes a 3.3" diameter RAM Twist-Lock suction cup base that easily installs onto any non-porous surface. RAM recommends installing the provided device tether when this holder is used in a vehicle with an open cockpit. It is important to verify the dimensions of your handheld device with its case, sleeve, or skin when determining the overall size.

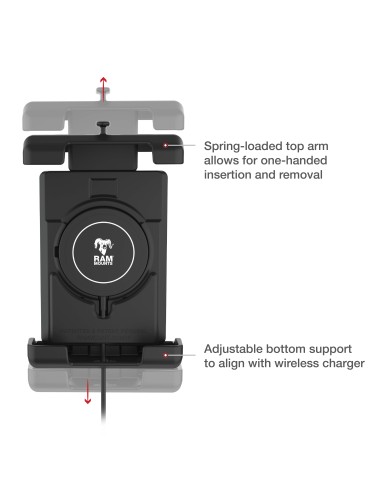

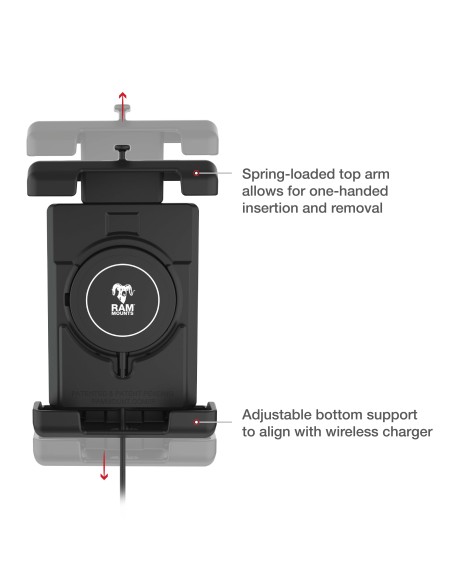

- Spring-loaded holder provides a secure hold for phones and handheld devices; easily insert and remove your phone with one hand
- Includes RAM® Twist-LockT suction cup base ideal for vehicle windshields and medium length, B size RAM® double socket arm; ball and socket technology allows for near-infinite adjustability

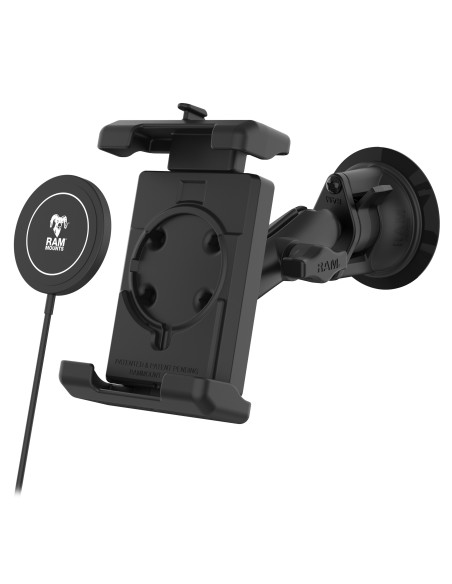

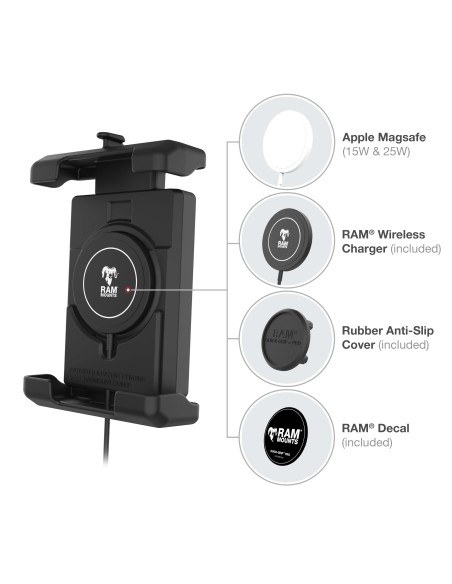

- Includes RAM® Qi2 wireless charger that fits seamlessly in the integrated center cavity
- Made of high-strength composite for durability and reliability in the most demanding environments
- Mounting components backed by a lifetime warranty; electronics backed by a 3-year warranty

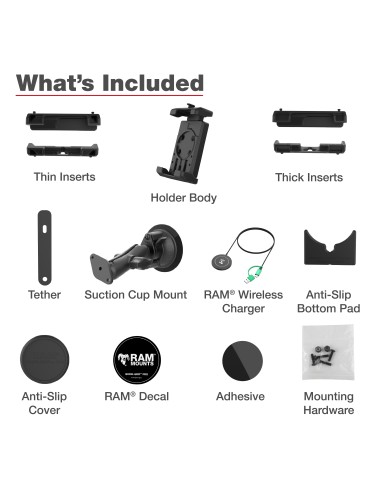

- Components
- RAM-B-166U
RAM-GDS-CHARGE-W2M
RAM-HOL-PD7U - Product Line
- Quick-GripT Pro XL Twist-LockT
- Product Type
- Phone Mounts
- Ball Size
- B Size (1")
- Certifications
- CE Certification
E-Mark Certification
FCC Certification
IP67
RCM Certification
SAE J1455 - Hardware Included
- Assembly Hardware
- Holder Dimensions
- Height Range: 5.375" - 7"
Max Depth: .75"
Width Range: 2.75" - 3.5" - Input Voltage
- QC2.0 9V @ 2.22A
USB 5V @ 3A
USB PD 2.0 5-15V @ 2A - Materials
- High strength composite
Marine-grade aluminum - Operating Temperature
- 0°C to +40°C
- Output Cable Length
- 1 Meter
- Output Connector
- USB Type-C Male with USB-A Adapter
- Packaging Type
- Poly Bag
- Power Output
- BPP - 5W
EPP - 7.5W
MPP - 15W - Power Specifications
- 80% Wireless Power Transfer Efficiency or Greater
Operating Frequency: 360KHZ
Stand-by Consumption ~ 0.008A / 8mA @5VDC
Supports Qualcomm QC 2.0, QC 2.0, USB PD 2.0
Supports USB 2.0 BC1.2 Power Supply (5V) - Regulatory
- Over Current Protection
Over Temperature Protection
RoHS Compliance
Short Cirtcuit Protection
WEEE Compliance - Socket To Socket Length
- 3"
- Storage Temperature
- -20°C to +80°C
- Suction Size
- 3.3" Diameter
- Weight Capacity
- Heavy-Duty Use: 1 lb
Standard Use: 2 lbs - Device Compatibility
- Apple iPhone 8
Apple iPhone 8 Plus
Apple iPhone 11
Apple iPhone 11 Pro
Apple iPhone 11 Pro Max
Apple iPhone 12
Apple iPhone 12 Pro
Apple iPhone 12 Pro Max
Apple iPhone 13
Apple iPhone 13 Pro
Apple iPhone 13 Pro Max
Apple iPhone 14
Apple iPhone 14 Plus
Apple iPhone 14 Pro
Apple iPhone 14 Pro Max
Apple iPhone 15
Apple iPhone 15 Plus
Apple iPhone 15 Pro
Apple iPhone 15 Pro Max
Apple iPhone 16
Apple iPhone 16 Plus
Apple iPhone 16 Pro
Apple iPhone 16 Pro Max
Apple iPhone 16e
Apple iPhone 17
Apple iPhone 17 Pro
Apple iPhone 17 Pro Max
Apple iPhone Air
Apple iPhone SE
Apple iPhone X
Apple iPhone Xr
Apple iPhone Xs
Apple iPhone Xs Max
Blackberry Evolve X
Google Pixel 3
Google Pixel 3 XL
Google Pixel 4
Google Pixel 4 XL
Google Pixel 5
Google Pixel 6
Google Pixel 6 Pro
Google Pixel 7
Google Pixel 7 Pro
Google Pixel 8
Google Pixel 8 Pro
Google Pixel 9
Google Pixel 9 Pro
Google Pixel 9 Pro XL
Google Pixel 9a
Huawei Mate 20 Pro
Huawei P30 Pro
LG G6
LG G6 Plus
LG G7 ThinQ
LG G8 ThinQ
LG G8S ThinQ
LG V30
LG V35 ThinQ
LG V40 ThinQ
LG V50 ThinQ
Nokia 8 Sirocco
Nokia 9 PureView
Panasonic Eluga X1 Pro
Razer Phone 2
Samsung Galaxy Note 8
Samsung Galaxy Note 9
Samsung Galaxy Note 10
Samsung Galaxy Note 10 Plus
Samsung Galaxy Note 20
Samsung Galaxy Note 20 Ultra
Samsung Galaxy S8
Samsung Galaxy S8 Active
Samsung Galaxy S8 Plus
Samsung Galaxy S9
Samsung Galaxy S9 Plus
Samsung Galaxy S10
Samsung Galaxy S10 5G
Samsung Galaxy S10 Plus
Samsung Galaxy S10e
Samsung Galaxy S20 5G
Samsung Galaxy S20 FE 5G
Samsung Galaxy S20 Plus 5G
Samsung Galaxy S20 Ultra 5G
Samsung Galaxy S21 5G
Samsung Galaxy S21 Plus 5G
Samsung Galaxy S21 Ultra 5G
Samsung Galaxy S22 5G
Samsung Galaxy S22 Plus 5G
Samsung Galaxy S22 Ultra 5G
Samsung Galaxy S23
Samsung Galaxy S23 Plus
Samsung Galaxy S23 Ultra
Samsung Galaxy S24
Samsung Galaxy S24 Plus
Samsung Galaxy S24 Ultra
Samsung Galaxy S25
Samsung Galaxy S25 Plus
Samsung Galaxy S25 Ultra
Sony Xperia XZ2
Sony Xperia XZ3
Xiaomi Mi 9
Xiaomi Mi 9 Explorer
Xiaomi Mi Mix 2S
Xiaomi Mi Mix 3
