RAM® USB-C Powered Dock & Dashboard Mount Kit for Zebra EM45

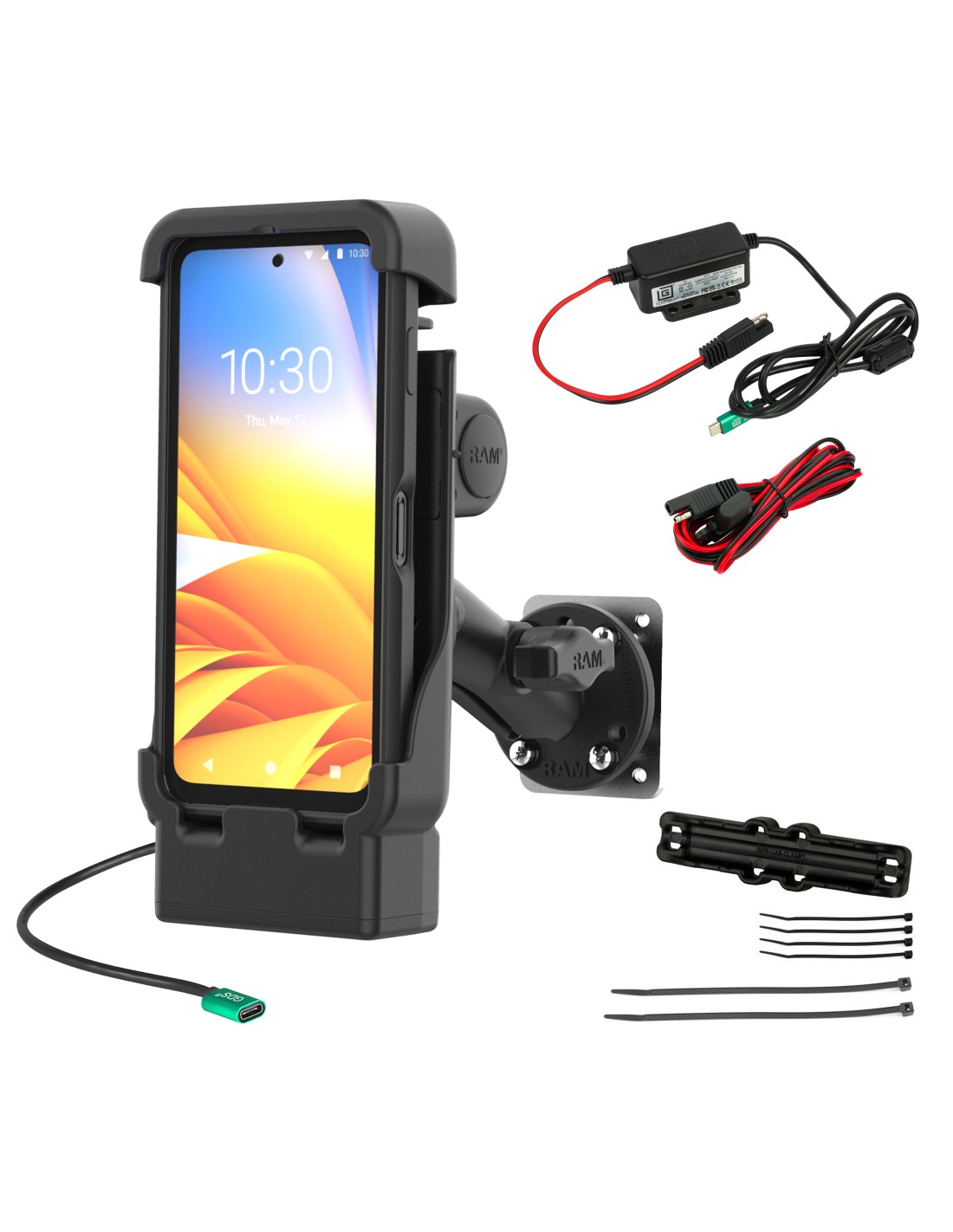

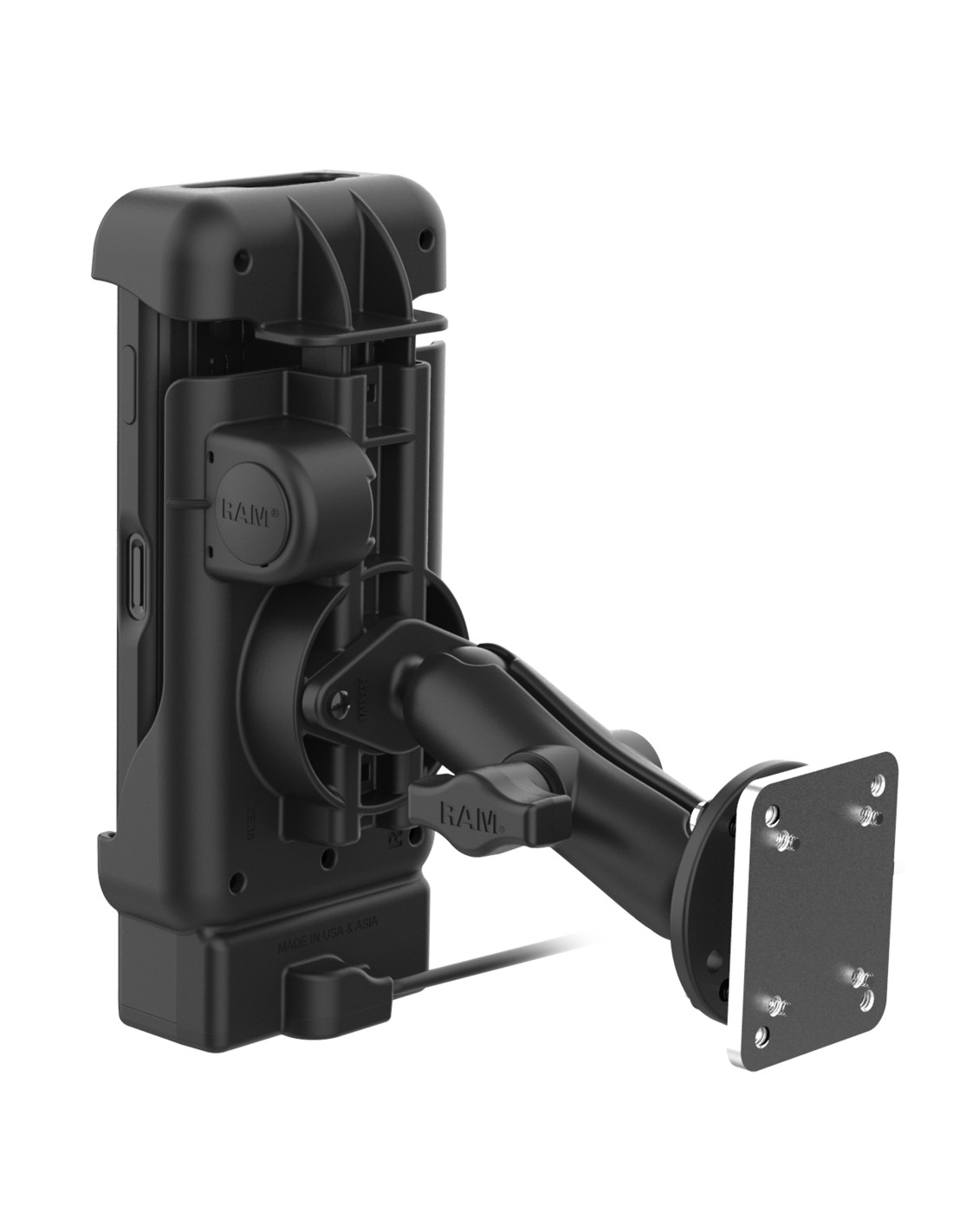

The RAM USB-C Powered Dock & Dashboard Mount Kit for Zebra EM45 (RAM-B-101-225B2-ZE38-V3CU) is a comprehensive kit of everything needed to deploy the Zebra EM45 in your fleet. It contains one RAM Powered Vehicle Dock and double ball mount with backing plate. The dock uses a USB Type-C female power connector and provides power to the device via direct USB-C connection that's tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The RAM Vehicle Dock is backed by a 3-year warranty.

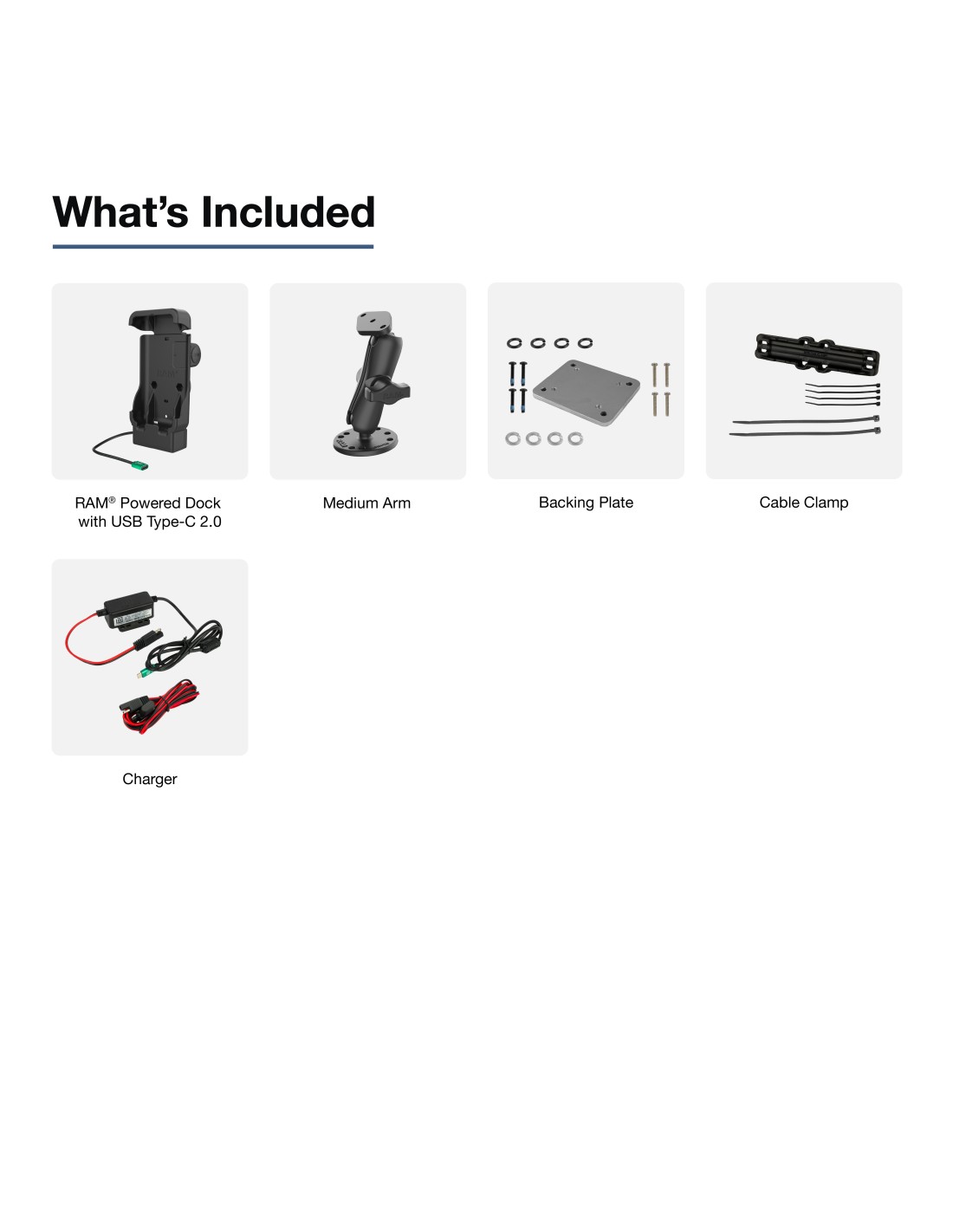

- Bundle includes the RAM® Vehicle Dock, B size double ball mount with medium arm, backing plate adapter, hardwire charger, and cable clamp
- Spring-loaded powered dock featuring USB-C device connection designed for the Zebra EM45
- Back cavity accommodates OEM ergonomic accessories
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
- Components
- RAM-B-138U-225B2
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CHARGE-V3C-3U
RAM-HOL-V15-ZE38PU - Product Type
- Phone Mounts
- Ball Size
- B Size (1")
- Certifications
- CE Certification
FCC Certification
RCM Certification
UL 62368-1 Certificaton - Hardware Included
- (1) 2.10" x 2.60" Steel Backing Plate
(4) #8 Flat Washers
(4) #8 Split Lock Washers
(4) #8-32 x 1" Screws
Assembly Hardware - Input Cable Length
- 2.5 Meters
- Input Connector
- Bare Wire
- Input Voltage
- 10-30VDC
- Materials
- High strength composite
Marine-grade aluminum
Steel - Operating Temperature
- -20°C to +70°C
- Output Cable Length
- 1 Meter
- Output Connector
- USB Type-C Male
- Output Current
- 3A max
- Output Voltage
- 5-15VDC
- Packaging Type
- Poly Bag
- Product Weight
- 2.06 lb
- Regulatory
- Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance - Socket To Socket Length
- 3"
- Storage Temperature
- -40°C to +85°C
- Weight Capacity
- Heavy-Duty Use: 1 lb
Standard Use: 2 lbs - Device Compatibility
- Zebra EM45
