RAM-HOL-ZE39-GRY

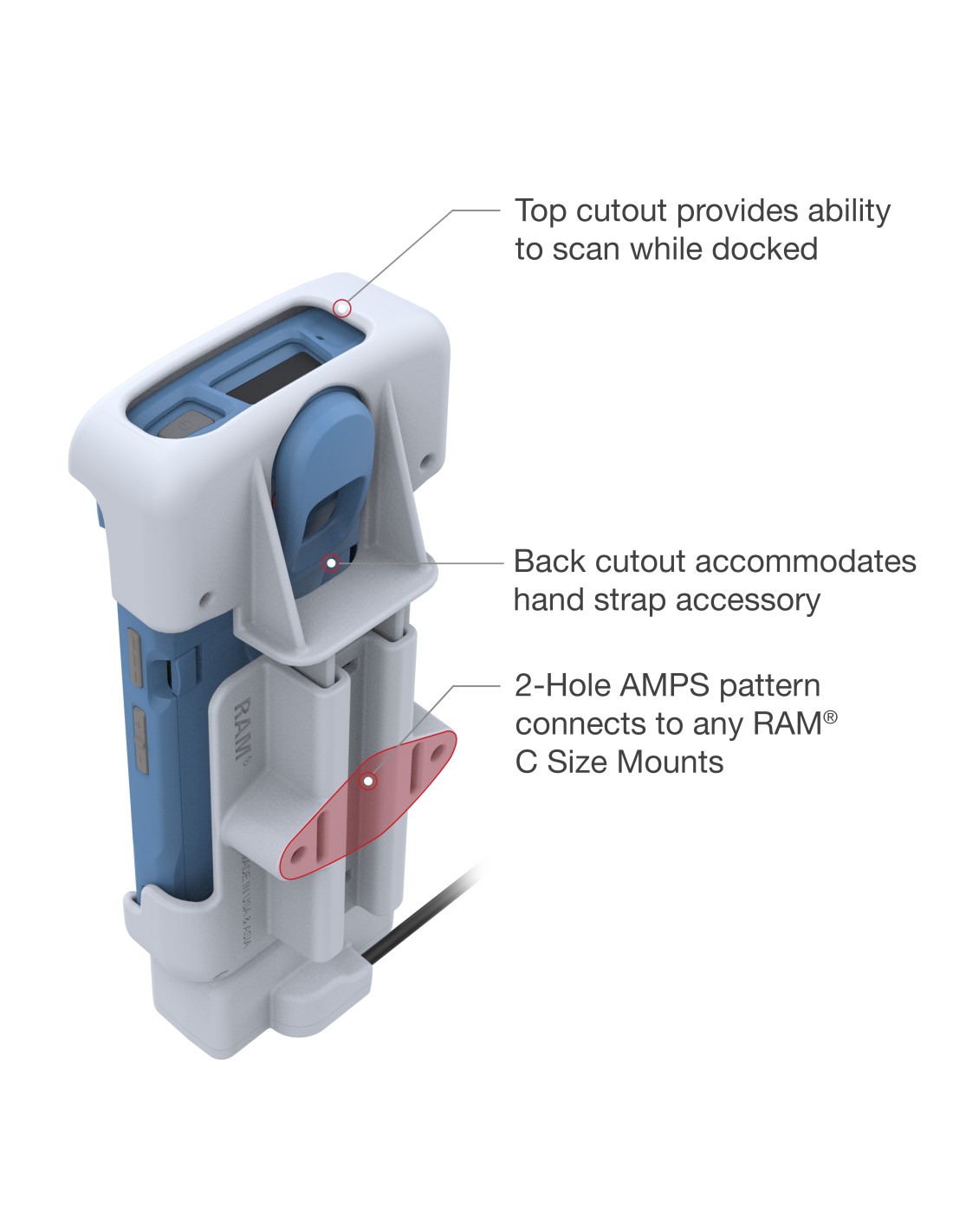

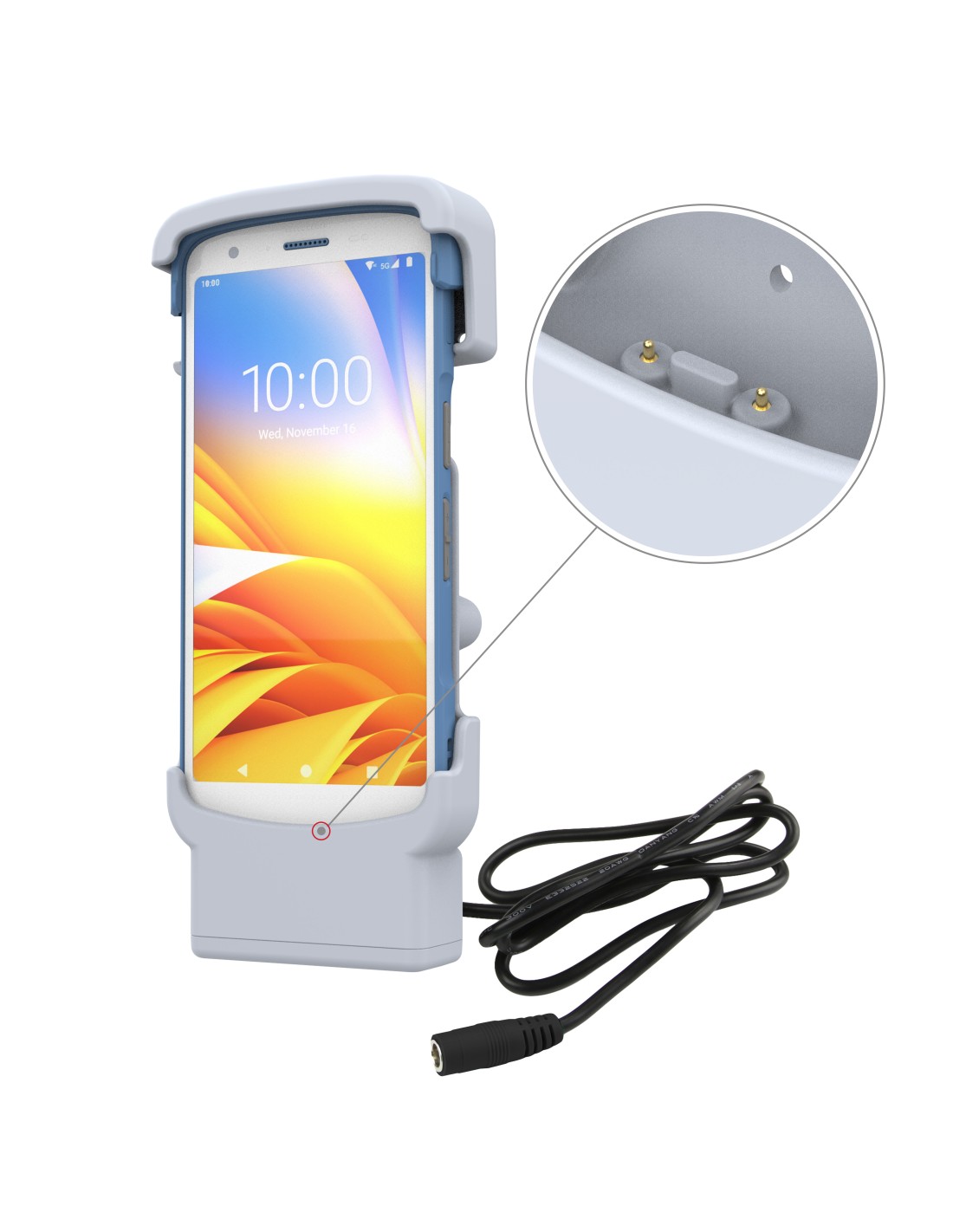

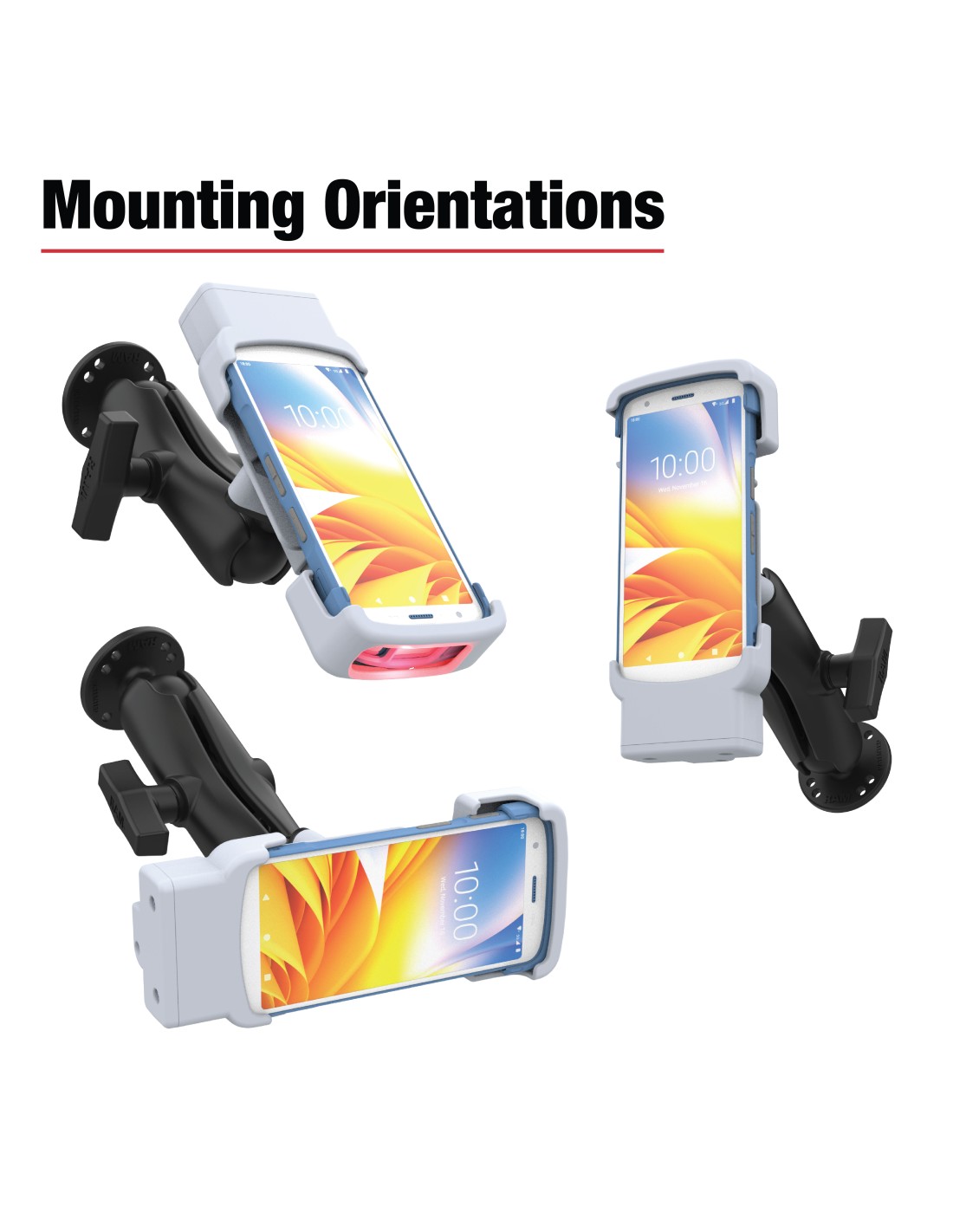

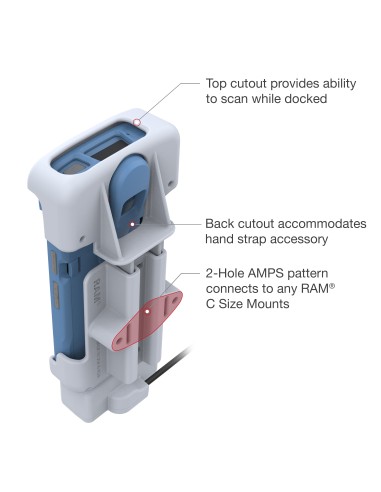

The RAM Powered Dock with Pogo Pins for Zebra HC20 & HC50 (RAM-HOL-ZE39-C-GRY) is a rugged, healthcare-grade docking solution purpose-built for demanding medical workflows. Designed with a form-fit cradle, this dock keeps all device buttons accessible and includes a strategic top cutout to enable barcode scanning while dockedideal for fast-paced patient care environments. Engineered with smooth surfaces and minimal crevices, this dock is easy to clean and disinfect, supporting infection control protocols. It delivers power via two pogo pins that align perfectly with the pogo pads found on the device. This dock integrates seamlessly with RAM's modular mounting system, offering flexible installation optionsincluding bedside, cart, or wall-mounted orientations. You can even mount it upside down for ergonomic scanning. Built from high-strength composite materials, this dock provides long-lasting durability and performance in any healthcare setting.

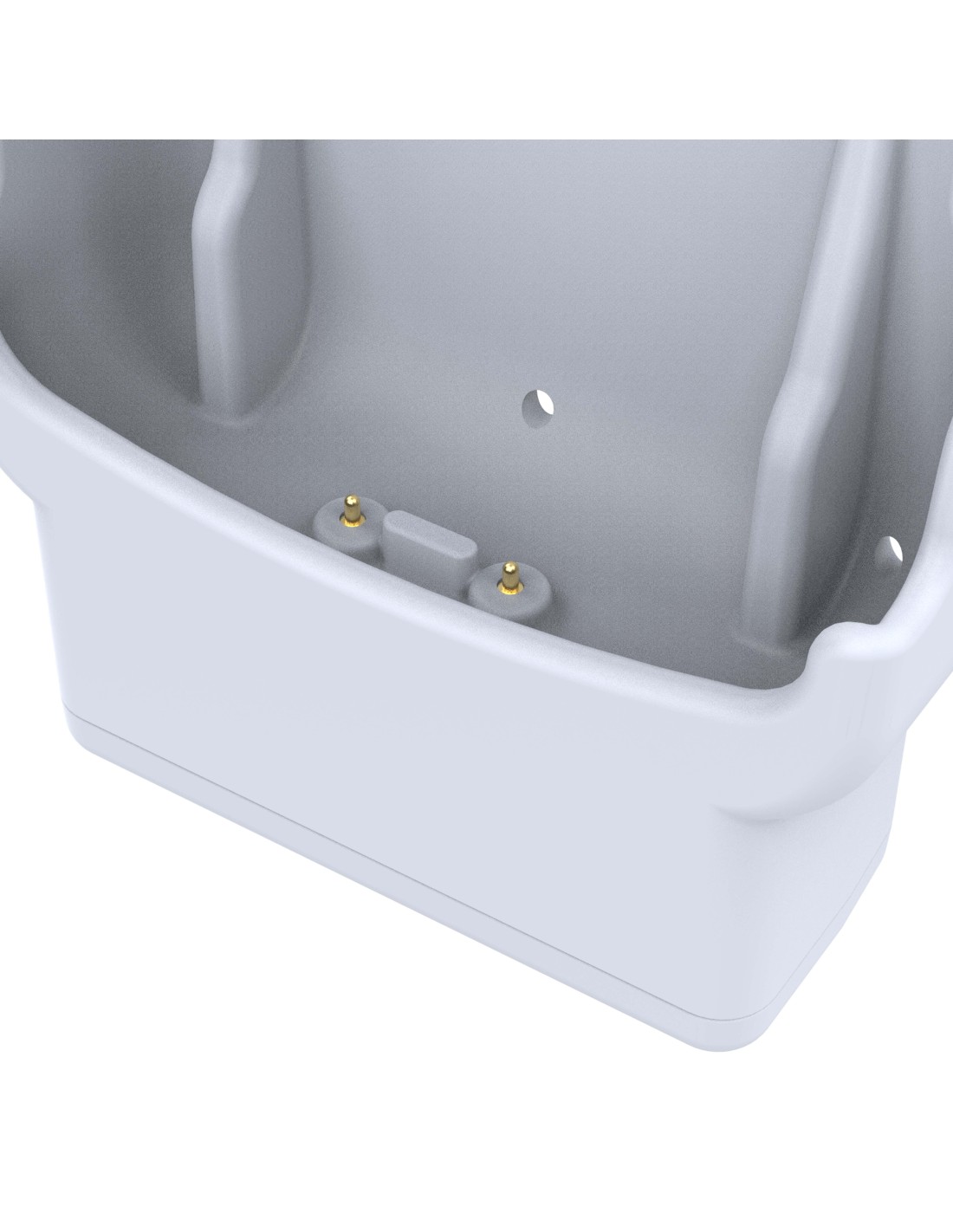

  • Spring-loaded powered dock featuring pogo-pin device connection designed for the Zebra HC20 & HC50
  • Back cavity accommodates OEM ergonomic accessories
  • Compatible with RAM® diamond bases for attaching a double socket arm; ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

Product Type
Components
Hardware Included
(1) Cable Clamp Kit
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
Hole Pattern
2-Hole AMPS: 1.912"
Input Connector
5.5mm DC Connector
Input Voltage
5V @ 1.6A
Materials
High strength composite
Packaging Type
Poly Bag
Power Output
9W
Transfer Speed
USB 2.0 (480Mbps)
Device Compatibility
Zebra HC20
Zebra HC50
793442029134
