GDS® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
The GDS Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro (RAM-GDS-V15-SAM84-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the XCover7 Pro & 6 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a GDS Dock, IntelliSkin for the Samsung XCover7 Pro & 6 Pro, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-C female power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects plugs directly into the second hardwire charger for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide consistent power to the IntelliSkin-protected XCover7 Pro & 6 Pro, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams. Always Protected. Always Connected.

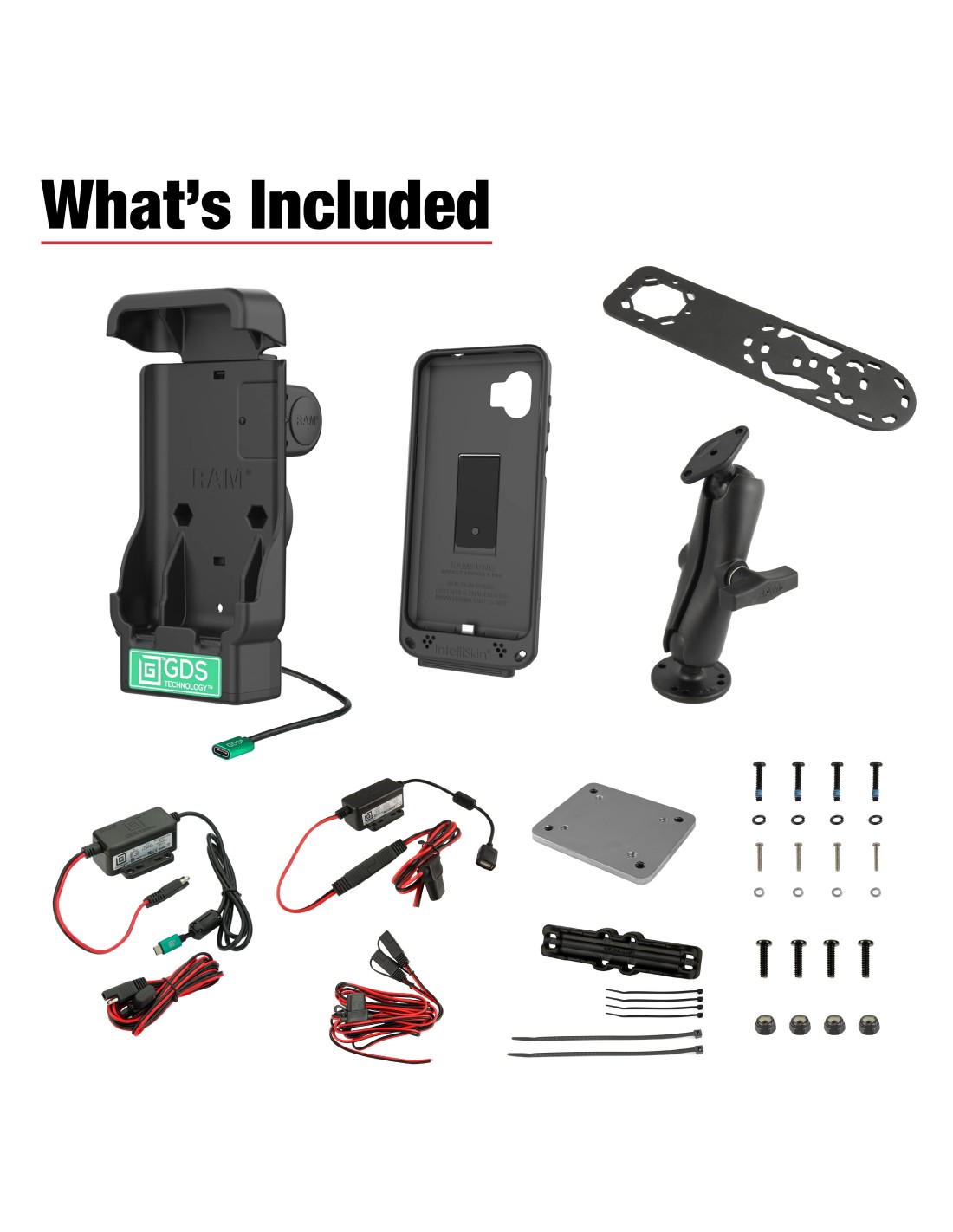

- Bundle includes GDS® DockT, IntelliSkin® for the Samsung XCover7 Pro & 6 Pro, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate
- Dock features GDS® TechnologyT for charging capabilities; USB-C port connects to power
- AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
- Made of high-strength composites for durability and reliability in the most demanding environments
- Backed by a 3-year warranty
- Components
- RAM-101-MIC1U
RAM-138-225B2U
RAM-GDS-CAB-CLAMP1U
RAM-GDS-CAB-CLAMP2U
RAM-GDS-CAB-SAE-SPLIT
RAM-GDS-CHARGE-V7B1U
RAM-GDS-CHARGE-V7CU
RAM-GDS-DOCK-V15-BU
RAM-GDS-SKIN-SAM84-C - Product Line
- GDS® TechT IntelliSkin®
- Product Type
- Phone Mounts
- Ball Size
- C Size (1.5")
- Certifications
- CE Certification
FCC Certification
RCM Certification
UL 62368-1 Certificaton - Hardware Included
- (2) Cable Clamps
Assembly Hardware
Dashboard Backing Plate with Hardware
Hardwire Charger with USB-A Female Connector
Hardwire Charger with USB-C Power Delivery
Mic Bracket
SAE Splitter Cable - Hole Pattern
- 4-Hole AMPS: 1.181" x 1.496"
- Input Connector
- Bare Wire (via SAE Splitter)
- Input Voltage
- 10-30VDC (Both Chargers)
- Materials
- High strength composite
Marine-grade aluminum
Steel - Output Connector
- USB-A for Aina PTT Voice Responder
USB-C for GDS® Dock - Output Voltage
- USB-A Charger: 5-9VDC @ 2.5A
USB-C Charger: 5-15VDC @ 3A - Packaging Type
- Box
- Regulatory
- Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance - Socket To Socket Length
- 4.66"
- Weight Capacity
- Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs - Device Compatibility
- Samsung Galaxy XCover6 Pro
Samsung Galaxy XCover7 Pro
