RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
  • Nuevo
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro
RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro

RAM® Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro

RAM-101-SAM84CP-PTT1

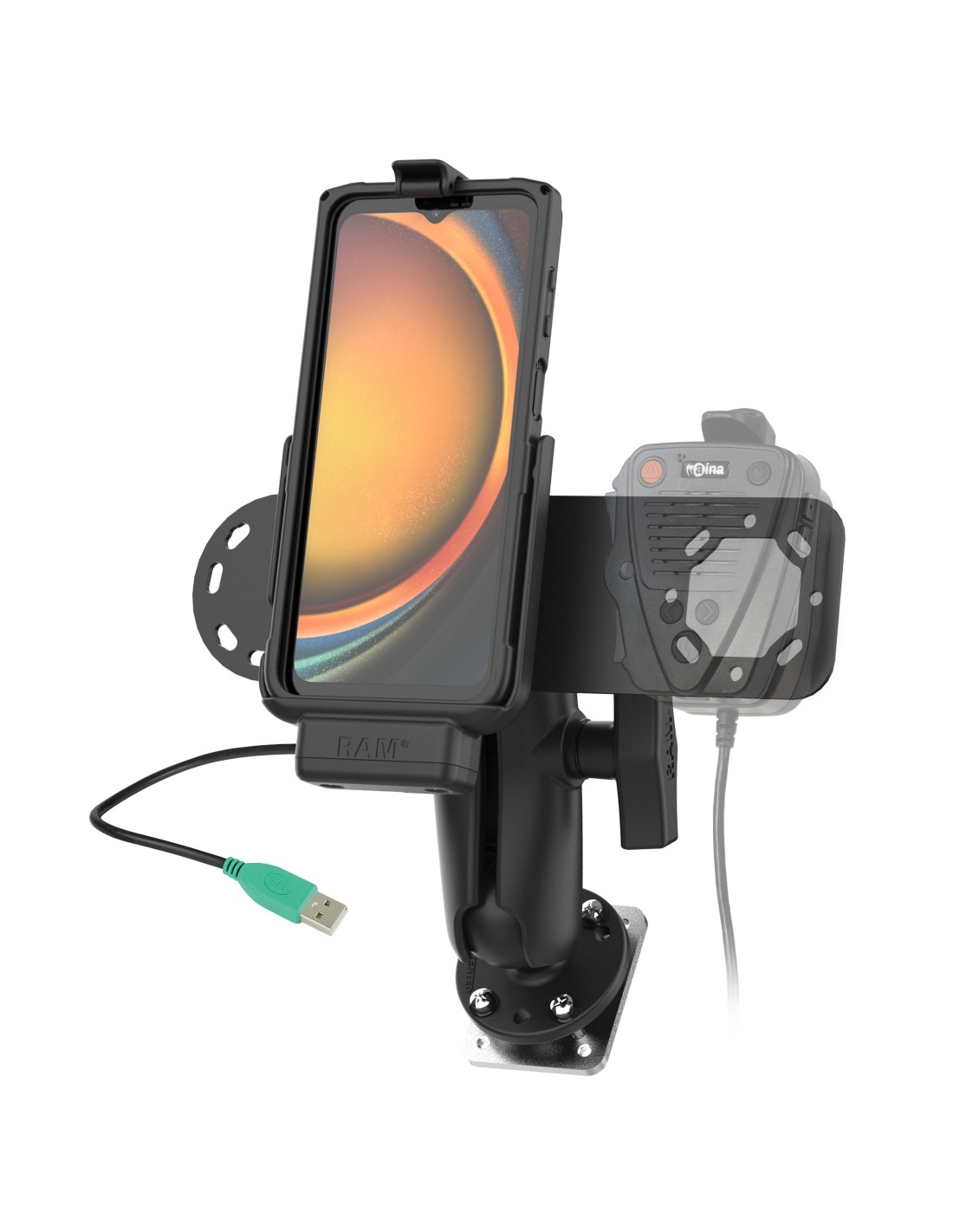

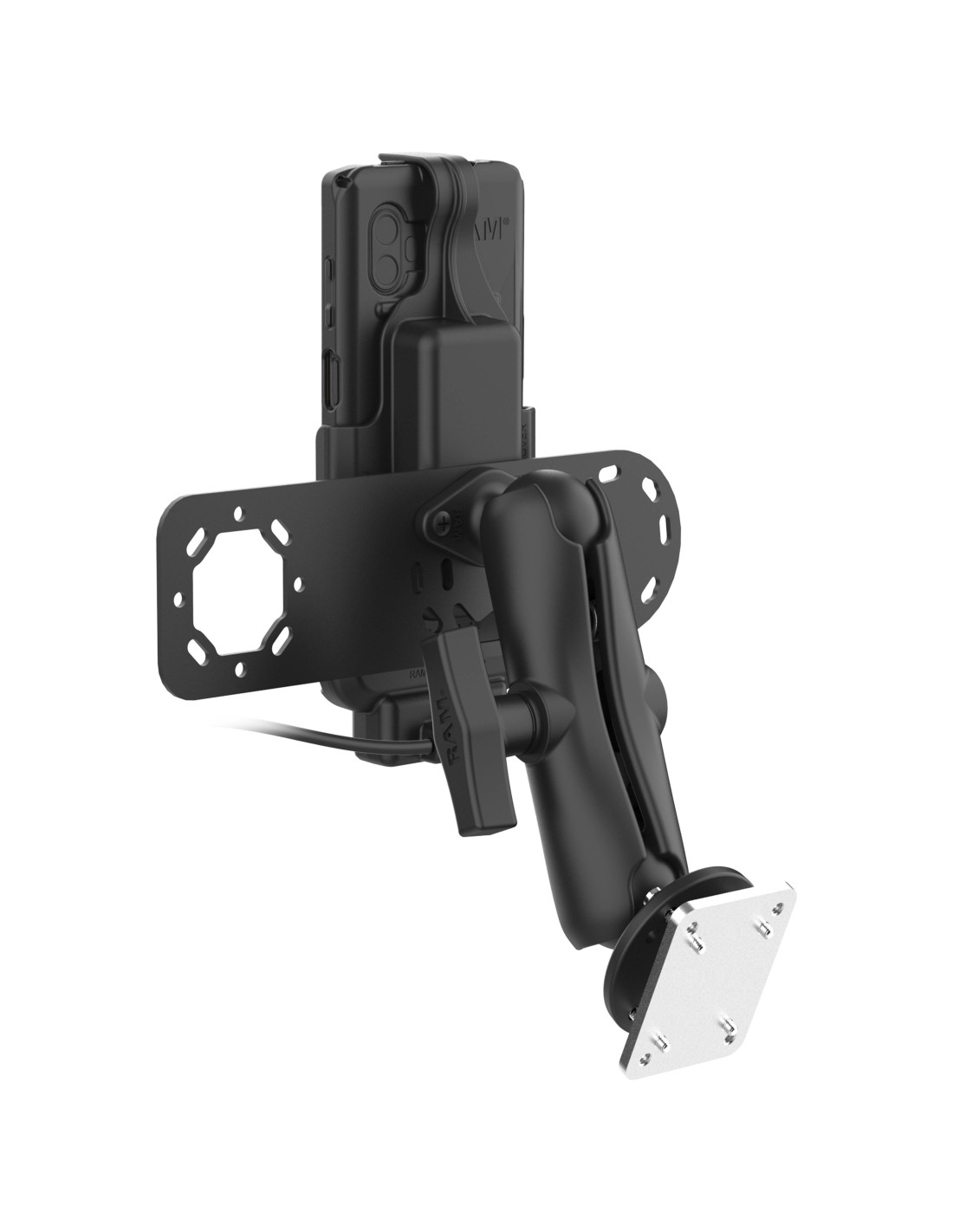

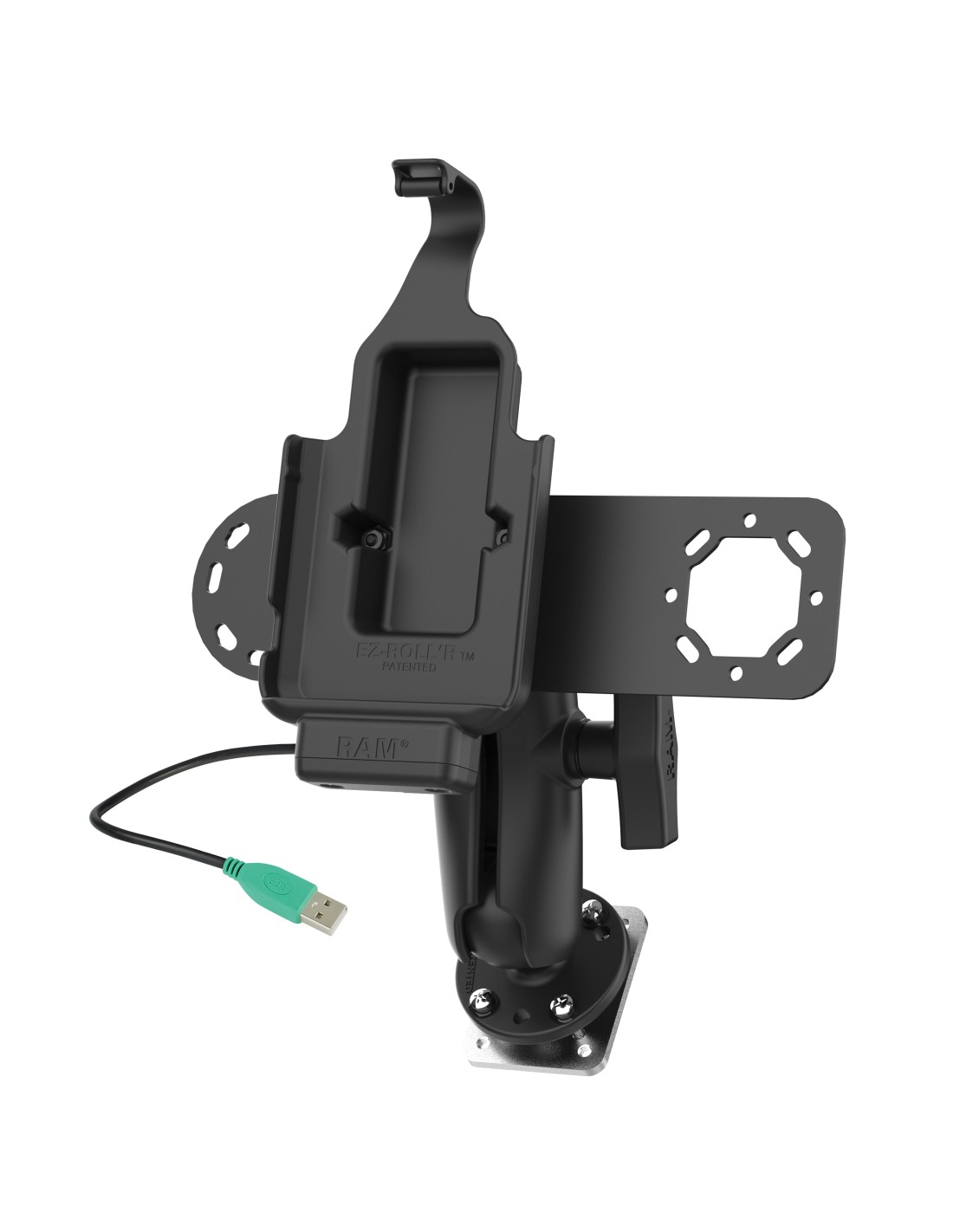

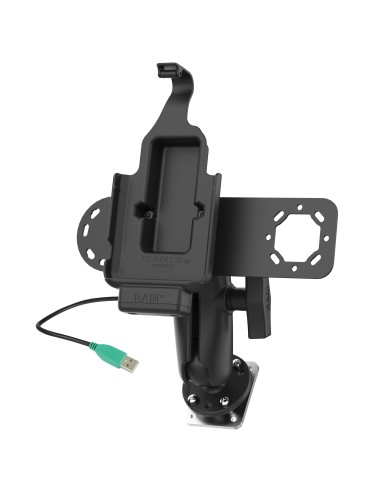

The RAM Aina PTT Voice Responder Bundle for Samsung XCover7 Pro & 6 Pro (RAM-101-SAM84CP-PTT1) is a rugged, all-in-one Push-To-Talk (PTT) mounting solution designed to seamlessly integrate the XCover7 Pro & 6 Pro into mission-critical workflows. Ideal for field operations, public safety, and fleet management, this bundle includes a RAM EZ-Roll'r Dock, RAM Skin, microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate for secure in-vehicle installation. The dock features a USB Type-A male power connector for direct connection to the hardwire charger, while the AINA Vehicle Charging Cradle connects plugs directly into the second hardwire charger for power. Bluetooth-enabled Push-To-Talk communication is supported exclusively through AINA's Voice Responder Remote Speaker Microphone (RSM), offering reliable wireless connectivity in demanding environments. Integrated pogo pins on the dock provide connect directly to the pogo pads integrated on the device, ensuring optimal uptime and device readiness. This PTT bundle is optimized for use with ESChat. Zello, and Kodiak, making it a powerful communication hub for modern mobile teams.

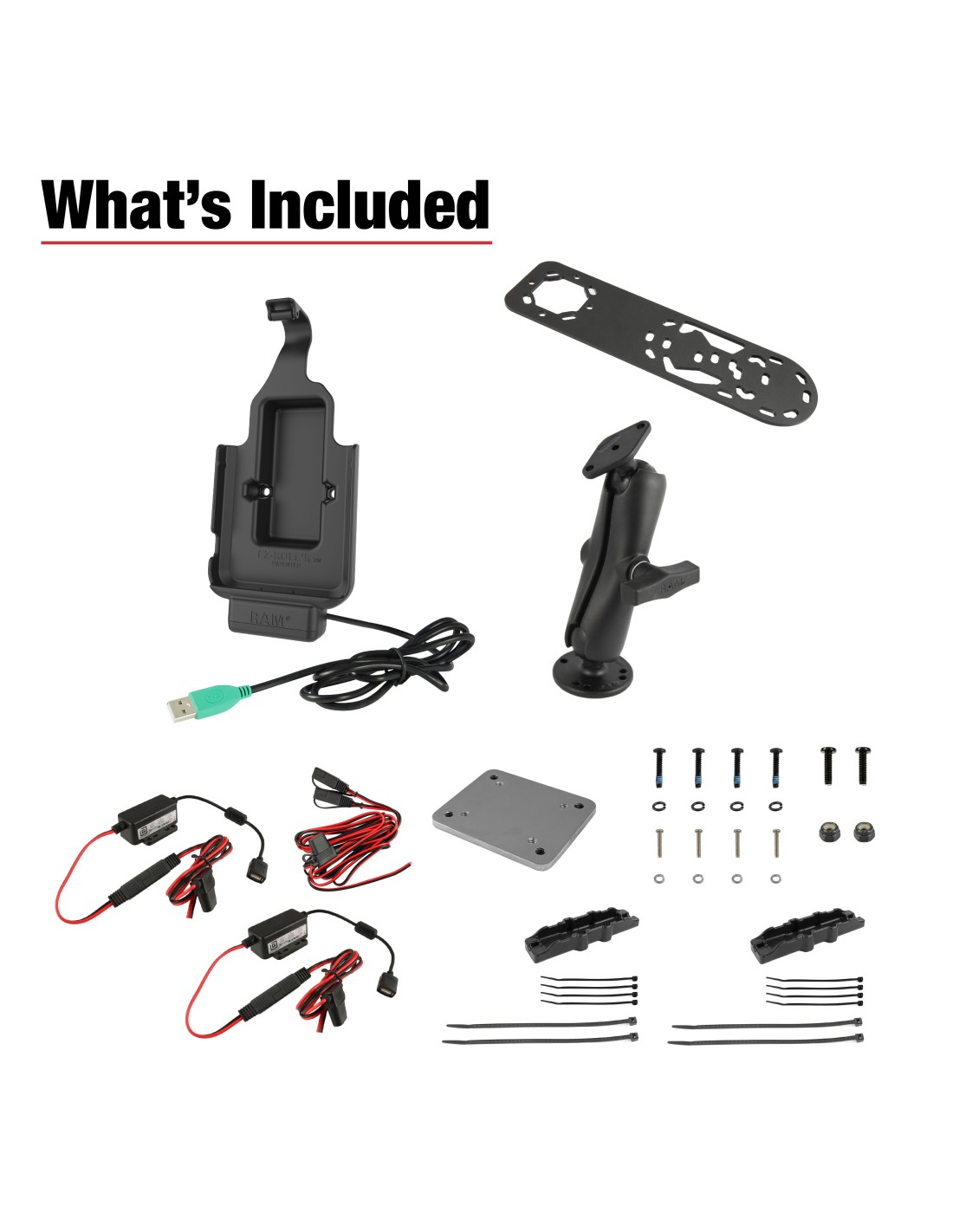

  • Bundle includes RAM® EZ-Roll'rT Dock, RAM® SkinT microphone bracket, two hardwire chargers, SAE splitter, and double ball mount with backing plate
  • Dock's pogo pins align with device's pogo pads for charging capabilities, USB-C port connects to power
  • AINA's Voice Responder RSM and Vehicle Cradle recommended for bluetooth PTT
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty

Components
RAM-101-MIC1U
RAM-138-225B2U
RAM-GDS-CAB-CLAMP2U
RAM-GDS-CAB-SAE-SPLIT
RAM-GDS-CHARGE-V7B1U
RAM-HOL-SAM84CP-1U
Product Type
Phone Mounts
Ball Size
C Size (1.5")
Certifications
E-Mark Certification
IEC/UL 62368-1
RCM Certification
Hardware Included
(2) Cable Clamps
(2) Hardwire Chargers with USB-A Female Connector
Assembly Hardware
Dashboard Backing Plate with Hardware
Mic Bracket
SAE Splitter Cable
Hole Pattern
4-Hole AMPS: 1.181" x 1.496"
Input Connector
Bare Wire (via SAE Splitter)
Input Voltage
10-30VDC (Both Chargers)
Materials
High strength composite
Marine-grade aluminum
Steel
Output Connector
USB-A Female
Output Voltage
5-9VDC @ 2.5A (Both Chargers)
Packaging Type
Box
Product Weight
4.48 lb
Regulatory
FCC, CE, UKCA, IC
Moisture Resistant
Over Voltage Protection
Reverse Polarity Protection
RoHS Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Short Circuit Protection
WEEE Compliance
Socket To Socket Length
4.66"
Weight Capacity
Heavy-Duty Use: 3 lbs
Standard Use: 4 lbs
Device Compatibility
Samsung Galaxy XCover6 Pro with OEM case or RAM® SkinT
Samsung Galaxy XCover7 Pro with OEM case or RAM® SkinT
793442029912
